Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

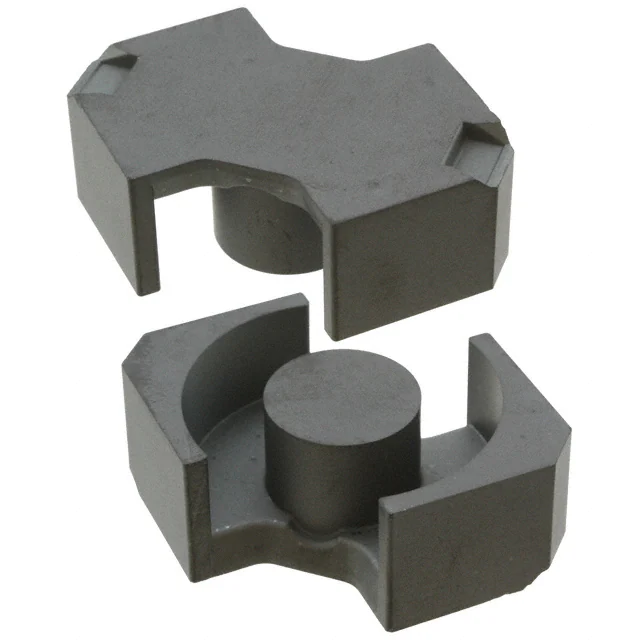

B65815E0000R049 FERRITE CORE RM 3.7UH N49 2PCS EPCOS - TDK Electronics	3,711	7.83	- + RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N49	-	3.7 µH	-20%, +30%	Ungapped	1150	1500	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)

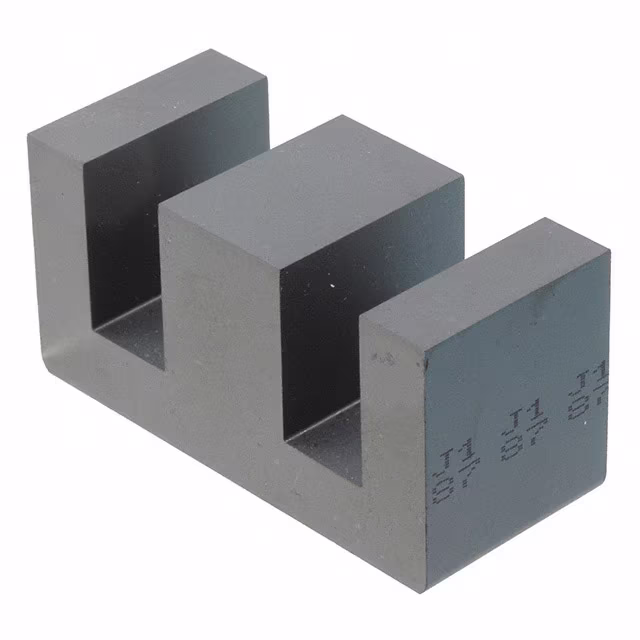

B66344G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	125	7.86	- + RFQ	Datasheet	Box	E55/28/25	Active	E	E 55 x 28 x 25	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)

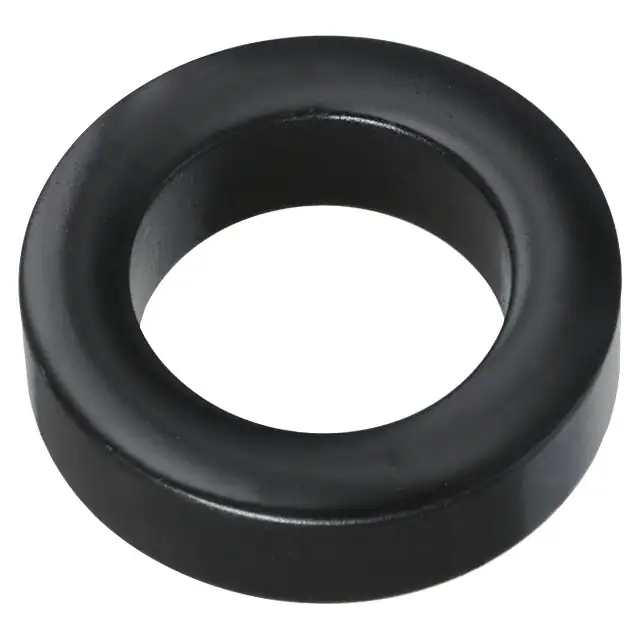

35T1417-00H FERRITE CORE TOROID Laird-Signal Integrity Products	3,095	8.05	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	1.467 (37.27mm)	4.456 µH	±20%	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.434 (11.02mm)
PQ40/30-3C95 FERRITE CORE 2PC SET Ferroxcube	713	8.07	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 40 x 30	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.181 (30.00mm)
PQ40/30-3C97 FERRITE CORE 2PC SET Ferroxcube	230	8.09	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 40 x 30	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.181 (30.00mm)
PC95PQ60/52-Z FERRITE CORE PQ 11.2UH 2PC SET TDK Corporation	3,629	46.18	- + RFQ	Datasheet	Tray	Large PQ	Active	PQ	PQ 60 x 52	PC95	-	11.2 µH	±25%	Ungapped	-	-	0.25	118	477	-	56237	Uncoated	2.028 (51.50mm)

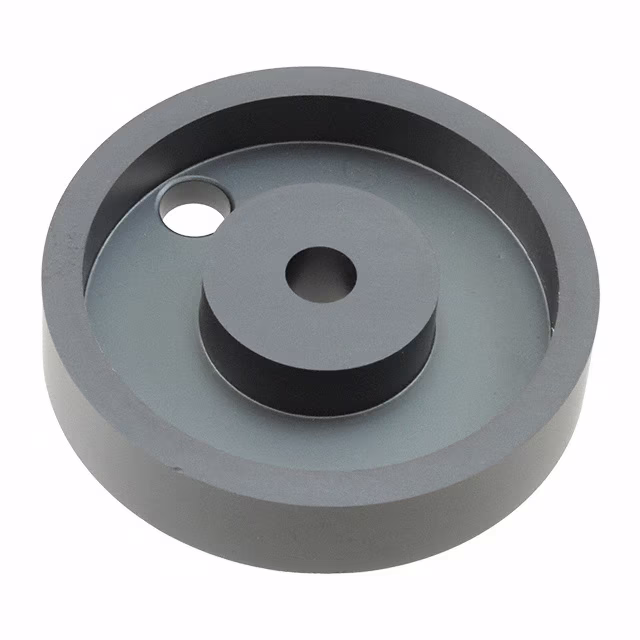

B65945A0000X022 FERRITE CORE P N22 EPCOS - TDK Electronics	2,731	47.32	- + RFQ	Datasheet	Box	PCH70/14.5	Active	P (Pot Core)	P Core Half 70 x 14.5	N22	2.756 (70.00mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.571 (14.50mm)
PC95SP110X40X20 FERRITE CORE SP 1PCS TDK Corporation	2,766	48.38	- + RFQ	Datasheet	Tray	SP	Active	SP	SP 110 x 40 x 20	PC95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)

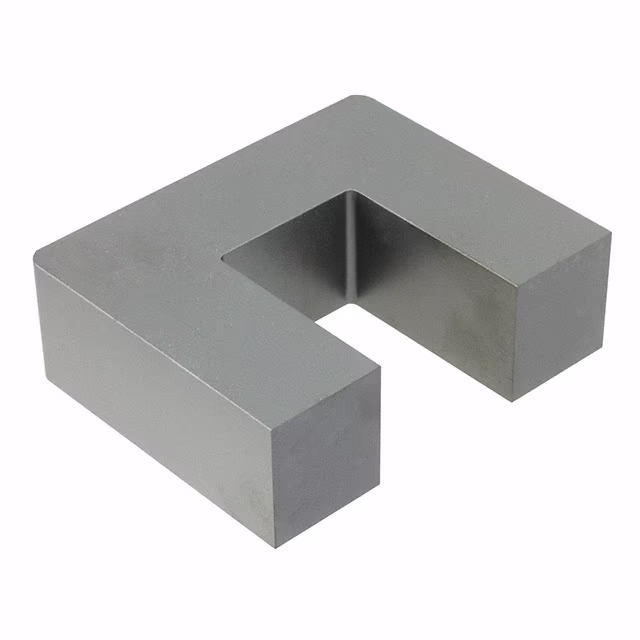

B67345B0001X027 FERRITE CORE U N27 1PC EPCOS - TDK Electronics	3,639	54.57	- + RFQ	Datasheet	Box	U93/76/30	Active	U	U 93 x 76 x 30	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
PC95PQ65/44-Z FERRITE CORE PQ 15.5UH 2PC SET TDK Corporation	3,894	54.69	- + RFQ	Datasheet	Tray	Large PQ	Active	PQ	PQ 65 x 44	PC95	-	15.5 µH	±25%	Ungapped	-	-	0.17	103	604	-	62460	Uncoated	1.713 (43.50mm)
E47/20/16-3C94 FERRITE CORE Ferroxcube	2,341	3.06	- + RFQ	Datasheet	Bulk	-	Active	E	E 47 x 20 x 16	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.772 (19.60mm)
B66347G0000X187 FERRITE CORE ER N87 1PC EPCOS - TDK Electronics	2,557	3.12	- + RFQ	Datasheet	Box	ER42/22/15	Active	ER	ER 42 x 22 x 15	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.858 (21.80mm)
PC47EI35-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	3,101	3.29	- + RFQ	Datasheet	Tray	E	Active	E	-	PC47	-	3.8 µH	±25%	Ungapped	-	2500	0.664	67.1	101	-	6780	Uncoated	-
TX36/23/10-3E12 FERRITE CORES ROUND Ferroxcube	3,833	3.30	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 10	-	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.430 (10.92mm)

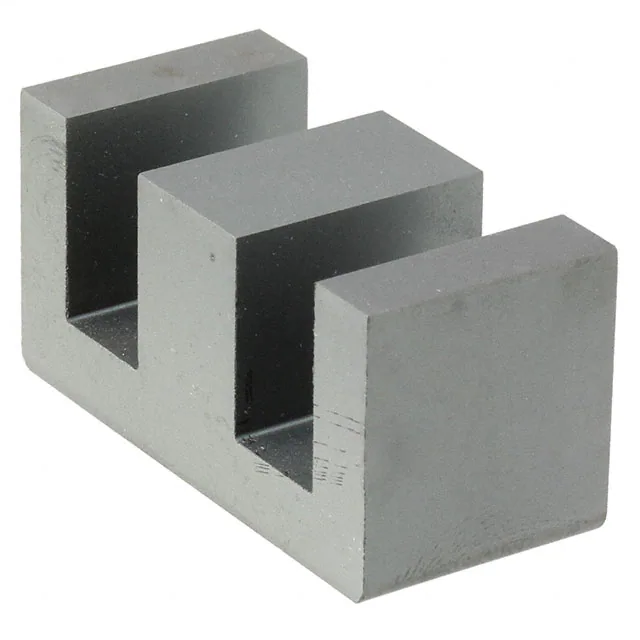

B66329G0500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,117	3.51	- + RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B64290A0658X035 FERRITE CORE TOROID 2.65UH T35 EPCOS - TDK Electronics	3,863	0.30	- + RFQ	Datasheet	Box	T14/9/5	Active	Toroid	R 14 x 9 x 5	T35	0.551 (14.00mm)	2.65 µH	±25%	Ungapped	-	6000	2.84	34.98	12.3	-	430	Uncoated	0.197 (5.00mm)
B66379G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,817	0.31	- + RFQ	Datasheet	Box	E19/8/5	Active	E	E 19 x 8 x 5	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)
B66413A0040J087 FERRITE CORE EPCOS - TDK Electronics	3,494	0.31	- + RFQ		Box	EFD15/8/5	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-
B66413U0160K187 FERRITE CORE EPCOS - TDK Electronics	2,022	0.31	- + RFQ	Datasheet	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N87	-	-	-	Gapped	-	2200	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
B64290L0644X038 FERRITE CORE TOROID 4.7UH T38 EPCOS - TDK Electronics	3,626	0.31	- + RFQ	Datasheet	Box	TX13.3/8.3/5	Active	Toroid	-	T38	0.567 (14.40mm)	4.7 µH	±30%	Ungapped	-	10000	2.67	32.7	12.27	-	401	Epoxy	0.234 (5.95mm)
