Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

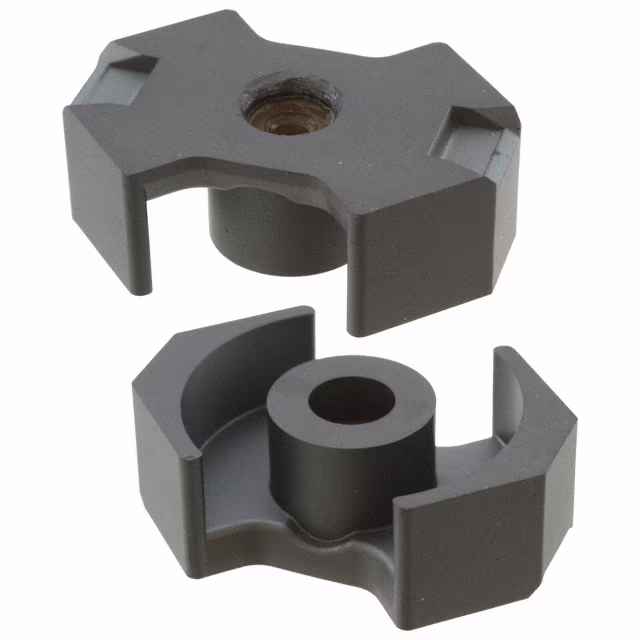

B65813N0630A048 FERRITE CORE RM 630NH N48 2PCS EPCOS - TDK Electronics	2,675	6.86	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N48	-	630 nH	±3%	Gapped	254	-	0.5	42	83	-	3490	Uncoated	0.368 (9.35mm)

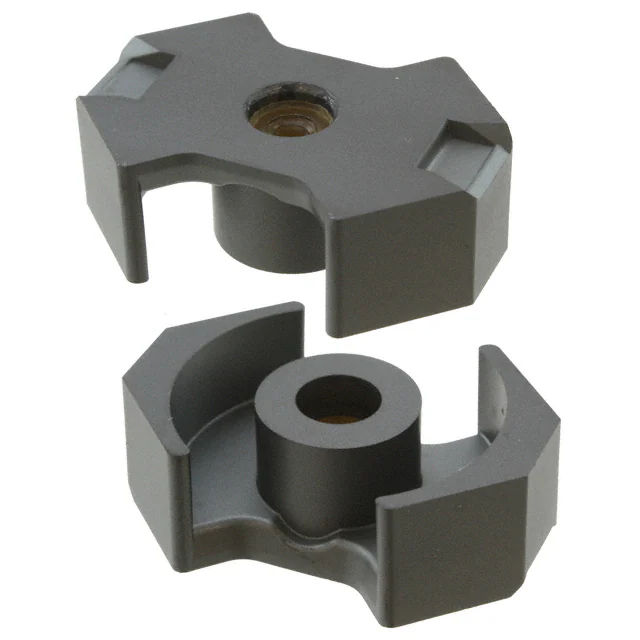

B65813N0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	3,264	6.86	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N48	-	400 nH	±3%	Gapped	161	-	0.5	42	83	-	3490	Uncoated	0.368 (9.35mm)
TX42/26/13-3E12 FERRITE CORES ROUND Ferroxcube	933	7.02	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 13	-	1.697 (43.15mm)	-	±30%	Ungapped	12000	-	1.076	103	95.8	-	9860	Epoxy	0.531 (13.50mm)
B64290L0674X065 FERRITE CORE TOROID 6.8UH T65 EPCOS - TDK Electronics	2,293	7.08	- + RFQ	Datasheet	Box	TX36/23/15	Active	Toroid	-	T65	1.476 (37.50mm)	6.8 µH	±30%	Ungapped	-	5000	0.94	89.65	95.89	-	8597	Epoxy	0.638 (16.20mm)

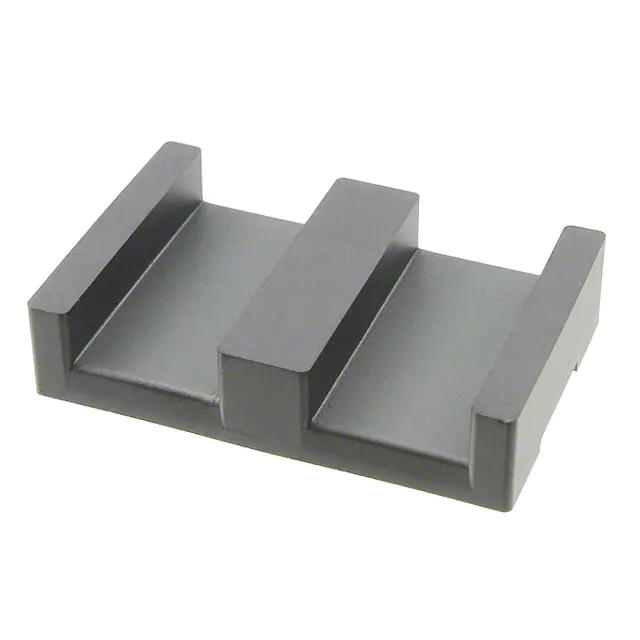

B66291G0000X149 FERRITE CORE ELP N49 1PC EPCOS - TDK Electronics	621	7.19	- + RFQ	Datasheet	Box	ELP43/10/28	Active	ELP	ELP 43 x 10 x 28	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
B66291K0000X149 FERRITE CORE I N49 EPCOS - TDK Electronics	306	7.22	- + RFQ	Datasheet	Bag	I43/4/28	Active	I	I 43 x 4 x 28	N49	-	5.9 µH	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
B66289G0000X149 FERRITE CORE ELP N49 1PC EPCOS - TDK Electronics	707	7.29	- + RFQ	Datasheet	Box	ELP38/8/25	Active	ELP	ELP 38 x 8 x 25	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.324 (8.25mm)
B65879B0000R087 FERRITE CORE PQ 4.8UH N87 2PCS EPCOS - TDK Electronics	139	7.31	- + RFQ	Datasheet	Box	PQ32/30	Active	PQ	PQ 32 x 30	N87	-	4.8 µH	-20%, +30%	Ungapped	1700	2200	0.441	67.8	153.8	127.5	10440	Uncoated	0.597 (15.17mm)
B66289K0000X149 FERRITE CORE I N49 EPCOS - TDK Electronics	630	7.33	- + RFQ	Datasheet	Tray	I38/4/25	Active	I	I 38 x 4 x 25	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)
PQ35/35-3F46 PQ CORES 2PC SET Ferroxcube	122	7.33	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 35	3F46	-	-	±25%	Ungapped	-	-	0.454	86.1	190	162	16300	Uncoated	1.366 (34.70mm)
TX40/24/16-3E27 FERRITE CORES ROUND Ferroxcube	3,676	7.35	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 40 x 24 x 16	3E27	1.640 (41.65mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.673 (17.10mm)

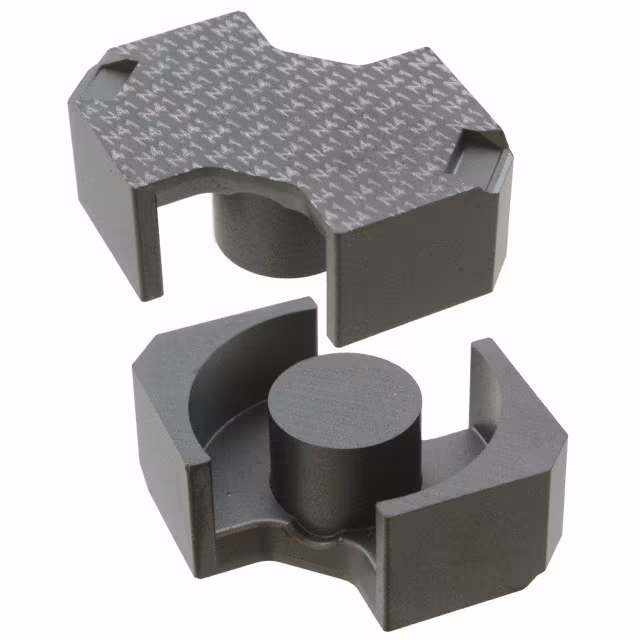

B65815E0000R041 FERRITE CORE RM 6UH N41 2PCS EPCOS - TDK Electronics	3,498	7.40	- + RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N41	-	6 µH	-20%, +30%	Ungapped	1860	2800	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)

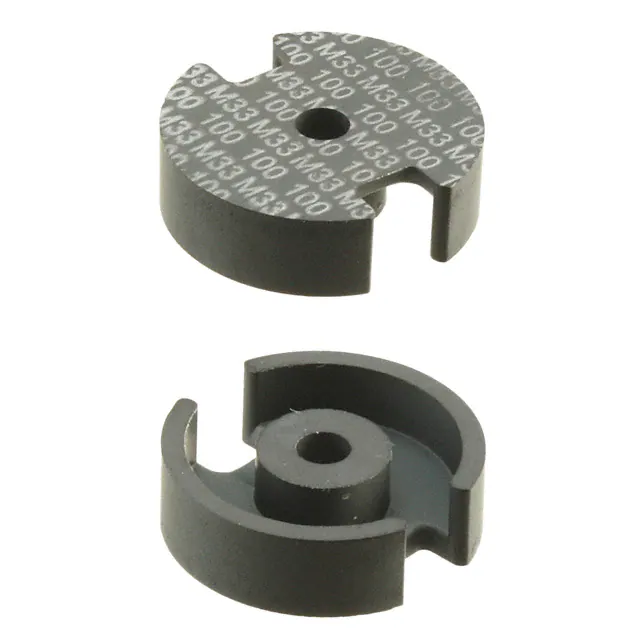

B65651T0100A033 FERRITE CORE P 100NH M33 2PCS EPCOS - TDK Electronics	943	7.46	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	M33	0.724 (18.40mm)	100 nH	±3%	Gapped	48	750	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
E58/11/38-3F36 FERRITE CORE Ferroxcube	713	7.56	- + RFQ	Datasheet	Bulk	-	Active	E	E 58 x 11 x 38	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.413 (10.50mm)
B64290A0659X830 FERRITE CORE TOROID 7UH N30 EPCOS - TDK Electronics	135	7.63	- + RFQ	Datasheet	Box	T40/24/16	Active	Toroid	R 40 x 24 x 16	N30	1.575 (40.00mm)	7 µH	±25%	Ungapped	-	4300	0.77	96.29	125.3	-	12070	Uncoated	0.630 (16.00mm)
B66461K0000X197 FERRITE CORE I N97 EPCOS - TDK Electronics	2,463	7.68	- + RFQ	Datasheet	Bag	I43/4/28	Active	I	I 43 x 4 x 28	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)

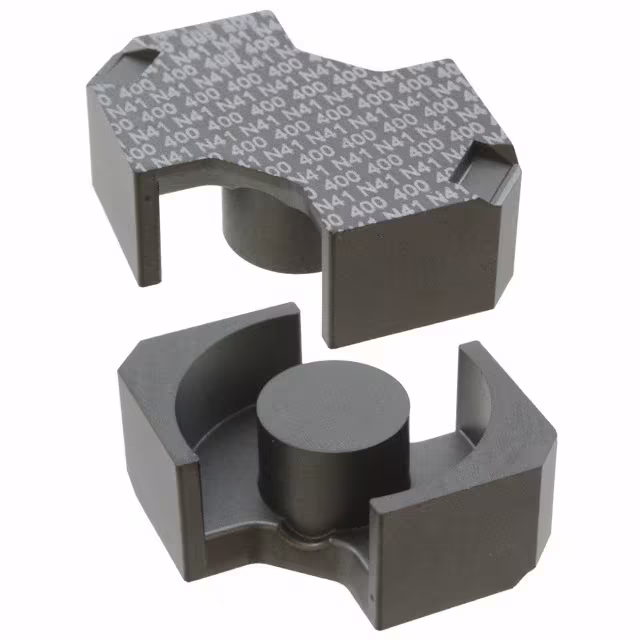

B65815E0400J041 FERRITE CORE RM 400NH N41 2PCS EPCOS - TDK Electronics	167	7.69	- + RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N41	-	400 nH	±5%	Gapped	124	2800	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
TX42/26/18-3C90 FERRITE CORES ROUND Ferroxcube	573	7.72	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 18	3C90	1.697 (43.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.736 (18.70mm)
TX42/26/18-3C94 FERRITE CORES ROUND Ferroxcube	422	7.72	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 18	3C94	1.697 (43.15mm)	-	±25%	Ungapped	2300	-	0.769	103	134	-	13810	Epoxy	0.736 (18.70mm)
B65877A0000R097 FERRITE CORE PQ 4.65UH N97 2PCS EPCOS - TDK Electronics	3,820	7.74	- + RFQ	Datasheet	Box	PQ26/25	Active	PQ	PQ 26 x 25	N97	-	4.65 µH	-20%, +30%	Ungapped	1620	2300	0.44	53.6	122	108.7	6530	Uncoated	0.487 (12.38mm)
