Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E14/3.5/5/R-3F36-A63-P PLANAR E CORES Ferroxcube	2,064	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5/R-3F46-A100-P PLANAR E CORES Ferroxcube	3,443	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
E14/3.5/5/R-3F46-A63-P PLANAR E CORES Ferroxcube	3,021	0.43	- + RFQ	Datasheet	Bulk	-	Active	E	E 14 x 3.5 x 5	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)
ER28/14/11-3C94-G200 ER AND ETD CORES Ferroxcube	2,776	0.43	- + RFQ	Datasheet	Bulk	-	Active	ER	ER 28 x 14 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.551 (14.00mm)
ETD29/16/10-3C90-G100 ER AND ETD CORES Ferroxcube	2,819	0.43	- + RFQ		Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
E25/13/11-3C92-G200 E CORES Ferroxcube	3,765	0.45	- + RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 11	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
E30/15/7-3C92-G200 E CORES Ferroxcube	2,370	0.45	- + RFQ	Datasheet	Bulk	-	Active	E	E 30 x 15 x 7	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
ETD29/16/10-3C95 ER AND ETD CORES Ferroxcube	2,555	0.45	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)
4277142009 77 SLEEVE Fair-Rite Products Corp.	3,663	0.46	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	77	-	-	-	Ungapped	-	2000	-	-	-	-	-	Uncoated	-
B64290A0045X038 FERRITE CORE TOROID 6.44UH T38 EPCOS - TDK Electronics	2,652	0.46	- + RFQ	Datasheet	Box	T16/9.6/6.3	Active	Toroid	R 16 x 9.6 x 6.3	T38	0.630 (16.00mm)	6.44 µH	±30%	Ungapped	-	10000	1.95	38.52	19.73	-	760	Uncoated	0.248 (6.30mm)
EC70/34/17-3C94 FERRITE CORE Ferroxcube	439	8.10	- + RFQ	Datasheet	Bulk	-	Active	EC	EC 70 x 34 x 17	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.358 (34.50mm)

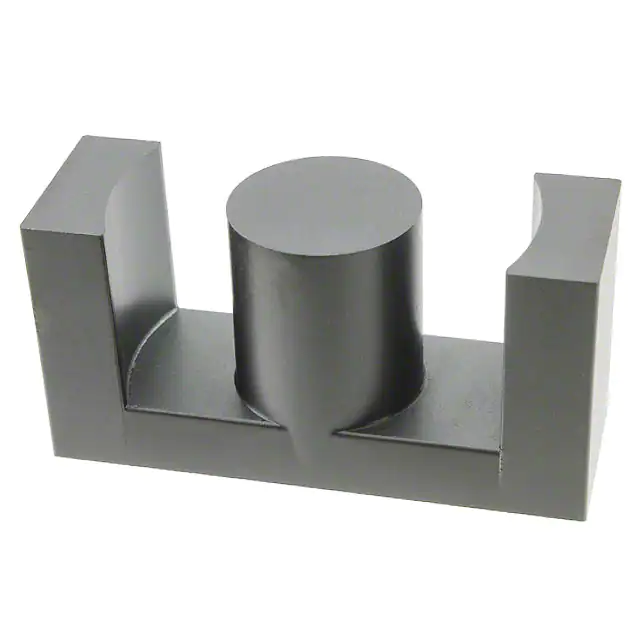

B66395G0000X197 FERRITE CORE ETD N97 1PC EPCOS - TDK Electronics	157	8.19	- + RFQ	Datasheet	Box	ETD54/28/19	Active	ETD	ETD 54 x 28 x 19	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
B65671W0000Y038 FERRITE CORE P 22UH T38 2PCS EPCOS - TDK Electronics	605	8.26	- + RFQ	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	T38	1.024 (26.00mm)	22 µH	-30%, +40%	Ungapped	6480	10000	0.37	40	108	87	4320	Uncoated	0.321 (8.15mm)
B65701W0000R030 FERRITE CORE P 11.5UH N30 2PCS EPCOS - TDK Electronics	534	8.35	- + RFQ	Datasheet	Box	P30/19	Active	P (Pot Core)	P 30 x 19	N30	1.200 (30.50mm)	11.5 µH	-20%, +30%	Ungapped	2900	4300	0.32	46	145	117	6670	Uncoated	0.374 (9.50mm)
PC95PQ26/25Z-12 FERRITE CORE PQ 6.52UH 2PC SET TDK Corporation	306	8.39	- + RFQ	Datasheet	Tray	PQ	Active	PQ	PQ 26 x 25	PC95	-	6.52 µH	±25%	Ungapped	-	-	0.47	55.5	118	-	6530	Uncoated	0.974 (24.75mm)

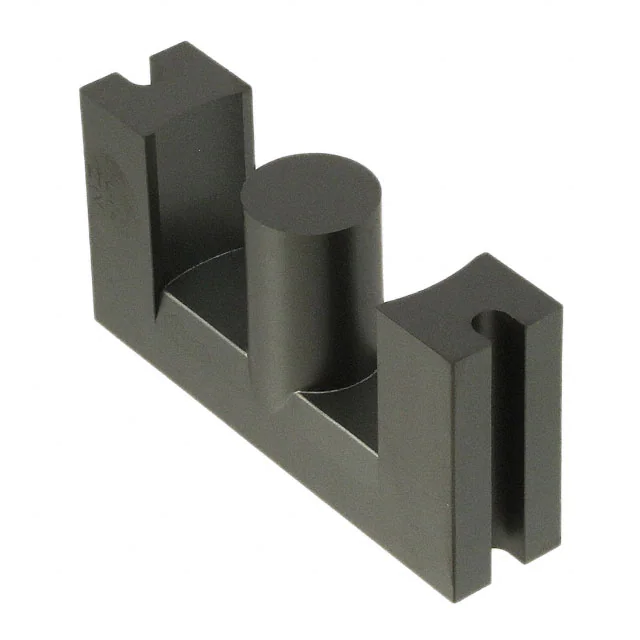

B66343G0000X127 FERRITE CORE EC N27 1PC EPCOS - TDK Electronics	570	8.46	- + RFQ	Datasheet	Box	EC70/35/16	Active	EC	EC 70 x 35 x 16	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.364 (34.65mm)
B65807N0040A001 FERRITE CORE RM 40NH K1 2PCS EPCOS - TDK Electronics	935	8.54	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	K1	-	40 nH	±3%	Gapped	27.4	80	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
B66395G1000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	273	8.59	- + RFQ	Datasheet	Box	ETD54/28/19	Active	ETD	ETD 54 x 28 x 19	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)
B66395G0500X187 FERRITE CORE EPCOS - TDK Electronics	197	8.59	- + RFQ	Datasheet	Box	ETD54/28/19	Active	ETD	ETD 54 x 28 x 19	N87	-	-	-	Gapped	-	2200	0.45	127	280	280	35600	Uncoated	1.094 (27.80mm)
5978018601 78 TOROID Fair-Rite Products Corp.	143	8.73	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	78	-	-	±25%	Ungapped	-	2300	-	98	178	-	17500	Uncoated	-
