Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
RM12/ILP-3C95 FERRITE CORE 2PC SET Ferroxcube	320	5.89	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.661 (16.80mm)

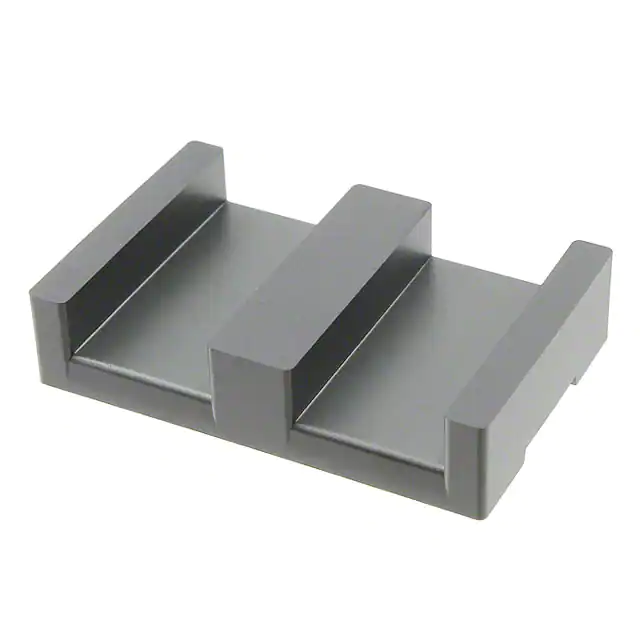

B66291G0000X197 FERRITE CORE ELP N97 EPCOS - TDK Electronics	661	5.92	- + RFQ	Datasheet	Bag	ELP43/10/28	Active	ELP	ELP 43 x 10 x 28	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
PQ32/30-3C97 FERRITE CORE 2PC SET Ferroxcube	546	5.94	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 30	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.193 (30.30mm)
B65877B0000R097 FERRITE CORE PQ 5.15UH N97 2PCS EPCOS - TDK Electronics	393	5.96	- + RFQ	Datasheet	Box	PQ26/20	Active	PQ	PQ 26 x 20	N97	-	5.15 µH	-20%, +30%	Ungapped	1480	2300	0.363	44.4	122.3	108.8	5435	Uncoated	0.397 (10.08mm)
B65877B0000R087 FERRITE CORE PQ 5UH N87 2PCS EPCOS - TDK Electronics	244	6.08	- + RFQ	Datasheet	Box	PQ26/20	Active	PQ	PQ 26 x 20	N87	-	5 µH	-20%, +30%	Ungapped	1440	2200	0.363	44.4	122.3	108.8	5435	Uncoated	0.397 (10.08mm)
B66461G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	296	6.11	- + RFQ	Datasheet	Box	ELP43/10/28	Active	ELP	ELP 43 x 10 x 28	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)

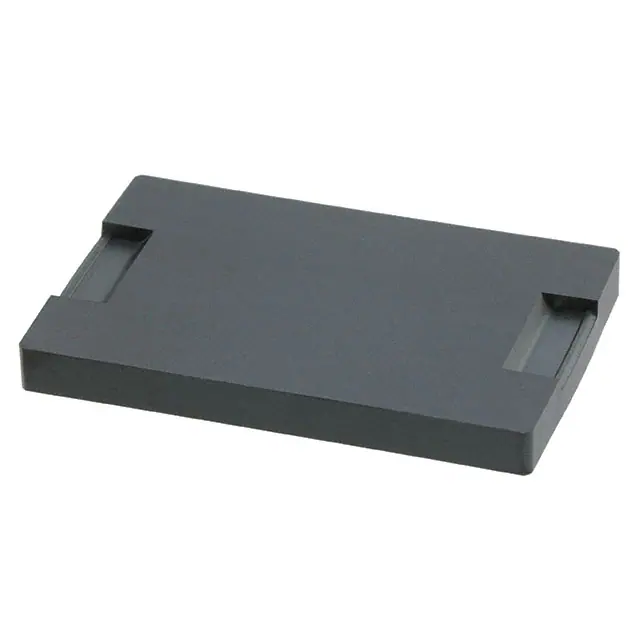

B66291K0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	2,199	6.12	- + RFQ	Datasheet	Bulk	I43/4/28	Active	I	I 43 x 4 x 28	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
B66461K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	3,198	6.12	- + RFQ	Datasheet	Bag	I43/4/28	Active	I	I 43 x 4 x 28	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)

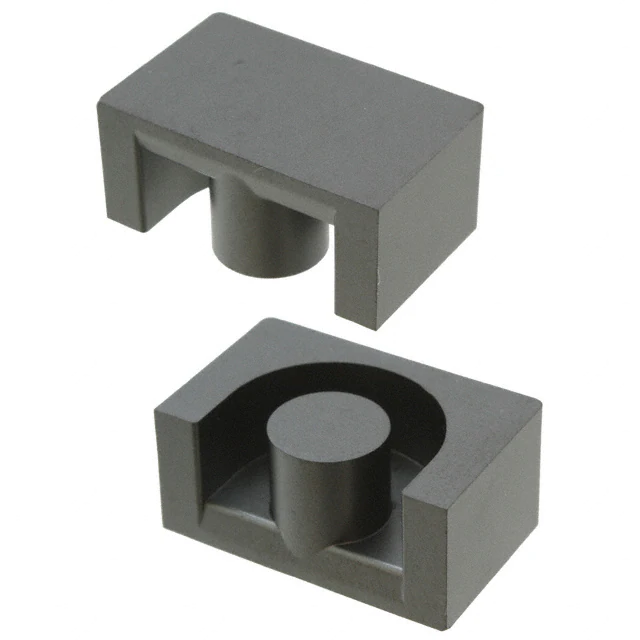

B65847A0000R087 FERRITE CORE EP 4UH N87 2PCS EPCOS - TDK Electronics	757	6.14	- + RFQ	Datasheet	Box	EP20	Active	EP	EP 20	N87	-	4 µH	-20%, +30%	Ungapped	1630	2200	0.51	40	78	60	3120	Uncoated	0.425 (10.80mm)
TX40/24/16-3C94 FERRITE CORES ROUND Ferroxcube	167	6.38	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 40 x 24 x 16	3C94	1.640 (41.65mm)	-	±25%	Ungapped	2300	-	0.769	96.3	125	-	12100	Epoxy	0.673 (17.10mm)
B64290L0668X087 FERRITE CORE TOROID 3.87UH N87 EPCOS - TDK Electronics	230	6.43	- + RFQ	Datasheet	Box	TX38/19/13	Active	Toroid	-	N87	1.551 (39.40mm)	3.87 µH	±25%	Ungapped	-	2200	0.71	82.97	116.2	-	9644	Epoxy	0.543 (13.80mm)
B66329G0000X197 FERRITE CORE E N97 1PC EPCOS - TDK Electronics	285	6.45	- + RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)

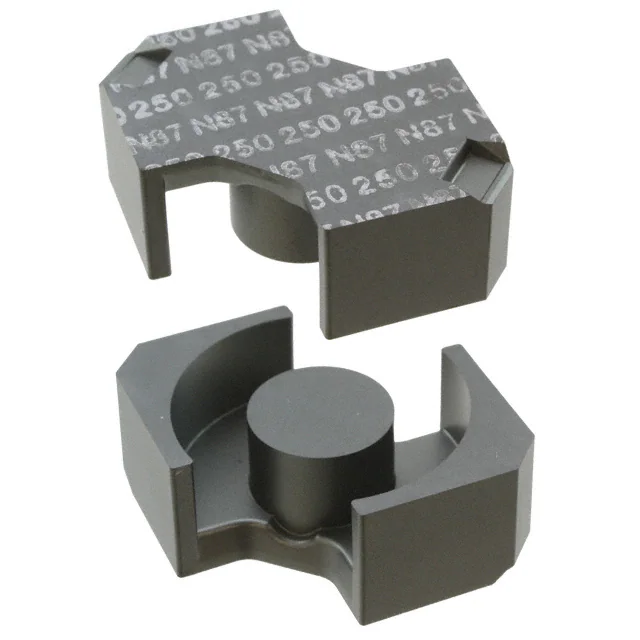

B65815E0250A087 FERRITE CORE RM N87 2PCS EPCOS - TDK Electronics	3,211	6.54	- + RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N87	-	-	-	Gapped	-	-	0.39	57	146	-	8320	Uncoated	0.484 (12.30mm)
RM12/I-3C95 FERRITE CORE 2PC SET Ferroxcube	231	6.54	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 12	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.965 (24.50mm)

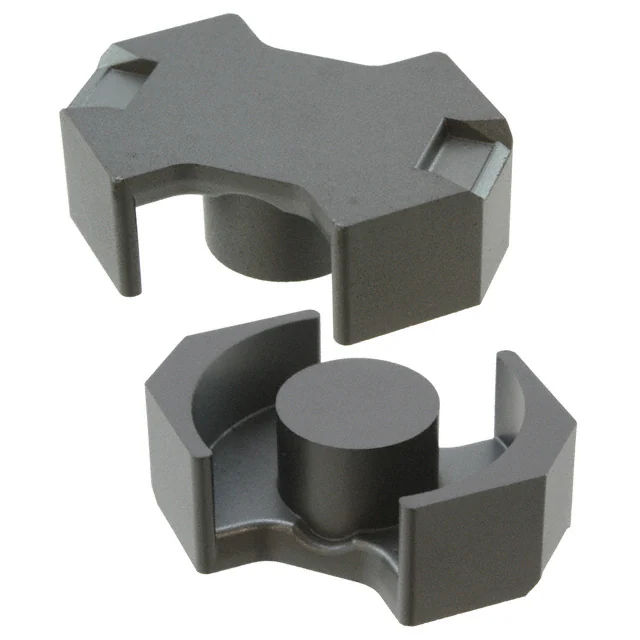

B65815E0160A087 FERRITE CORE EPCOS - TDK Electronics	120	6.54	- + RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N87	-	-	-	Gapped	-	2200	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
B65879A0000R097 FERRITE CORE PQ 6.5UH N97 2PCS EPCOS - TDK Electronics	3,393	6.68	- + RFQ	Datasheet	Box	PQ32/20	Active	PQ	PQ 32 x 20	N97	-	6.5 µH	-20%, +30%	Ungapped	1625	2300	0.314	48.4	154.2	127.5	7460	Uncoated	0.404 (10.25mm)

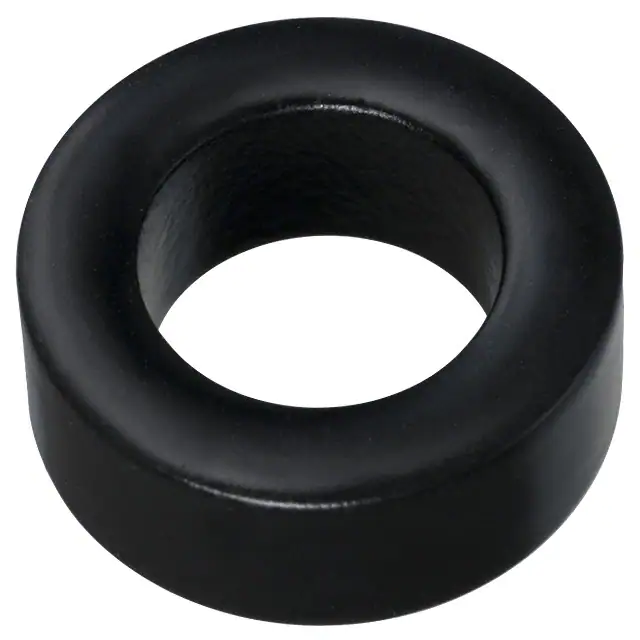

35T1000-00H FERRITE INDUCTR TOROID 1.050 OD Laird-Signal Integrity Products	3,371	6.69	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	1.050 (26.67mm)	4.83 µH	±20%	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.434 (11.02mm)
PQ40/30-3F36 FERRITE CORE 2PC SET Ferroxcube	378	6.70	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 40 x 30	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.181 (30.00mm)
ETD59/31/22-3C94 FERRITE CORE Ferroxcube	303	6.70	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)

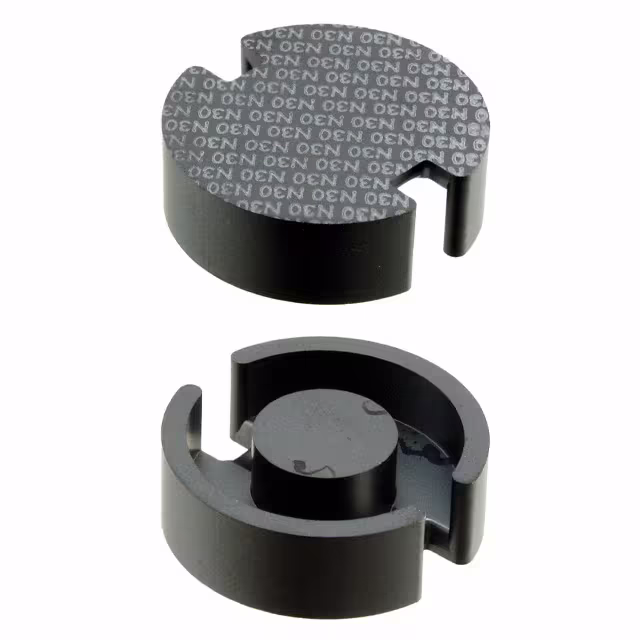

B65671W0000R030 FERRITE CORE P 9.7UH N30 2PCS EPCOS - TDK Electronics	647	6.80	- + RFQ	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N30	1.024 (26.00mm)	9.7 µH	-20%, +30%	Ungapped	2860	4300	0.37	40	108	87	4320	Uncoated	0.321 (8.15mm)
