Wireless Charging Coils - Zhuoliou industry co.,ltd

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature

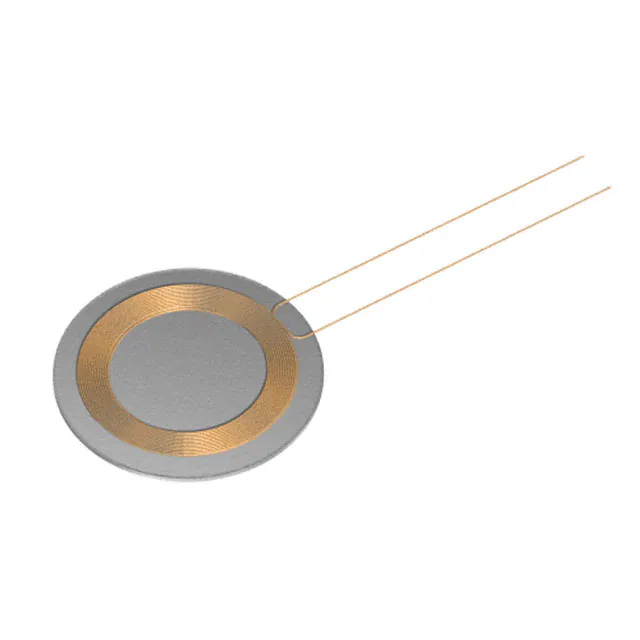

WR222230-26M8-G RX 1 COIL 2 LYR 27UH TDK Corporation	3,545	3.18	- + RFQ		Tray	WR	Active	Receiver	1 Coil, 2 Layer	27µH	-	1.1Ohm Max	-	-	-	-	-

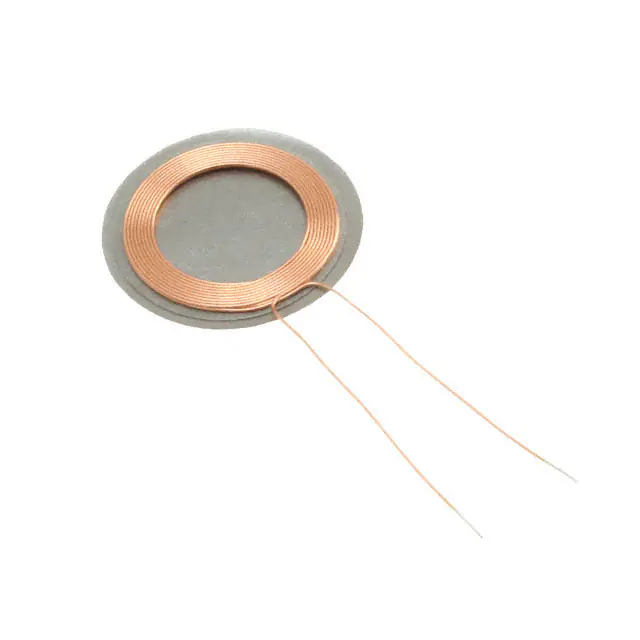

WR202010-18M8-ID RX 1 COIL 2 LYR 11UH TDK Corporation	3,600	4.15	- + RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 2 Layer	11µH	±5%	350mOhm	-	-	-	-	-

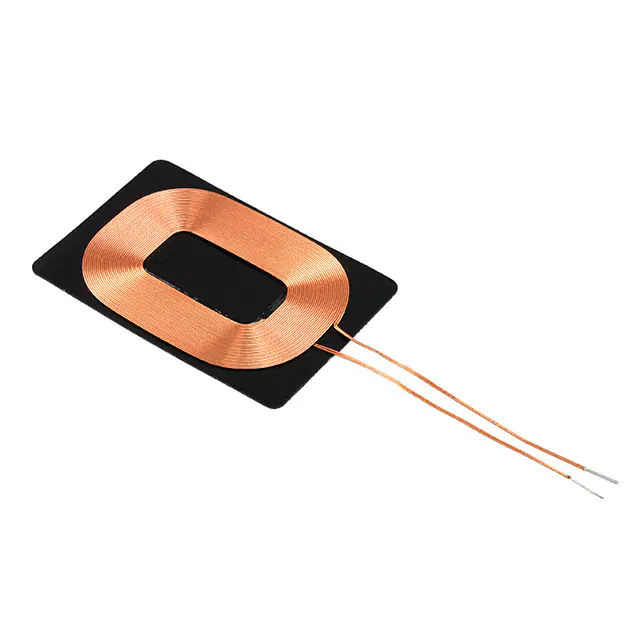

WR483245-15F5-G RX 1 COIL 1 LYR 13UH TDK Corporation	3,364	6.03	- + RFQ		Tray	WR	Active	Receiver	1 Coil, 1 Layer	13µH	-	200mOhm	-	-	-	-	-

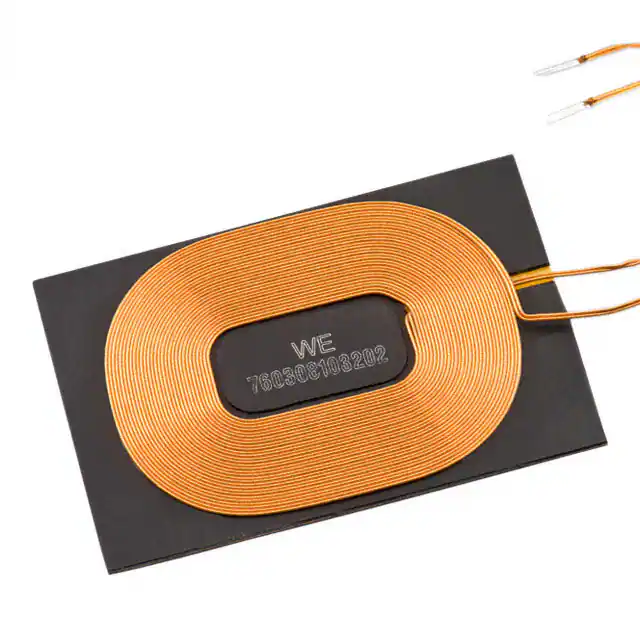

760308103202 RX 1 COIL 1 LYR BIFILAR 12UH Würth Elektronik	803	6.45	- + RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer, Bifilar	12µH	±10%	160mOhm	33 @ 125kHz	2.9A	6A	25MHz	-20°C ~ 105°C

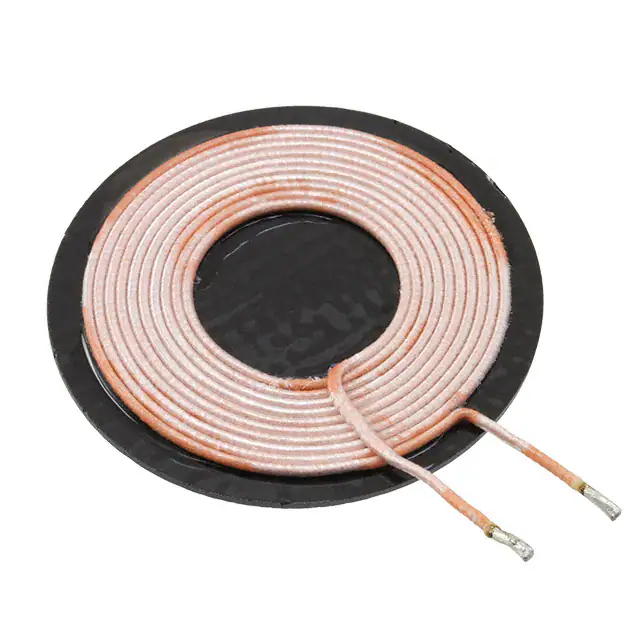

WT505090-10K2-A11-G TX 1 COIL 1 LYR 6.3UH TDK Corporation	2,018	6.72	- + RFQ		Tray	WT	Not For New Designs	Transmitter	1 Coil, 1 Layer	6.3µH	-	60mOhm	-	-	-	-	-

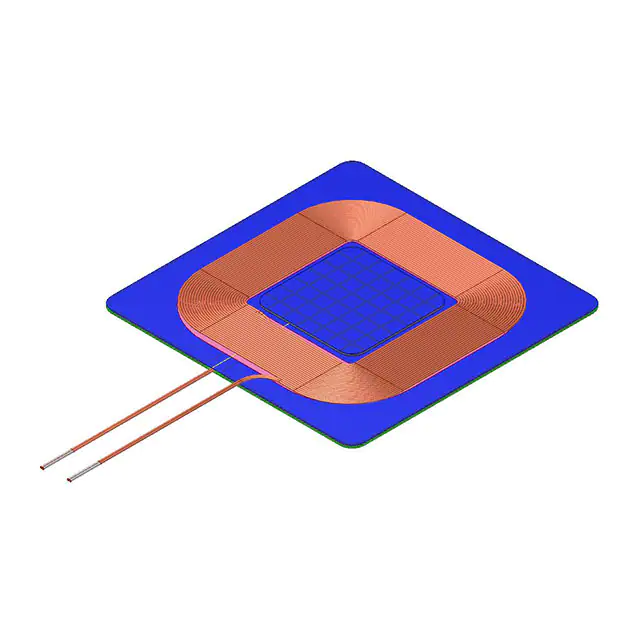

WR424245-13K2-G RX 1 COIL, 1 LYR 11.9UH TDK Corporation	3,999	7.19	- + RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 1 Layer	11.9µH	-	220mOhm	-	-	-	-	-

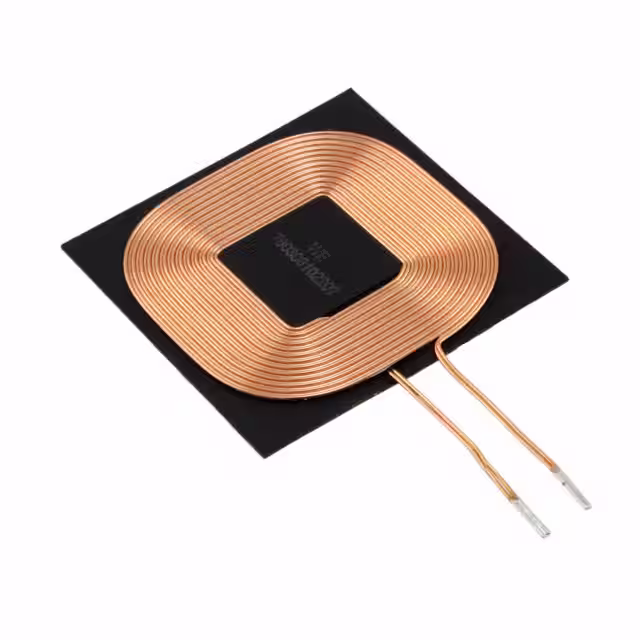

760308102207 RX 1 COIL 1 LYR BIFILAR 8UH 5A Würth Elektronik	325	10.51	- + RFQ	Datasheet	Box	WE-WPCC	Active	Receiver	1 Coil, 1 Layer, Bifilar	8µH	±10%	60mOhm	30 @ 125kHz	5A	10A	16MHz	-20°C ~ 105°C

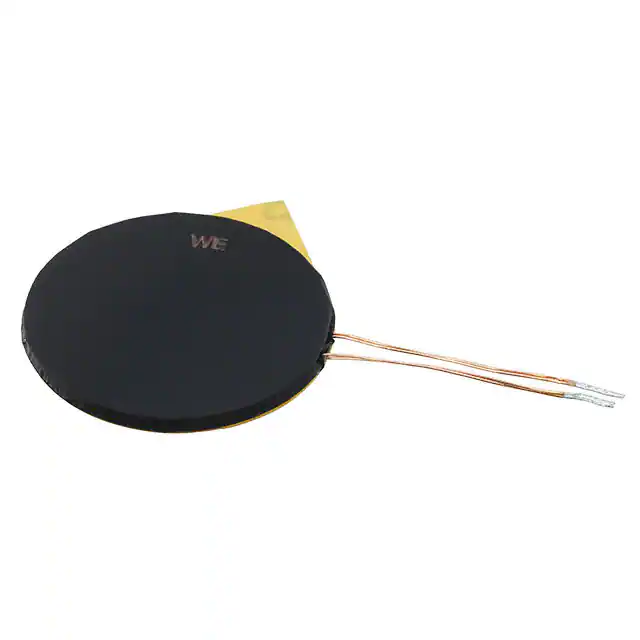

760308101303 RX 1 COIL 3 LYR BIFILAR 47UH Würth Elektronik	3,943	12.15	- + RFQ	Datasheet	Box	WE-WPCC	Active	Receiver	1 Coil, 3 Layer, Bifilar	47µH	±10%	460mOhm	25 @ 125kHz	1.5A	3A	8MHz	-20°C ~ 105°C
760308101103 TX 1 COIL 1 LAYER 6.5UH 3A Würth Elektronik	3,718	12.15	- + RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	180mOhm Max	35 @ 125kHz	3A	8A	20MHz	-20°C ~ 105°C

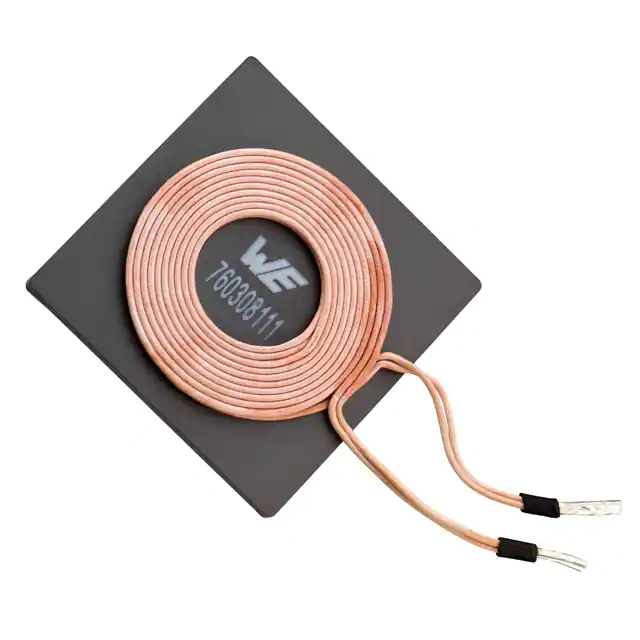

760308111 TX 1 COIL 2 LYR BIFIL 6.3UH 13A Würth Elektronik	2,759	13.60	- + RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer, Bifilar	6.3µH	±10%	24mOhm Max	80 @ 125kHz	13A	16A	20MHz	-20°C ~ 105°C

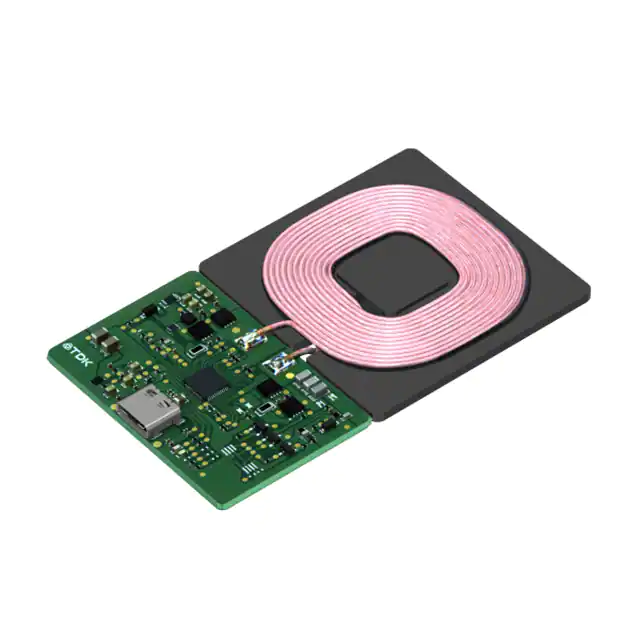

WTM905525-12F2-12V-G WIRELESS POWER TRANSFER TX COIL TDK Corporation	312	44.13	- + RFQ	Datasheet	Box	WTM	Active	Transmitter	1 Coil, 1 Layer	-	-	-	-	-	-	-	-

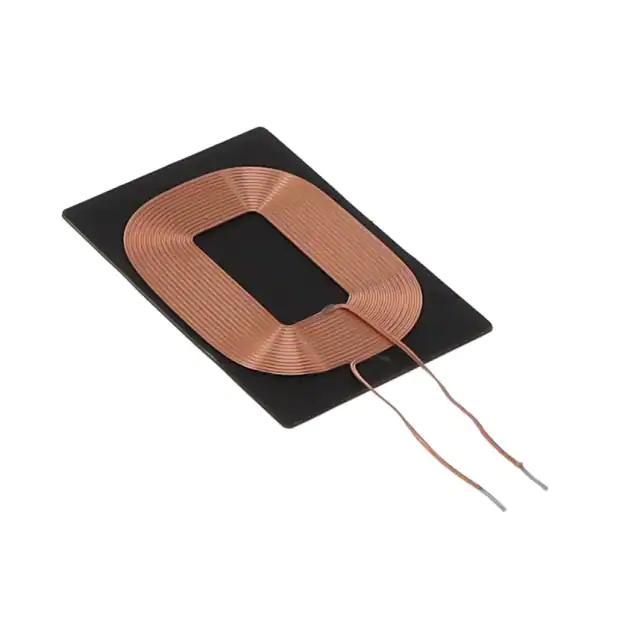

IWAS4832AEEB120KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	2,643	2.89	- + RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	200mOhm Max	33 @ 100kHz	3A	-	-	-40°C ~ 85°C

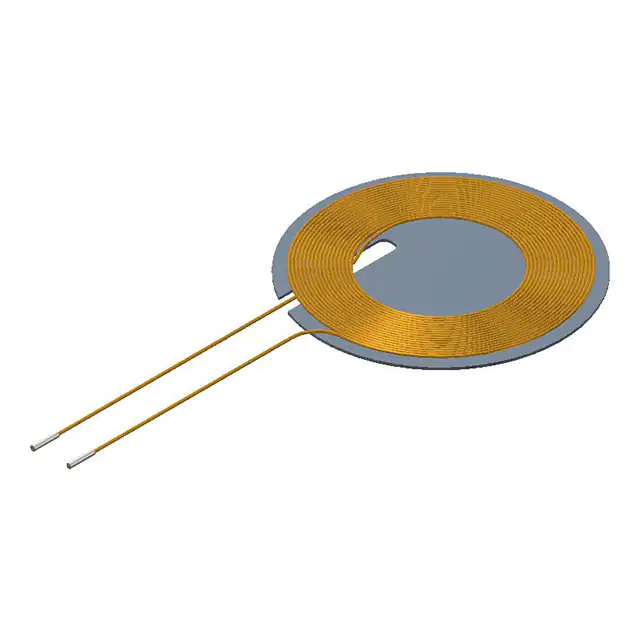

WR202020-18M8-G RX 1 COIL, 1 LYR 9.9UH TDK Corporation	813	4.18	- + RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 1 Layer	9.9µH	-	520mOhm	-	-	-	-	-

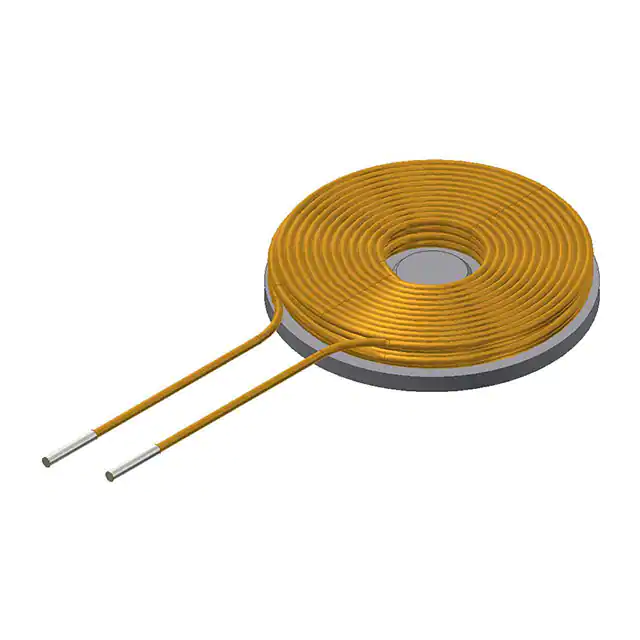

WR151580-48F2-G RX 1 COIL 4 LYR 27.1UH TDK Corporation	2,939	4.24	- + RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 4 Layer	27.1µH	-	500mOhm	-	-	-	-	-

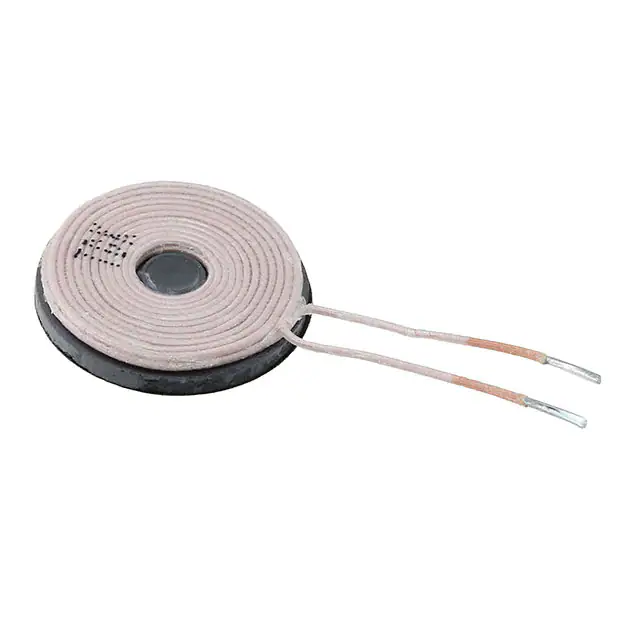

WT151512-22F2-ID TX 1 COIL 2 LYR 6.8UH TDK Corporation	2,763	4.30	- + RFQ	Datasheet	Box	WT	Active	Transmitter	1 Coil, 2 Layer	6.8µH	±5%	170mOhm	-	-	-	-	-

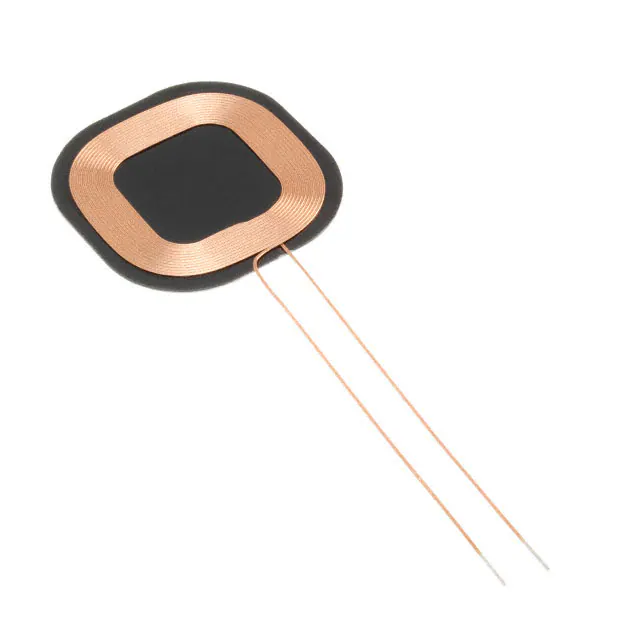

WR303050-12F5-ID RX 1 COIL 1 LYR 8.23UH TDK Corporation	3,001	5.27	- + RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 1 Layer	8.23µH	±5%	260mOhm	-	-	-	-	-

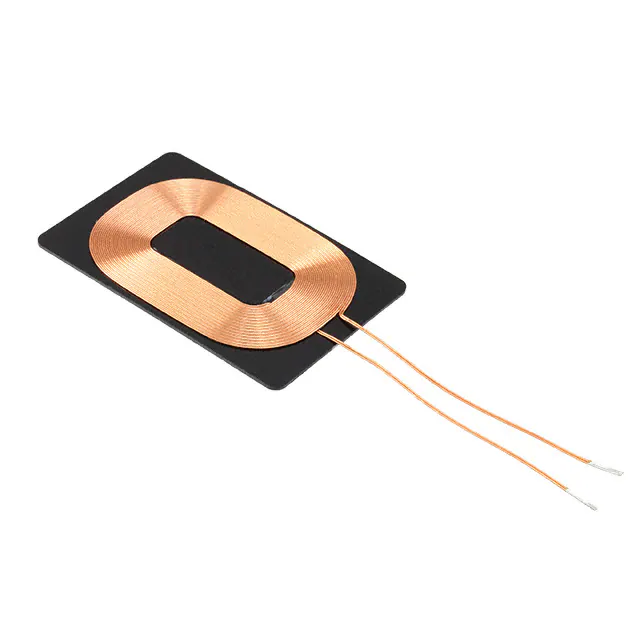

WR483265-15F5-G RX 1 COIL 1 LYR 13.3UH TDK Corporation	561	5.61	- + RFQ		Tray	WR	Active	Receiver	1 Coil, 1 Layer	13.3µH	-	200mOhm	-	-	-	-	-

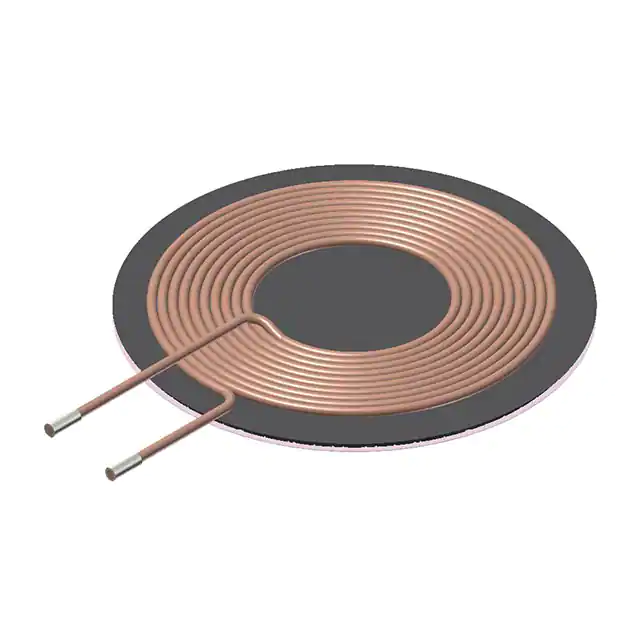

WT505090-10F2-A11-G1 TX 1 COIL, 1 LYR 6.3UH TDK Corporation	2,716	5.69	- + RFQ	Datasheet	Bulk	WT	Active	Transmitter	1 Coil, 1 Layer	6.3µH	-	60mOhm	-	-	-	-	-

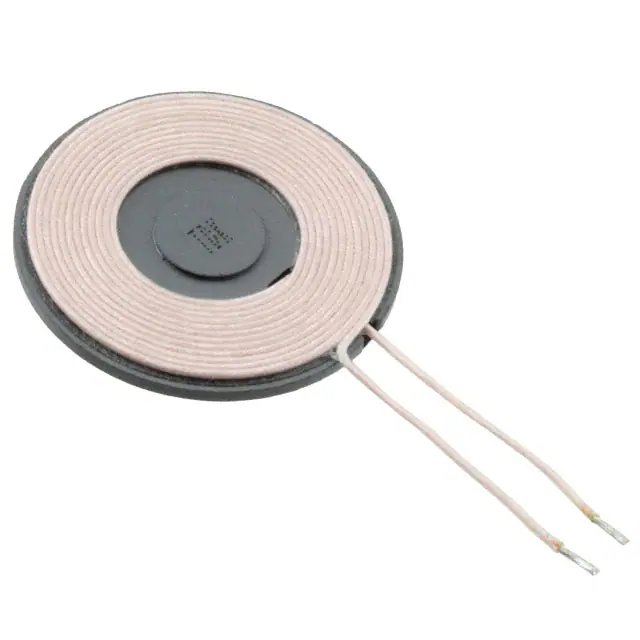

WT303012-12F2-ID TX 1 COIL 2 LYR 6.3UH TDK Corporation	2,577	5.72	- + RFQ	Datasheet	Tray	WT	Active	Transmitter	1 Coil, 2 Layer	6.3µH	±5%	90mOhm	-	-	-	-	-

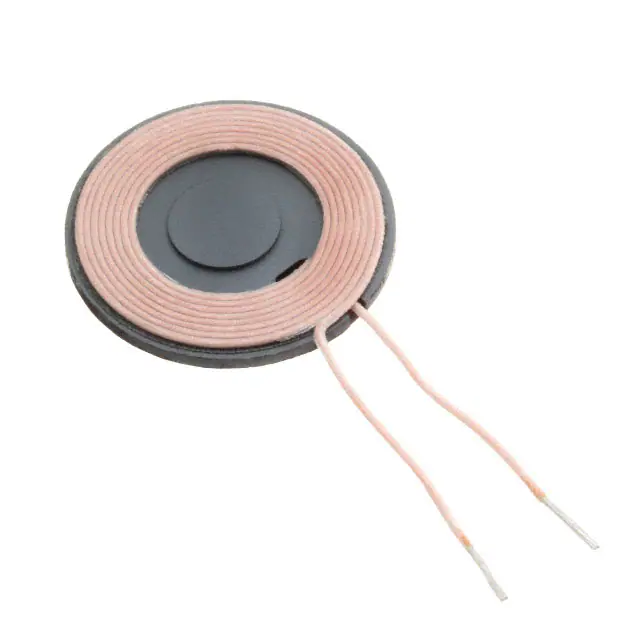

WT252512-8F2-SM TX 1 COIL 1 LYR 2.76UH TDK Corporation	2,736	5.94	- + RFQ	Datasheet	Tray	WT	Active	Transmitter	1 Coil, 1 Layer	2.76µH	±5%	70mOhm	-	-	-	-	-

Total 263 Records«Prev12 3 4...14 Next»
