Wireless Charging Coils - Zhuoliou industry co.,ltd

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature

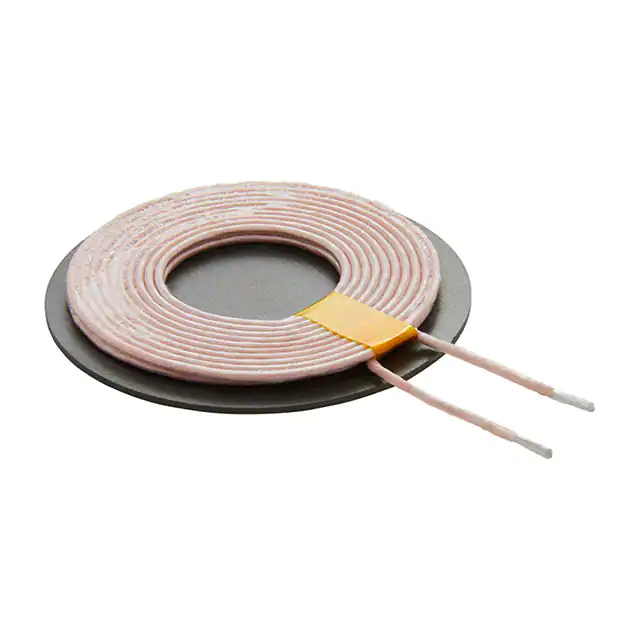

WTSC-24R0K-A10 SINGLE-COIL WIRELESS CHARGING CO Signal Transformer	344	10.99	- + RFQ	Datasheet	Box	WCC	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	85mOhm Max	-	6A	10A	-	-20°C ~ 85°C

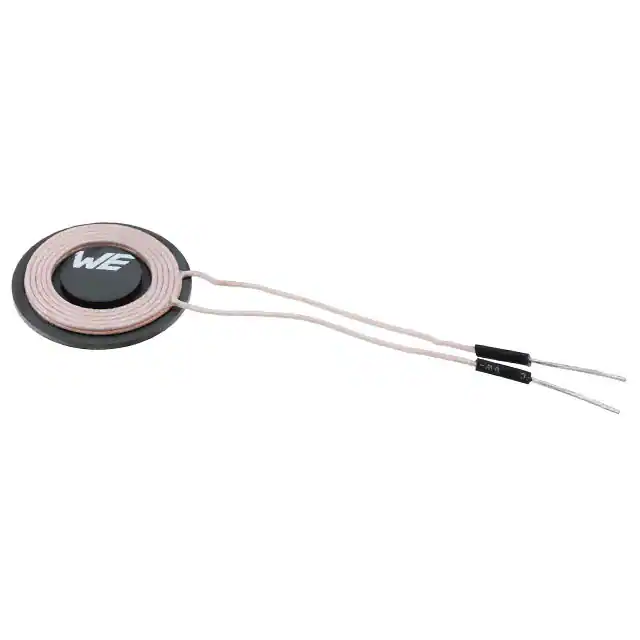

760308101105 TX 1 COIL 2 LAYER 3.3UH 3A Würth Elektronik	244	13.13	- + RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer	3.3µH	±10%	80mOhm Max	30 @ 125kHz	3A	6A	20MHz	-20°C ~ 105°C

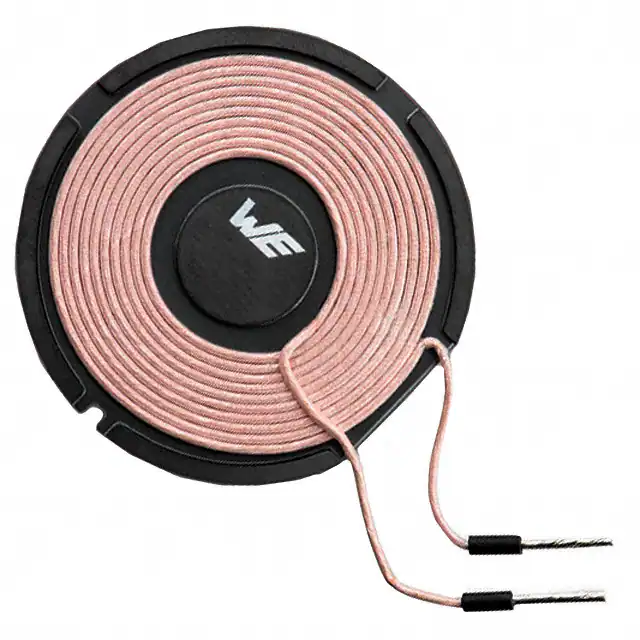

760308100111 TX 1 COIL 1 LAYER 6.3UH 13A Würth Elektronik	135	13.60	- + RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	48mOhm Max	120 @ 125kHz	6A	10A	24MHz	-20°C ~ 105°C

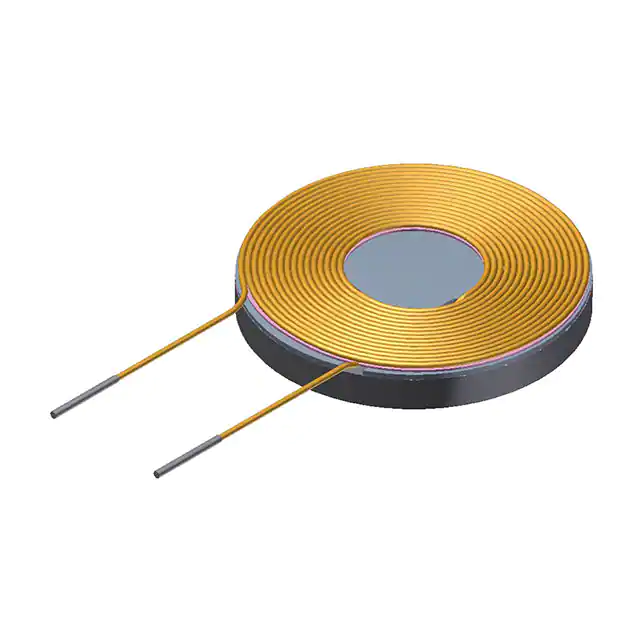

WT202030-16M8-G TX 1 COIL, 1 LYR 6.2UH TDK Corporation	389	7.61	- + RFQ	Datasheet	Tray	WT	Active	Transmitter	1 Coil, 1 Layer	6.2µH	-	190mOhm	-	-	-	-	-

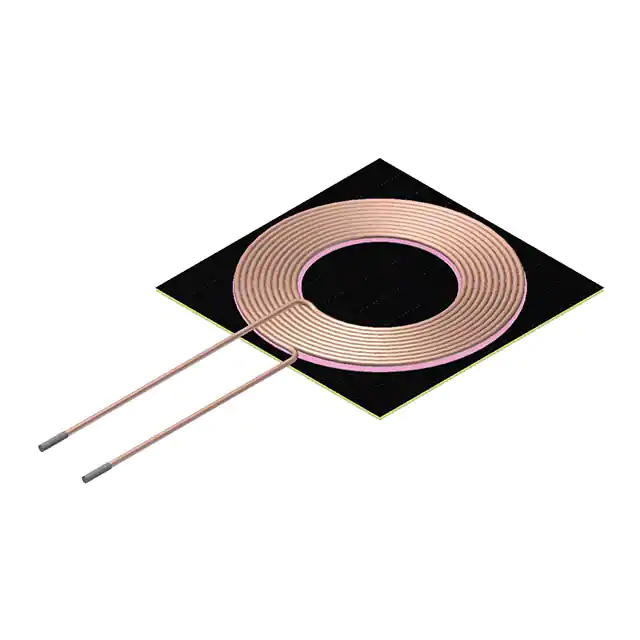

WR464650-10K2-FS3 RX 1 COIL, 1 LYR 7.3UH TDK Corporation	186	8.14	- + RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 1 Layer	7.3µH	-	70mOhm	-	-	-	-	-

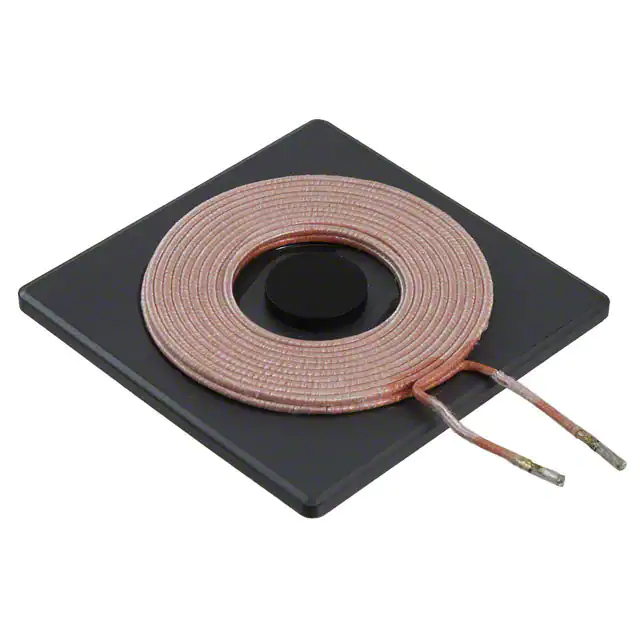

WT525225-20K2-A1-G TX 1 COIL 2 LYR 24UH TDK Corporation	214	9.86	- + RFQ	Datasheet	Tray	WT	Not For New Designs	Transmitter	1 Coil, 2 Layer	24µH	±10%	100mOhm Max	80 @ 100kHz	-	-	-	-30°C ~ 70°C

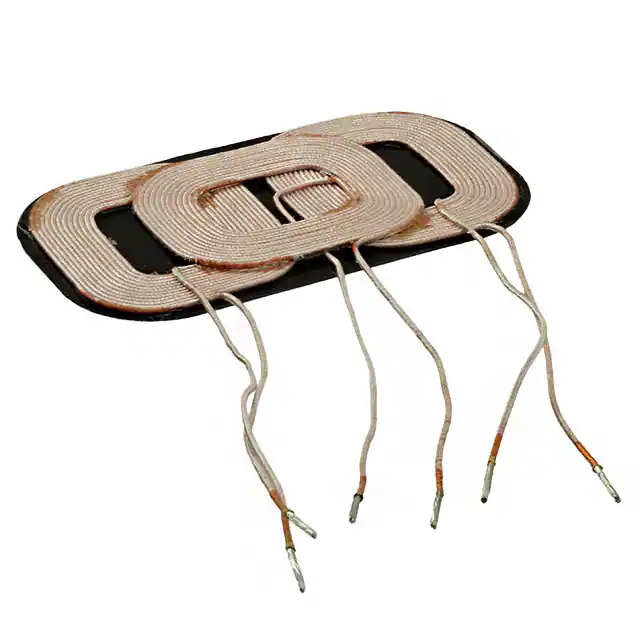

WT1005690-12K2-A6-G TX 3 COIL 1 LAYER 11.5 - 12.5UH TDK Corporation	284	12.87	- + RFQ		Tray	WT	Not For New Designs	Transmitter	3 Coil, 1 Layer	11.5 ~ 12.5µH	-	80mOhm	-	-	-	-	-

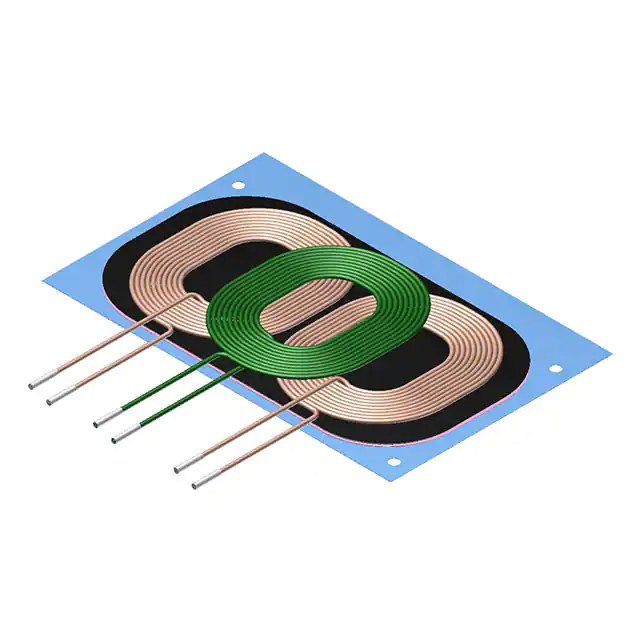

WT1005690-10F2-M8-G2 TX 3 COIL, 1 LYR 7.5UH, 8.5UH TDK Corporation	172	13.95	- + RFQ	Datasheet	Tray	WT	Active	Transmitter	3 Coil, 1 Layer	7.5µH, 8.5µH	-	50mOhm	-	-	-	-	-

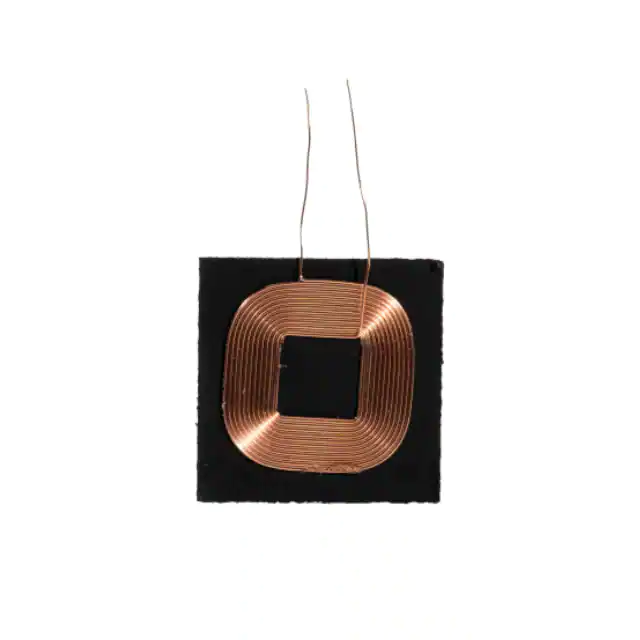

RCC-2020-RX-NL INDUCTOR RDI, Inc.	3,827	0.81	- + RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	275mOhm	-	-	-	-	-25°C ~ 85°C
IWAS4532AGEB140KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	2,531	2.40	- + RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	14µH	±10%	355mOhm Max	24 @ 100kHz	1.2A	-	-	-40°C ~ 85°C

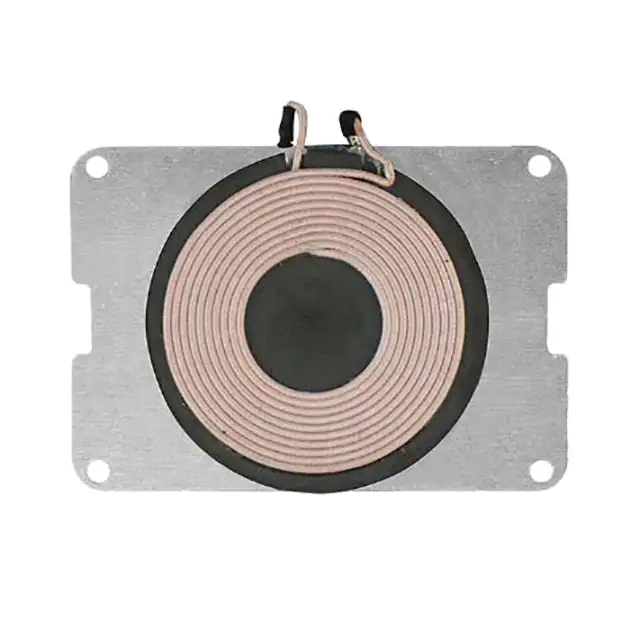

QPT-0036A 10W TRANSMITTER MODULE QST	3,577	42.86	- + RFQ	Datasheet	Box,Box	-	Active	Transmitter	1 Coil, 1 Layer	3.8µH	±10%	-	-	-	-	-	-

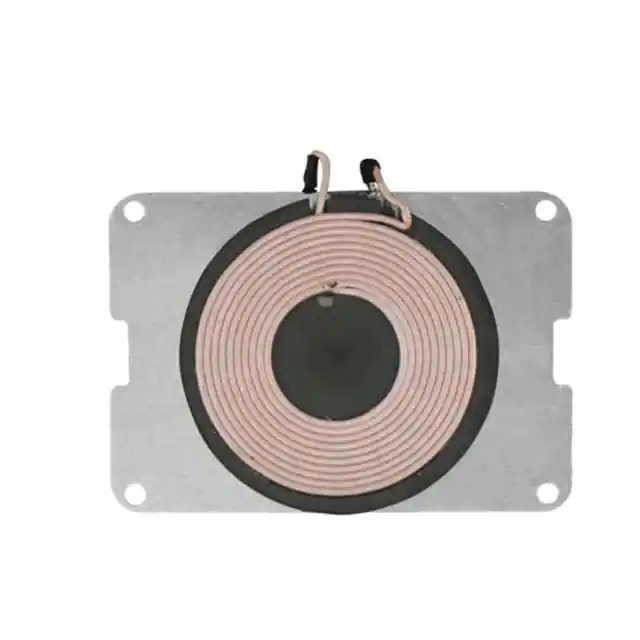

QPT-0023 10W TRANSMITTER MODULE QST	3,919	42.86	- + RFQ	Datasheet	Box	-	Active	Transmitter	1 Coil, 1 Layer	3.8µH	±10%	-	-	-	-	-	-

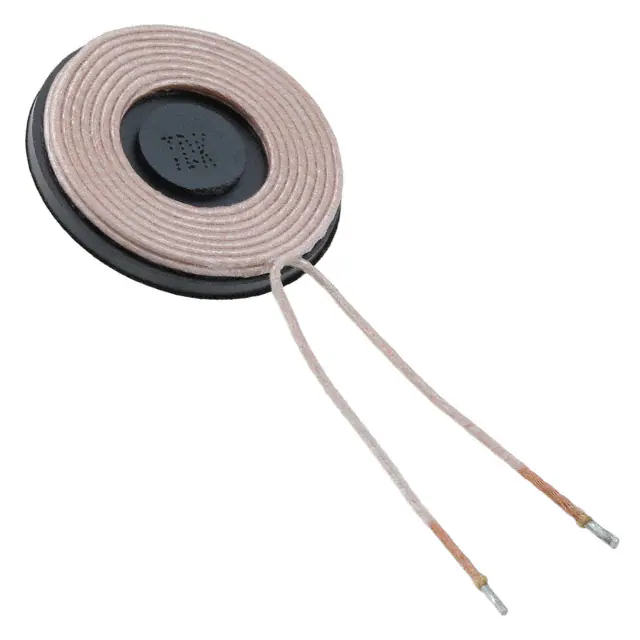

WT202012-15F2-ID TX 1 COIL 2 LYR 6.2UH TDK Corporation	3,320	4.42	- + RFQ	Datasheet	Tray	WT	Active	Transmitter	1 Coil, 2 Layer	6.2µH	±5%	80mOhm	-	-	-	-	-

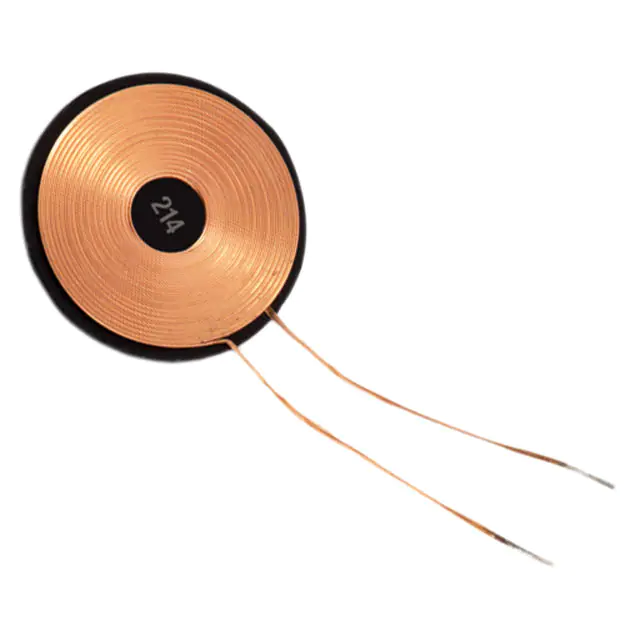

760308101214 RX 1 COIL 3 LAYER 26UH 1.1A Würth Elektronik	2,942	7.98	- + RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 3 Layer	26µH	±10%	520mOhm Max	25 @ 125kHz	1.1A	2A	11MHz	-20°C ~ 105°C

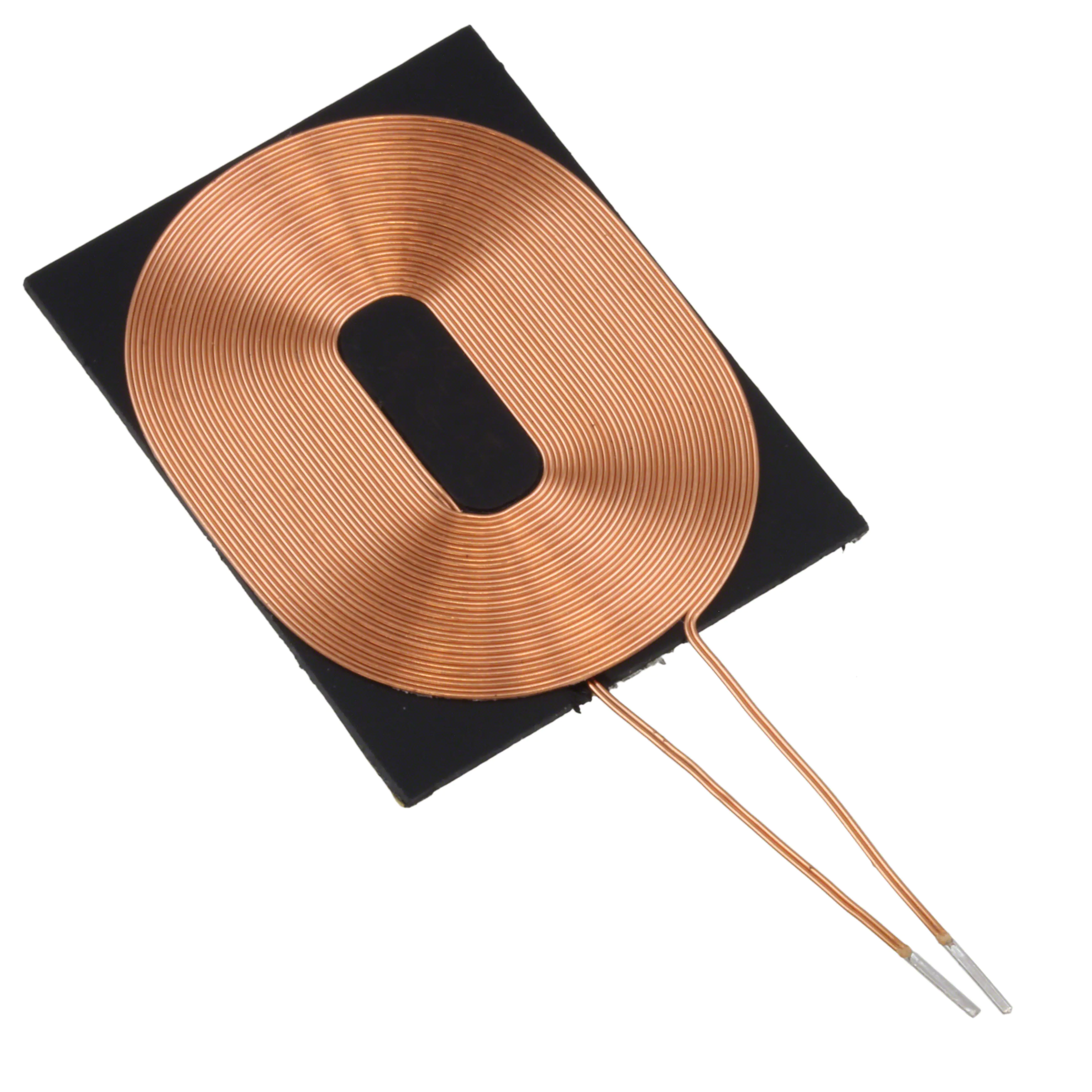

760308103205 RX 1 COIL 1 LYR BIFILAR 11UH Würth Elektronik	2,752	8.70	- + RFQ	Datasheet	Box	WE-WPCC	Active	Receiver	1 Coil, 1 Layer, Bifilar	11µH	±10%	180mOhm	30 @ 125kHz	2.5A	4A	16MHz	-20°C ~ 105°C
IWTX50R0DZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	3,176	3.70	- + RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	90 @ 100kHz	10A	-	-	-40°C ~ 85°C
IWTX5050DZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	2,285	3.70	- + RFQ	Datasheet	Tray	-	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	90 @ 100kHz	10A	-	-	-40°C ~ 85°C
IWAS3827ABEB110JF1 IWAS-3827AB-F1 10 5% EB E2 Vishay Dale	3,898	5.56	- + RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	10.65µH	±5%	185mOhm	30 @ 200kHz	-	-	-	-40°C ~ 105°C
IWAS4832ABEB110JF1 IWAS-4832AB-F1 11 5% EB E2 Vishay Dale	556	6.39	- + RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	10.8µH	±5%	187mOhm	60 @ 200kHz	-	-	-	-40°C ~ 105°C

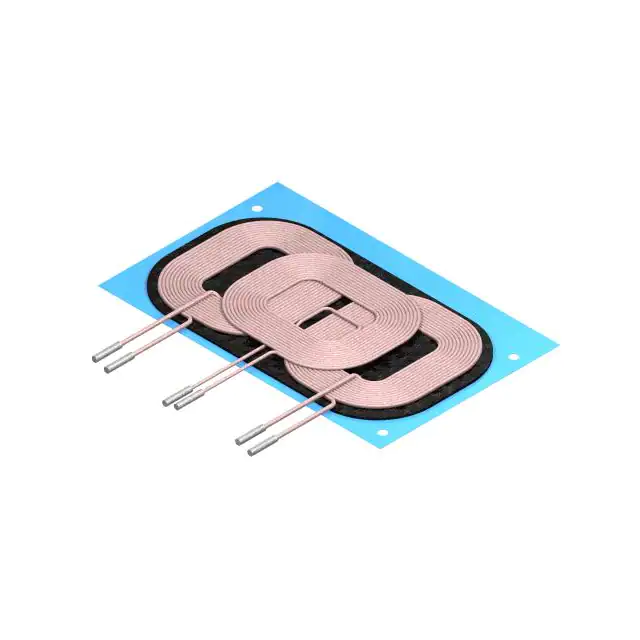

WT1005690-12F2-A6-G1 TX COIL UNIT TDK Corporation	263	11.76	- + RFQ	Datasheet	Box	WT	Active	-	-	-	-	-	-	-	-	-	-

Total 263 Records«Prev 1 234 5 6...14 Next»
