| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Function | Type | Inductance | Tolerance | DCResistance(DCR) | Q@Freq | CurrentRating(Amps) | Current-Saturation(Isat) | Frequency-SelfResonant | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

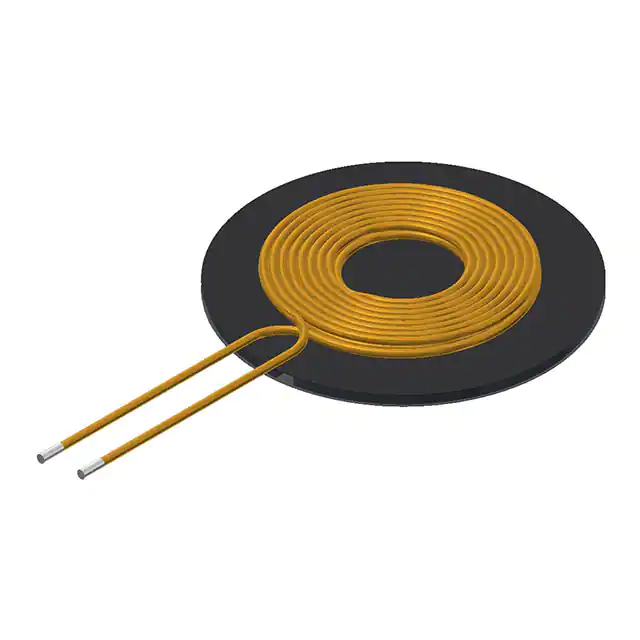

WT282890-16F2-GTX 1 COIL 2 LYR 7.4UH |
3,552 | 6.44 |
RFQ |
Datasheet |
Tray | WT | Active | Transmitter | 1 Coil, 2 Layer | 7.4µH | - | 110mOhm | - | - | - | - | - |
|

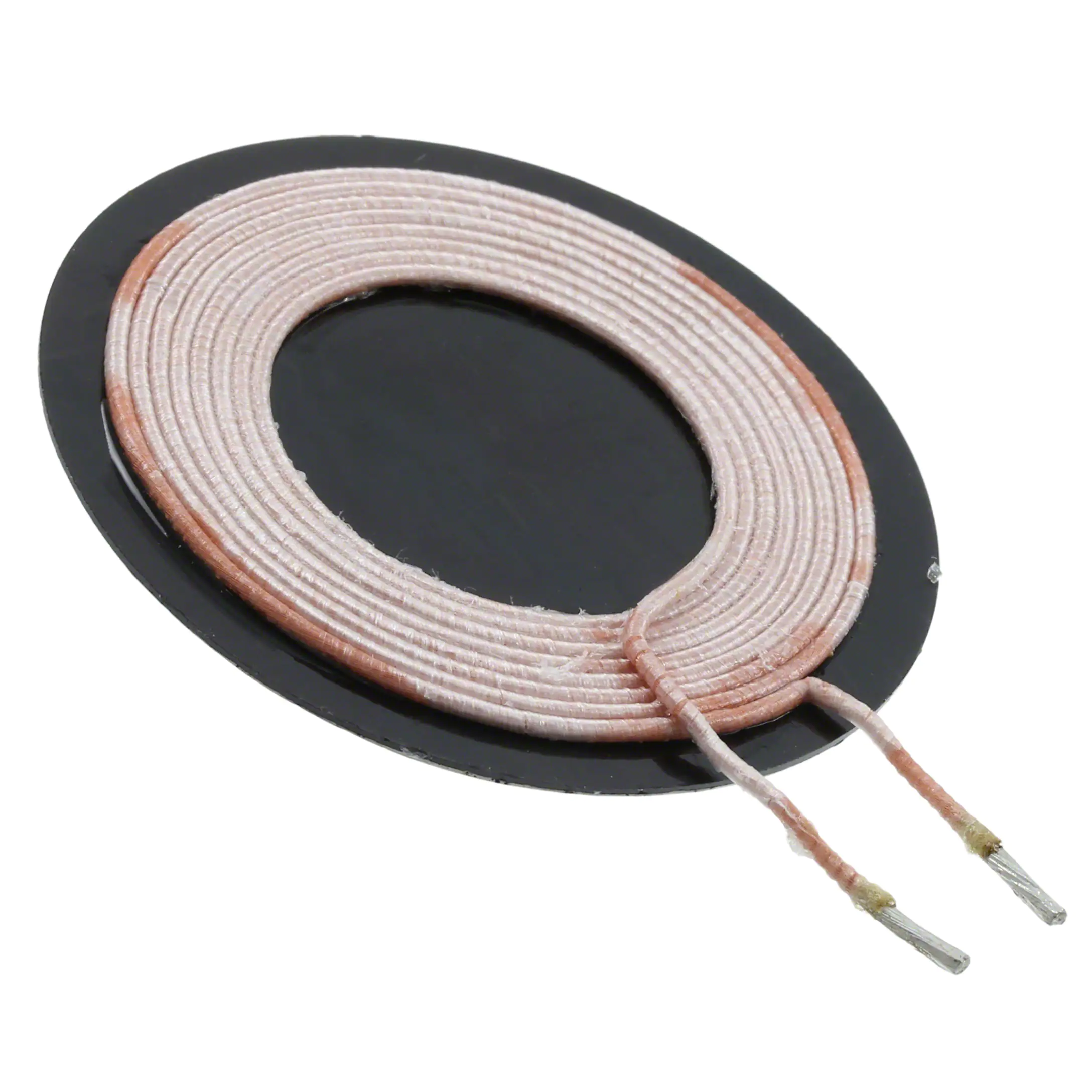

WT-505060-8K2-LTTX 1 COIL 1 LYR 4.95UH |
2,935 | 7.75 |
RFQ |
Datasheet |
Tray | WT | Active | Transmitter | 1 Coil, 1 Layer | 4.95µH | - | 30mOhm | 97 @ 100kHz | - | - | - | - |
|

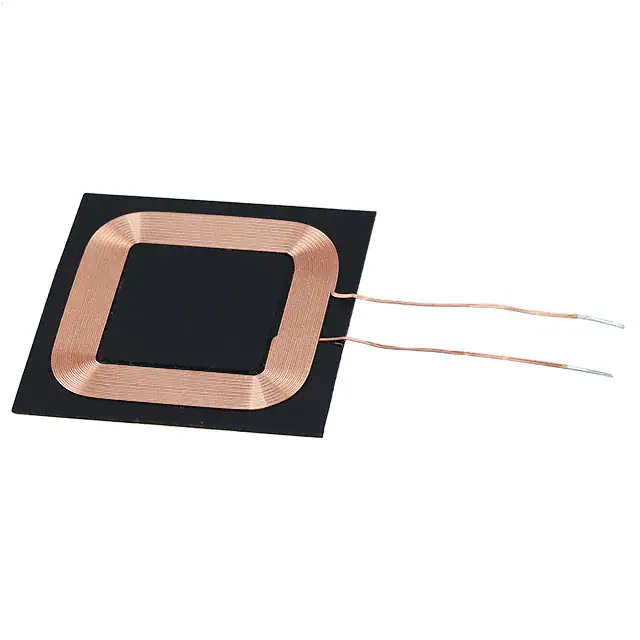

760308102213RX 1 COIL 1 LAYER 7.9UH 1.7A |
3,139 | 8.63 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Receiver | 1 Coil, 1 Layer | 7.9µH | ±10% | 330mOhm Max | 18 @ 125kHz | 1.7A | 4A | 21MHz | -20°C ~ 105°C |
|

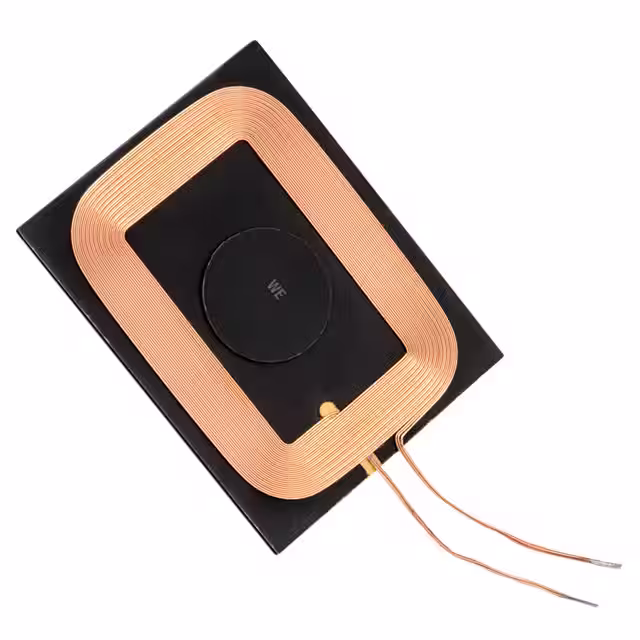

760308103211RX 1 COIL 1 LAYER 7.3UH 2.5A |
3,855 | 8.63 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Receiver | 1 Coil, 1 Layer | 7.3µH | ±10% | 200mOhm Max | 28 @ 125kHz | 2.5A | 5A | 12.7MHz | -20°C ~ 105°C |
|

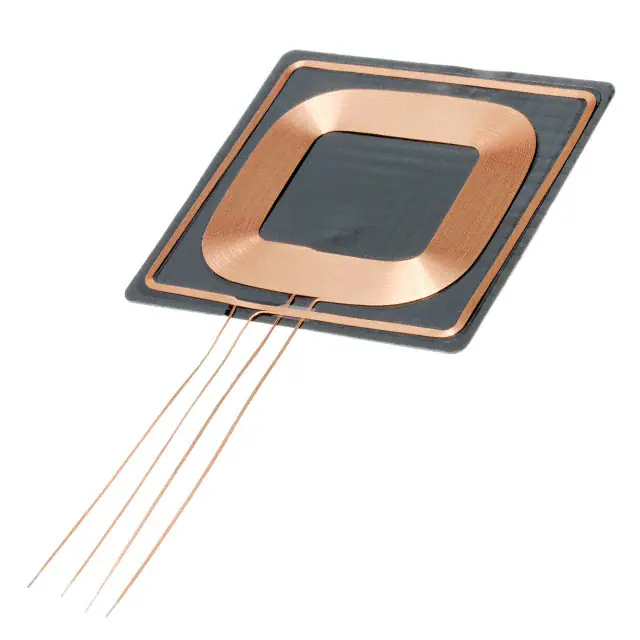

WR524830-16F3-NF-GRX 1 COIL, 1 LYR 19.5UH |
2,866 | 9.14 |
RFQ |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 19.5µH | - | 800mOhm | - | - | - | - | - | |
|

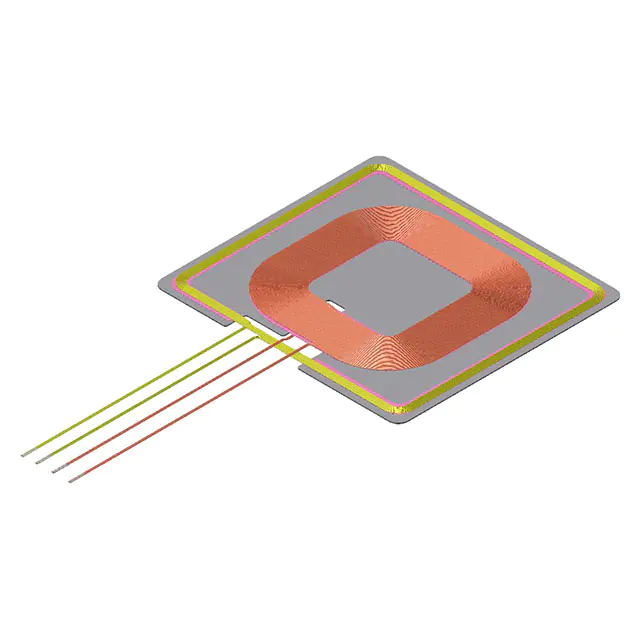

WR524825-17M6-NF-GRX 1 COIL, 1 LYR 16.8UH |
3,800 | 9.75 |
RFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 16.8µH | - | 750mOhm | - | - | - | - | - |
|

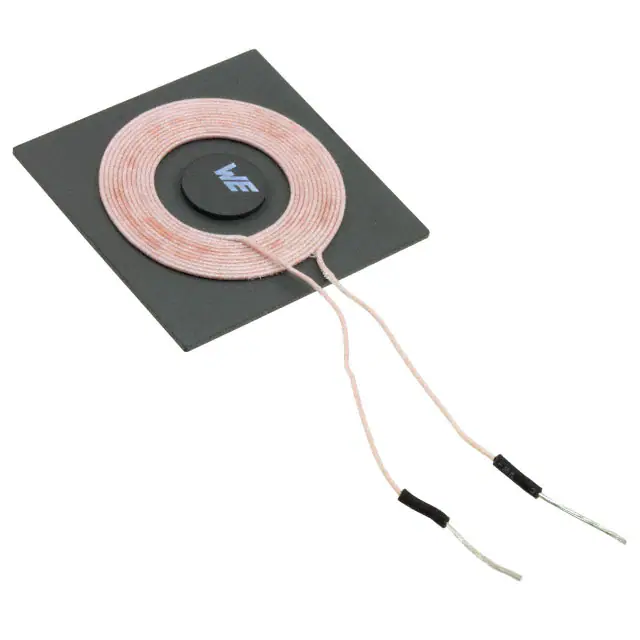

760308102210RX 1 COIL 1 LAYER 7.5UH 3A |
3,954 | 11.61 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Receiver | 1 Coil, 1 Layer | 7.5µH | ±10% | 180mOhm Max | 45 @ 125kHz | 3A | 6A | 22MHz | -20°C ~ 105°C |
|

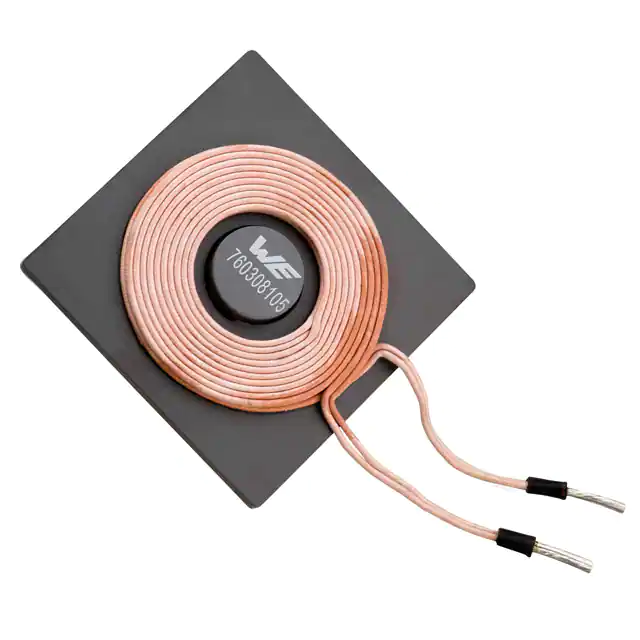

760308105TX 1 COIL 2 LYR BILFILAR 6.3UH |
3,483 | 13.60 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Transmitter | 1 Coil, 2 Layer, Bifilar | 6.3µH | ±10% | 24mOhm Max | 55 @ 125kHz | 13A | 16A | 20MHz | -20°C ~ 105°C |
|
WTM9R8K-A9MULTI-COIL WIRELESS CHARGING COI |
2,298 | 14.54 |
RFQ |
Datasheet |
Box | WCC | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH, 9.8µH | ±10% | 60mOhm Max, 65mOhm Max | - | 8A | 10A | - | -20°C ~ 85°C |
|

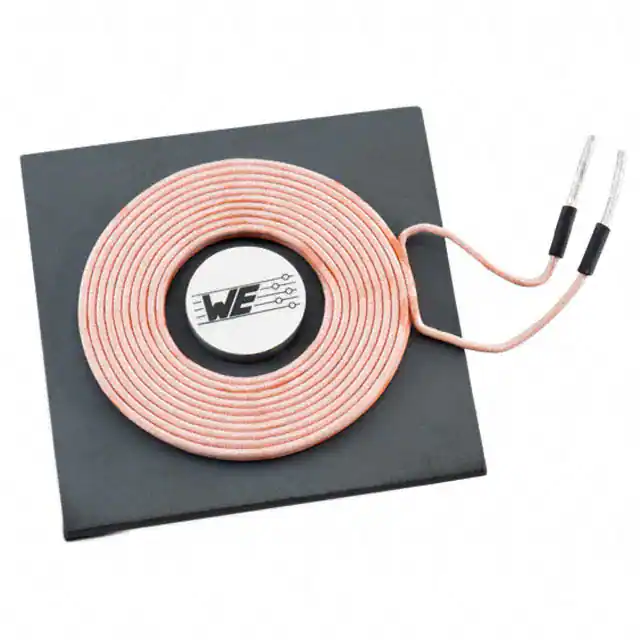

760308101TX 1 COIL 2 LAYER 24UH 6A |
3,133 | 18.76 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 100mOhm Max | 90 @ 125kHz | 6A | 10A | 6MHz | -20°C ~ 105°C |
|

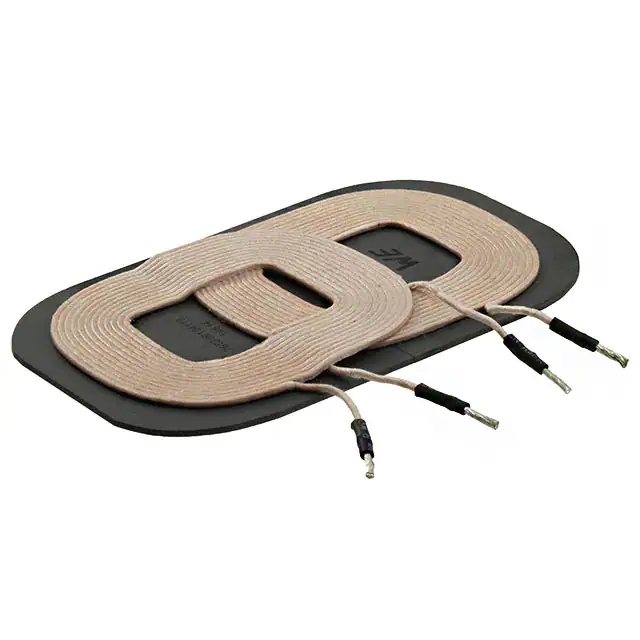

760308104119TX 2 COIL 1 LAYER 12UH 11.5UH 8A |
2,604 | 19.35 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Transmitter | 2 Coil, 1 Layer | 12µH, 11.5µH | ±10% | 56mOhm | 130 @ 125kHz | 8A | 12A | 12MHz | -20°C ~ 105°C |
|

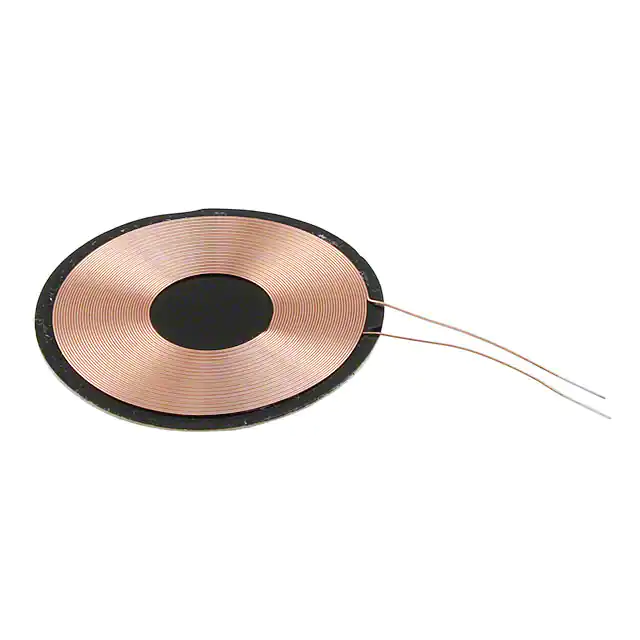

WR282840-37K2-LR3RX 1 COIL 1 LYR 46UH |
2,759 | 21.95 |
RFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 46µH | - | 1.25Ohm | - | - | - | - | - |
|

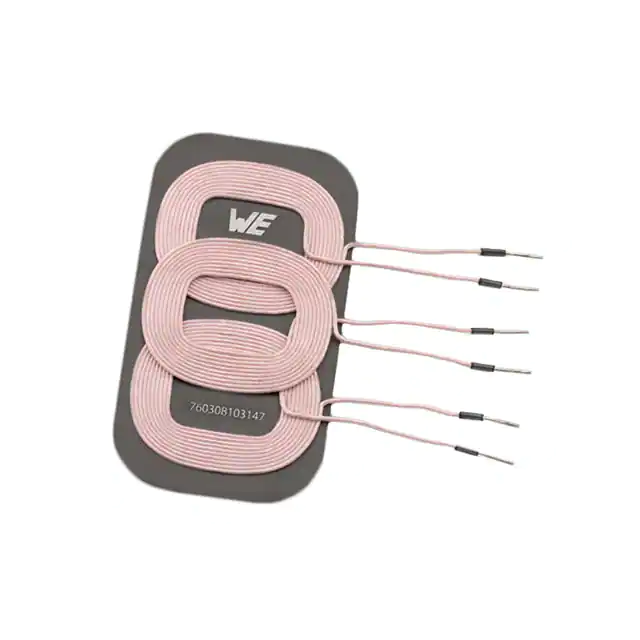

760308103147WE-WPCC WIRELESS POWER CHARGING |
2,985 | 22.53 |
RFQ |
Datasheet |
Bulk | WE-WPCC | Active | Transmitter | 3 Coil, 1 Layer | 8.5µH, 7.5µH, 8.5µH | ±10% | 56mOhm Max | 145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz | 9A, 10A, 9A | 18A | 11MHz | -20°C ~ 105°C |
|

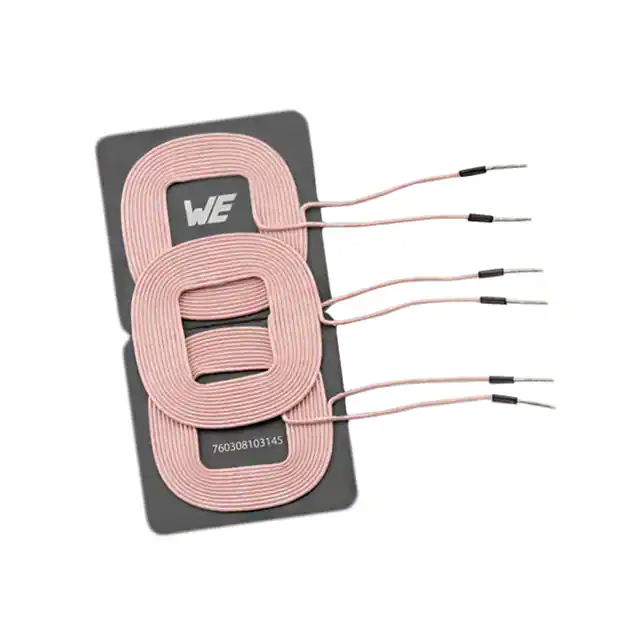

760308103145WE-WPCC WIRELESS POWER CHARGING |
2,959 | 22.53 |
RFQ |
Datasheet |
Bulk | WE-WPCC | Active | Transmitter | 3 Coil, 1 Layer | 11.3µH | ±10% | 83mOhm Max | 150 @ 125kHz, 145 @ 125kHz | 8.5A | 24A | 10MHz | -20°C ~ 105°C |
|

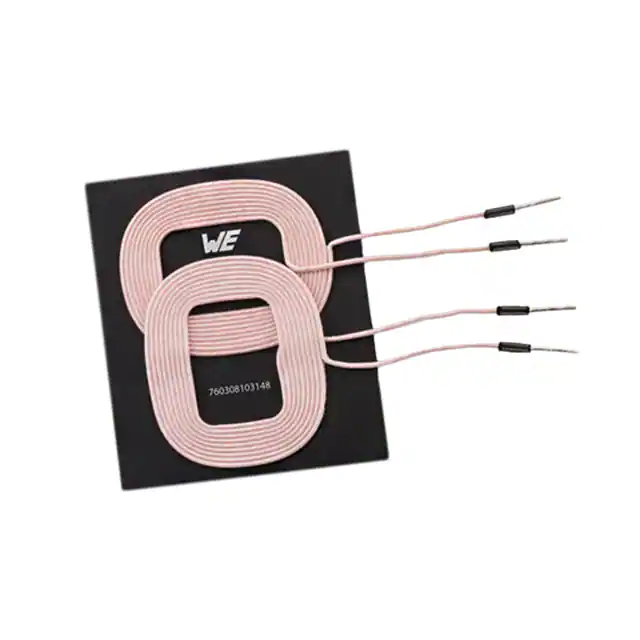

760308103148WE-WPCC WIRELESS POWER CHARGING |
3,830 | 22.53 |
RFQ |
Datasheet |
Bulk | WE-WPCC | Active | Receiver, Transmitter | 2 Coil, 1 Layer | 6.9µH, 6.4µH | ±10% | 52mOhm Max | 120 @ 125kHz, 115 @ 125kHz | 8.5A | 20A | 15MHz, 19MHz | -20°C ~ 105°C |
.jpg)
|

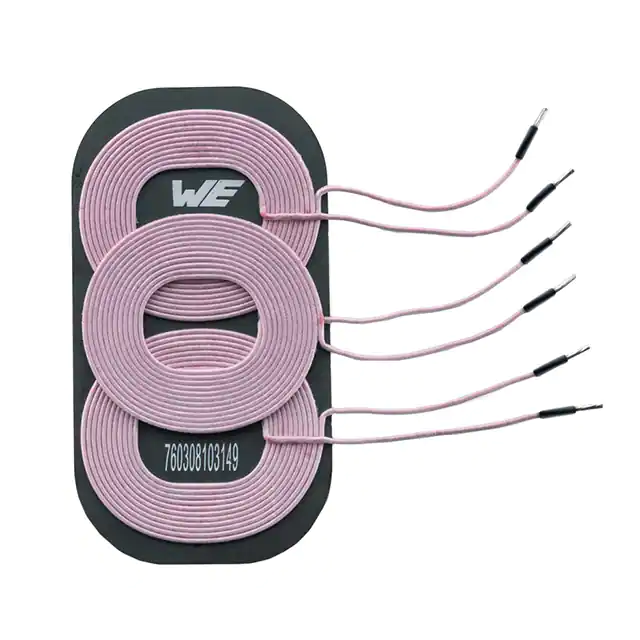

760308103149WE-WPCC WIRELESS POWER CHARGING |
3,979 | 23.58 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Transmitter | 3 Coil, 1 Layer | 10.2µH, 9.8µH, 10.2µH | ±10% | 55mOhm | 110 @ 125kHz | 9A | 18A | 8MHz | -20°C ~ 105°C |
|

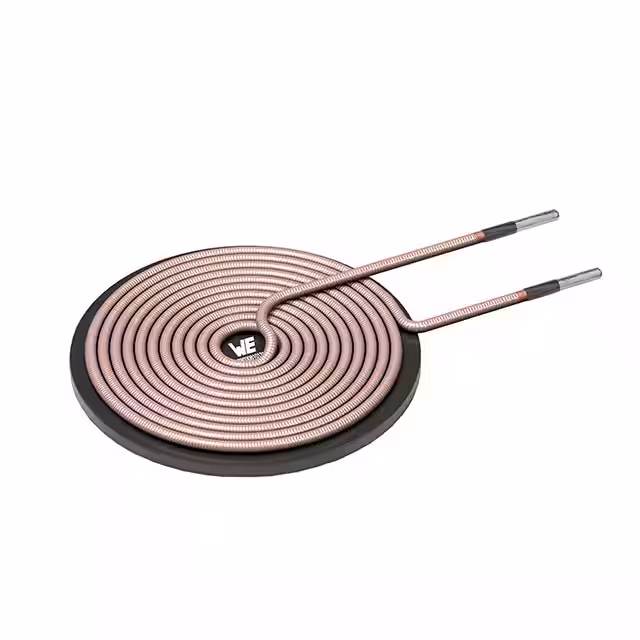

760308101311WE-WPCC WIRELESS POWER CHARGING |
3,465 | 23.91 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Transmitter | 1 Coil, 1 Layer | 5.8µH | ±10% | 14mOhm | 220 @ 125kHz | 21A | - | 13MHz | -20°C ~ 105°C |
|
760308100141TX 1 COIL 2 LAYER 10UH 9A |
2,267 | 24.04 |
RFQ |
Datasheet |
Box | WE-WPCC | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 30mOhm Max | 180 @ 125kHz | 9A | 16A | 11MHz | -20°C ~ 105°C |
|

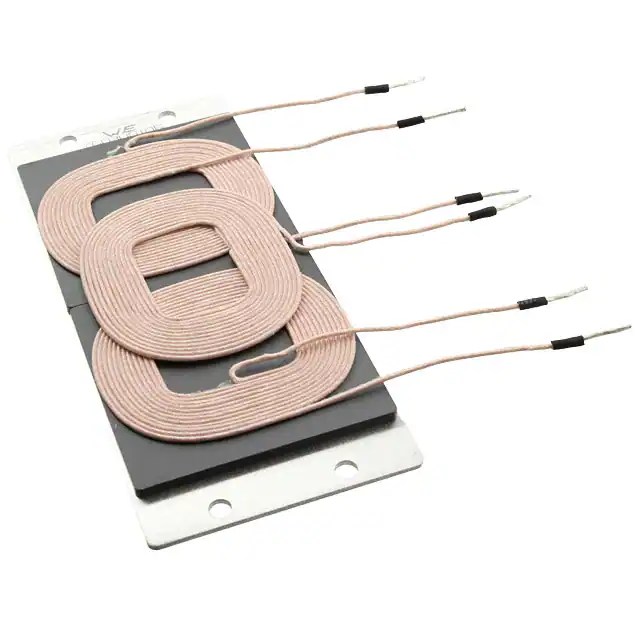

760308106TX 3 COIL 1 LAYER 10A |
3,667 | 35.18 |
RFQ |
Datasheet |
Box | WE-WPCC | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | - | 65mOhm | 140 @ 125kHz | 10A | 10A | - | - |
|
WTM12R5K-A28MULTI-COIL WIRELESS CHARGING COI |
2,674 | 14.00 |
RFQ |
Datasheet |
Box | WCC | Active | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C |
