| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Function | Type | Inductance | Tolerance | DCResistance(DCR) | Q@Freq | CurrentRating(Amps) | Current-Saturation(Isat) | Frequency-SelfResonant | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

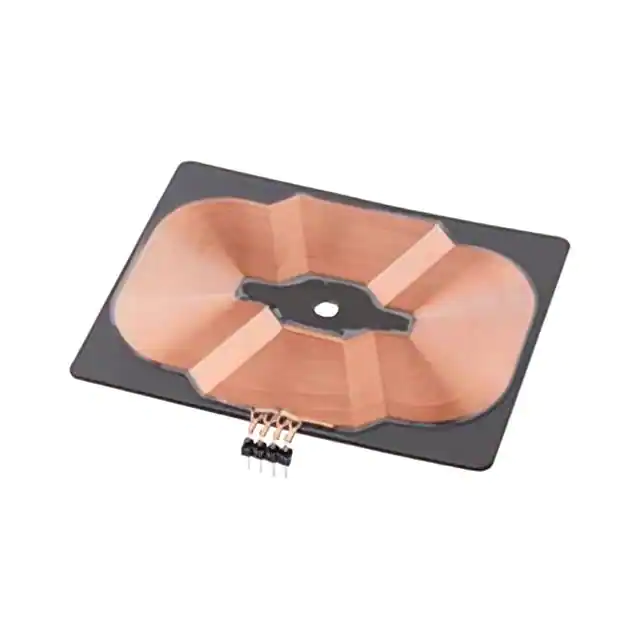

WCT38466-N0E0SST101PATTERNED TX COIL FOR WPT |
184 | 24.41 |
RFQ |
Datasheet |
Tray | WCT | Active | Transmitter | 1 Coil, 2 Layer | 10.6µH | ±0.5µH | 149mOhm Max | - | - | - | - | -40°C ~ 85°C |
|

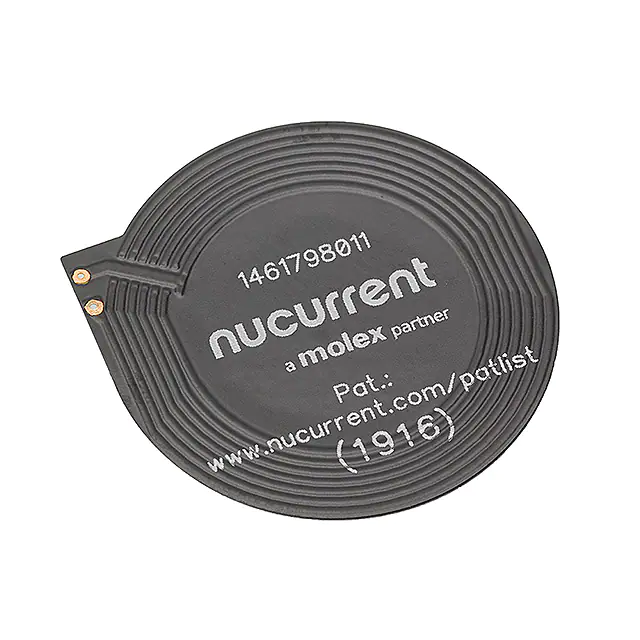

1461798011RX 1 COIL 1 LAYER 2.6UH |
2,634 | 6.68 |
RFQ |
Datasheet |
Bulk | NuCurrent, PowerLife, 146179 | Obsolete | Receiver | 1 Coil, 1 Layer | 2.6µH | ±2% | 245mOhm | 90 @ 6.78MHz | - | - | - | - |
|

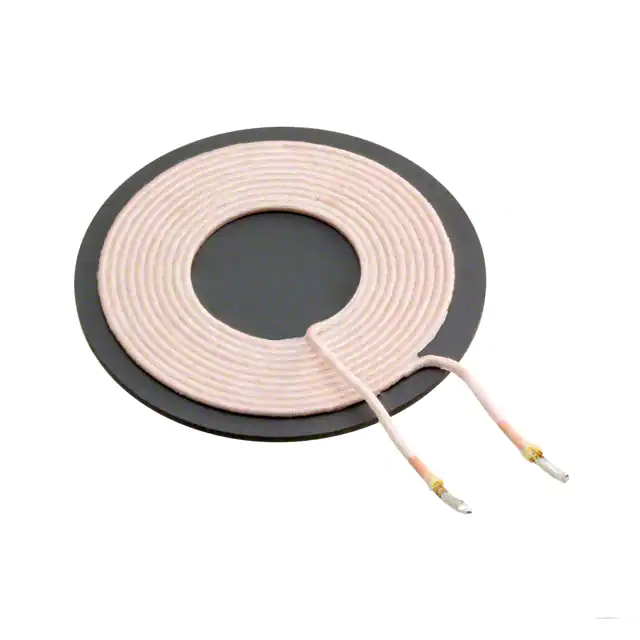

RWC5050AK060-500TX 1 COIL 1 LAYER 6.5UH |
258 | 8.43 |
RFQ |
Datasheet |
Box | RWC | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 50mOhm Max | 70 @ 100kHz | - | - | - | -40°C ~ 125°C |
|

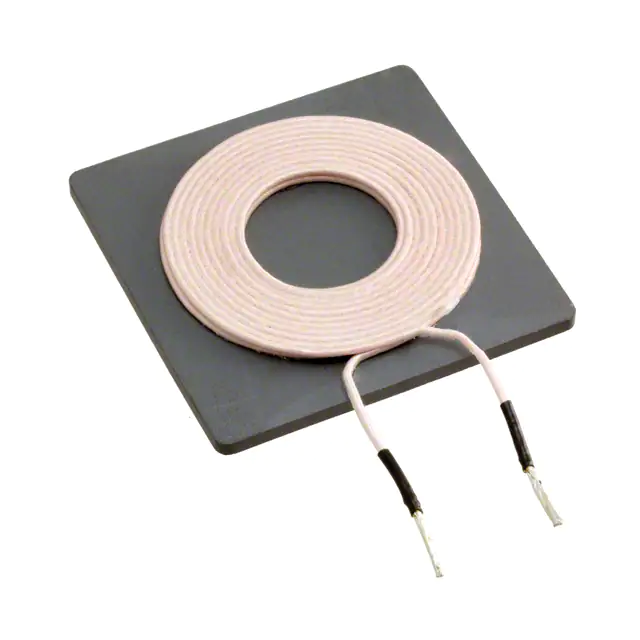

RWC5353EJ240-501TX 1 COIL 2 LAYER 24UH 5.5A |
141 | 9.63 |
RFQ |
Datasheet |
Box | RWC | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 75mOhm Max | 90 @ 100kHz | 5.5A | 10A | - | -40°C ~ 125°C |
|

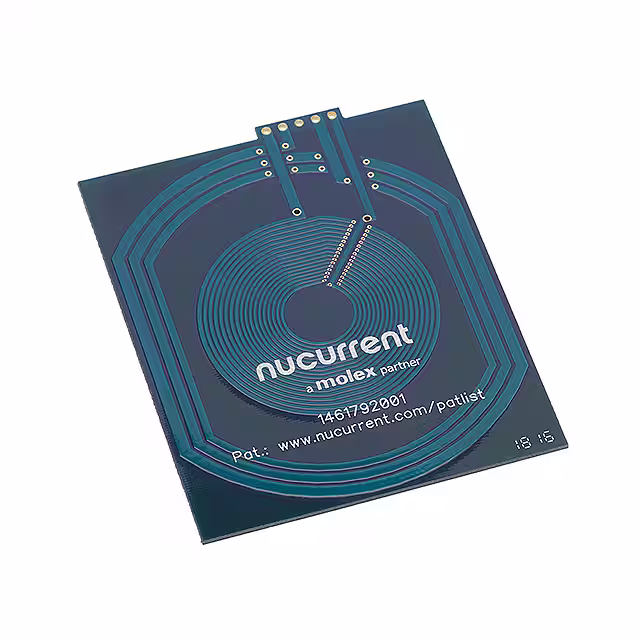

1461792001RX 2 COIL 1 LAYER 10.6UH |
404 | 11.17 |
RFQ |
Datasheet |
Bulk | NuCurrent, PowerLife, 146179 | Obsolete | Receiver | 2 Coil, 1 Layer | 10.6µH | ±2% | 190mOhm | 24 @ 200kHz | - | - | - | - |
|

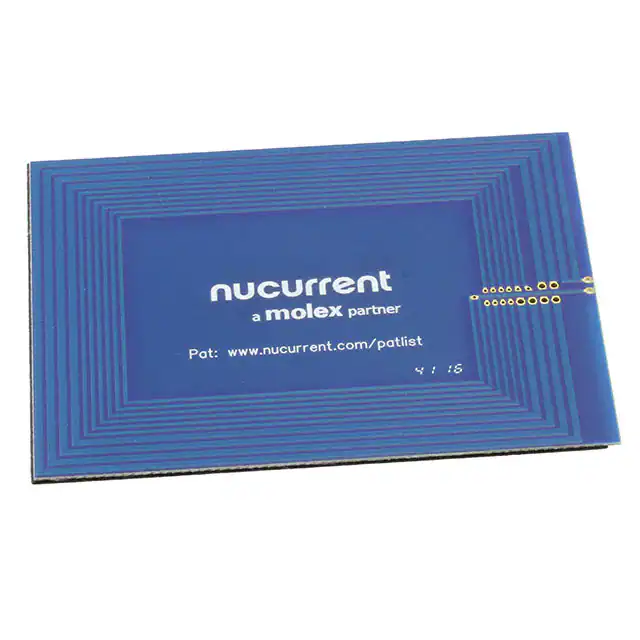

1461798001RX 1 COIL 1 LAYER 2.9UH |
430 | 11.22 |
RFQ |
Datasheet |
Bulk | NuCurrent, PowerLife, 146179 | Obsolete | Receiver | 1 Coil, 1 Layer | 2.9µH | ±2% | 120mOhm | 160 @ 6.78MHz | - | - | - | - |
|

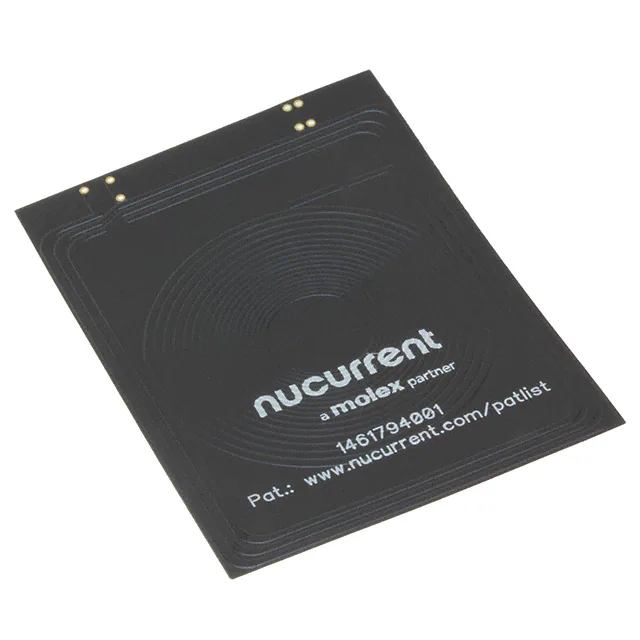

1461794001RX 2 COIL 1 LAYER 8.9UH |
359 | 11.22 |
RFQ |
Datasheet |
Bulk | NuCurrent, PowerLife, 146179 | Obsolete | Receiver | 2 Coil, 1 Layer | 8.9µH | ±2% | 350mOhm | 25 @ 200kHz | - | - | - | - |
|

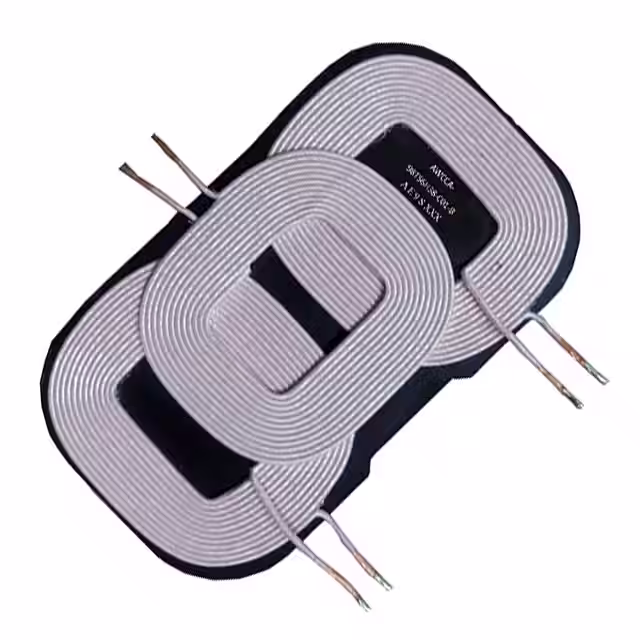

AWCCA-98T56H38-C01-BTRANSMITTER 3 COIL 1 LAYER |
109 | 11.63 |
RFQ |
Datasheet |
Box | AWCCA | Active | Transmitter | 3 Coil, 1 Layer | 12.0µH, 11.5µH, 12.0µH | ±10% | 56mOhm | 120 @ 100kHZ, 110 @ 100kHZ | - | - | - | -25°C ~ 85°C |
|

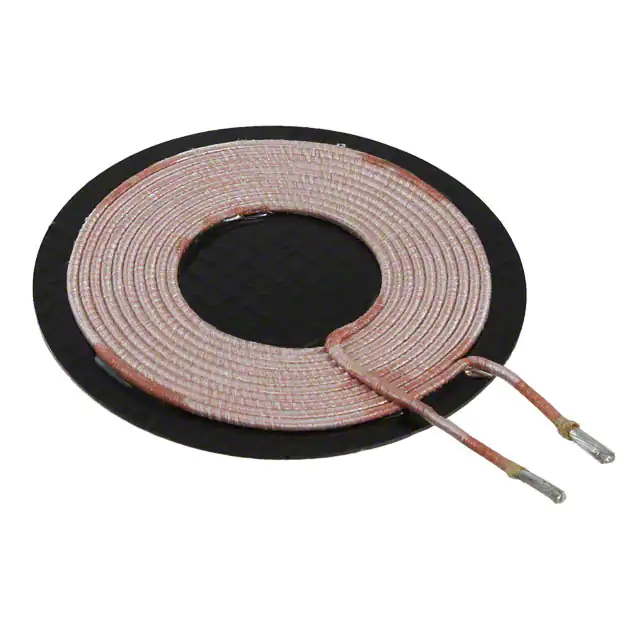

WT-505060-10K2-A11-GTX 1 COIL 1 LYR 6.3UH |
140 | 13.26 |
RFQ |
Datasheet |
Tray | WT | Last Time Buy | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 60mOhm Max | 70 @ 100kHz | - | - | - | -30°C ~ 70°C |
|

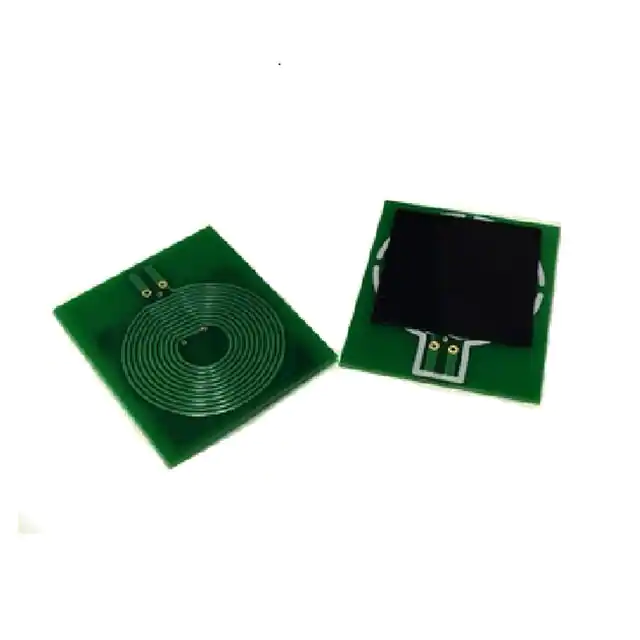

L41200R0248UH Q = 19 TYPICAL AT 125KHZ WI |
220 | 8.50 |
RFQ |
Datasheet |
Tray | - | Active | Receiver | 1 Coil, 1 Layer | 48µH | - | - | 19 @ 125kHz | - | - | - | -40°C ~ 105°C |
|

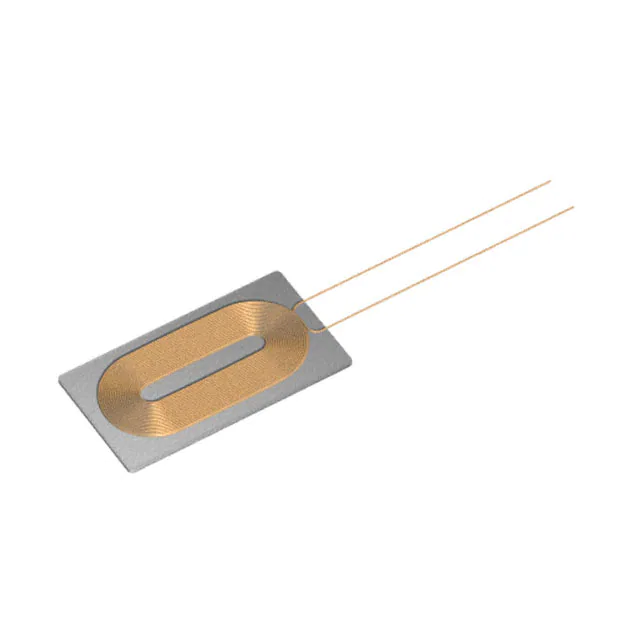

WR221230-36M8-GRX 1 COIL 2 LYR 27.9UH |
925 | 2.36 |
RFQ |
Tray | WR | Active | Receiver | 1 Coil, 2 Layer | 27.9µH | - | 1.21Ohm Max | - | - | - | - | - | |
|

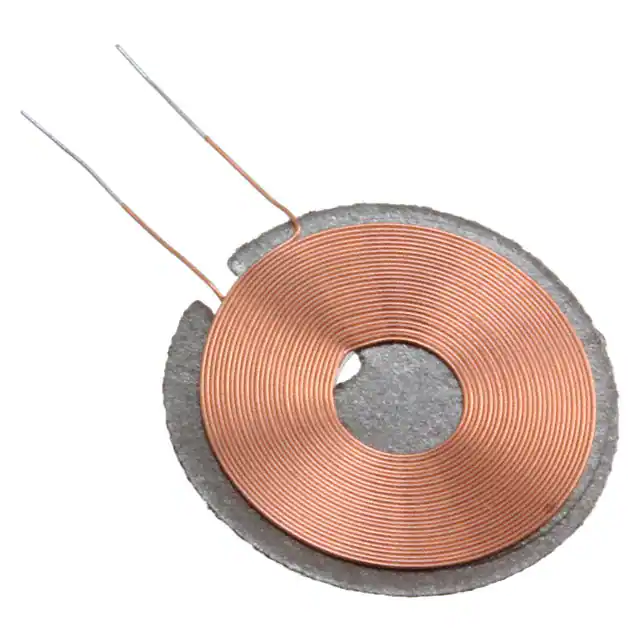

WR121210-27M8-IDRX 1 COIL 1 LYR 8.32UH |
753 | 3.15 |
RFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 8.32µH | ±5% | 950mOhm | - | - | - | - | - |
|

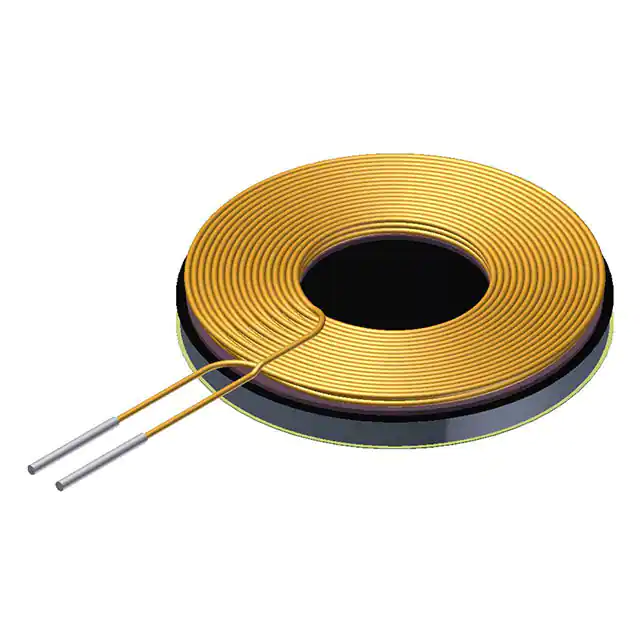

WR111180-49F5-GRX 1 COIL 3 LYR 31.8UH |
244 | 3.39 |
RFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 3 Layer | 31.8µH | ±5% | 1.34Ohm | - | - | - | - | - |
|

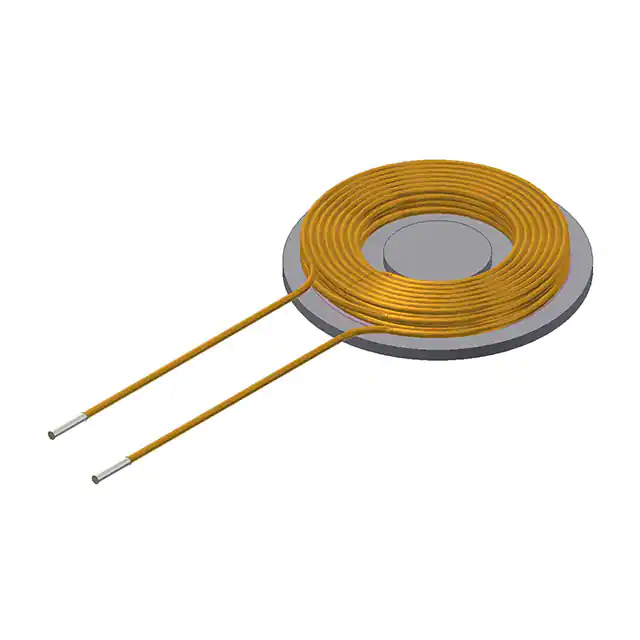

WT202080-28F2-GTX 1 COIL 4 LYR 20.9UH |
3,324 | 5.03 |
RFQ |
Datasheet |
Tray | WT | Active | Transmitter | 1 Coil, 4 Layer | 20.9µH | - | 300mOhm | - | - | - | - | - |
|

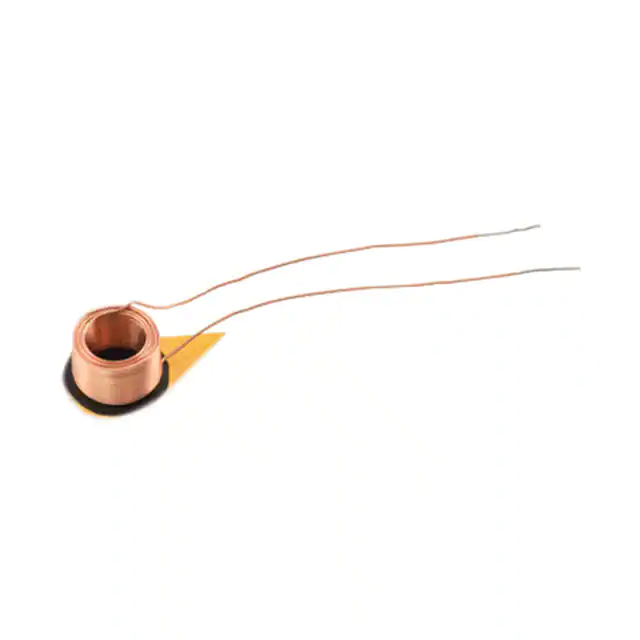

760308101221WE-WPCC WIRELESS POWER CHARGING |
3,599 | 6.31 |
RFQ |
Datasheet |
Bulk | WE-WPCC | Active | Receiver | 1 Coil, 6 Layer | 24µH | ±10% | 1.15Ohm Max | 16 @ 125kHz | 400mA | 1A | 10MHz | -20°C ~ 105°C |
|

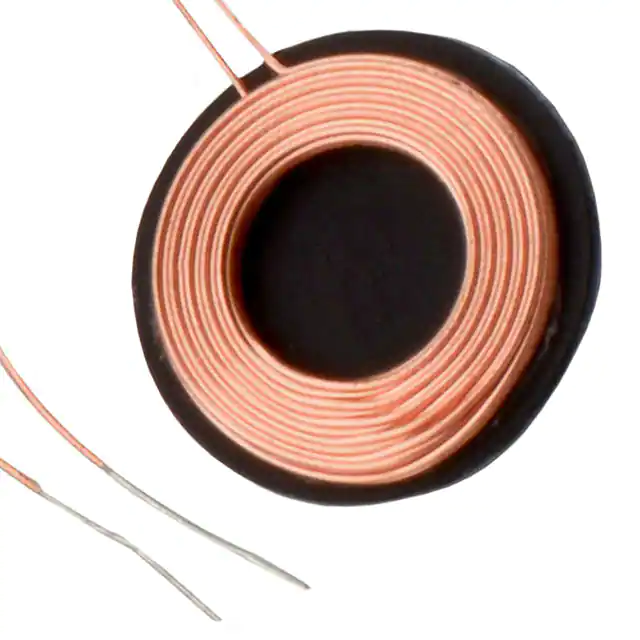

760308101208ARX 1 COIL 3 LAYER 18UH 700MA |
2,930 | 8.57 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Receiver | 1 Coil, 3 Layer | 18µH | ±10% | 650mOhm Max | 18 @ 125kHz | 700mA | 2A | 24MHz | -20°C ~ 105°C |
|

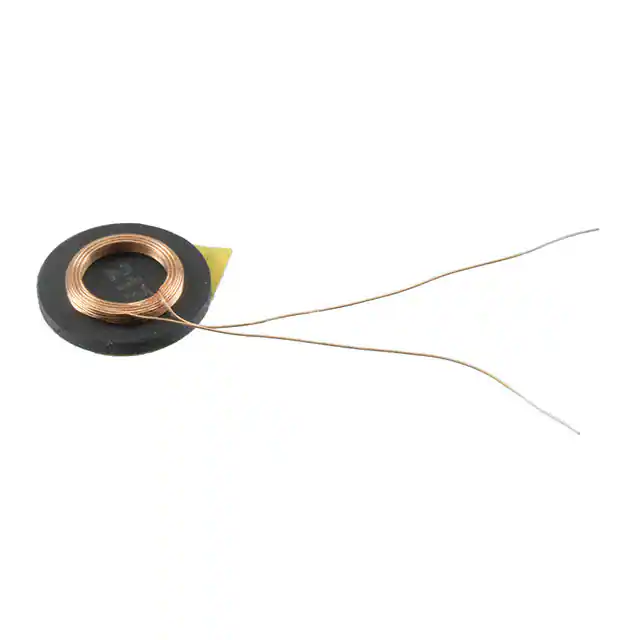

760308101217RX 1 COIL 6 LAYER 24.2UH 400MA |
3,473 | 8.80 |
RFQ |
Datasheet |
Box | WE-WPCC | Active | Receiver | 1 Coil, 6 Layer | 24.2µH | ±10% | 1.4Ohm Max | 13 @ 125kHz | 400mA | 1A | 14.5MHz | -20°C ~ 105°C |
|

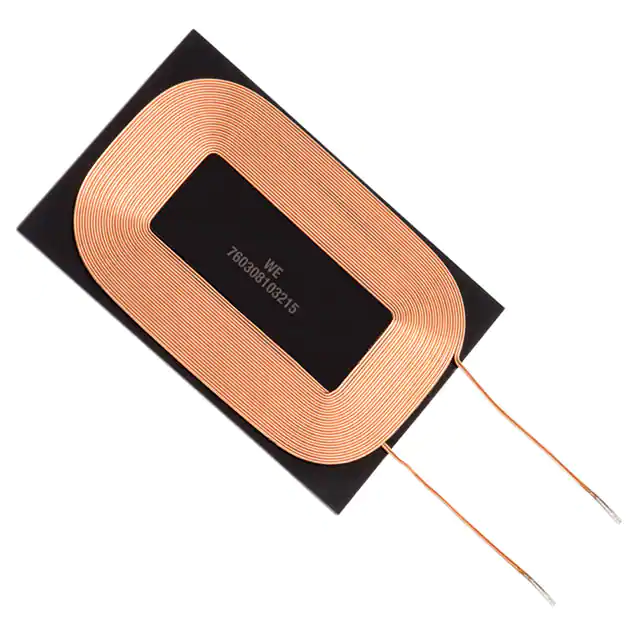

760308103215RX 1 COIL 1 LAYER 14.3UH 3A |
2,926 | 8.88 |
RFQ |
Datasheet |
Tray | WE-WPCC | Active | Receiver | 1 Coil, 1 Layer | 14.3µH | ±10% | 190mOhm Max | 40 @ 125kHz | 3A | 8A | 8.8MHz | -20°C ~ 105°C |
|

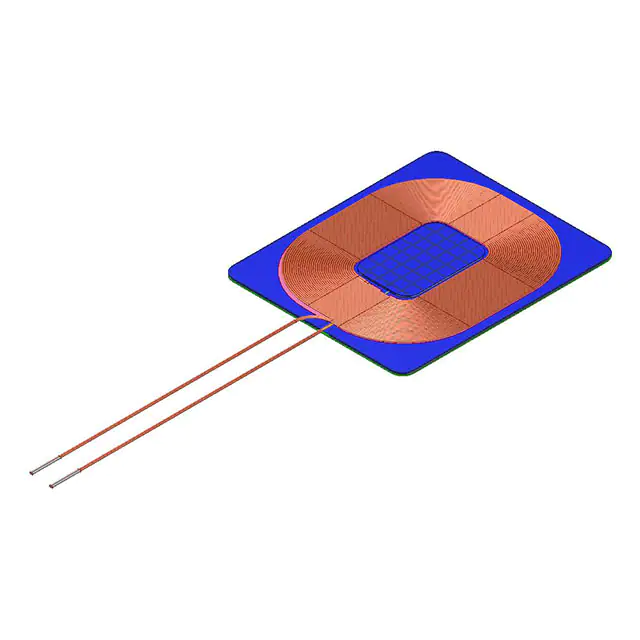

WR383245-17F5-GRX 1 COIL, 1 LYR 13.9UH |
2,585 | 5.69 |
RFQ |
Datasheet |
Tray | WR | Active | Receiver | 1 Coil, 1 Layer | 13.9µH | - | 310mOhm | 28 @ 100kHz | - | - | - | - |
|

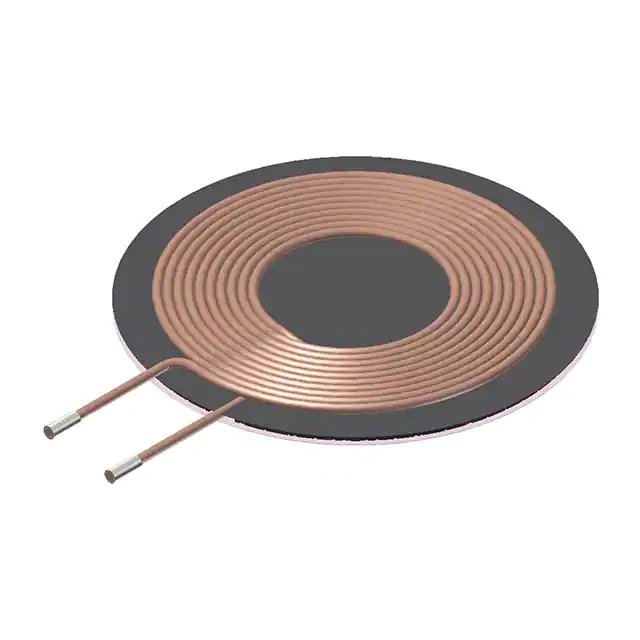

WT505090-10F2-LP-G1TX 1 COIL, 1 LYR 6.3UH |
3,697 | 5.69 |
RFQ |
Datasheet |
Tray | WT | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - |
