Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX39/20/13-3C94 FERRITE CORES ROUND Ferroxcube	293	4.79	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 39 x 20 x 13	3C94	1.567 (39.80mm)	-	±25%	Ungapped	2300	-	0.76	84.9	112	-	9513	Epoxy	0.535 (13.60mm)
TX39/20/13-3E12 FERRITE CORES ROUND Ferroxcube	383	4.79	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 39 x 20 x 13	-	1.567 (39.80mm)	-	±30%	Ungapped	12000	-	0.76	84.9	112	-	9513	Epoxy	0.535 (13.60mm)

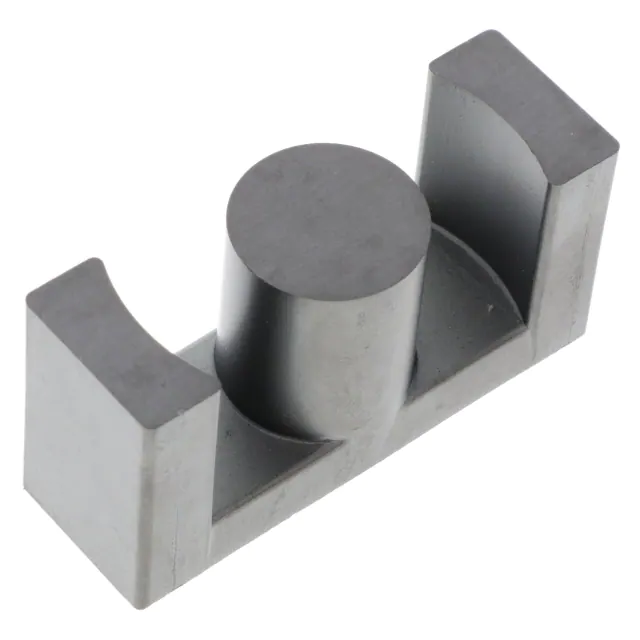

9595444502 95 ETD CORE SET Fair-Rite Products Corp.	233	4.83	- + RFQ	Datasheet	Bulk	-	Active	ETD	-	95	-	-	±25%	Ungapped	-	3000	60	103.5	173	117.7	17940	Uncoated	0.878 (22.30mm)
B65651W0000R087 FERRITE CORE P 3.6UH N87 2PCS EPCOS - TDK Electronics	3,418	4.89	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N87	0.724 (18.40mm)	3.6 µH	-20%, +30%	Ungapped	1630	2200	0.57	26.6	46.7	33.9	1242	Uncoated	0.209 (5.30mm)

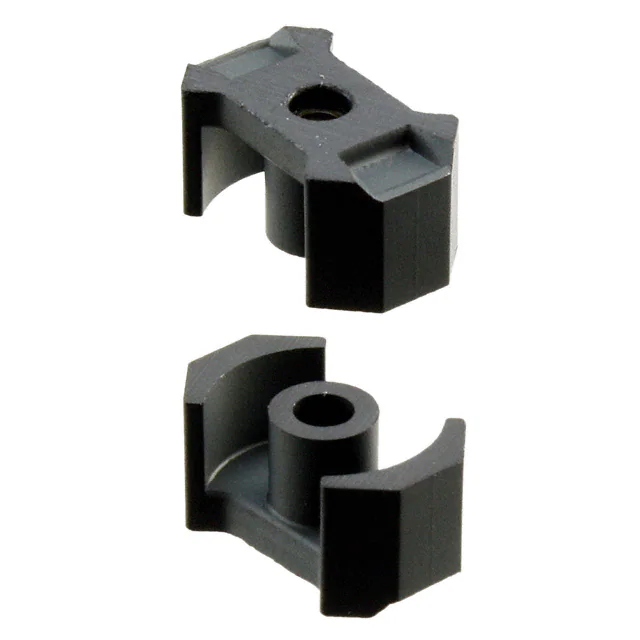

B65803N0063A033 FERRITE CORE RM 63NH M33 2PCS EPCOS - TDK Electronics	3,306	4.90	- + RFQ	Datasheet	Box	RM4	Active	RM	RM 4	M33	-	63 nH	±3%	Gapped	96	750	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)

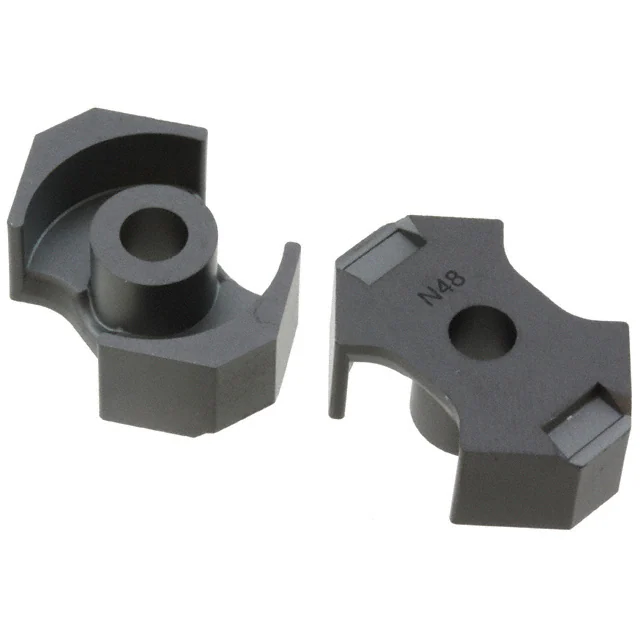

B65811D0000R048 FERRITE CORE RM 2.9UH N48 2PCS EPCOS - TDK Electronics	800	4.92	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N48	-	2.9 µH	-20%, +30%	Ungapped	1550	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)

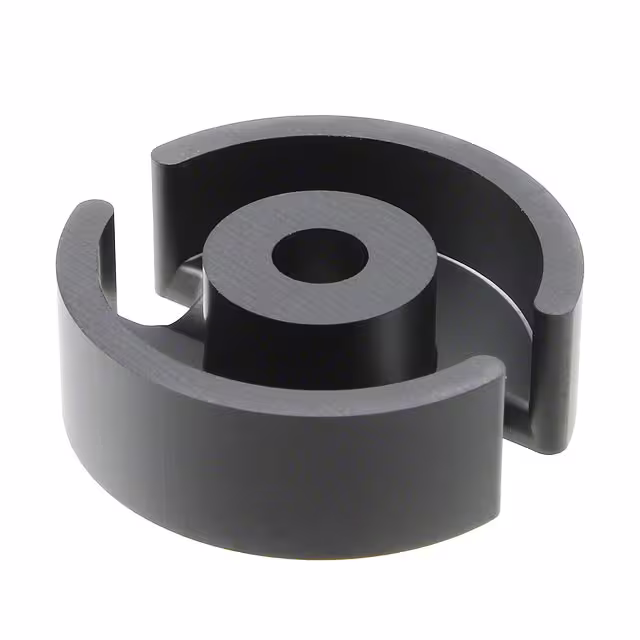

B65941A0000X022 FERRITE CORE PS N22 EPCOS - TDK Electronics	511	4.93	- + RFQ	Datasheet	Box	PS30.5/10.2	Active	PS	PS 30.5 x 10.2	N22	1.200 (30.50mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)

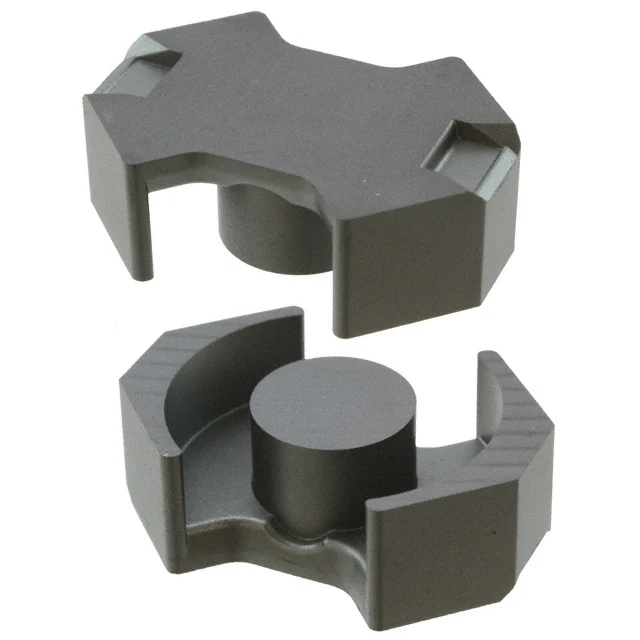

B65813J0630J041 FERRITE CORE RM 630NH N41 2PCS EPCOS - TDK Electronics	2,279	4.96	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N41	-	630 nH	±5%	Gapped	225	2800	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65813J1600K041 FERRITE CORE RM 1.6UH N41 2PCS EPCOS - TDK Electronics	464	4.96	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N41	-	1.6 µH	±10%	Gapped	572	2800	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
5695362321 95 POT CORE SET Fair-Rite Products Corp.	248	4.99	- + RFQ	Datasheet	Bulk	-	Active	PS	-	95	-	-	±25%	Ungapped	-	3000	29	50	164	-	9780	Uncoated	0.429 (10.90mm)
B65877A0000R087 FERRITE CORE PQ 4.5UH N87 2PCS EPCOS - TDK Electronics	319	5.02	- + RFQ	Datasheet	Box	PQ26/25	Active	PQ	PQ 26 x 25	N87	-	4.5 µH	-20%, +30%	Ungapped	1550	2200	0.44	53.6	122	108.7	6530	Uncoated	0.487 (12.38mm)

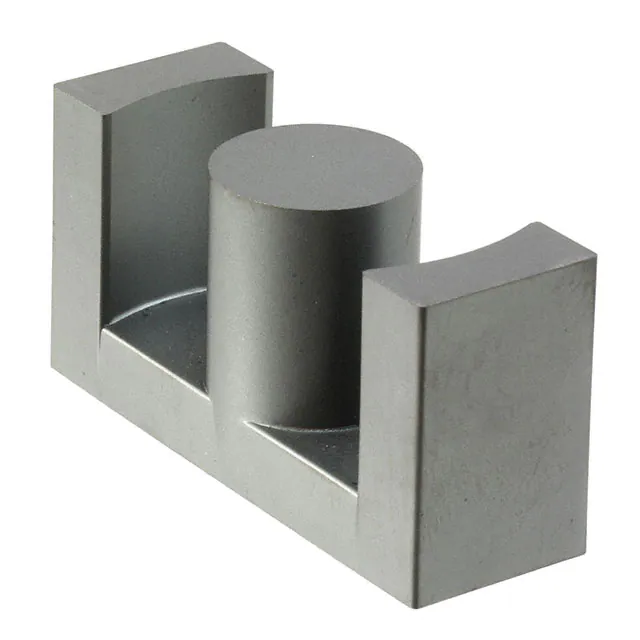

B66367G0000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3,475	5.04	- + RFQ	Datasheet	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.980 (24.90mm)
E55/28/21-3C92 FERRITE CORE Ferroxcube	477	5.07	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)

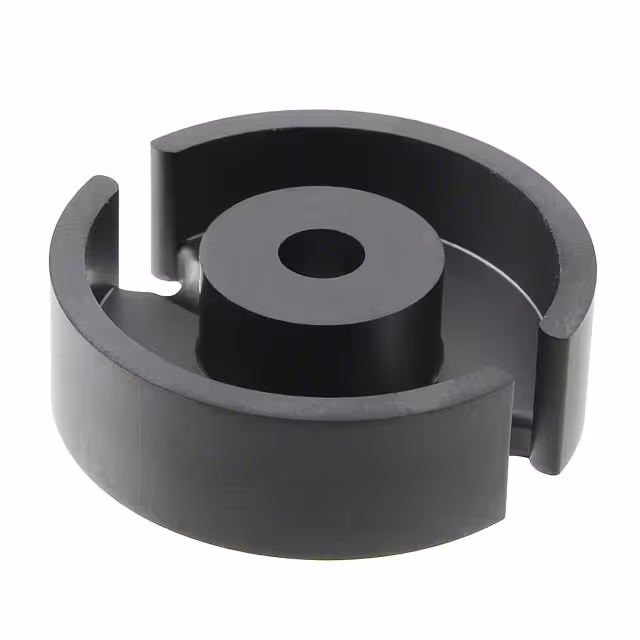

B65947A0000X022 FERRITE CORE PS N22 EPCOS - TDK Electronics	700	5.08	- + RFQ	Datasheet	Box	PS35/10.8	Active	PS	PS 35 x 10.8	N22	1.378 (35.00mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.425 (10.80mm)
B64290L0616X035 FERRITE CORE TOROID 10.7UH T35 EPCOS - TDK Electronics	526	5.10	- + RFQ	Datasheet	Box	TX25.3/14.8/20	Active	Toroid	-	T35	1.047 (26.60mm)	10.7 µH	±25%	Ungapped	-	5000	0.59	60.07	102.5	-	6157	Epoxy	0.839 (21.30mm)
B65813J0000R049 FERRITE CORE RM 2.9UH N49 2PCS EPCOS - TDK Electronics	372	5.10	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N49	-	2.9 µH	-20%, +30%	Ungapped	1040	1500	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
B65813J0000R097 FERRITE CORE RM 4.2UH N97 2PCS EPCOS - TDK Electronics	2,539	5.11	- + RFQ	Datasheet	Box	RM10	Active	RM	RM 10	N97	-	4.2 µH	-20%, +30%	Ungapped	1500	2300	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
E42/33/20-3C92 FERRITE CORE Ferroxcube	506	5.13	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 33 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
B65811J0250A048 FERRITE CORE RM 250NH N48 2PCS EPCOS - TDK Electronics	162	5.15	- + RFQ	Datasheet	Bulk	RM8	Active	RM	RM 8	N48	-	250 nH	±3%	Gapped	134	-	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B65651D0160A048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	708	5.16	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	160 nH	±3%	Gapped	77	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
