Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B66506G0000X149 FERRITE CORE EQ N49 1PC EPCOS - TDK Electronics	3,839	4.22	- + RFQ	Datasheet	Box	EQ30/8/20	Active	EQ	EQ 30 x 8	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)
TX36/23/15-3E12 FERRITE CORES ROUND Ferroxcube	419	4.27	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 15	-	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.630 (16.00mm)
B65511A0100A048 FERRITE CORE P 100NH N48 2PCS EPCOS - TDK Electronics	3,207	4.32	- + RFQ	Datasheet	Box	P7/4	Active	P (Pot Core)	P 7 x 4	N48	0.289 (7.35mm)	100 nH	±3%	Gapped	114	-	1.43	10	7	-	70	Uncoated	0.083 (2.10mm)
B65875B0000R097 FERRITE CORE PQ 3.2UH N97 2PCS EPCOS - TDK Electronics	348	4.33	- + RFQ	Datasheet	Box	PQ20/16	Active	PQ	PQ 20 x 16	N97	-	3.2 µH	-20%, +30%	Ungapped	1475	2300	0.579	37	64	57.6	2367	Uncoated	0.319 (8.10mm)

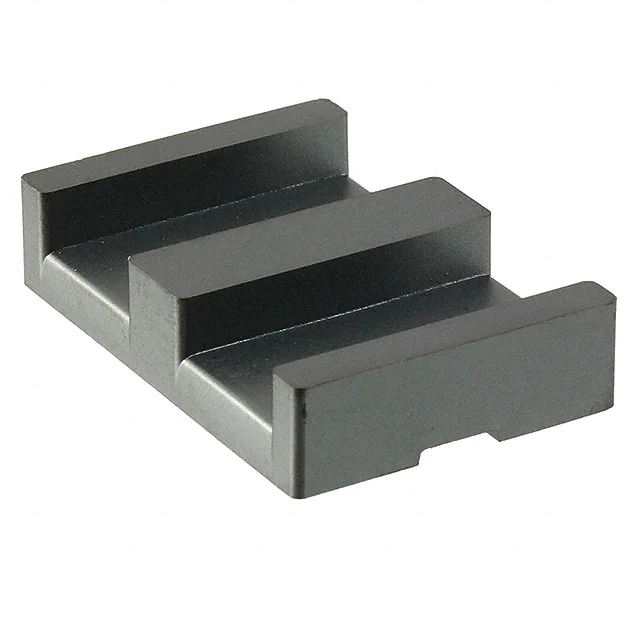

B66289G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	2,516	4.34	- + RFQ	Datasheet	Box	ELP38/8/25	Active	ELP	ELP 38 x 8 x 25	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.324 (8.25mm)
B64290L0616X830 FERRITE CORE TOROID 9.16UH N30 EPCOS - TDK Electronics	531	4.34	- + RFQ	Datasheet	Box	TX25.3/14.8/20	Active	Toroid	-	N30	1.047 (26.60mm)	9.16 µH	±25%	Ungapped	-	4300	0.59	60.07	102.5	-	6157	Epoxy	0.839 (21.30mm)
B65875B0000R049 FERRITE CORE PQ 2.4UH N49 2PCS EPCOS - TDK Electronics	375	4.35	- + RFQ	Datasheet	Tray	PQ20/16	Active	PQ	PQ 20 x 16	N49	-	2.4 µH	-20%, +30%	Ungapped	1105	1500	0.579	37	64	57.6	2367	Uncoated	0.319 (8.10mm)
5698362321 98 POT CORE SET Fair-Rite Products Corp.	230	4.36	- + RFQ	Datasheet	Bulk	-	Active	PS	-	-	-	-	±25%	Ungapped	-	2400	29	55.3	164	-	9780	Uncoated	0.429 (10.90mm)
TX32/19/13-3E12 FERRITE CORES ROUND Ferroxcube	746	4.37	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 32 x 19 x 13	-	1.281 (32.55mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.528 (13.40mm)
ETD54/28/19-3C94 FERRITE CORE Ferroxcube	863	4.38	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)

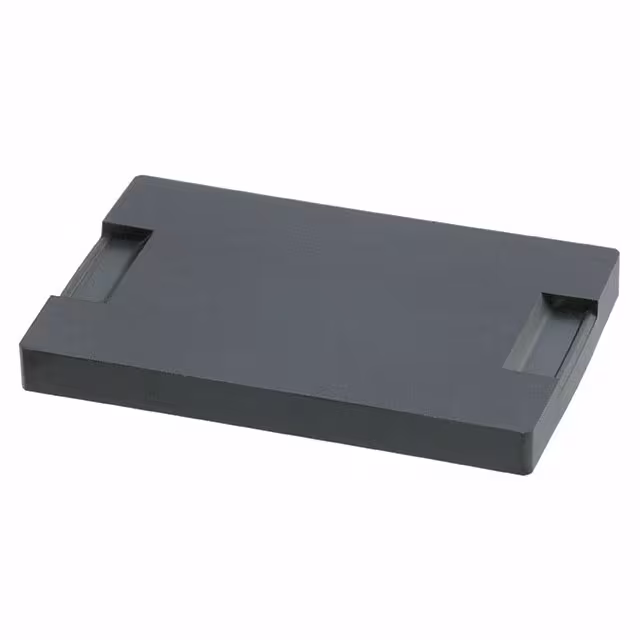

B66459K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	834	4.39	- + RFQ	Datasheet	Bag	I38/4/25	Active	I	I 38 x 4 x 25	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.150 (3.81mm)

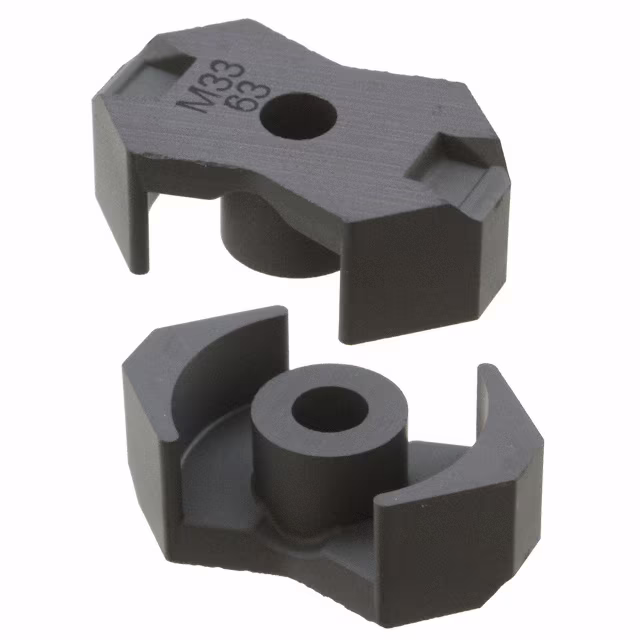

B65807N0063A033 FERRITE CORE RM 63NH M33 2PCS EPCOS - TDK Electronics	800	4.40	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	M33	-	63 nH	±3%	Gapped	43.2	750	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
PC47EI40-Z EI CORE SMPS TRANSFORMER 1 SET TDK Corporation	148	4.42	- + RFQ	Datasheet	Tray	E	Active	E	-	PC47	-	4.86 µH	±25%	Ungapped	-	2500	0.52	77	148	-	11400	Uncoated	-
B65875A0000R049 FERRITE CORE PQ 2UH N49 2PCS EPCOS - TDK Electronics	316	4.43	- + RFQ	Datasheet	Box	PQ20/20	Active	PQ	PQ 20 x 20	N49	-	2 µH	-20%, +30%	Ungapped	1150	1500	0.718	45.2	62.9	54.4	2843	Uncoated	0.398 (10.10mm)
B65661W0000R030 FERRITE CORE P 8.3UH N30 2PCS EPCOS - TDK Electronics	2,962	4.52	- + RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N30	0.866 (22.00mm)	8.3 µH	-20%, +30%	Ungapped	3020	4300	0.46	33.2	72.6	58.1	2410	Uncoated	0.268 (6.80mm)

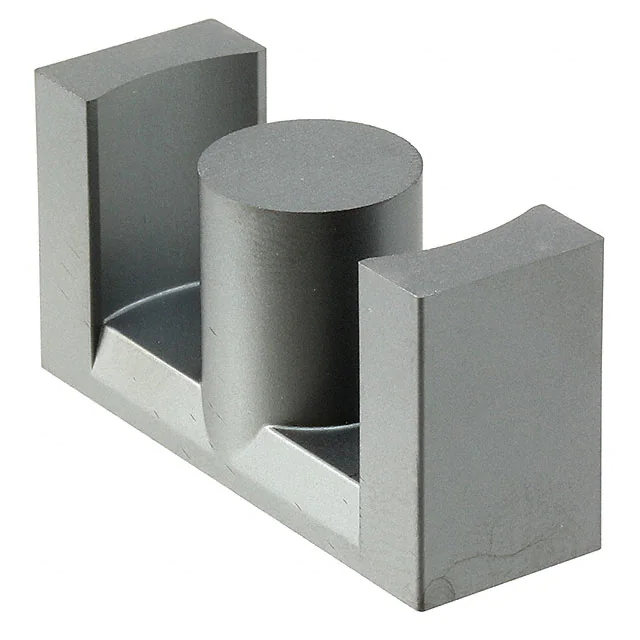

B66365G1000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	273	4.61	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)

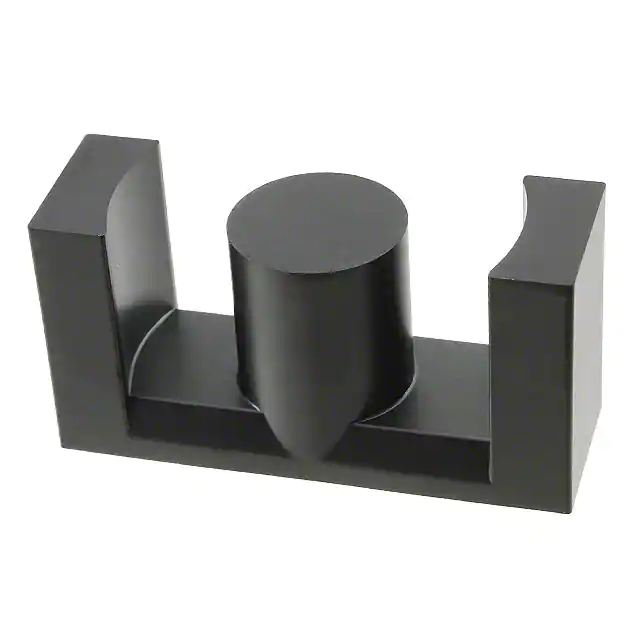

B66365G1500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	270	4.61	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
B66287K0000X195 FERRITE CORE I N95 EPCOS - TDK Electronics	424	4.62	- + RFQ	Datasheet	Tray	I32/3/20	Active	I	I 32 x 3 x 20	N95	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)

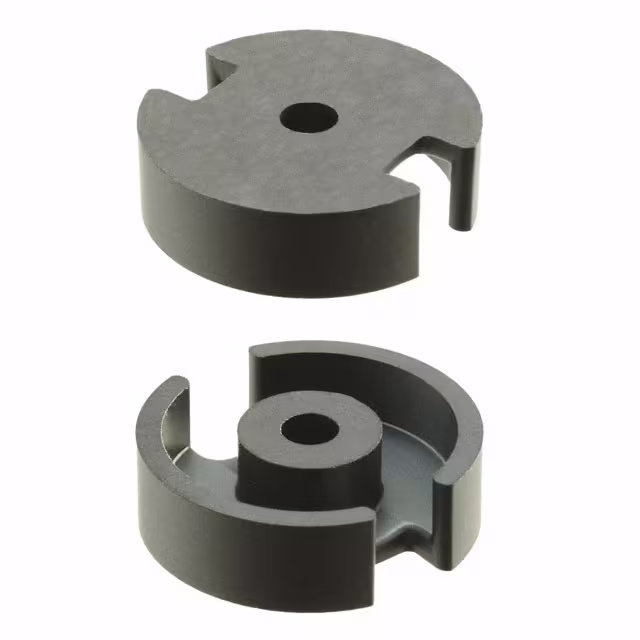

B65651D0000R048 FERRITE CORE P 2.8UH N48 2PCS EPCOS - TDK Electronics	3,261	4.71	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	N48	0.724 (18.40mm)	2.8 µH	-20%, +30%	Ungapped	1340	-	0.6	25.9	43	-	1114	Uncoated	0.209 (5.30mm)
PQ32/20-3C97 FERRITE CORE Ferroxcube	531	4.71	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 20	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.811 (20.60mm)
