Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX22/14/13-3E6 FERRITE CORES ROUND Ferroxcube	819	1.89	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 13	-	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.510 (12.95mm)
B65843A0160B087 FERRITE CORE EP 160NH N87 2PCS EPCOS - TDK Electronics	3,519	1.90	- + RFQ	Datasheet	Box	EP13	Active	EP	EP 13	N87	-	160 nH	±4%	Gapped	158	2200	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
ETD39/20/13-3C97 FERRITE CORE Ferroxcube	3,543	1.91	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 39 x 20 x 13	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.780 (19.80mm)
B64290L0719X049 FERRITE CORE TOROID 1.13UH N49 EPCOS - TDK Electronics	3,157	1.93	- + RFQ	Datasheet	Box	TX22/14/7.9	Active	Toroid	-	N49	0.917 (23.30mm)	1.13 µH	±25%	Ungapped	-	1500	1.66	54.2	32.6	-	1763	Epoxy	0.354 (9.00mm)
B66455K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	3,157	1.96	- + RFQ	Datasheet	Tray	I22/2.5/16	Active	I	I 22 x 2.5 x 16	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
B64290L0632X035 FERRITE CORE TOROID 5UH T35 EPCOS - TDK Electronics	2,312	1.99	- + RFQ	Datasheet	Bulk	TX20/10/7	Active	Toroid	-	T35	0.835 (21.20mm)	5 µH	±25%	Ungapped	-	5100	1.3	43.55	33.63	-	1465	Epoxy	0.319 (8.10mm)
B64290L0618X065 FERRITE CORE TOROID 5.35UH T65 EPCOS - TDK Electronics	2,090	2.06	- + RFQ	Datasheet	Box	TX25.3/14.8/10	Active	Toroid	-	T65	1.047 (26.60mm)	5.35 µH	±30%	Ungapped	-	5000	1.17	60.07	51.26	-	3079	Epoxy	0.433 (11.00mm)
B65525J0000R097 FERRITE CORE ER 1.2UH N97 2PCS EPCOS - TDK Electronics	3,515	2.13	- + RFQ	Datasheet	Box	ER11/5	Active	ER	ER 11 x 5	N97	-	1.2 µH	-20%, +30%	Ungapped	1086	2300	1.1	14.1	12.4	-	174	Uncoated	0.098 (2.50mm)
B65803J0000R087 FERRITE CORE RM 1.1UH N87 2PCS EPCOS - TDK Electronics	3,305	2.14	- + RFQ	Datasheet	Box	RM4	Active	RM	RM 4	N87	-	1.1 µH	-20%, +30%	Ungapped	1480	2200	1.7	22	13	11.3	286	Uncoated	0.207 (5.25mm)
B66482G0000X197 FERRITE CORE ER N97 1PC EPCOS - TDK Electronics	3,980	2.17	- + RFQ	Datasheet	Box	ER23/5/13	Active	ER	ER 23 x 5 x 13	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.201 (5.10mm)
EFD15/8/5-3F46-S FERRITE CORE 2PC SET Ferroxcube	3,984	2.17	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 15 x 8 x 5	3F46	-	-	±25%	Ungapped	667	-	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
B66283G0000X192 FERRITE CORE ELP N92 1PC EPCOS - TDK Electronics	3,979	2.18	- + RFQ	Datasheet	Box	ELP18/4/10	Active	ELP	ELP 18 x 4 x 10	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
RM7/I-3C95 FERRITE CORE 2PC SET Ferroxcube	3,944	2.18	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 7	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.528 (13.40mm)

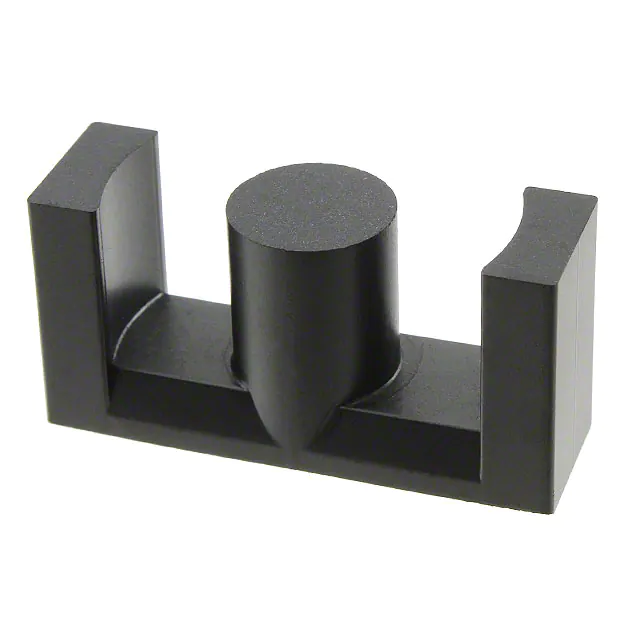

B66361G0500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,784	2.19	- + RFQ	Datasheet	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
B65517D0000R048 FERRITE CORE P 1.3UH N48 2PCS EPCOS - TDK Electronics	3,088	2.20	- + RFQ	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N48	0.366 (9.30mm)	1.3 µH	-20%, +30%	Ungapped	1290	-	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B66453K0000X149 FERRITE CORE I N49 EPCOS - TDK Electronics	2,086	2.21	- + RFQ	Datasheet	Tray	I18/2/10	Active	I	I 18 x 2 x 10	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.079 (2.00mm)
B66283G0000X149 FERRITE CORE ELP N49 1PC EPCOS - TDK Electronics	3,165	2.21	- + RFQ	Datasheet	Box	ELP18/4/10	Active	ELP	ELP 18 x 4 x 10	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
B65805J0000R608 FERRITE CORE RM PC200 1=2PC EPCOS - TDK Electronics	3,570	2.21	- + RFQ	Datasheet	Bulk	RM5	Active	RM	RM 5	PC200	-	-	-20%, +30%	Ungapped	590	800	0.93	22.1	23.8	18	526	Uncoated	0.413 (10.50mm)
B66283G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	2,353	2.21	- + RFQ	Datasheet	Tray	ELP18/4/10	Active	ELP	ELP 18 x 4 x 10	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
B65933A0000X022 FERRITE CORE PS N22 1PC EPCOS - TDK Electronics	3,057	2.24	- + RFQ	Datasheet	Box	PS7.35/3.6	Active	PS	PS 7.35 x 3.6	N22	0.289 (7.35mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.142 (3.60mm)
