Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

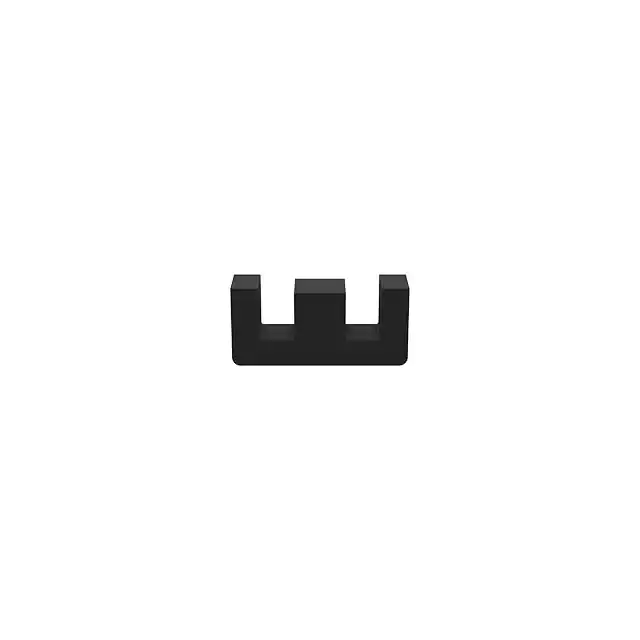

B66317G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	3,053	0.85	- + RFQ	Datasheet	Box	E25/13/7	Active	E	E 25 x 13 x 7	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
PLT13/9/1-3C95 FERRITE CORE Ferroxcube	3,371	0.86	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 13 x 9 x 1	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.043 (1.10mm)

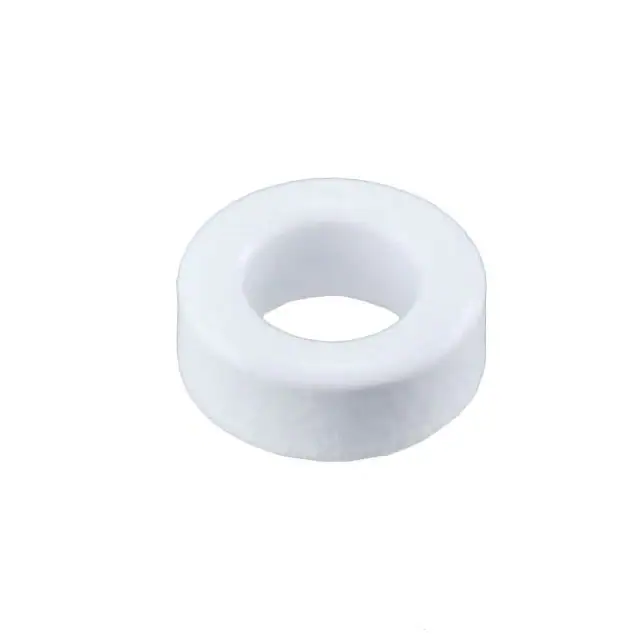

TX13/7.1/4.8-3E10-M FERRITE CORES ROUND Ferroxcube	3,697	0.86	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.1 x 4.8	-	0.510 (12.95mm)	-	-	Ungapped	-	-	2.4	29.5	12.3	-	361	Epoxy	0.198 (5.03mm)

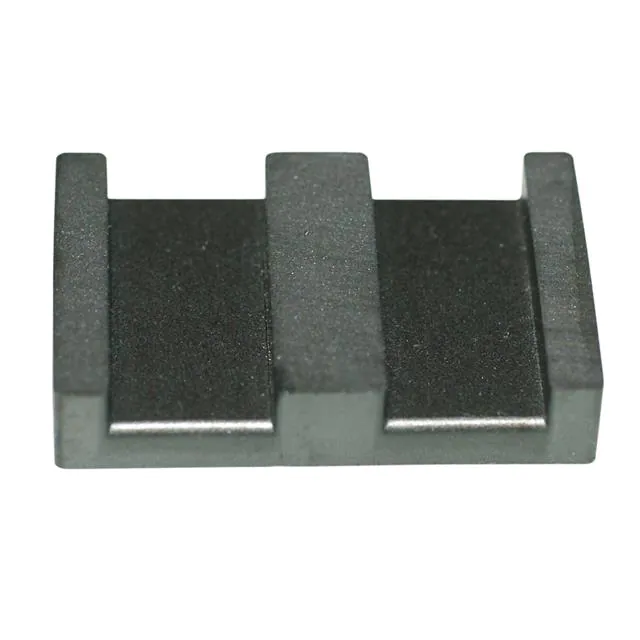

9495202002 95 PLANAR E CORE SET Fair-Rite Products Corp.	2,371	0.87	- + RFQ	Datasheet	Bulk	-	Active	E	-	95	-	-	±25%	Ungapped	-	3000	60	24.3	39.5	39	960	Uncoated	-
TX13/7.1/4.8-3E27 FERRITE CORES ROUND Ferroxcube	2,766	0.89	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.1 x 4.8	3E27	0.510 (12.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.199 (5.06mm)

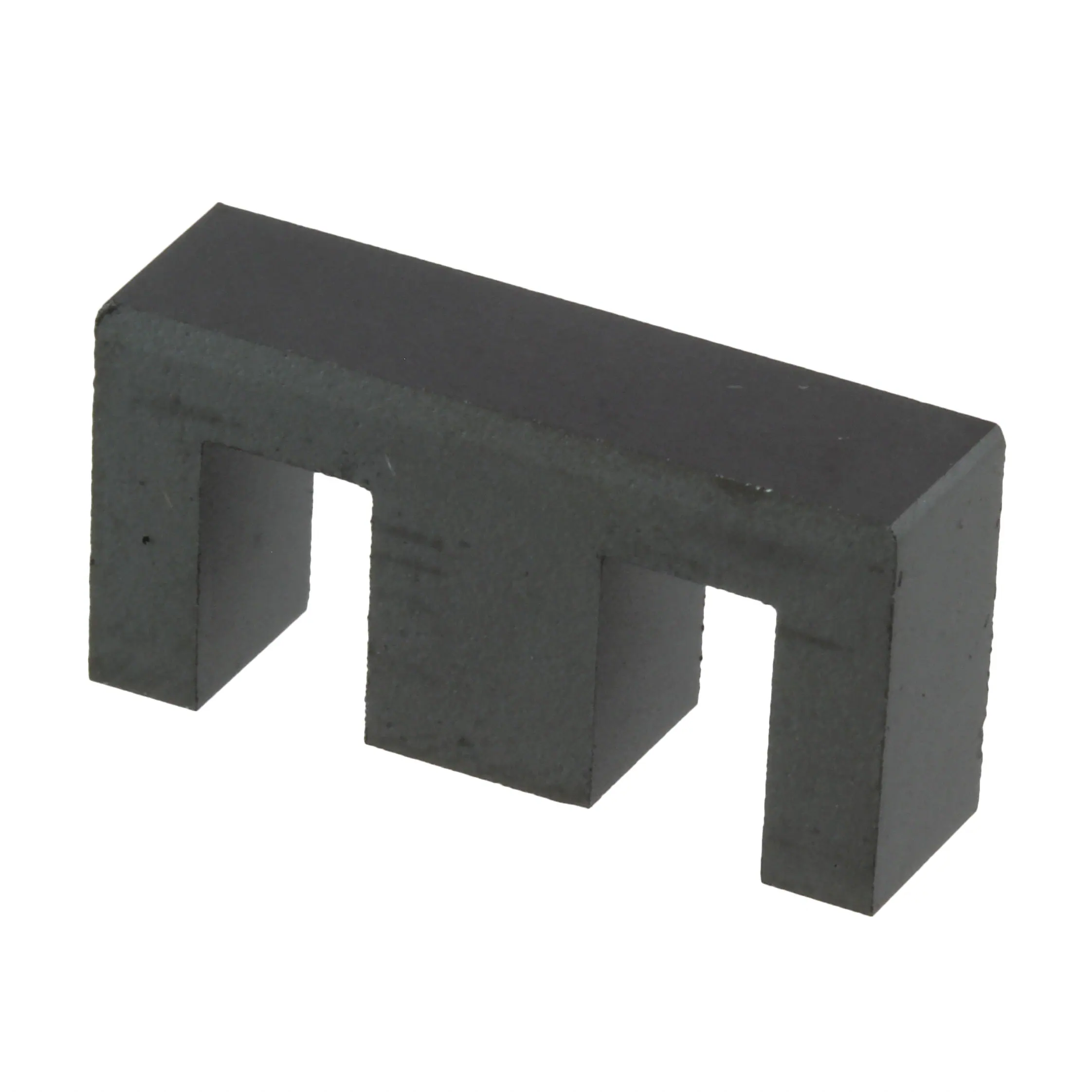

B66311G0090X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	848	0.90	- + RFQ	Datasheet	Box	E20/10/6	Active	E	E 20 x 10 x 6	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)

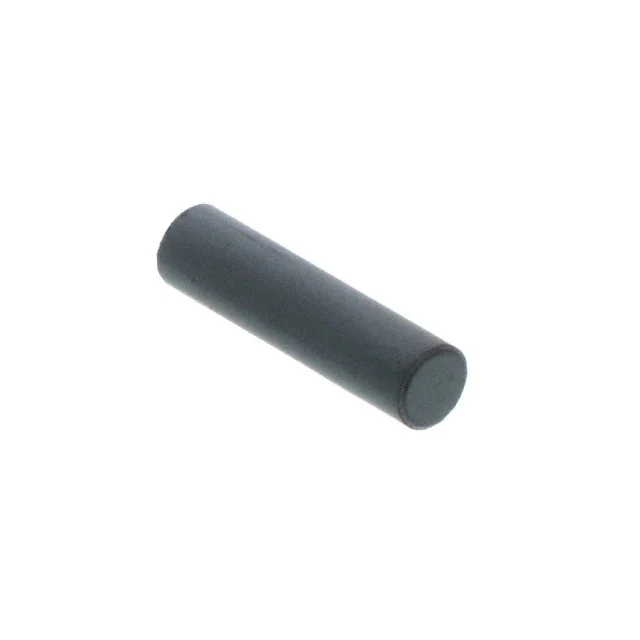

4061276011 61 ROD Fair-Rite Products Corp.	2,714	0.91	- + RFQ	Datasheet	Tray	-	Active	ROD	-	61	0.250 (6.35mm)	-	-	Ungapped	29	125	-	25	7.07	-	-	Uncoated	-
TX16/9.1/4.7-3E27 FERRITE CORES ROUND Ferroxcube	3,272	0.91	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.1 x 4.7	3E27	0.635 (16.13mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.195 (4.95mm)
B64290L0045X037 FERRITE CORE TOROID 4.19UH T37 EPCOS - TDK Electronics	2,220	0.92	- + RFQ	Datasheet	Box	TX16/9.6/6.3	Active	Toroid	-	T37	0.677 (17.20mm)	4.19 µH	±25%	Ungapped	-	6500	1.95	38.52	19.73	-	760	Epoxy	0.287 (7.30mm)

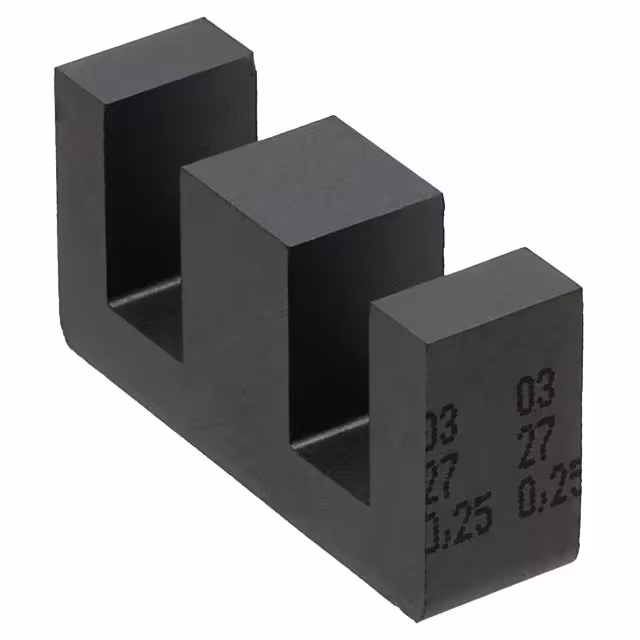

B66317G0250X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	554	0.92	- + RFQ	Datasheet	Box	E25/13/7	Active	E	E 25 x 13 x 7	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
B66371Q0400K187 E70/33/32-N87-DG400 EPCOS - TDK Electronics	352	16.66	- + RFQ	Datasheet	Bulk	E70/33/32	Active	E	E 70 x 33 x 32	N87	-	400 nH	±10%	Distributed Gapped	-	-	0.22	149	683	676	102000	Uncoated	1.307 (33.20mm)

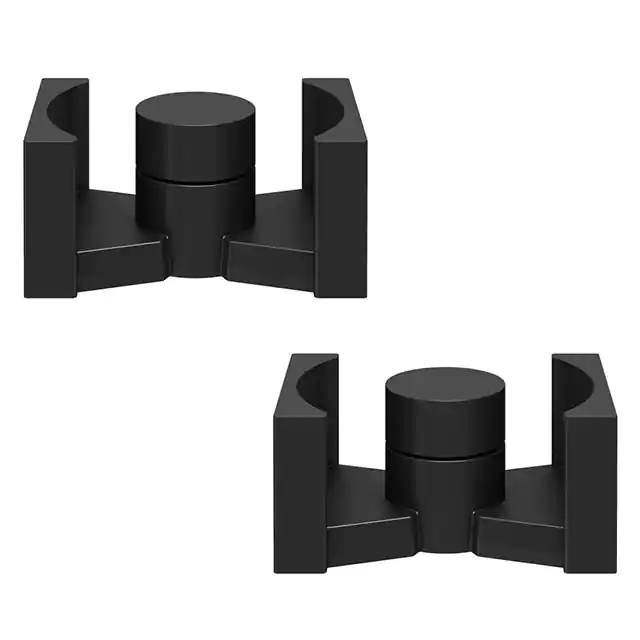

B65982Q0100K097 PQ65/60-N97-DG100 EPCOS - TDK Electronics	139	55.48	- + RFQ	Datasheet	Tray	PQ65/60	Active	PQ	PQ 65 x 60	N97	-	100 nH	±10%	Distributed Gapped	-	-	0.228	137	171	531	81950	Uncoated	1.181 (30.00mm)
46T0122-21P FERRITE CORE TOROID Laird-Signal Integrity Products	3,285	0.10	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	46	-	-	±25%	Ungapped	-	4000	-	-	-	-	-	Parylene	-
33T0231-10P FERRITE CORE TOROID 5.87MM OD Laird-Signal Integrity Products	3,765	0.24	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	-	-	-	-	-	-	-	-	-	-	-	Parylene	-
2643003701 FERRITE CORE 40OHM SOLID 1.30MM Fair-Rite Products Corp.	2,970	0.28	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66411G0000X187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	3,552	0.93	- + RFQ	Datasheet	Box	EFD10/5/3	Active	EFD	EFD 10 x 5 x 3	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.205 (5.20mm)
E30/15/7-3C94 FERRITE CORE Ferroxcube	2,853	0.95	- + RFQ	Datasheet	Bulk	-	Active	E	E 30 x 15 x 7	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
E25/13/11-3C94 FERRITE CORE Ferroxcube	3,608	0.95	- + RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 11	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
5976000211 76 TOROID PARYLENE COATED Fair-Rite Products Corp.	3,482	0.97	- + RFQ	Datasheet	Bag	-	Active	Toroid	-	76	-	4.4 µH	±30%	Ungapped	-	10000	286	20.7	7.2	-	150	Parylene	-
HF90T14X7X8 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	2,587	0.99	- + RFQ	Datasheet	Tray	T	Active	Toroid	-	-	0.551 (14.00mm)	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.276 (7.00mm)
