Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX13/7.9/6.4-3E65 FERRITE CORES ROUND Ferroxcube	2,781	0.78	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.9 x 6.4	-	0.526 (13.35mm)	-	±25%	Ungapped	5200	-	2.21	31.2	14.1	-	442	Epoxy	0.275 (7.00mm)
TX10/6/4-3E27 FERRITE CORES ROUND Ferroxcube	2,361	0.79	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	-	-	-	Ungapped	-	-	3.07	24.1	7.8	-	3.07	Epoxy	0.167 (4.25mm)

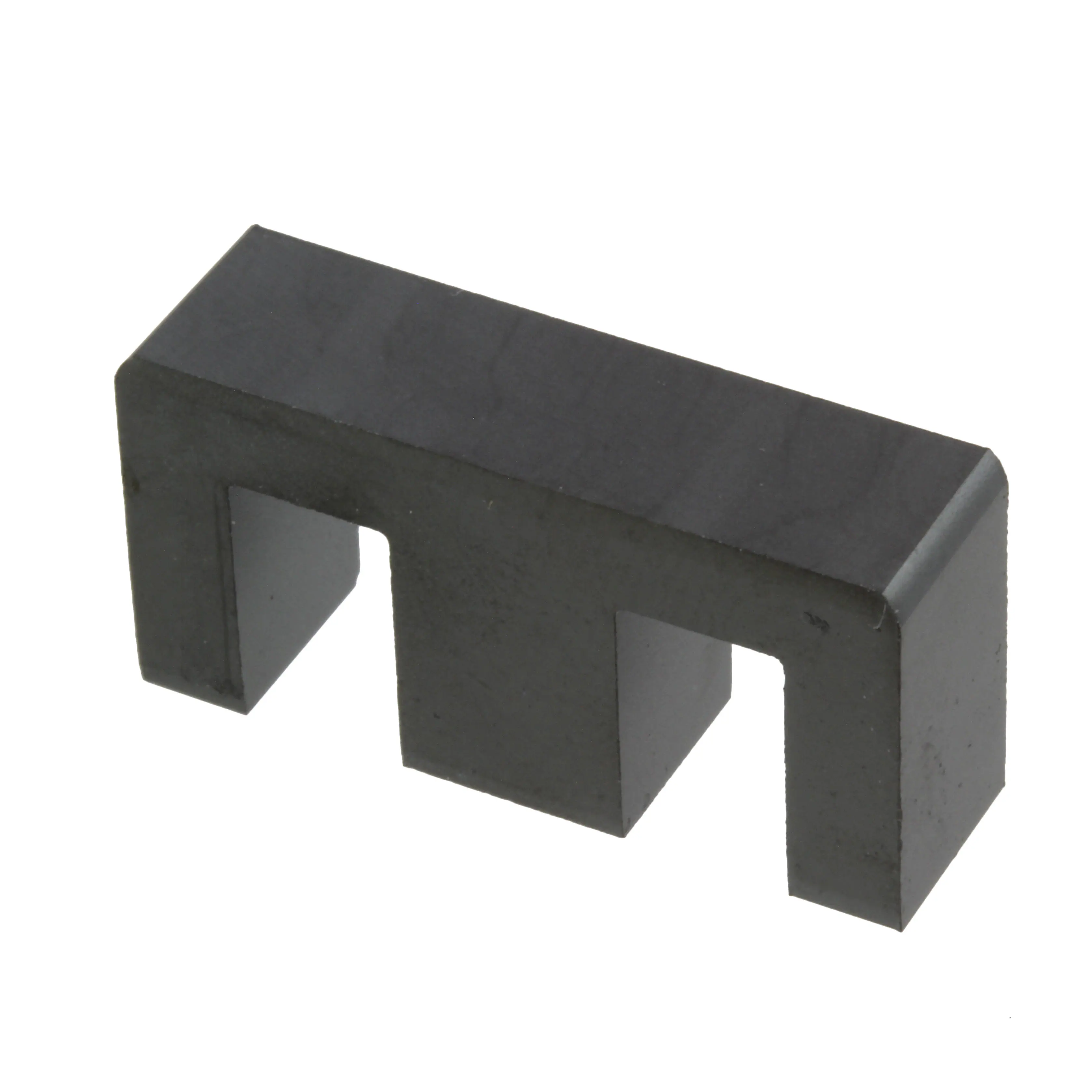

B66317G0100X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,463	0.79	- + RFQ	Datasheet	Box	E25/13/7	Active	E	E 25 x 13 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)

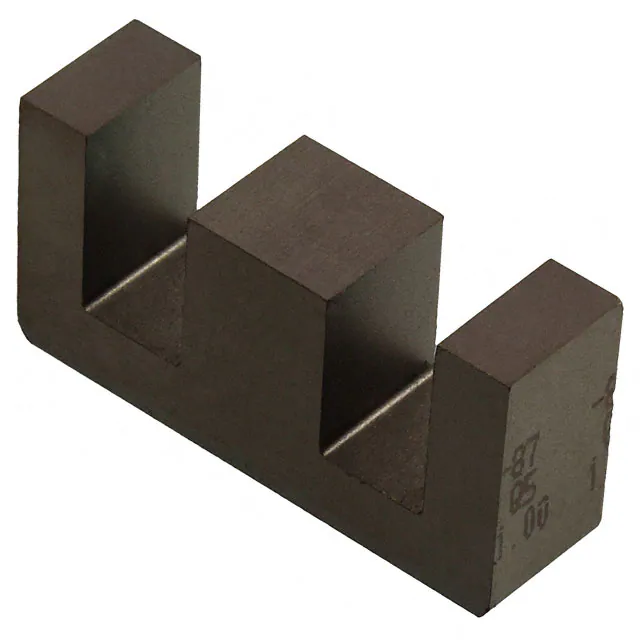

B66317G1000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,229	0.79	- + RFQ	Datasheet	Box	E25/13/7	Active	E	E 25 x 13 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
TX13/7.1/4.8-3C94 FERRITE CORES ROUND Ferroxcube	2,758	0.80	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.1 x 4.8	3C94	0.510 (12.95mm)	-	±20%	Ungapped	-	2300	2.4	29.5	12.3	-	361	Epoxy	0.198 (5.03mm)
TX13/7.1/4.8-3C90 FERRITE CORES ROUND Ferroxcube	3,101	0.80	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.1 x 4.8	3C90	0.510 (12.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.199 (5.06mm)
B64290L0658X038 FERRITE CORE TOROID 4.42UH T38 EPCOS - TDK Electronics	3,234	0.80	- + RFQ	Datasheet	Box	TX14/9/5	Active	Toroid	-	T38	0.594 (15.10mm)	4.42 µH	±30%	Ungapped	-	10000	2.84	34.98	12.3	-	430	Epoxy	0.236 (6.00mm)
B64290L0742X038 FERRITE CORE TOROID 6.03UH T38 EPCOS - TDK Electronics	2,864	0.81	- + RFQ	Datasheet	Box	TX13/7.9/6.4	Active	Toroid	-	T38	0.535 (13.60mm)	6.03 µH	±30%	Ungapped	-	10000	2.08	31.17	14.96	-	466	Epoxy	0.281 (7.15mm)
B66300G0000X138 FERRITE CORE E T38 1PC EPCOS - TDK Electronics	2,618	0.81	- + RFQ	Datasheet	Box	E6.3	Active	E	E 6 x 3	T38	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.114 (2.90mm)

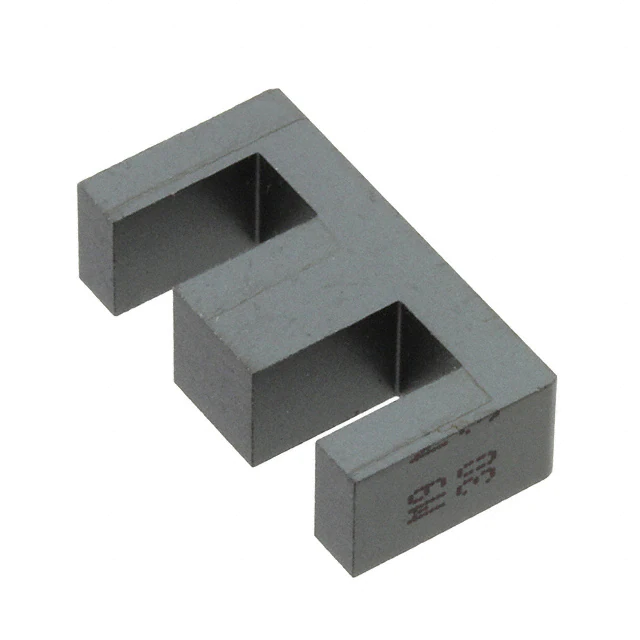

B66311G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	2,499	0.81	- + RFQ	Datasheet	Box	E20/10/6	Active	E	E 20 x 10 x 6	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)

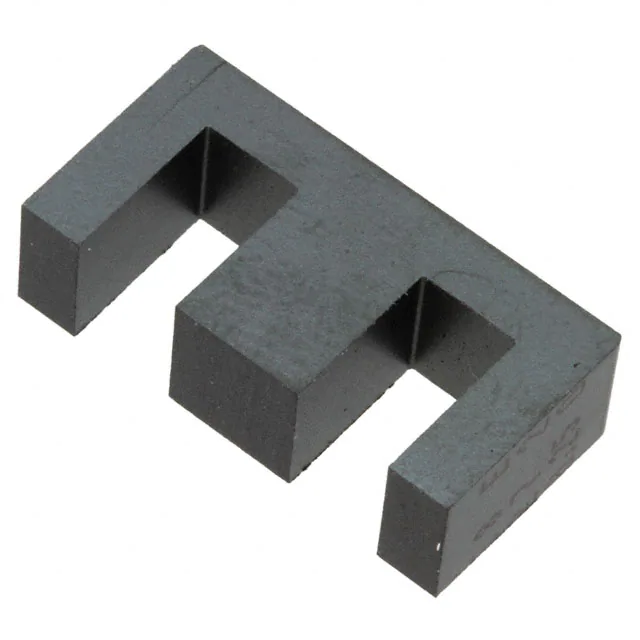

B66311G0250X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,643	0.81	- + RFQ	Datasheet	Box	E20/10/6	Active	E	E 20 x 10 x 6	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
B66311G0170X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,715	0.81	- + RFQ	Datasheet	Box	E20/10/6	Active	E	E 20 x 10 x 6	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)

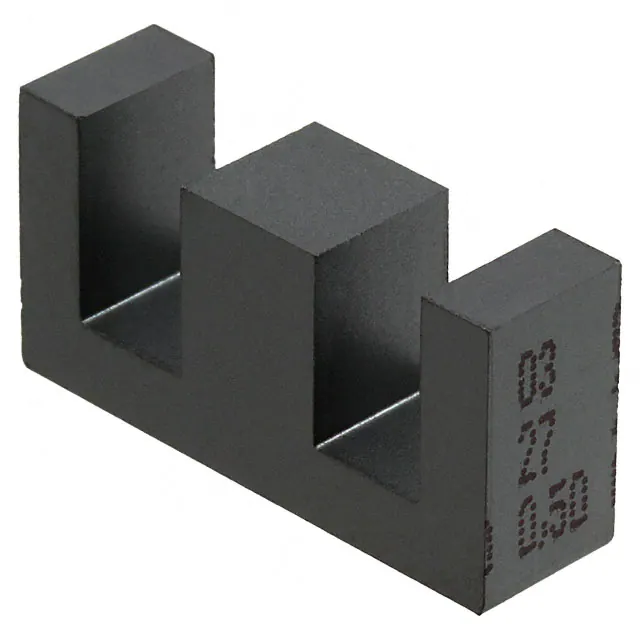

B66311G0500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,648	0.81	- + RFQ	Datasheet	Box	E20/10/6	Active	E	E 20 x 10 x 6	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)

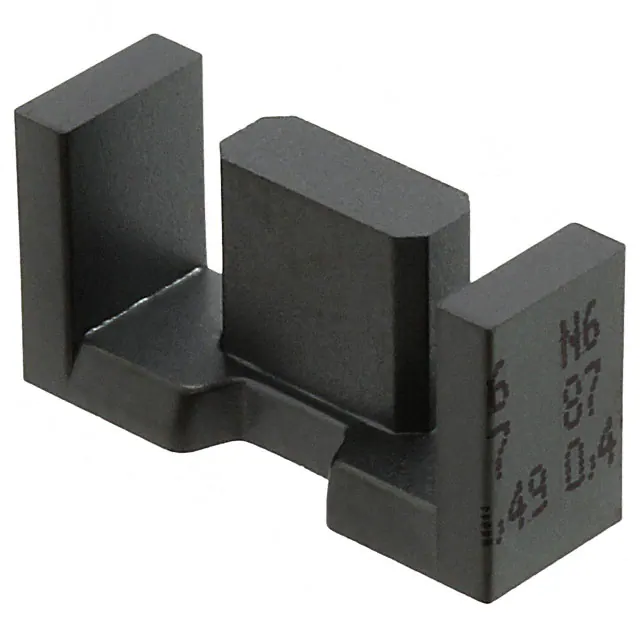

B66417U0100K187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	2,093	0.81	- + RFQ	Datasheet	Box	EFD20/10/7	Active	EFD	EFD 20 x 10 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
TX16/9.1/4.7-3C90 FERRITE CORES ROUND Ferroxcube	2,521	0.82	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 16 x 9.1 x 4.7	3C90	0.635 (16.13mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.195 (4.95mm)

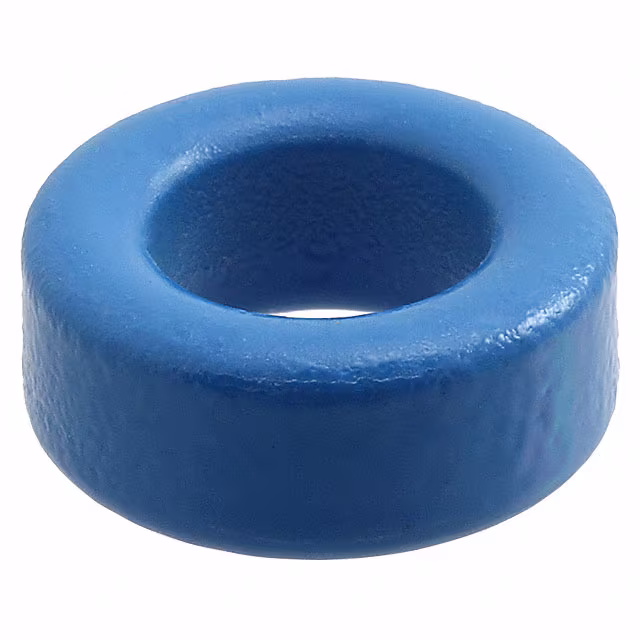

B64290L0045X027 FERRITE CORE TOROID 1.29UH N27 EPCOS - TDK Electronics	2,326	0.82	- + RFQ		Box	TX16/9.6/6.3	Active	Toroid	-	N27	0.677 (17.20mm)	1.29 µH	±25%	Ungapped	-	2000	1.95	38.52	19.73	-	760	Epoxy	0.287 (7.30mm)
B66413G0000X608 EFD15/8/5-PC200 EPCOS - TDK Electronics	2,069	0.83	- + RFQ	Datasheet	Box	B66413	Active	EFD	EFD 15 x 8 x 5	PC200	-	370 nH	-20%, +30%	Ungapped	670	800	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
TX10/6/4-3E6 FERRITE CORES ROUND Ferroxcube	3,368	0.83	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	-	-	-	-	-	-	-	-	-	-	-	Epoxy	0.167 (4.25mm)

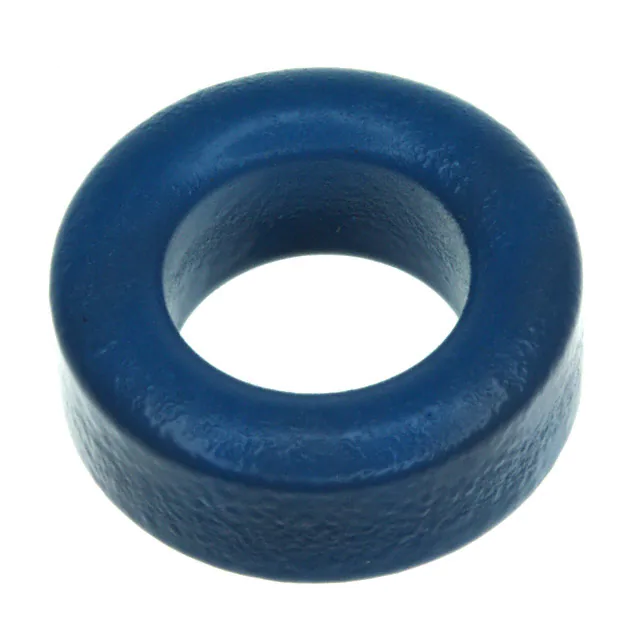

B64290L0045X035 FERRITE CORE TOROID 3.87UH T35 EPCOS - TDK Electronics	191	0.84	- + RFQ	Datasheet	Bulk	TX16/9.6/6.3	Active	Toroid	-	T35	0.677 (17.20mm)	3.87 µH	±25%	Ungapped	-	6000	1.95	38.52	19.73	-	760	Epoxy	0.287 (7.30mm)
E25/13/7-3C94 FERRITE CORE Ferroxcube	2,631	0.85	- + RFQ	Datasheet	Bulk	-	Active	E	E 25 x 13 x 7	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
