Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
EFD25/13/9-3F46 FERRITE CORE Ferroxcube	3,757	1.27	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
B65523J0000R097 FERRITE CORE ER 840NH N97 2PCS EPCOS - TDK Electronics	3,825	1.27	- + RFQ	Datasheet	Box	ER9.5	Active	ER	ER 9.5 x 5	N97	-	840 nH	-20%, +30%	Ungapped	1032	2300	1.54	13.6	8.81	-	120	Uncoated	0.098 (2.50mm)

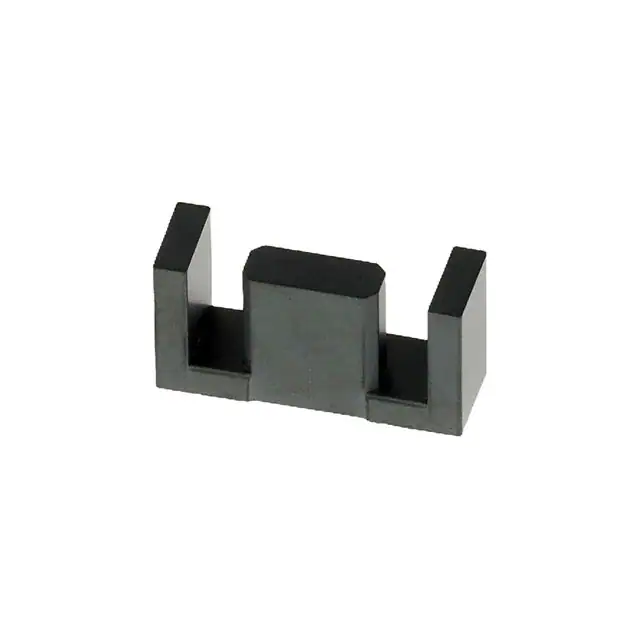

B66417G0000X608 EFD20/10/7-PC200 EPCOS - TDK Electronics	273	1.27	- + RFQ	Datasheet	Bulk	EFD20/10/7	Active	EFD	-	PC200	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
EFD25/13/9-3F36 FERRITE CORE Ferroxcube	3,854	1.27	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)

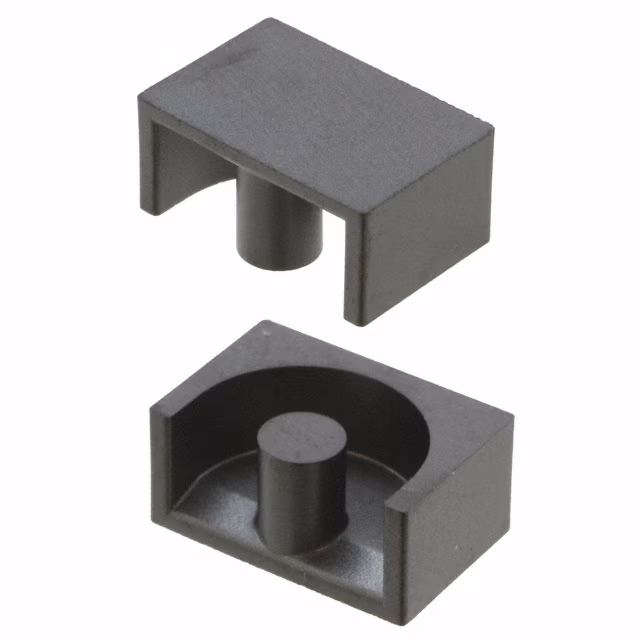

B65841A0000R030 FERRITE CORE EP 2UH N30 2PCS EPCOS - TDK Electronics	3,793	1.28	- + RFQ	Datasheet	Box	EP10	Active	EP	EP 10	N30	-	2 µH	-20%, +30%	Ungapped	2700	4300	1.7	19.2	11.3	8.5	217	Uncoated	0.205 (5.20mm)
B65525J0000R087 FERRITE CORE ER 1.2UH N87 2PCS EPCOS - TDK Electronics	3,403	1.30	- + RFQ	Datasheet	Box	ER11/5	Active	ER	ER 11 x 5	N87	-	1.2 µH	-20%, +30%	Ungapped	1050	2200	1.1	14.1	12.4	-	174	Uncoated	0.098 (2.50mm)
B62152P0007X030 FERRITE CORE 2 HOLE 7.3UH N30 EPCOS - TDK Electronics	3,638	1.30	- + RFQ		Box	MHB2/P-6.2/7.25/4.2	Active	Multi-Hole (2)	-	N30	-	7.3 µH	±30%	Ungapped	-	4300	0.75	7.6	10.2	-	78	Parylene	0.246 (6.25mm)

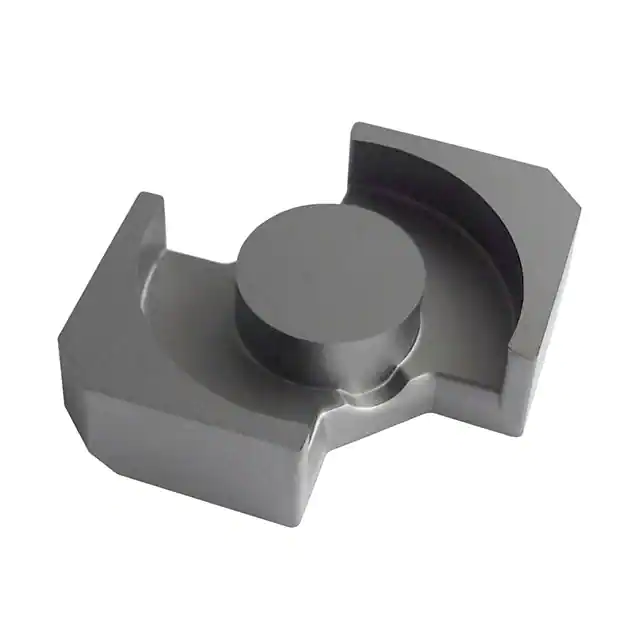

RM6S/ILP-3C95 FERRITE CORE 2PC SET Ferroxcube	3,982	1.31	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 6	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.354 (9.00mm)
TX22/14/6.4-3E65 FERRITE CORES ROUND Ferroxcube	2,994	1.32	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	-	0.880 (22.35mm)	-	±30%	Ungapped	-	5200	2.2	54.2	24.8	-	1340	Epoxy	0.265 (6.75mm)

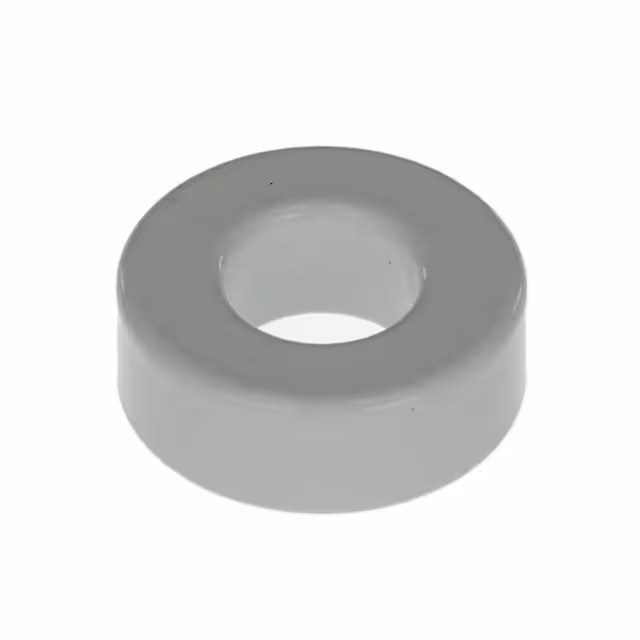

TX20/10/7-3E6 FERRITE CORES ROUND Ferroxcube	3,023	1.38	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 20 x 10 x 7	-	0.797 (20.25mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.291 (7.40mm)
PLT25/18/2-3C95 FERRITE CORE Ferroxcube	2,135	1.38	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 25 x 18 x 2	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.091 (2.30mm)

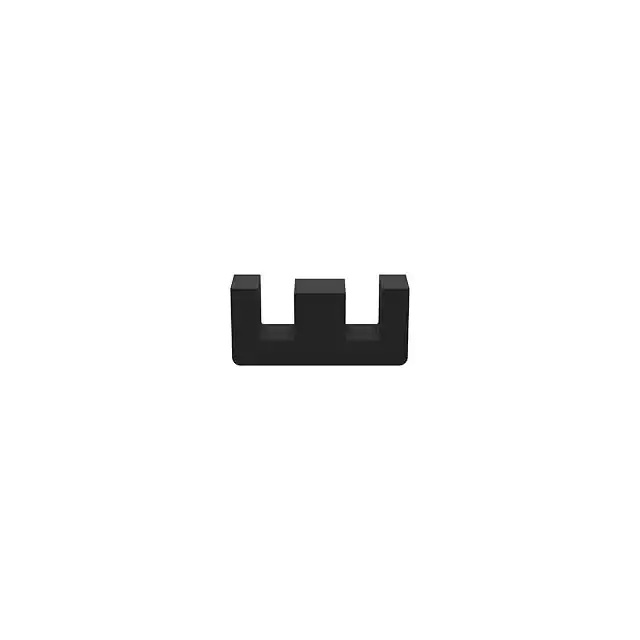

B66319G0100X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,606	1.41	- + RFQ	Datasheet	Box	E30/15/7	Active	E	E 30 x 15 x 7	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.598 (15.20mm)
EFD30/15/9-3C96 FERRITE CORE Ferroxcube	3,627	1.42	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 30 x 15 x 9	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
P14/8/I-3C91 FERRITE CORE 2PC SET Ferroxcube	3,313	1.52	- + RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 14 x 8	3C91	0.553 (14.05mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.165 (4.20mm)

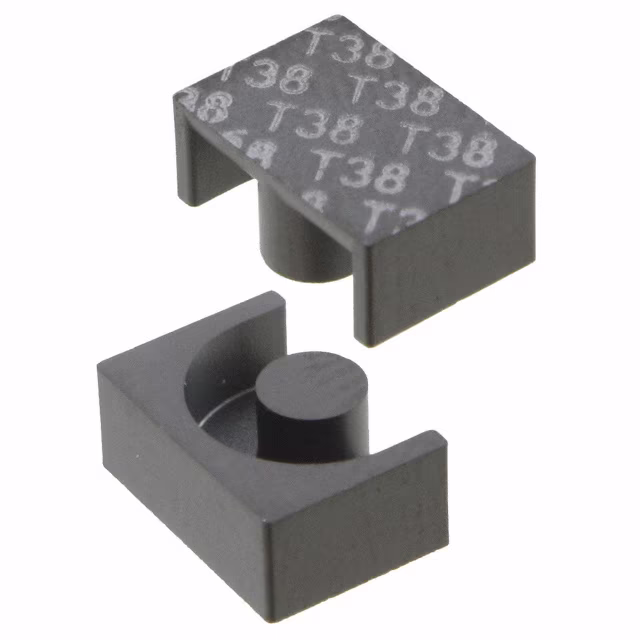

B65839A0000Y038 FERRITE CORE EP 5.2UH T38 2PCS EPCOS - TDK Electronics	3,687	1.53	- + RFQ	Datasheet	Box	EP7	Active	EP	EP 7	T38	-	5.2 µH	-30%, +40%	Ungapped	6310	10000	1.52	15.7	10.3	8.5	162	Uncoated	0.148 (3.75mm)
B64290A0084X087 FERRITE CORE TOROID 2.88UH N87 EPCOS - TDK Electronics	3,814	45.17	- + RFQ	Datasheet	Box	T102/66/15	Active	Toroid	R 102 x 65.8 x 15	N87	4.016 (102.00mm)	2.88 µH	±25%	Ungapped	-	2200	0.96	255.3	267.2	-	68220	Uncoated	0.591 (15.00mm)
HF60T104X20X80 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	3,655	77.23	- + RFQ	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.787 (20.00mm)

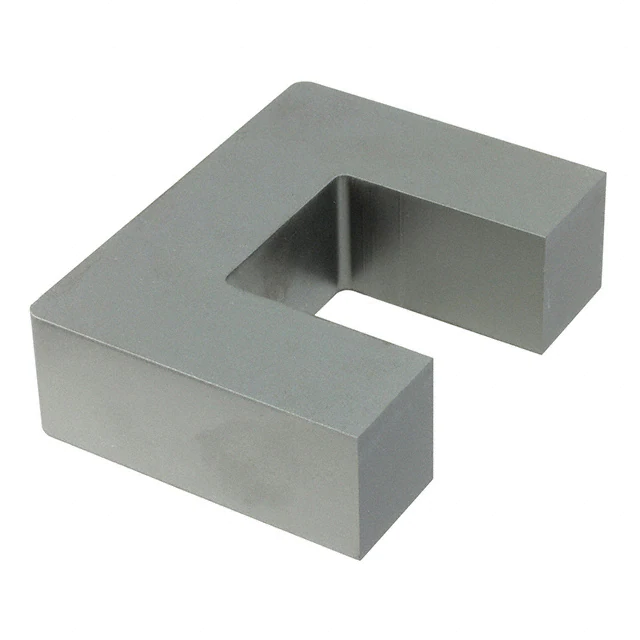

B67370A0002X187 FERRITE CORE U N87 1PC EPCOS - TDK Electronics	3,525	116.42	- + RFQ	Datasheet	Box	U101/76/30	Active	U	U 101 x 76 x 30	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
5967000101 67 TOROID Fair-Rite Products Corp.	3,138	0.33	- + RFQ	Datasheet	Box	-	Active	Toroid	-	67	0.230 (5.84mm)	-	-	Ungapped	-	40	-	13	2	-	27	Uncoated	0.060 (1.52mm)

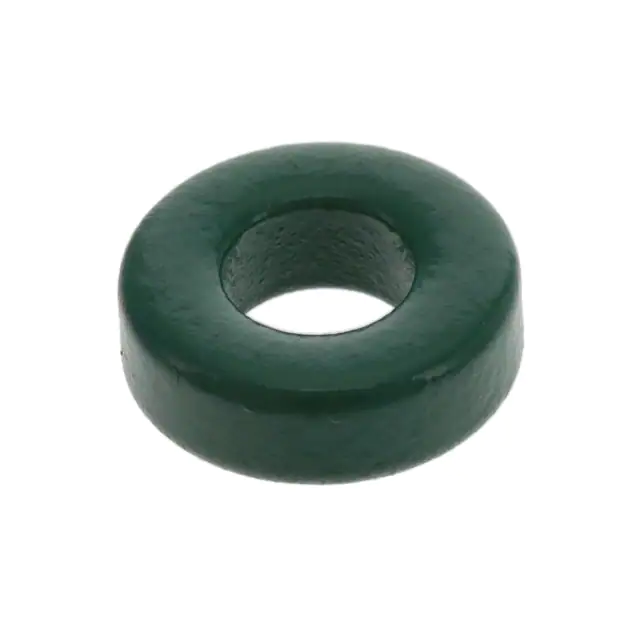

5977000221 77 TOROID PLASTIC COATED Fair-Rite Products Corp.	787	0.34	- + RFQ	Datasheet	Bag	-	Active	Toroid	-	77	0.402 (10.20mm)	945 nH	-30%, +25%	Ungapped	-	2000	2.86	20.7	7.2	-	150	Plastic	0.150 (3.81mm)
