Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX13/7.9/6.4-3E27 CORES Ferroxcube	2,387	0.75	- + RFQ	Datasheet	Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.311 (7.90mm)
7898400121 98 PLANAR EI CORE SET Fair-Rite Products Corp.	2,944	0.78	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	109	16.6	15.2	15	252	Uncoated	-

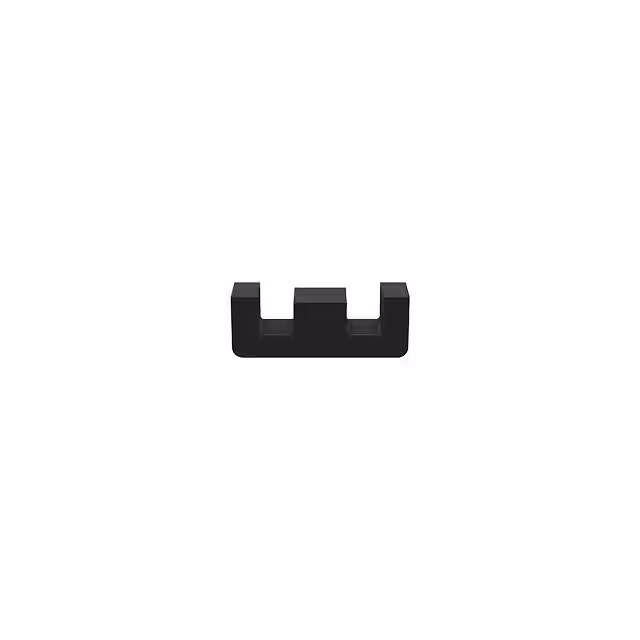

B66322G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,559	0.78	- + RFQ	Datasheet	Box	E10/5.5/5	Active	E	E 10 x 5.5 x 5	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.216 (5.50mm)
TX13/7.9/6.4-3E6 FERRITE CORES ROUND Ferroxcube	2,963	0.78	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 13 x 7.9 x 6.4	-	0.526 (13.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.275 (7.00mm)

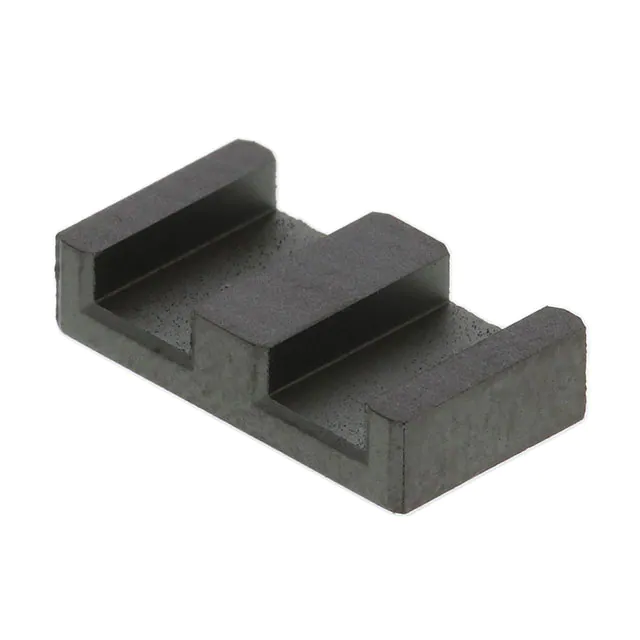

9478202002 78 PLANAR E CORE SET Fair-Rite Products Corp.	2,140	0.78	- + RFQ	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	60	24.3	39.5	39	960	Uncoated	-

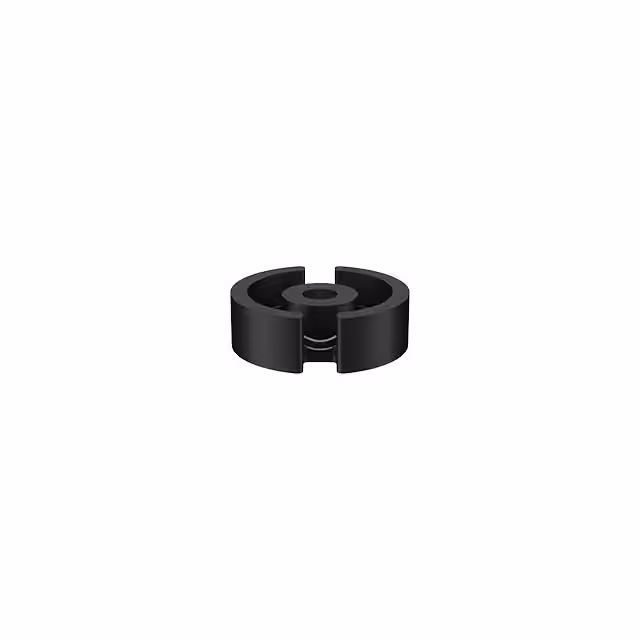

B65541W0000R087 FERRITE CORE P 2.8UH N87 2PCS EPCOS - TDK Electronics	3,808	2.77	- + RFQ	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	N87	0.563 (14.30mm)	2.8 µH	-20%, +30%	Ungapped	1630	2200	0.73	21	28.7	23.6	603	Uncoated	0.167 (4.25mm)

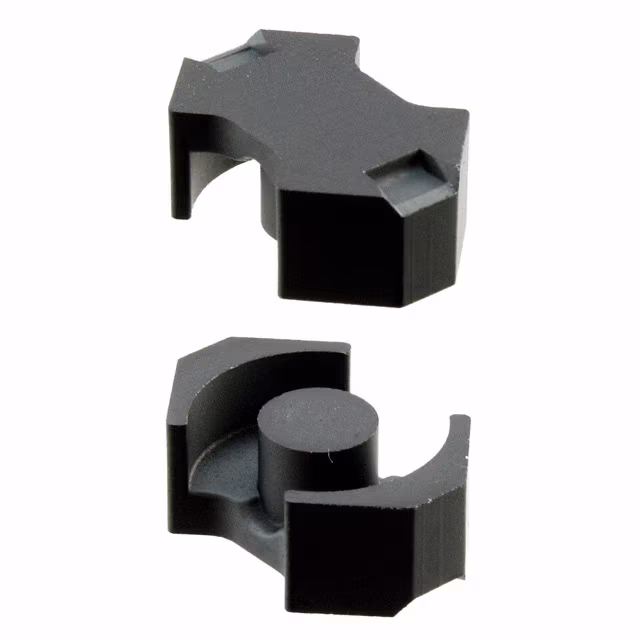

B65803P0000R087 FERRITE CORE RM 1.3UH N87 2PCS EPCOS - TDK Electronics	2,620	2.82	- + RFQ	Datasheet	Box	RM4/LP	Active	RM	RM 4 LP	N87	-	1.3 µH	-20%, +30%	Ungapped	1230	2200	1.2	17.3	14.5	11.3	251	Uncoated	0.154 (3.90mm)

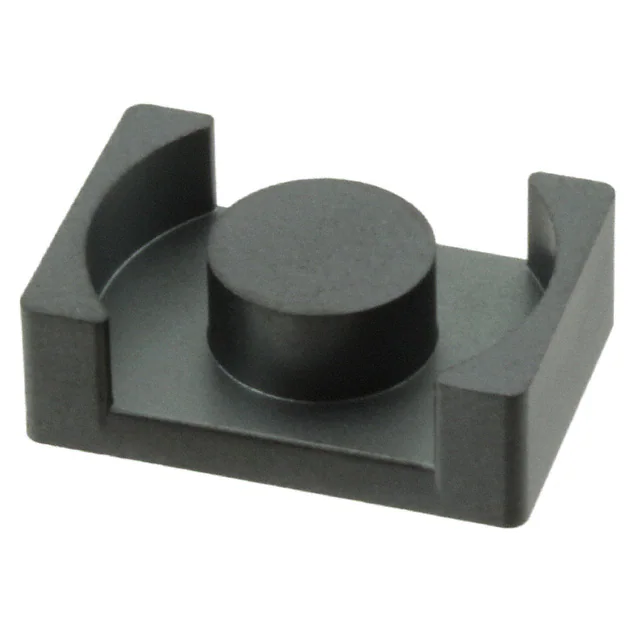

B66483G0000X149 FERRITE CORE EQ N49 1PC EPCOS - TDK Electronics	3,677	2.82	- + RFQ	Datasheet	Box	EQ20/6.3/14	Active	EQ	EQ 20 x 6	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.248 (6.30mm)

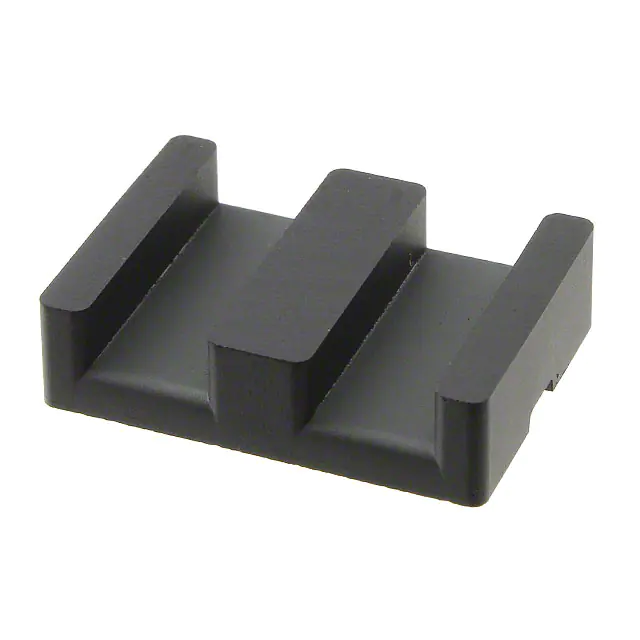

B66285G0000X149 FERRITE CORE ELP N49 1PC EPCOS - TDK Electronics	2,523	2.82	- + RFQ	Datasheet	Box	ELP22/6/16	Active	ELP	ELP 22 x 6 x 16	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
B66363G0000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,586	2.84	- + RFQ	Datasheet	Tray	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
E64/10/50-3F4 FERRITE CORE Ferroxcube	2,361	11.10	- + RFQ	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)

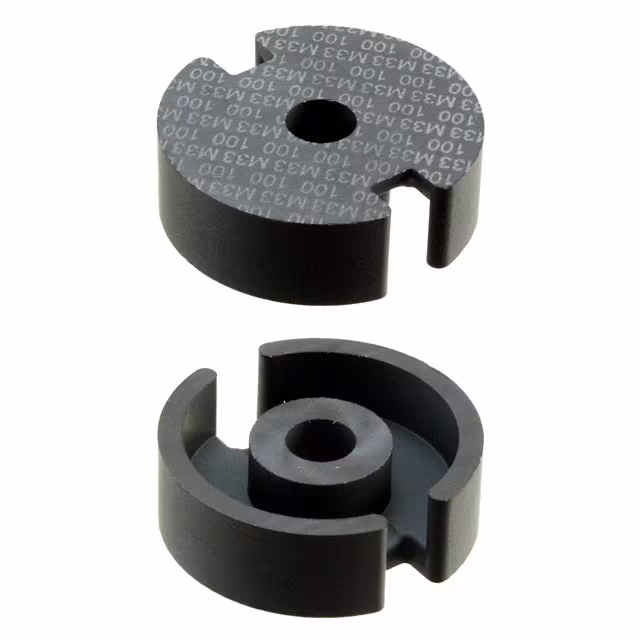

B65671T0100A033 FERRITE CORE P 100NH M33 2PCS EPCOS - TDK Electronics	3,048	11.79	- + RFQ	Datasheet	Bulk	P26/16	Active	P (Pot Core)	P 26 x 16	M33	1.024 (26.00mm)	100 nH	±3%	Gapped	32	750	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)

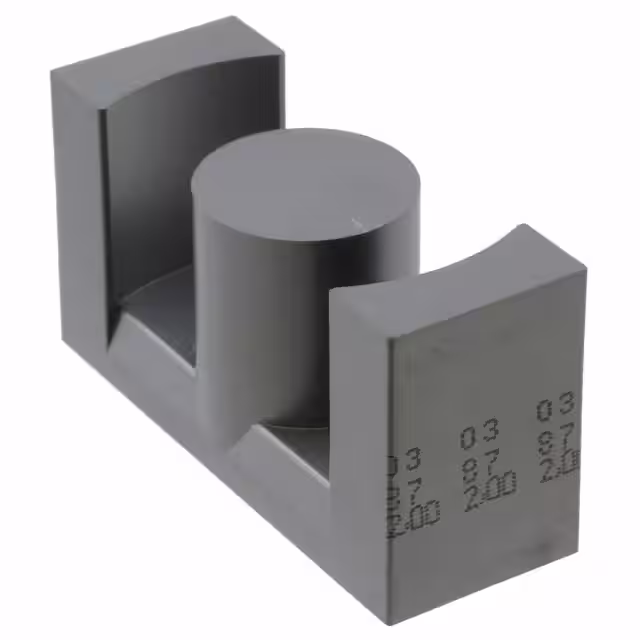

B66397G2000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	746	12.49	- + RFQ	Datasheet	Box	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.228 (31.20mm)

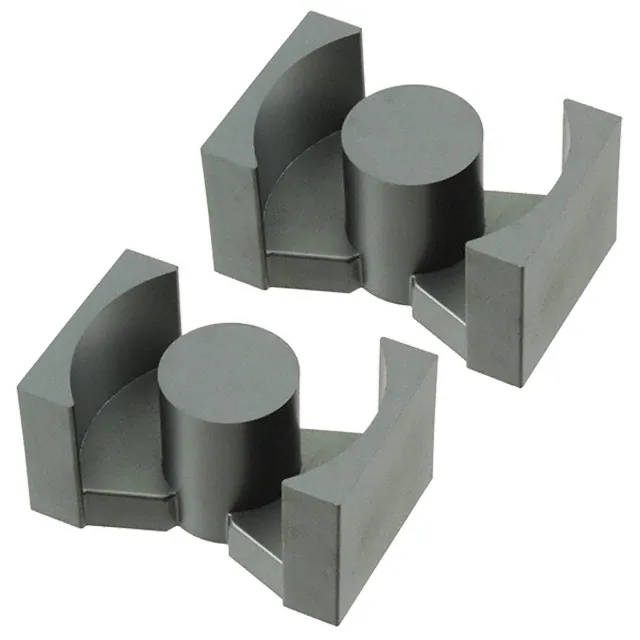

B65883A0000R097 FERRITE CORE PQ 4.5UH N97 2PCS EPCOS - TDK Electronics	771	12.71	- + RFQ	Datasheet	Box	PQ40/40	Active	PQ	PQ 40 x 40	N97	-	4.5 µH	-20%, +30%	Ungapped	1755	2300	0.49	92.5	188.3	159.9	17430	Uncoated	0.783 (19.90mm)

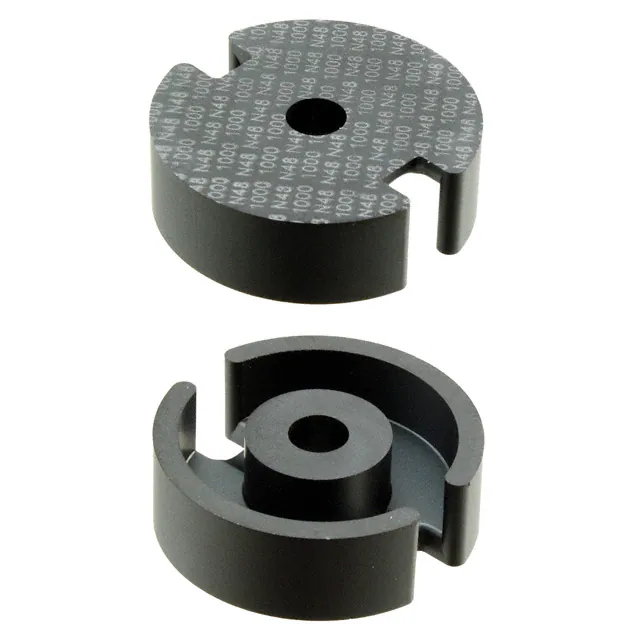

B65701T1000A048 FERRITE CORE P 1UH N48 2PCS EPCOS - TDK Electronics	359	13.11	- + RFQ	Datasheet	Box	P30/19	Active	P (Pot Core)	P 30 x 19	N48	1.200 (30.50mm)	1 µH	±3%	Gapped	263	-	0.33	45	136	-	6120	Uncoated	0.374 (9.50mm)

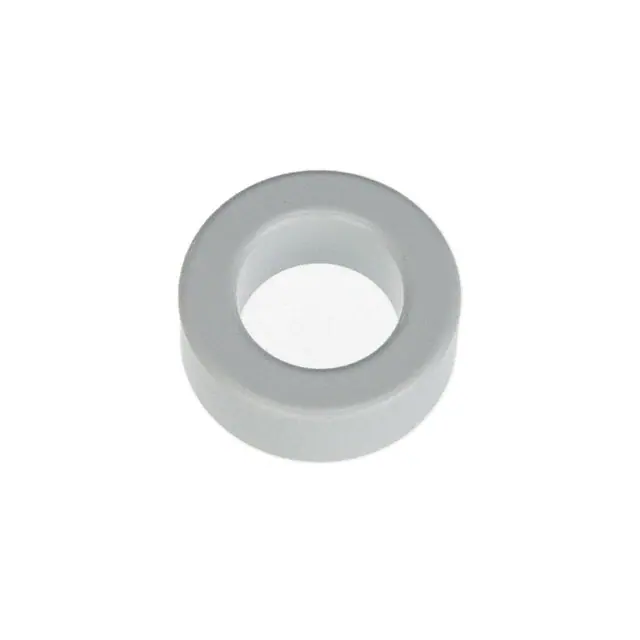

TX50/30/19-3E6 FERRITE CORES ROUND Ferroxcube	259	13.67	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 50 x 30 x 19	-	2.022 (51.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.791 (20.10mm)

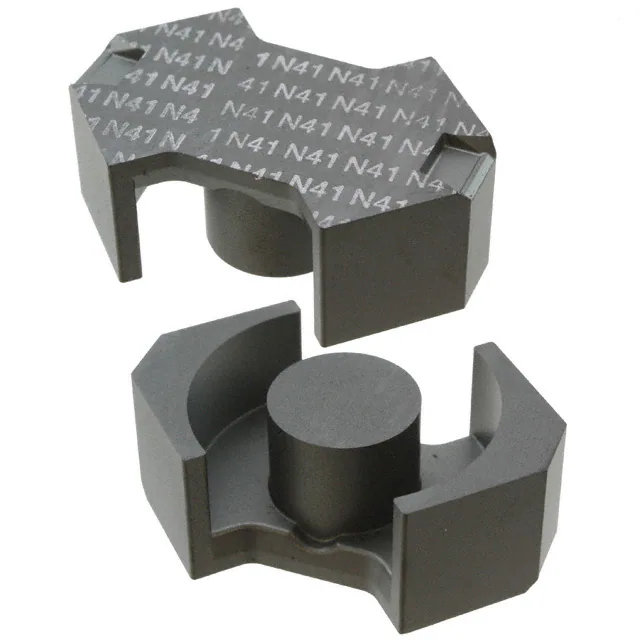

B65887E0000R041 FERRITE CORE RM 6.8UH N41 2PCS EPCOS - TDK Electronics	596	14.16	- + RFQ	Datasheet	Box	RM14	Active	RM	RM 14	N41	-	6.8 µH	-20%, +30%	Ungapped	1890	2800	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)

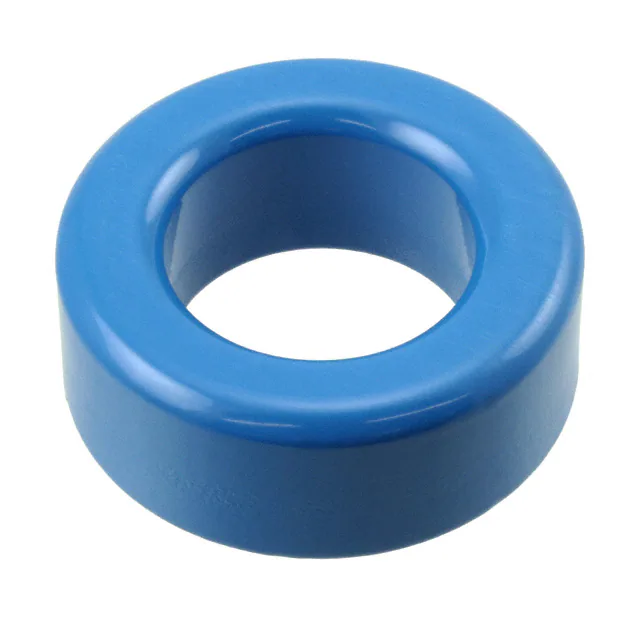

B64290L0082X065 FERRITE CORE TOROID 10UH T65 EPCOS - TDK Electronics	496	14.56	- + RFQ	Datasheet	Box	TX50/30/20	Active	Toroid	-	T65	2.040 (51.80mm)	10 µH	±30%	Ungapped	-	4900	0.62	120.4	195.7	-	23560	Epoxy	0.839 (21.30mm)

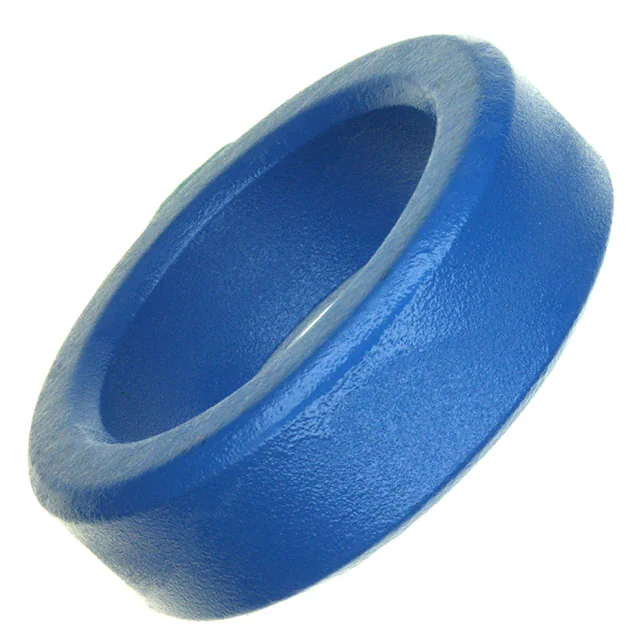

B64290L0040X830 FERRITE CORE TOROID 5.4UH N30 EPCOS - TDK Electronics	348	14.69	- + RFQ	Datasheet	Tray	TX58.3/40.8/17.6	Active	Toroid	-	N30	2.366 (60.10mm)	5.4 µH	±25%	Ungapped	-	4300	1	152.4	152.4	-	23230	Epoxy	0.740 (18.80mm)

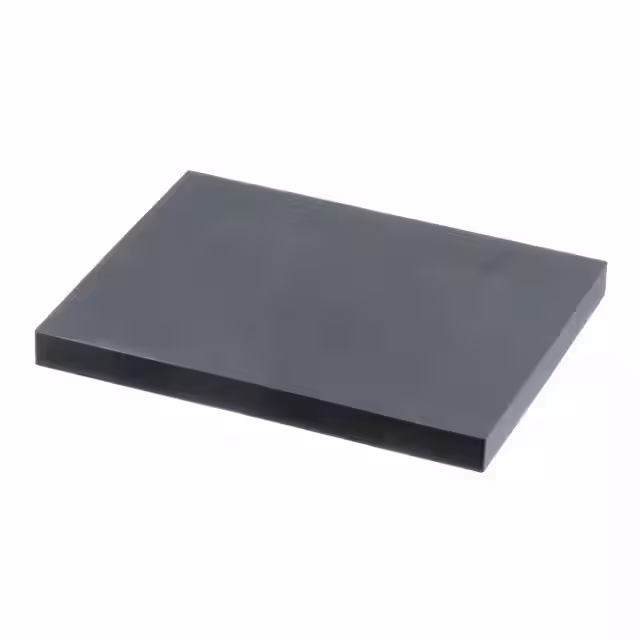

B66295K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	225	14.80	- + RFQ	Datasheet	Tray	I64/5/50	Active	I	I 64 x 5 x 50	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.201 (5.10mm)
