Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
5961002701 61 TOROID Fair-Rite Products Corp.	2,898	3.83	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	61	1.400 (35.56mm)	-	±25%	Ungapped	-	125	-	89	79	-	7000	Uncoated	0.500 (12.70mm)

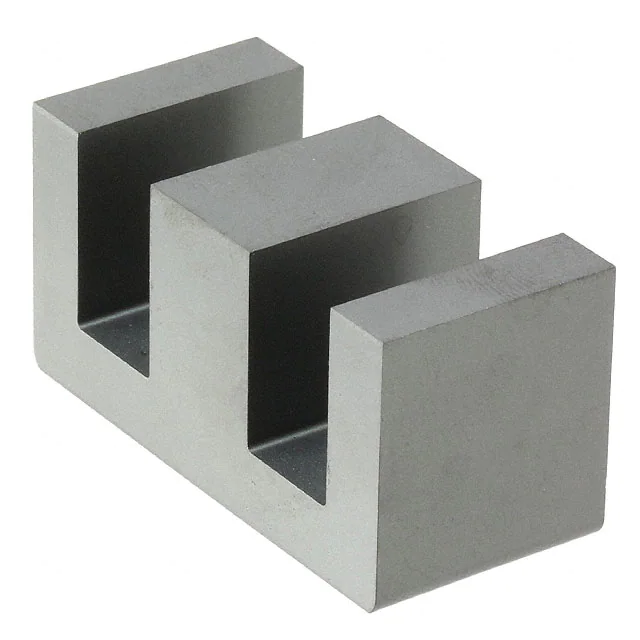

B66329G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,242	3.86	- + RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)

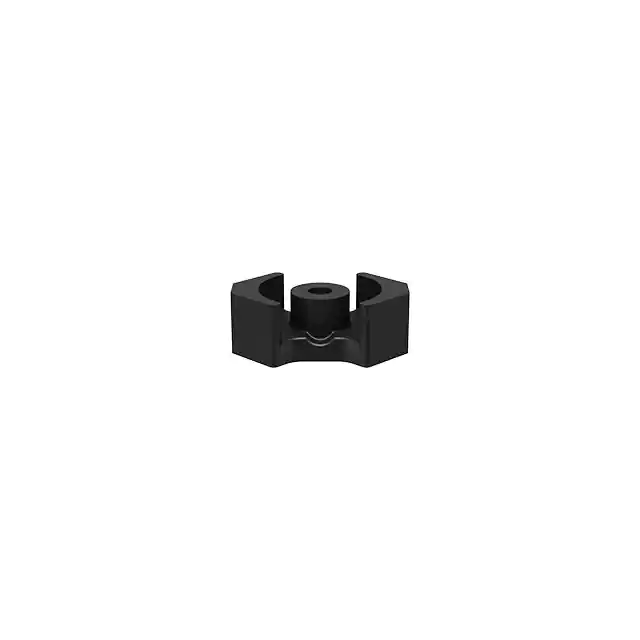

B65811F0250A048 FERRITE CORE RM 250NH N48 2PCS EPCOS - TDK Electronics	3,516	7.05	- + RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	RM8	Active	RM	RM 8	N48	-	250 nH	±3%	Gapped	134	-	0.68	35.1	52	-	1825	Uncoated	0.324 (8.25mm)
TX36/23/15-3E6 FERRITE CORES ROUND Ferroxcube	3,856	3.92	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 15	-	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.630 (16.00mm)
5943002721 43 TOROID PLASTIC COATED Fair-Rite Products Corp.	2,732	3.95	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	43	-	885 nH	-25%, +20%	Ungapped	-	800	112	89	79	-	7000	Plastic	0.539 (13.70mm)
T60006L2020W409 NANOCRYSTALLINE CORE, 20X12.5X8 VACUUMSCHMELZE	2,349	0.00	- + RFQ	Datasheet	Box	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

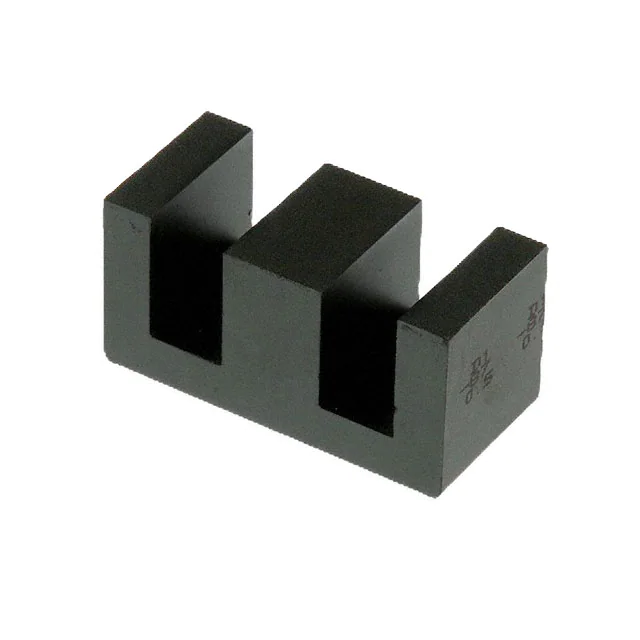

B66329G0500X187 FERRITE CORE EPCOS - TDK Electronics	2,090	4.04	- + RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N87	-	-	-	Gapped	-	2200	0.41	97	234	229	22700	Uncoated	0.835 (21.20mm)

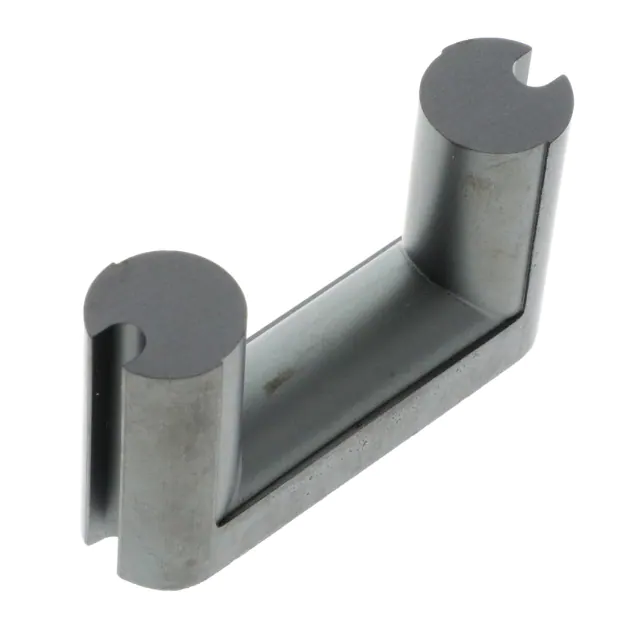

9277012002 77 U CORE Fair-Rite Products Corp.	342	4.06	- + RFQ	Datasheet	Bulk	-	Active	U	-	77	-	-	-	Ungapped	-	2000	138	135	98	-	13200	Uncoated	1.000 (25.40mm)
E43/10/28-3F4 FERRITE CORE Ferroxcube	650	4.16	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
B65811J0000Y038 FERRITE CORE RM 12.5UH T38 2PCS EPCOS - TDK Electronics	2,255	4.32	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	T38	-	12.5 µH	-30%, +40%	Ungapped	5910	2300	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B65811J0000R608 RM8-PC200 EPCOS - TDK Electronics	603	4.33	- + RFQ	Datasheet	Bulk	RM8	Active	RM	RM 8	PC200	-	-	-20%, +30%	Ungapped	600	800	0.59	38	64	55	2430	Uncoated	0.650 (16.50mm)
E43/10/28-3F36 FERRITE CORE Ferroxcube	900	4.37	- + RFQ	Datasheet	Bulk	-	Active	E	E 43 x 10 x 28	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)

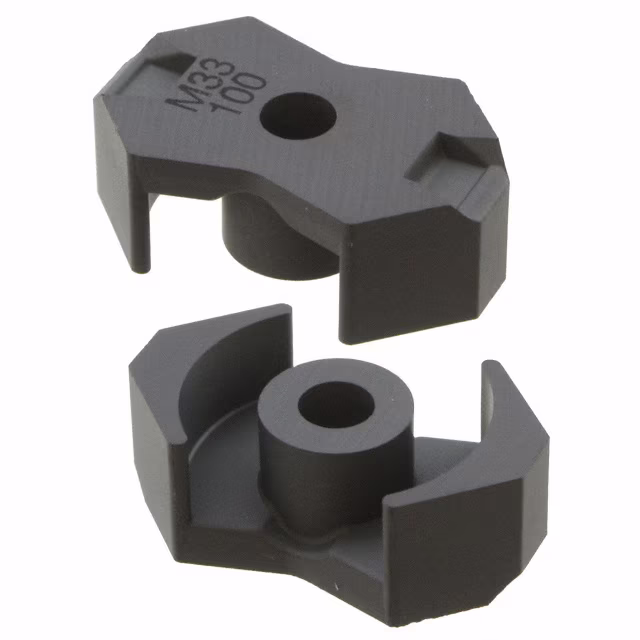

B65807N0100A033 FERRITE CORE RM 100NH M33 2PCS EPCOS - TDK Electronics	212	4.40	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	M33	-	100 nH	±3%	Gapped	68.5	750	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
B64290L0616X038 FERRITE CORE TOROID 21.3UH T38 EPCOS - TDK Electronics	3,004	4.41	- + RFQ	Datasheet	Box	TX25.3/14.8/20	Active	Toroid	-	T38	1.047 (26.60mm)	21.3 µH	±30%	Ungapped	-	10000	0.59	60.07	102.5	-	6157	Epoxy	0.839 (21.30mm)

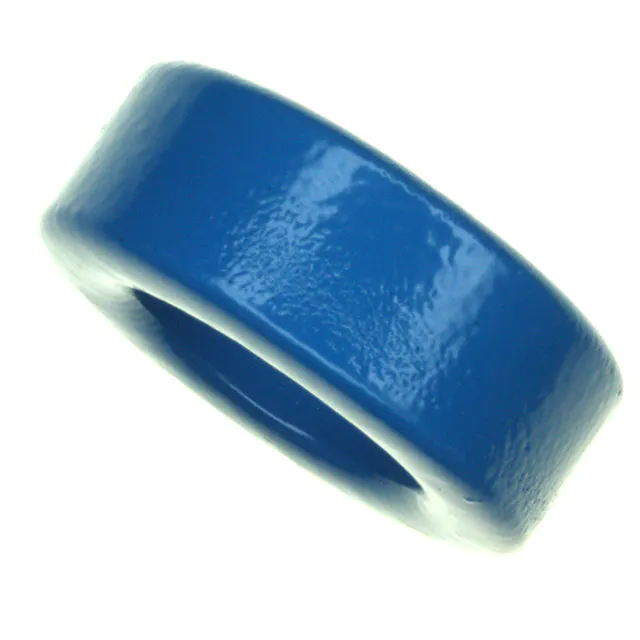

B64290L0048X830 FERRITE CORE TOROID 5.46UH N30 EPCOS - TDK Electronics	2,256	4.45	- + RFQ	Datasheet	Tray	TX34/20.5/12.5	Active	Toroid	-	N30	1.397 (35.50mm)	5.46 µH	±25%	Ungapped	-	4300	0.99	82.06	82.6	-	6778	Epoxy	0.535 (13.60mm)
T60004L2025W622 NANOCRYSTALLINE CORE, 25X20X10 VACUUMSCHMELZE	3,738	0.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	1.075 (27.30mm)	22.5 µH	-	Ungapped	-	-	-	71	19	-	-	Epoxy	0.484 (12.30mm)
PQ32/30-3F36 FERRITE CORE 2PC SET Ferroxcube	864	4.99	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 30	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.193 (30.30mm)

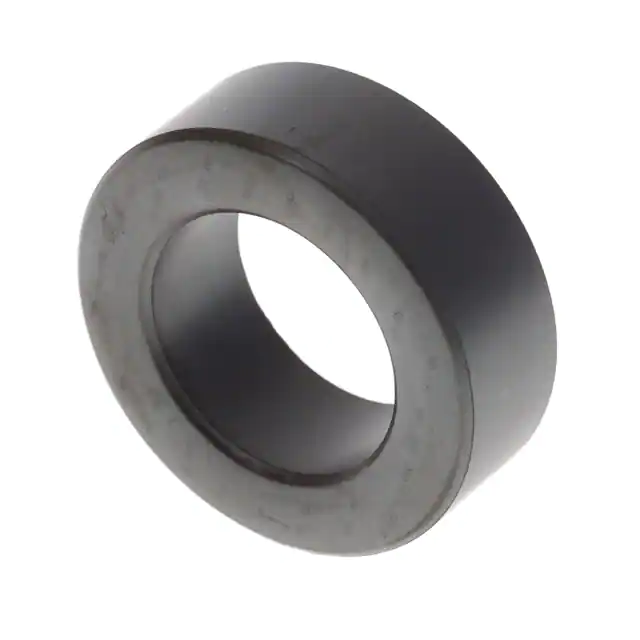

B64290A0048X830 FERRITE CORE TOROID 5.46UH N30 EPCOS - TDK Electronics	177	5.07	- + RFQ	Datasheet	Box	T34/20.5/12.5	Active	Toroid	R 34 x 20.5 x 12.5	N30	1.339 (34.00mm)	5.46 µH	±25%	Ungapped	-	4300	0.99	82.06	82.6	-	6778	Uncoated	0.492 (12.50mm)
5952020801 52 TOROID Fair-Rite Products Corp.	2,268	5.30	- + RFQ	Datasheet	Tray	-	Active	Toroid	-	52	-	-	±25%	Ungapped	-	250	-	87.9	79.2	-	6959	Uncoated	0.500 (12.70mm)
T60006L2025W451 NANOCRYSTALLINE CORE, 25X16X10 VACUUMSCHMELZE	777	777.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	1.098 (27.90mm)	17.55 µH	-	Ungapped	-	-	-	64.4	36	-	-	Uncoated	0.492 (12.50mm)
