Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

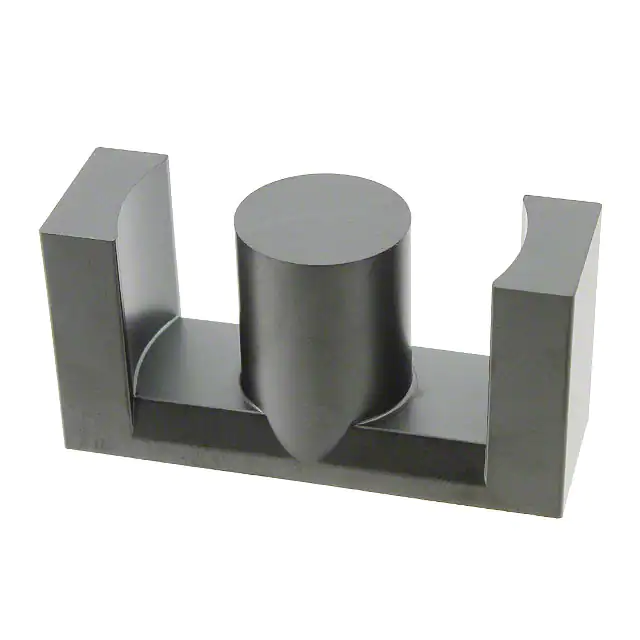

B66365G0000X197 FERRITE CORE ETD N97 1PC EPCOS - TDK Electronics	2,043	4.59	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)

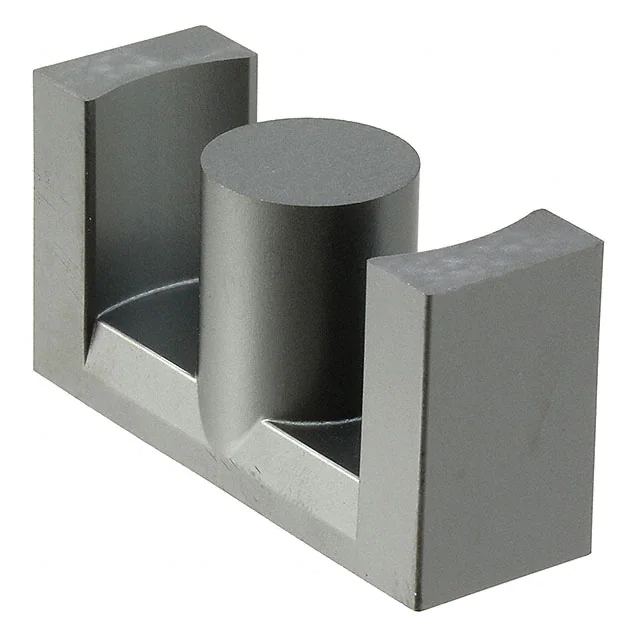

B66365G0500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	265	4.61	- + RFQ	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
E55/28/21-3C94 FERRITE CORE Ferroxcube	3,951	4.69	- + RFQ	Datasheet	Bulk	-	Active	E	E 55 x 28 x 21	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
PQ32/20-3C95 FERRITE CORE 2PC SET Ferroxcube	950	4.71	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 32 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.811 (20.60mm)
B64290L0647X830 FERRITE CORE TOROID 5.63UH N30 EPCOS - TDK Electronics	3,628	4.73	- + RFQ	Datasheet	Box	TX29/19/15	Active	Toroid	-	N30	1.220 (31.00mm)	5.63 µH	±25%	Ungapped	-	4300	0.96	73.78	76.98	-	5680	Epoxy	0.634 (16.10mm)

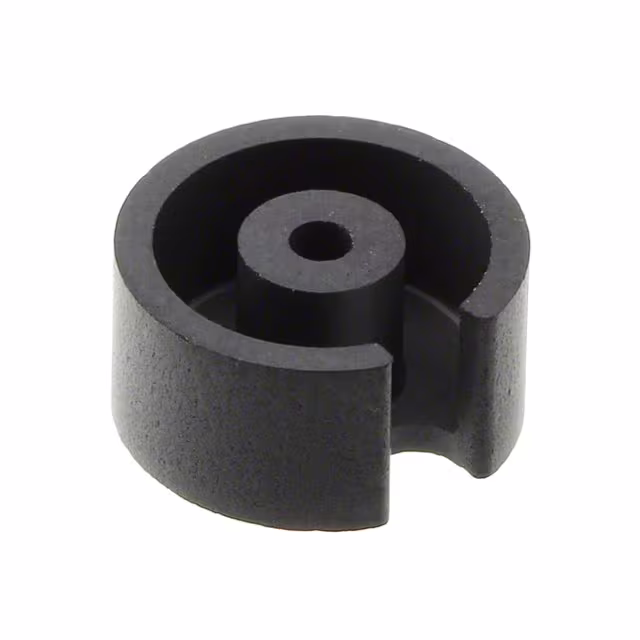

B65933A0000X033 FERRITE CORE PS M33 1PC EPCOS - TDK Electronics	2,284	2.55	- + RFQ	Datasheet	Box	PS7.3/3.6	Active	PS	PS 7.35 x 3.6	M33	0.289 (7.35mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.142 (3.60mm)
T60006L2019W838 NANOCRYSTALLINE CORE, 19X15X10 VACUUMSCHMELZE	2,670	0.00	- + RFQ	Datasheet	Box	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

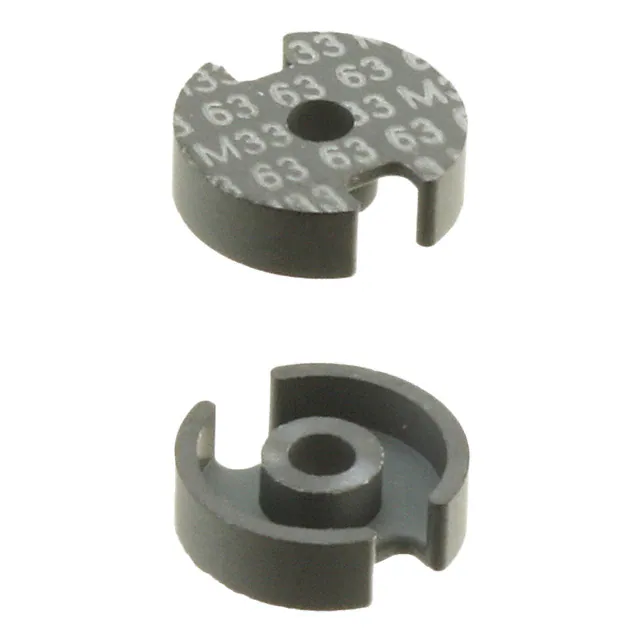

B65517D0063A033 FERRITE CORE P 63NH M33 2PCS EPCOS - TDK Electronics	2,538	2.62	- + RFQ	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	M33	0.366 (9.30mm)	63 nH	±3%	Gapped	63	750	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)

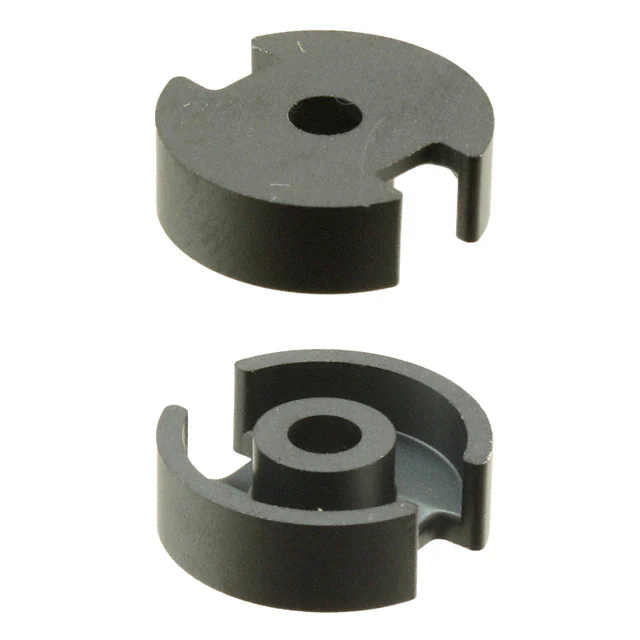

B65541D0000R048 FERRITE CORE P 2.1UH N48 2PCS EPCOS - TDK Electronics	3,836	2.73	- + RFQ	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	N48	0.563 (14.30mm)	2.1 µH	-20%, +30%	Ungapped	1340	-	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)
E42/21/20-3C94 FERRITE CORE Ferroxcube	3,565	2.74	- + RFQ	Datasheet	Bulk	-	Active	E	E 42 x 21 x 20	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.827 (21.00mm)

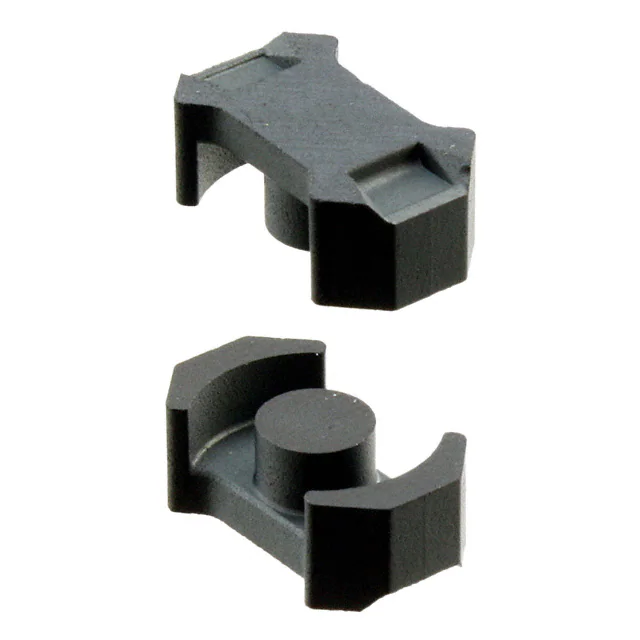

B65803P0000R049 FERRITE CORE RM 950NH N49 2PCS EPCOS - TDK Electronics	2,319	2.75	- + RFQ	Datasheet	Box	RM4/LP	Active	RM	RM 4 LP	N49	-	950 nH	-20%, +30%	Ungapped	900	1500	1.2	17.3	14.5	11.3	251	Uncoated	0.154 (3.90mm)
TX36/23/10-3C90 FERRITE CORES ROUND Ferroxcube	2,900	2.77	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 10	3C90	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.430 (10.92mm)
B65531D0063A033 FERRITE CORE P 63NH M33 2PCS EPCOS - TDK Electronics	3,541	2.92	- + RFQ	Datasheet	Box	P11/7	Active	P (Pot Core)	P 11 x 7	M33	0.445 (11.30mm)	63 nH	±3%	Gapped	50	750	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)

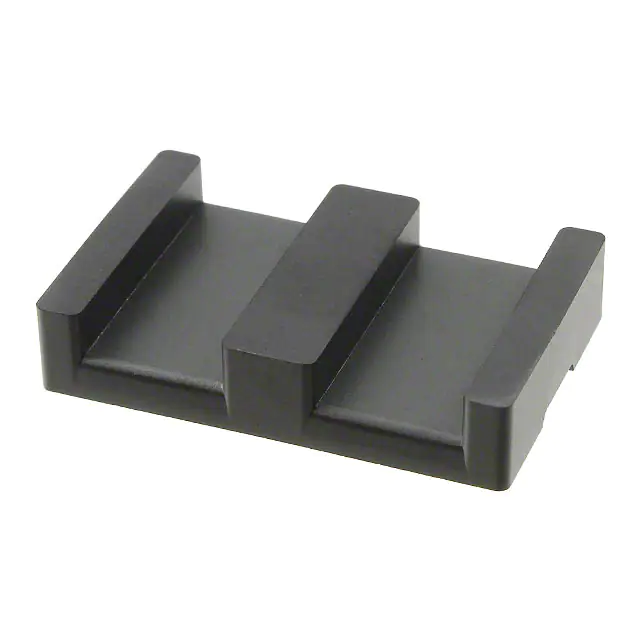

B66287G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	3,006	2.94	- + RFQ	Datasheet	Box	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)

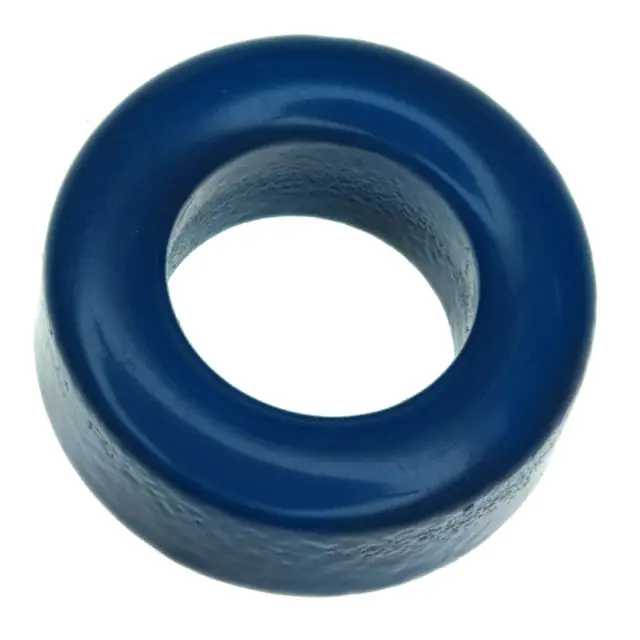

B64290L0618X038 FERRITE CORE TOROID 10.7UH T38 EPCOS - TDK Electronics	2,409	2.95	- + RFQ	Datasheet	Bulk	TX25.3/14.8/10	Active	Toroid	-	T38	1.047 (26.60mm)	10.7 µH	±30%	Ungapped	-	10000	1.17	60.07	51.26	-	3079	Epoxy	0.433 (11.00mm)
PQ26/20-3C95 FERRITE CORE 2PC SET Ferroxcube	3,024	2.98	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 26 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.795 (20.20mm)

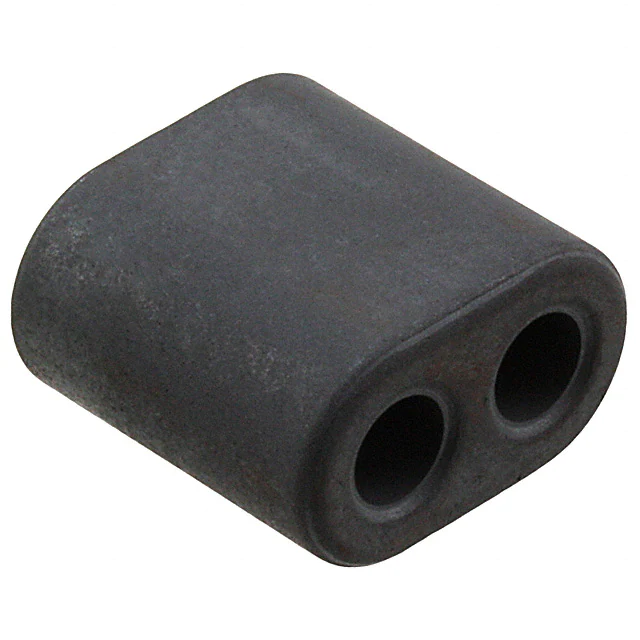

B62152A0001X001 FERRITE CORE 2 HOLE 330NH K1 EPCOS - TDK Electronics	3,896	3.01	- + RFQ	Datasheet	Bulk	MHB2-14.5/8.5/14.5	Active	Multi-Hole (2)	-	K1	-	330 nH	±30%	Ungapped	-	80	0.31	15.3	49.7	-	760	Uncoated	0.571 (14.50mm)
TX22/14/6.4-4C65 FERRITE CORES ROUND Ferroxcube	2,408	3.04	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	4C65	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.265 (6.75mm)
E38/8/25-3F4 FERRITE CORE Ferroxcube	222	3.05	- + RFQ	Datasheet	Bulk	-	Active	E	E 38 x 8 x 25	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325 (8.26mm)
PQ26/20-3F36 FERRITE CORE 2PC SET Ferroxcube	2,349	3.08	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 26 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.795 (20.20mm)
