Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
5968000301 68 TOROID Fair-Rite Products Corp.	2,363	1.14	- + RFQ	Datasheet	Box	-	Active	Toroid	-	68	0.500 (12.70mm)	-	-	Ungapped	-	16	-	29.5	12.9	-	380	Uncoated	0.188 (4.78mm)
ETD29/16/10-3C97 FERRITE CORE Ferroxcube	2,066	1.15	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 29 x 16 x 10	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.622 (15.80mm)

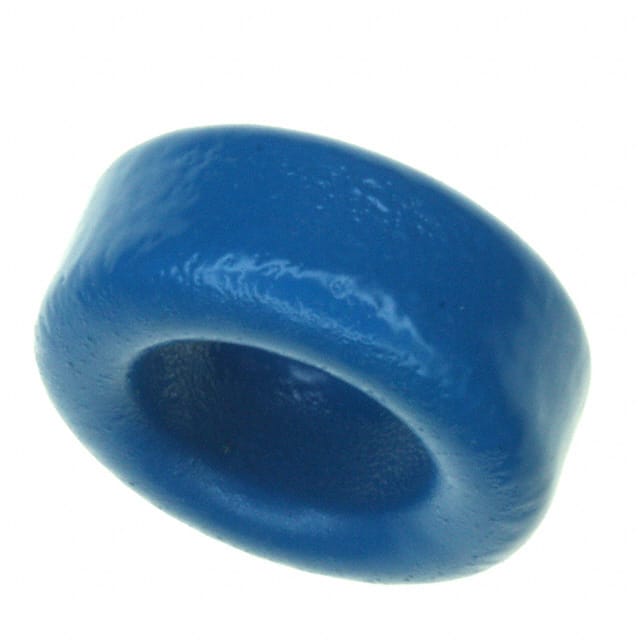

B64290L0045X038 FERRITE CORE TOROID 6.44UH T38 EPCOS - TDK Electronics	3,238	1.16	- + RFQ	Datasheet	Bulk	TX16/9.6/6.3	Active	Toroid	-	T38	0.677 (17.20mm)	6.44 µH	±30%	Ungapped	-	10000	1.95	38.52	19.73	-	760	Epoxy	0.287 (7.30mm)

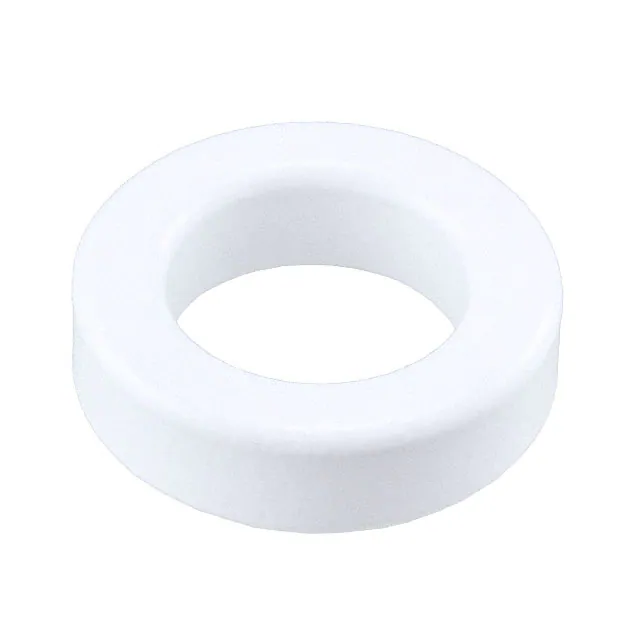

TX22/14/6.4-3E27-M7 FERRITE CORES ROUND Ferroxcube	3,995	1.16	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	3E27	0.880 (22.35mm)	-	±20%	Ungapped	-	7000	2.2	54.2	24.8	-	1340	Epoxy	0.265 (6.75mm)

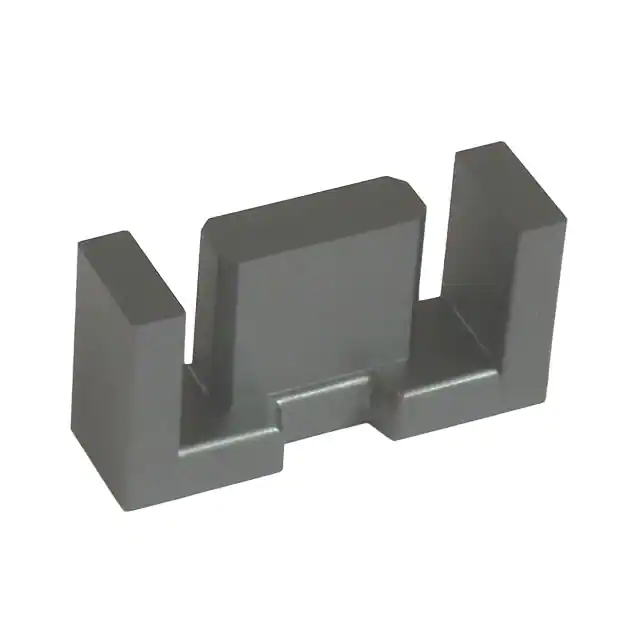

EFD25/13/9-3C96 FERRITE CORE Ferroxcube	2,260	1.17	- + RFQ	Datasheet	Bulk	-	Active	EFD	EFD 25 x 13 x 9	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
3078990901 78 ROD Fair-Rite Products Corp.	3,317	1.19	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	78	0.250 (6.35mm)	-	-	Ungapped	26	2300	-	-	28.3	-	-	Uncoated	-
T60006L2012W498 NANOCRYSTALLINE CORE, 12.5X10X5 VACUUMSCHMELZE	3,443	0.00	- + RFQ	Datasheet	Box	-	Active	Toroid	-	-	0.563 (14.30mm)	10 µH	-	Ungapped	-	-	-	35.3	50	-	-	Uncoated	0.276 (7.00mm)
E18/4/10/R-3F36 FERRITE CORE Ferroxcube	3,802	1.22	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
E18/4/10/R-3F46 FERRITE CORE Ferroxcube	3,061	1.22	- + RFQ	Datasheet	Bulk	-	Active	E	E 18 x 4 x 10	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)

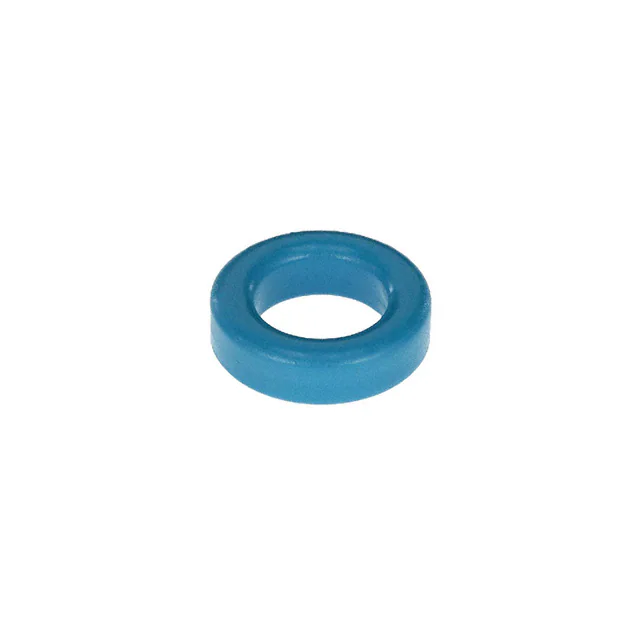

B64290L0638X830 FERRITE CORE TOROID 2.61UH N30 EPCOS - TDK Electronics	3,897	1.22	- + RFQ	Datasheet	Box	TX22/14/6.4	Active	Toroid	-	N30	0.917 (23.30mm)	2.61 µH	±25%	Ungapped	-	4300	2.07	54.15	26.17	-	1417	Epoxy	0.291 (7.40mm)
B66421G0000X197 FERRITE CORE EFD N97 1PC EPCOS - TDK Electronics	2,302	1.23	- + RFQ	Datasheet	Box	EFD25/13/9	Active	EFD	EFD 25 x 13 x 9	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.492 (12.50mm)
5975004901 75 TOROID Fair-Rite Products Corp.	3,818	1.23	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	75	0.630 (16.00mm)	-	±20%	Ungapped	-	5000	-	38.5	19.9	-	770	Uncoated	0.250 (6.35mm)
TX22/14/6.4-3E27 FERRITE CORES ROUND Ferroxcube	2,185	1.26	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 6.4	3E27	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.265 (6.75mm)

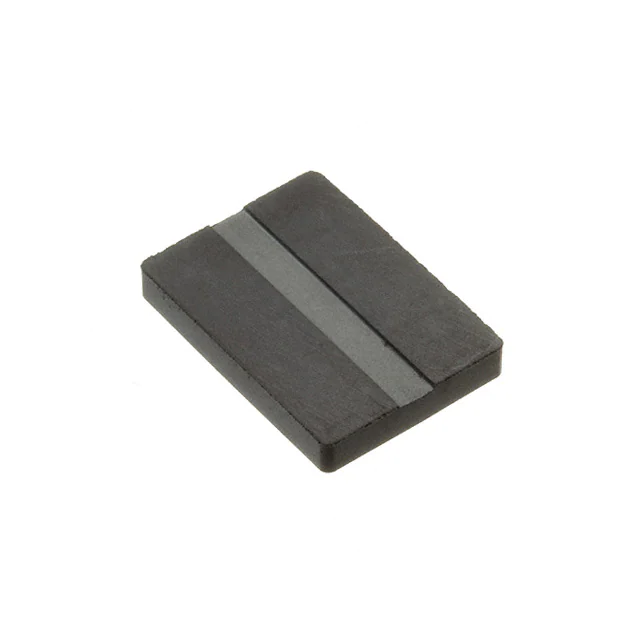

PLT22/16/2.5/S-3C95 FERRITE CORE Ferroxcube	836	1.27	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 22 x 16 x 2.5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.114 (2.90mm)

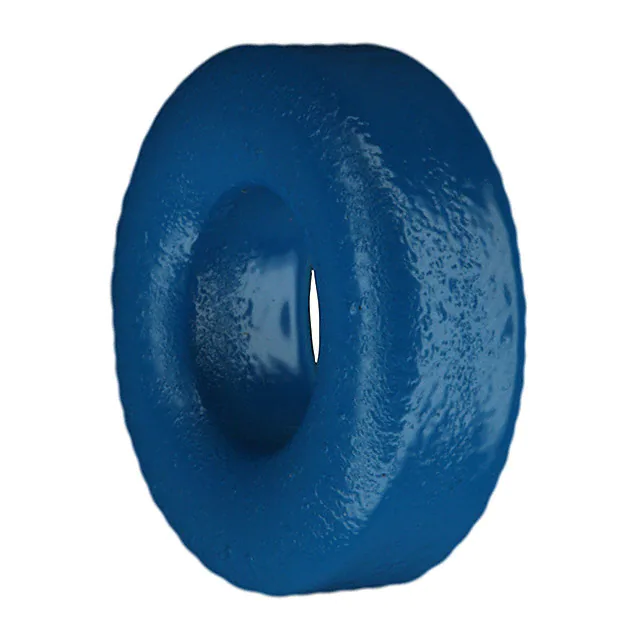

B64290L0632X830 FERRITE CORE TOROID 4.16UH N30 EPCOS - TDK Electronics	3,469	1.32	- + RFQ	Datasheet	Bulk	TX20/10/7	Active	Toroid	-	N30	0.835 (21.20mm)	4.16 µH	±25%	Ungapped	-	4300	1.3	43.55	33.63	-	1465	Epoxy	0.319 (8.10mm)

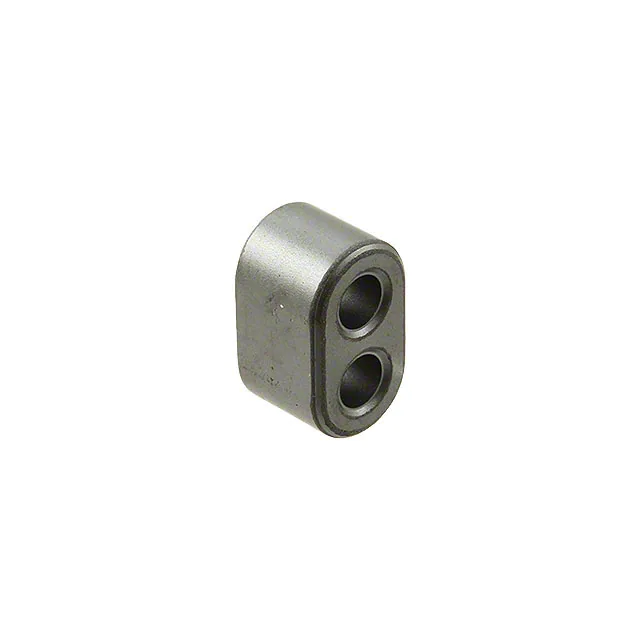

B62152A0004X030 FERRITE CORE 2 HOLE 10UH N30 EPCOS - TDK Electronics	2,792	1.35	- + RFQ	Datasheet	Box	MHB2-14.5/8.5/8.3	Active	Multi-Hole (2)	-	N30	-	10 µH	±30%	Ungapped	-	4300	0.54	15.3	28.4	-	435	Uncoated	0.327 (8.30mm)
B65525J0160A087 FERRITE CORE ER 160NH N87 2PCS EPCOS - TDK Electronics	3,553	1.35	- + RFQ	Datasheet	Box	ER11/2.5/6	Active	ER	ER 11 x 5	N87	-	160 nH	±3%	Gapped	140	2200	1.1	14.1	12.4	-	174	Uncoated	0.098 (2.50mm)

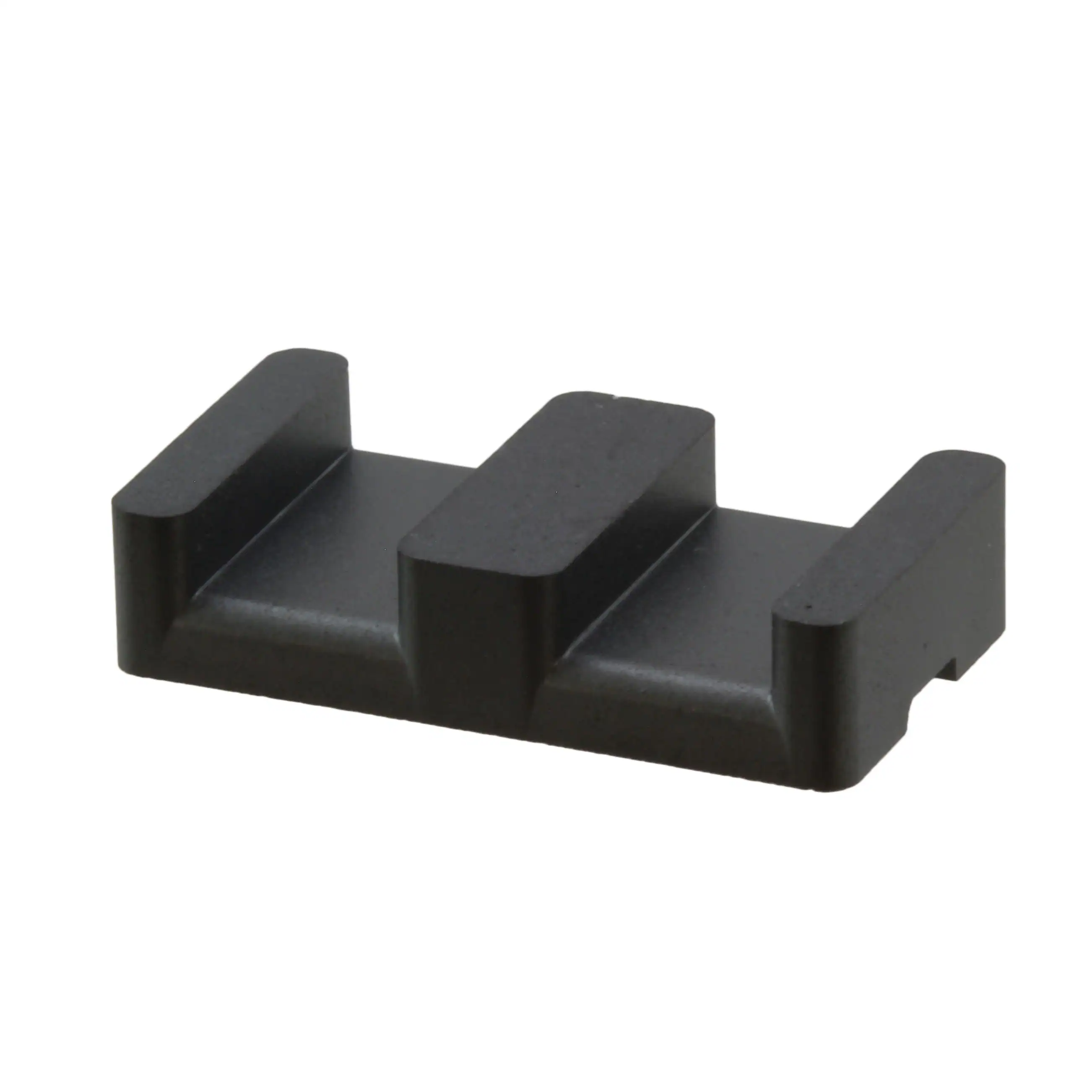

B66283G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	3,390	1.36	- + RFQ	Datasheet	Box	ELP18/4/10	Active	ELP	ELP 18 x 4 x 10	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.157 (4.00mm)
PLT22/16/2.5/S-3F46 FERRITE CORE Ferroxcube	2,292	1.36	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 22 x 16 x 2.5	3F46	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.114 (2.90mm)

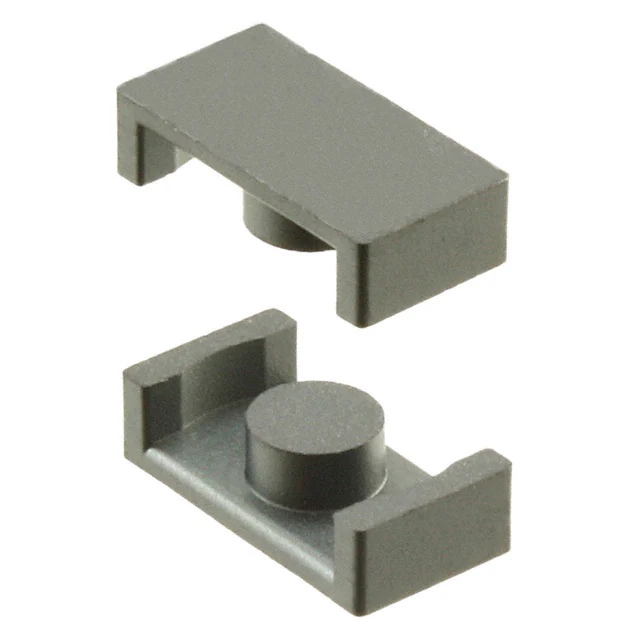

B65523J0000R608 FERRITE CORE ER PC200 EPCOS - TDK Electronics	3,289	1.37	- + RFQ	Datasheet	Bulk	ER9.5	Active	ER	ER 9.5 x 5	PC200	-	-	-20%, +30%	Ungapped	460	800	1.54	13.6	8.81	7.6	120	Uncoated	0.197 (5.00mm)
