Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

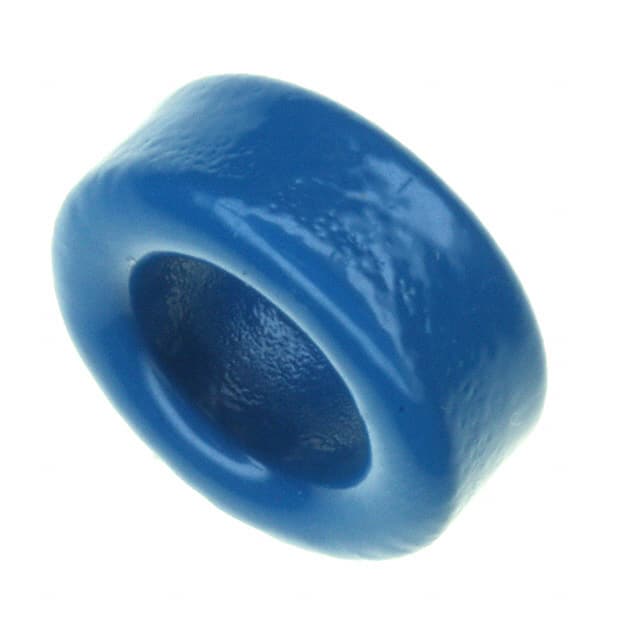

B64290L0045X830 FERRITE CORE TOROID 2.77UH N30 EPCOS - TDK Electronics	2,580	0.76	- + RFQ	Datasheet	Bulk	TX16/9.6/6.3	Active	Toroid	-	N30	0.677 (17.20mm)	2.77 µH	±25%	Ungapped	-	4300	1.95	38.52	19.73	-	760	Epoxy	0.287 (7.30mm)

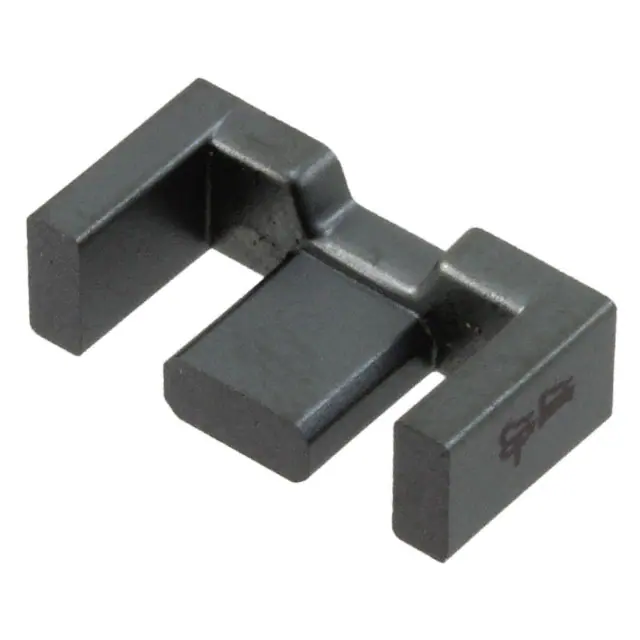

B66413G0000X187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	3,347	0.76	- + RFQ	Datasheet	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.295 (7.50mm)
B64290P0687X046 FERRITE CORE TOROID 5.85UH T49 EPCOS - TDK Electronics	2,996	0.79	- + RFQ	Datasheet	Box	TC5.8/3/3	Active	Toroid	-	T46	0.231 (5.87mm)	5.85 µH	±30%	Ungapped	-	15000	3.22	13.03	4.04	-	52.6	Parylene	0.119 (3.02mm)

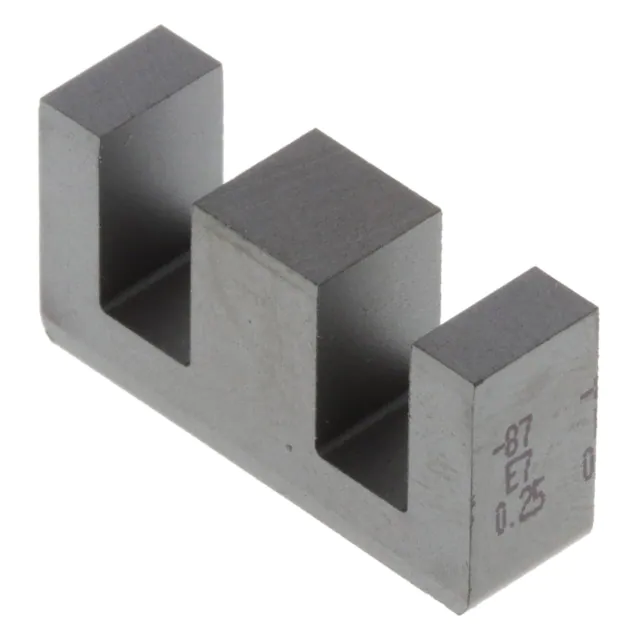

B66317G0250X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,941	0.79	- + RFQ	Datasheet	Box	E25/13/7	Active	E	E 25 x 13 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
B66317G0500X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,716	0.79	- + RFQ	Datasheet	Box	E25/13/7	Active	E	E 25 x 13 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)

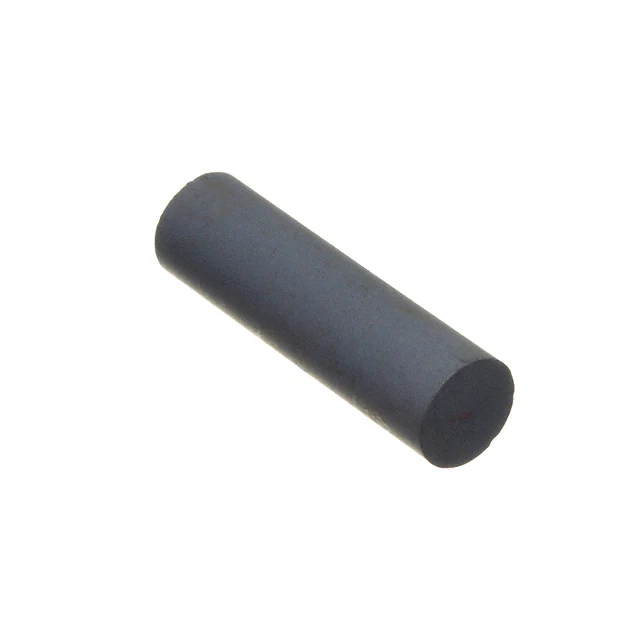

4061287011 61 ROD Fair-Rite Products Corp.	3,757	0.79	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	61	0.250 (6.35mm)	-	-	Ungapped	29	125	-	25	7.07	-	-	Uncoated	-
3067990871 67 ROD Fair-Rite Products Corp.	3,638	0.80	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	67	0.118 (3.00mm)	-	-	Ungapped	20	40	-	-	7.07	-	-	Uncoated	-

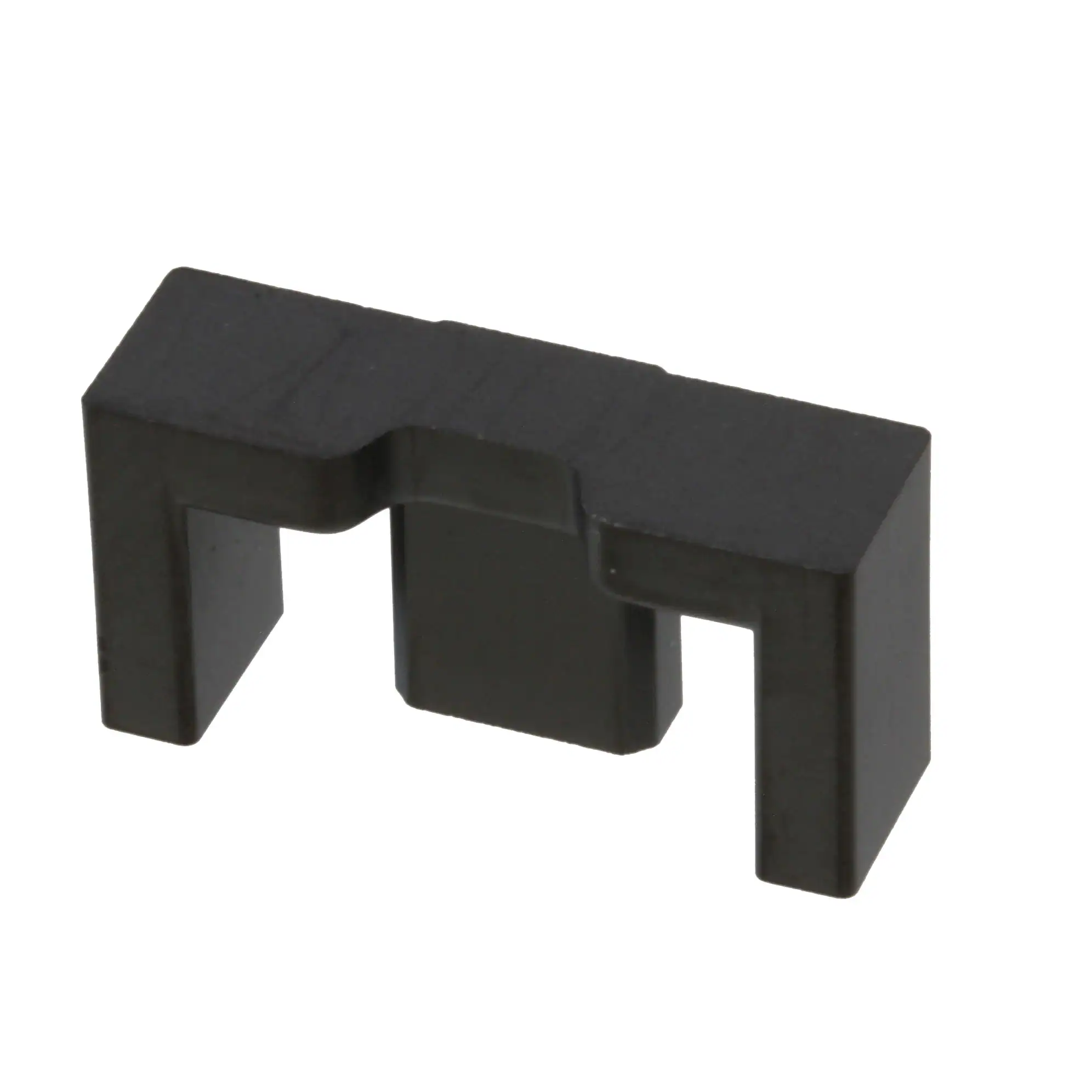

B66413U0100K187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	2,918	0.80	- + RFQ	Datasheet	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.295 (7.50mm)
3078990881 78 ROD Fair-Rite Products Corp.	3,677	0.80	- + RFQ	Datasheet	Bulk	-	Active	ROD	-	78	0.157 (4.00mm)	-	-	Ungapped	31	2300	-	-	12.6	-	-	Uncoated	-

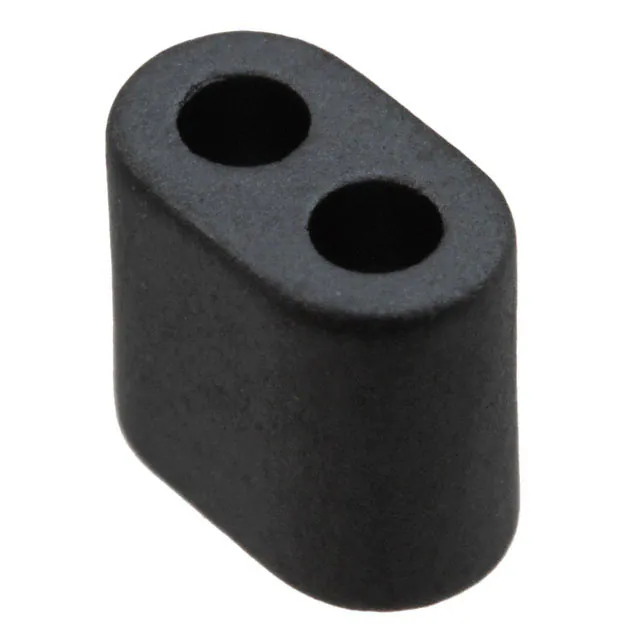

B62152A0007X030 FERRITE CORE 2 HOLE 7.3UH N30 EPCOS - TDK Electronics	3,629	0.80	- + RFQ	Datasheet	Box	MHB2-7.25/4.2/6.2	Active	Multi-Hole (2)	-	N30	-	7.3 µH	±30%	Ungapped	-	4300	0.75	7.6	10.2	-	78	Uncoated	0.244 (6.20mm)

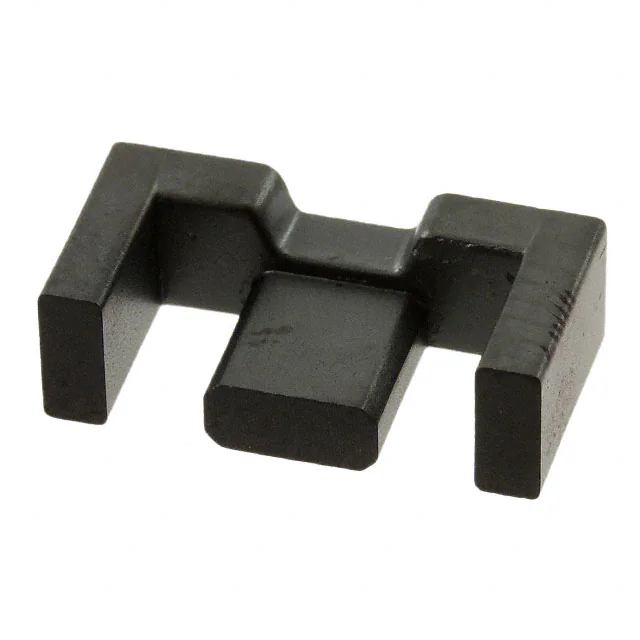

B66413U0160L187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	3,115	0.80	- + RFQ	Datasheet	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.295 (7.50mm)
PLT14/5/1.5/S-3C95 FERRITE CORE Ferroxcube	2,689	0.81	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 14 x 5 x 1.5	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.059 (1.50mm)
5967000201 67 TOROID Fair-Rite Products Corp.	2,097	0.81	- + RFQ	Datasheet	Bulk	-	Active	Toroid	-	67	0.375 (9.53mm)	-	-	Ungapped	-	40	-	20.7	7.2	-	150	Uncoated	0.125 (3.18mm)

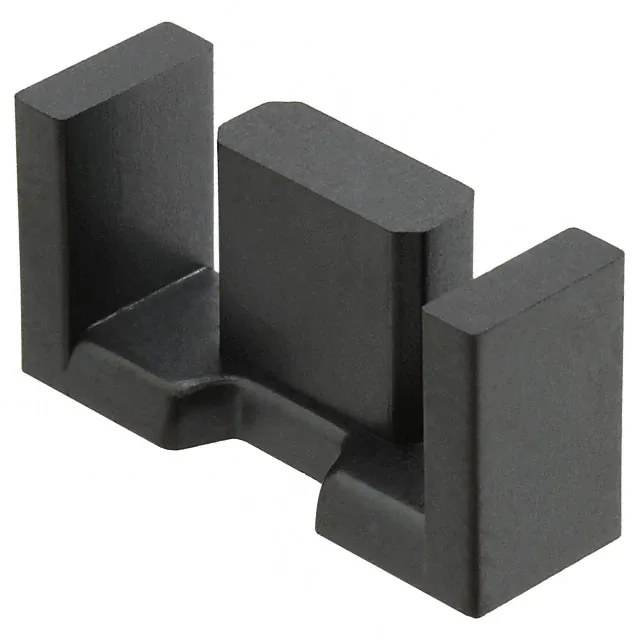

B66417U0160K187 FERRITE CORE EFD N87 1PC EPCOS - TDK Electronics	2,421	0.81	- + RFQ	Datasheet	Box	EFD20/10/7	Active	EFD	EFD 20 x 10 x 7	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)

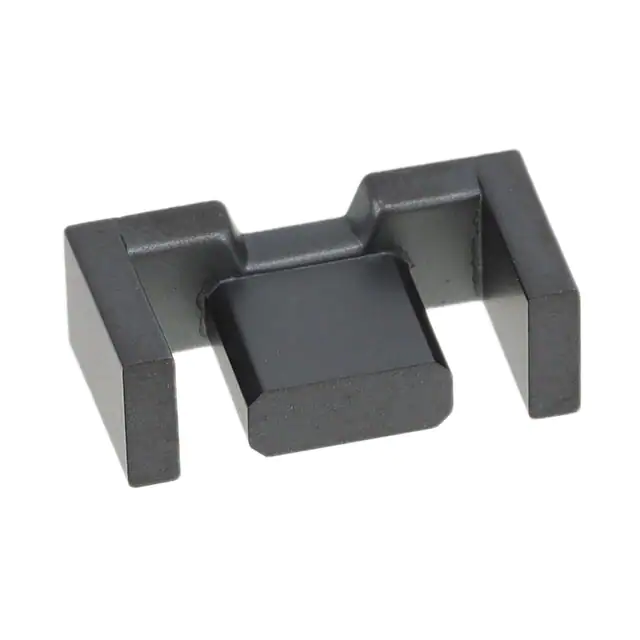

B66417U0250K187 FERRITE CORE EPCOS - TDK Electronics	3,812	0.81	- + RFQ	Datasheet	Box	EFD20/10/7	Active	EFD	EFD 20 x 10 x 7	N87	-	-	±10%	Gapped	300	2200	1.52	47	31	31	1460	Uncoated	0.394 (10.00mm)
B66307G0240X187 FERRITE CORE EPCOS - TDK Electronics	3,799	0.81	- + RFQ	Datasheet	Box	E16/8/5	Active	E	E 16 x 8 x 5	N87	-	-	-	Gapped	-	2200	1.87	37.6	20.1	19.4	756	Uncoated	0.323 (8.20mm)

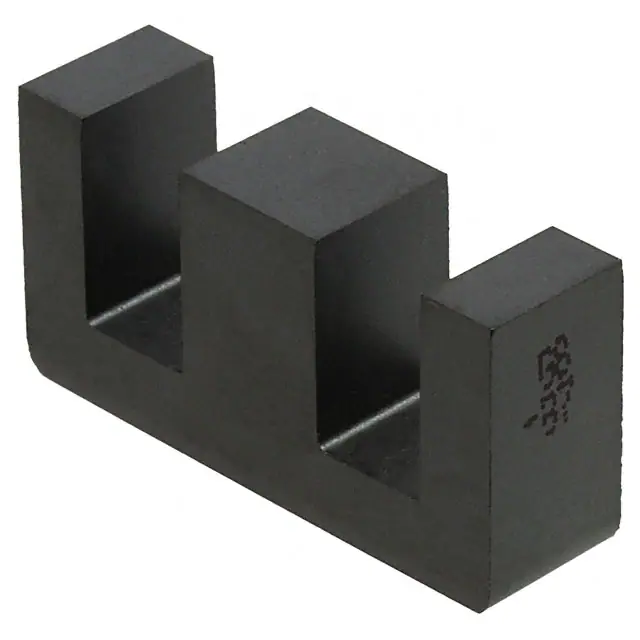

B66317G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,559	0.83	- + RFQ	Datasheet	Box	E25/13/7	Active	E	E 25 x 13 x 7	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)

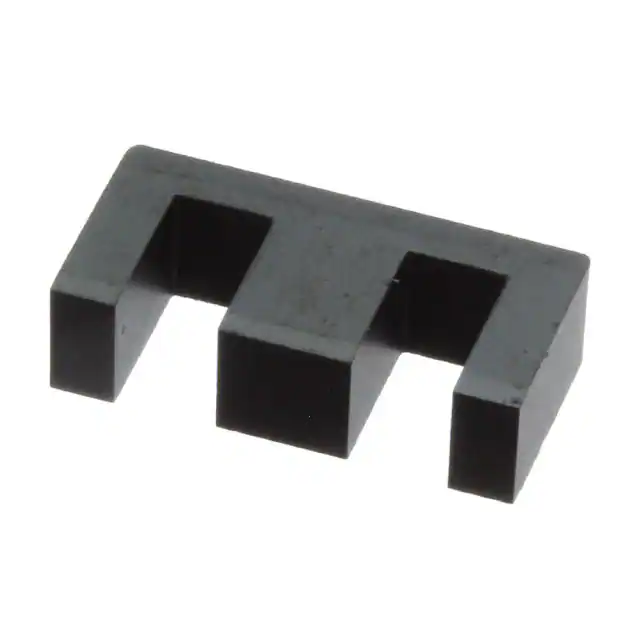

B66307G0100X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2,396	0.84	- + RFQ	Datasheet	Box	E16/8/5	Active	E	E 16 x 8 x 5	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)

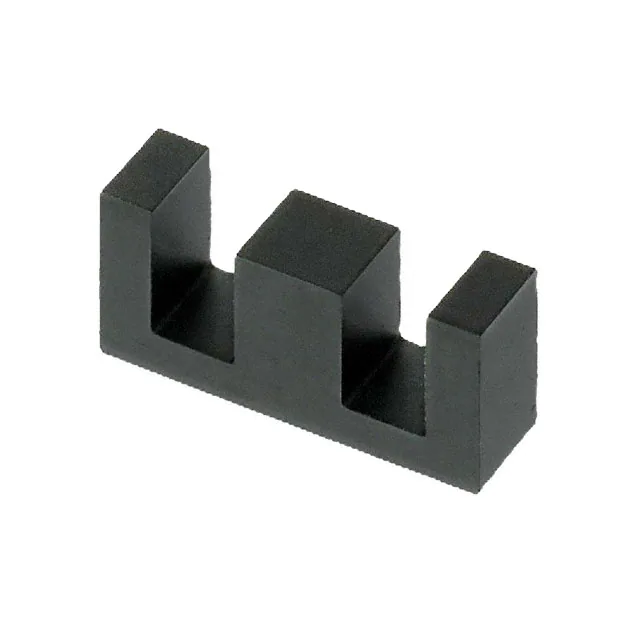

B66307G0500X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,304	0.84	- + RFQ	Datasheet	Box	E16/8/5	Active	E	E 16 x 8 x 5	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)
B64290L0062X046 FERRITE CORE TOROID 6.4UH T46 EPCOS - TDK Electronics	3,331	0.84	- + RFQ	Datasheet	Box	TX9.5/4.8/3.2	Active	Toroid	-	T46	0.413 (10.50mm)	6.4 µH	±30%	Ungapped	-	15000	2.85	20.72	7.28	-	151	Epoxy	0.161 (4.10mm)
