| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B64290L0038X049FERRITE CORE TOROID 610NH N49 |
2,986 | 0.56 |
RFQ |
Datasheet |
Box | TX10/6/4 | Active | Toroid | - | N49 | 0.425 (10.80mm) | 610 nH | ±25% | Ungapped | - | 1500 | 3.07 | 24.07 | 7.83 | - | 188 | Epoxy | 0.187 (4.75mm) |
|
|
B64290L0038X046FERRITE CORE TOROID 6UH T46 |
3,090 | 0.57 |
RFQ |
Datasheet |
Box | TX10/6/4 | Active | Toroid | - | T46 | 0.425 (10.80mm) | 6 µH | ±30% | Ungapped | - | 15000 | 3.07 | 24.07 | 7.83 | - | 188 | Epoxy | 0.187 (4.75mm) |
|
|
B64290L0038X035FERRITE CORE TOROID 2.46UH T35 |
2,492 | 0.57 |
RFQ |
Datasheet |
Box | TX10/6/4 | Active | Toroid | - | T35 | 0.425 (10.80mm) | 2.46 µH | ±25% | Ungapped | - | 6000 | 3.07 | 24.07 | 7.83 | - | 188 | Epoxy | 0.187 (4.75mm) |
|
598000020180 TOROID |
3,193 | 0.57 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | - | 0.374 (9.50mm) | 245 nH | ±25% | Ungapped | - | 550 | 286 | 20.7 | 7.3 | - | 150 | Uncoated | 0.125 (3.18mm) |
|

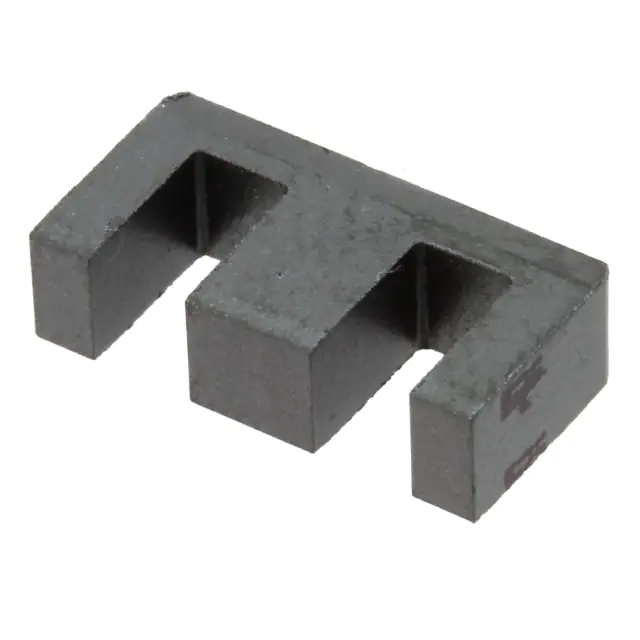

B66305G0000X187FERRITE CORE E N87 1PC |
2,487 | 0.57 |
RFQ |
Datasheet |
Box | E13/7/4 | Active | E | E 13 x 7 x 4 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.256 (6.50mm) |
|

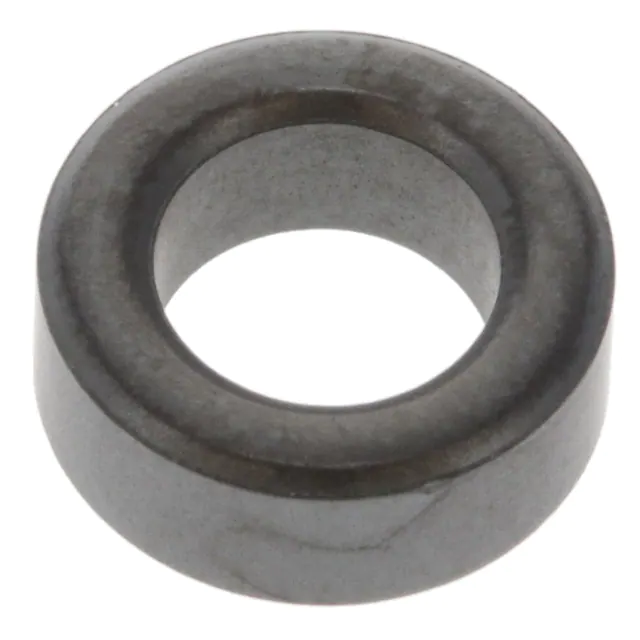

B64290A0038X038FERRITE CORE TOROID 4.09UH T38 |
2,856 | 0.57 |
RFQ |
Datasheet |
Box | T10/6/4 | Active | Toroid | R 10 x 6 x 4 | T38 | 0.394 (10.00mm) | 4.09 µH | ±30% | Ungapped | - | 10000 | 3.07 | 24.07 | 7.83 | - | 188 | Uncoated | 0.157 (4.00mm) |
|

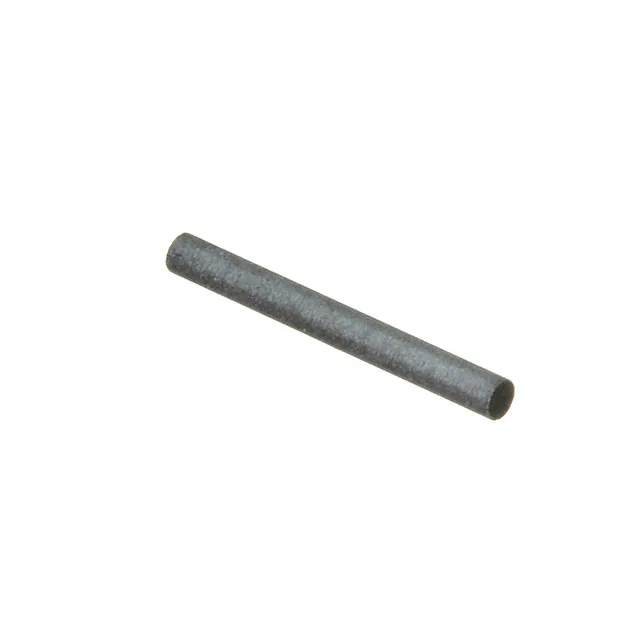

306199086161 ROD |
2,819 | 0.58 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 61 | 0.098 (2.50mm) | - | - | Ungapped | 27 | 125 | - | - | 4.91 | - | - | Uncoated | - |
|

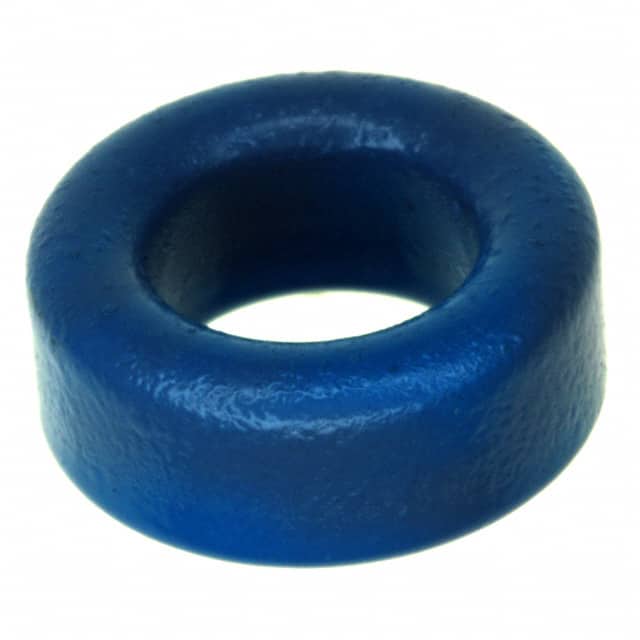

B64290L0044X038FERRITE CORE TOROID 5.11UH T38 |
3,529 | 0.59 |
RFQ |
Datasheet |
Bulk | TX12.5/7.5/5 | Active | Toroid | - | T38 | 0.535 (13.60mm) | 5.11 µH | ±30% | Ungapped | - | 10000 | 2.46 | 30.09 | 12.23 | - | 368 | Epoxy | 0.234 (5.95mm) |
|

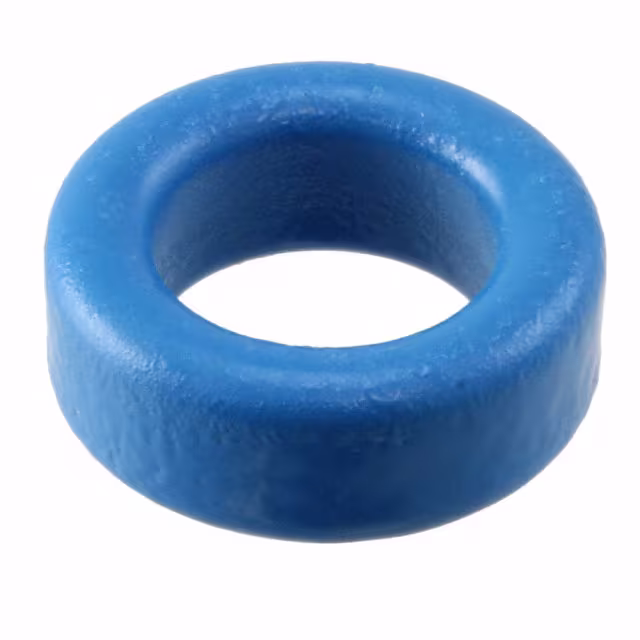

B64290L0658X087FERRITE CORE TOROID 970NH N87 |
3,187 | 0.59 |
RFQ |
Datasheet |
Box | TX14/9/5 | Active | Toroid | - | N87 | 0.594 (15.10mm) | 970 nH | ±25% | Ungapped | - | 2200 | 2.84 | 34.98 | 12.3 | - | 430 | Epoxy | 0.236 (6.00mm) |
|

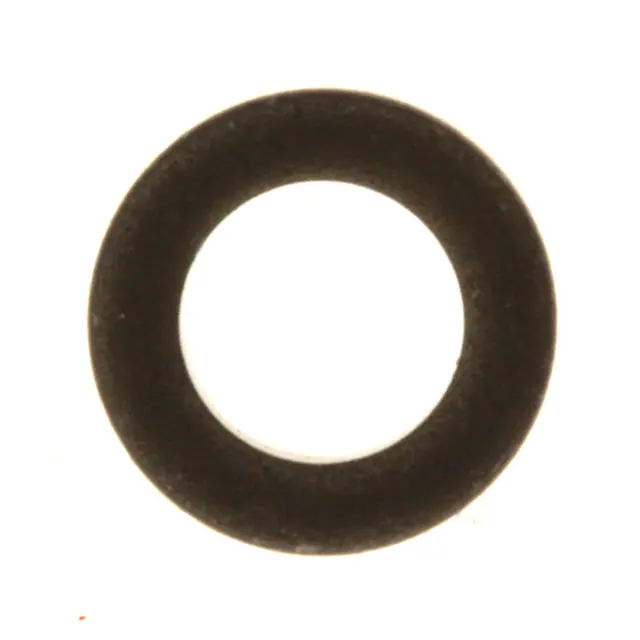

B64290P0037X830FERRITE CORE TOROID 1.09UH N30 |
3,348 | 0.60 |
RFQ |
Datasheet |
Bulk | TC6.3/3.8/2.5 | Active | Toroid | - | N30 | 0.249 (6.32mm) | 1.09 µH | ±25% | Ungapped | - | 4300 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.099 (2.52mm) |
|

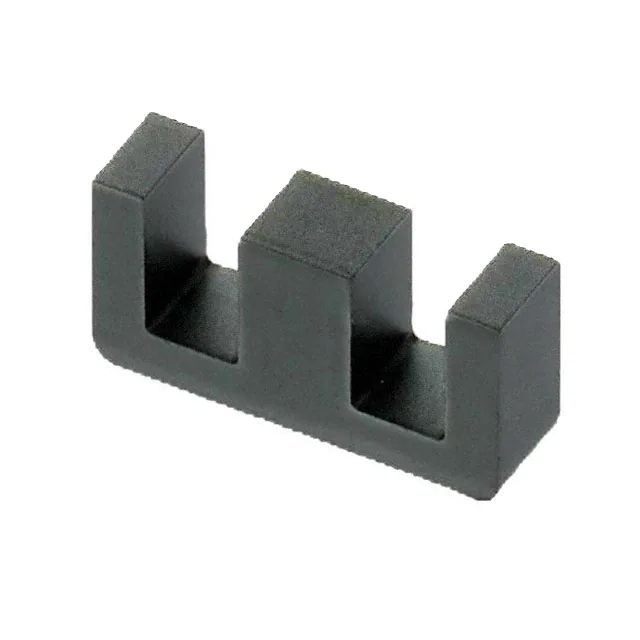

B66305G0130X187FERRITE CORE |
3,178 | 0.60 |
RFQ |
Datasheet |
Box | E13/7/4 | Active | E | E 13 x 7 x 4 | N87 | - | 112 nH | - | Gapped | 215 | 2200 | 2.39 | 29.6 | 12.4 | 12.2 | 367 | Uncoated | 0.256 (6.50mm) |
|
E20/10/6-3C94FERRITE CORE |
3,849 | 0.61 |
RFQ |
Datasheet |
Bulk | - | Active | E | E 20 x 10 x 6 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.402 (10.20mm) |
|
TX14/9/5-3E65FERRITE CORES ROUND |
3,708 | 0.67 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 14 x 9 x 5 | - | 0.561 (14.25mm) | - | ±30% | Ungapped | - | 10000 | 2.84 | 35 | 12.3 | - | 430 | Epoxy | 0.207 (5.25mm) |
|

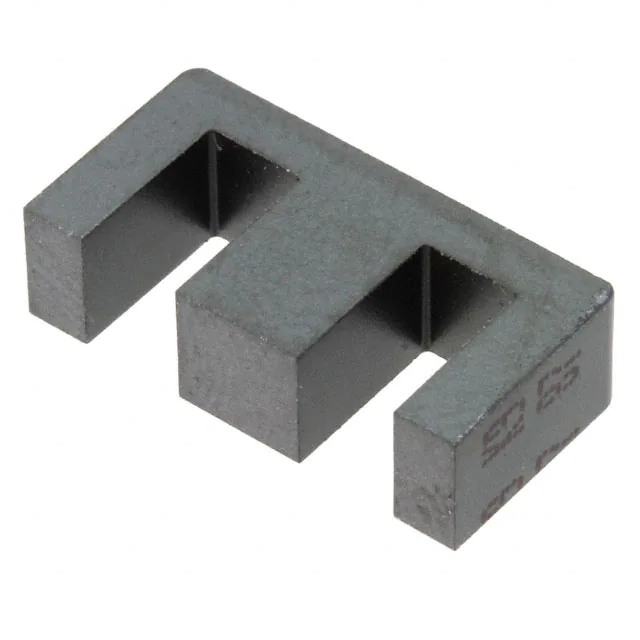

B66307G0000X187FERRITE CORE E N87 1PC |
2,994 | 0.69 |
RFQ |
Datasheet |
Box | E16/8/5 | Active | E | E 16 x 8 x 5 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.323 (8.20mm) |
|

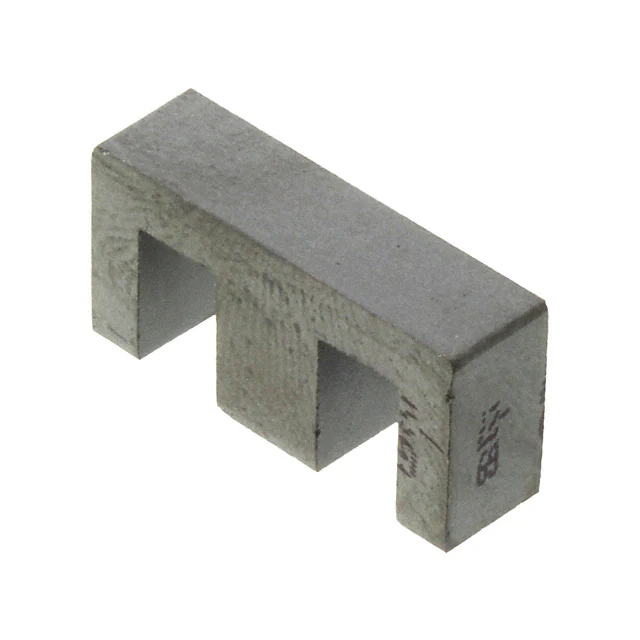

B66311G0000X127FERRITE CORE E N27 1PC |
3,847 | 0.69 |
RFQ |
Datasheet |
Box | E20/10/6 | Active | E | E 20 x 10 x 6 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.394 (10.00mm) |
|

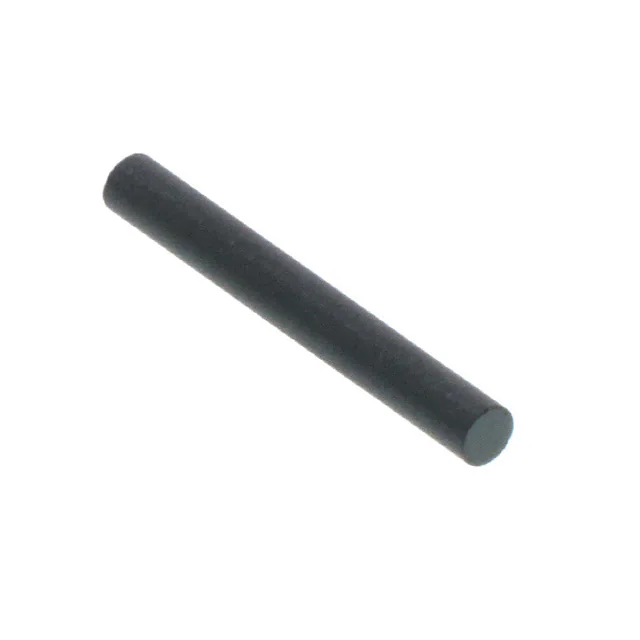

306199087161 ROD |
2,251 | 0.72 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 61 | 0.118 (3.00mm) | - | - | Ungapped | 29 | 125 | - | - | 7.07 | - | - | Uncoated | - |
|

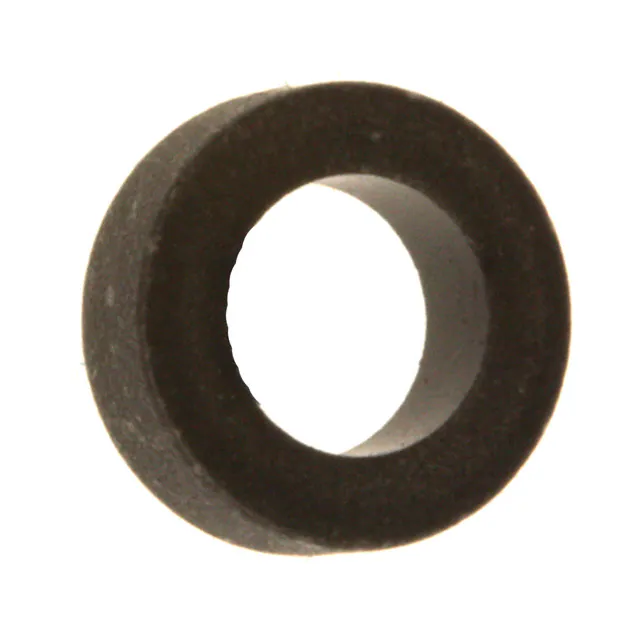

B64290P0037X038FERRITE CORE TOROID 2.53UH T38 |
3,717 | 0.73 |
RFQ |
Datasheet |
Bulk | TC6.3/3.8/2.5 | Active | Toroid | - | T38 | 0.249 (6.32mm) | 2.53 µH | ±30% | Ungapped | - | 10000 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.099 (2.52mm) |
|

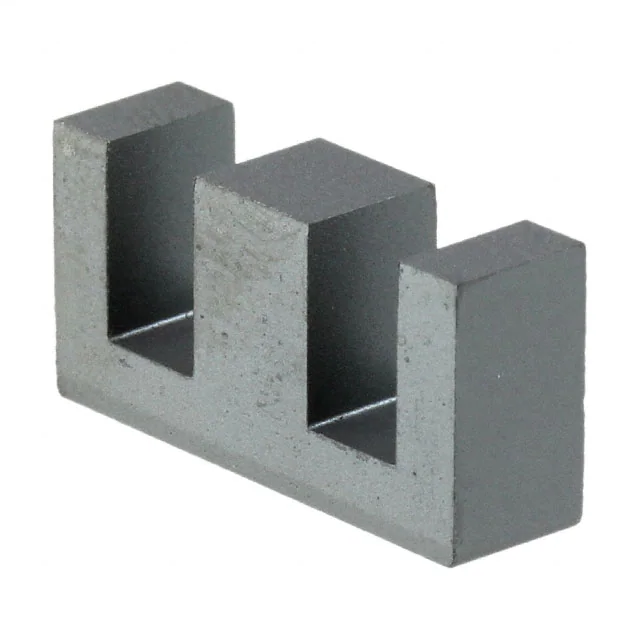

B66311G0000X187FERRITE CORE E N87 1PC |
3,831 | 0.74 |
RFQ |
Datasheet |
Box | E20/10/6 | Active | E | E 20 x 10 x 6 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.394 (10.00mm) |
|

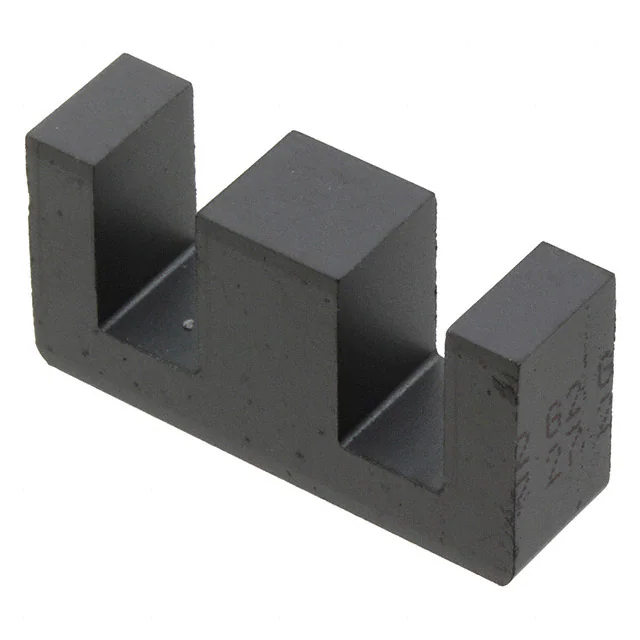

B66317G0000X127FERRITE CORE E N27 1PC |
2,002 | 0.74 |
RFQ |
Datasheet |
Box | E25/13/7 | Active | E | E 25 x 13 x 7 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.504 (12.80mm) |
|
407727601177 ROD |
2,517 | 0.75 |
RFQ |
Datasheet |
Bulk | - | Active | ROD | - | 77 | 0.250 (6.35mm) | - | - | Ungapped | 29 | 2000 | - | 25 | 7.07 | - | - | Uncoated | - |
