Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

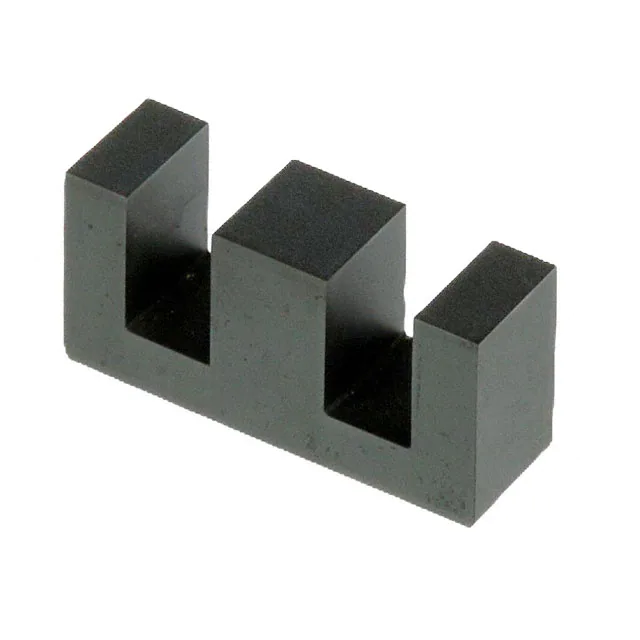

B66389G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2,536	3.04	- + RFQ	Datasheet	Box	E36/18/11	Active	E	E 36 x 18 x 11	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.709 (18.00mm)

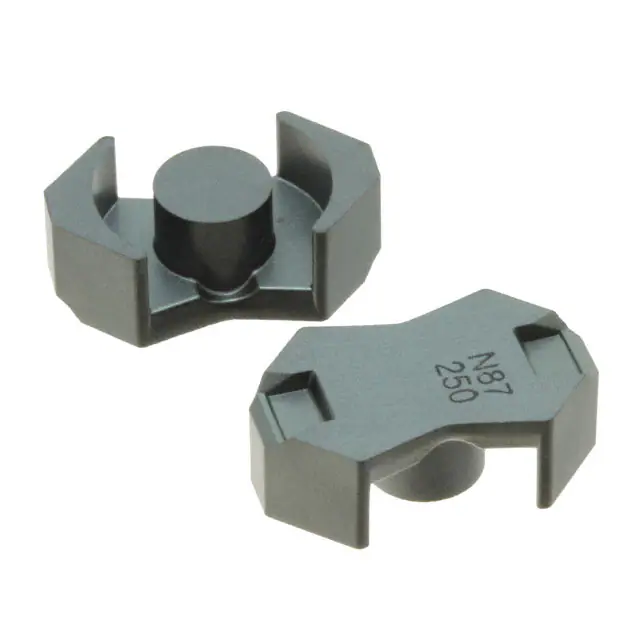

B65807J0250A087 FERRITE CORE RM 250NH N87 2PCS EPCOS - TDK Electronics	2,191	3.09	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N87	-	250 nH	±3%	Gapped	155	-	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
TX36/23/15-3E10-M FERRITE CORES ROUND Ferroxcube	206	3.12	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 15	-	1.463 (37.15mm)	-	±30%	Ungapped	10000	-	0.919	89.7	97.5	-	8740	Epoxy	0.630 (16.00mm)

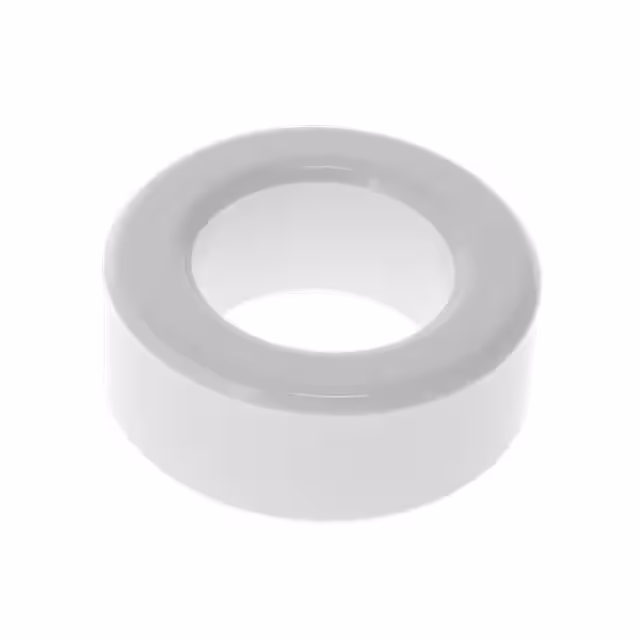

TX32/19/13-3E10-M FERRITE CORES ROUND Ferroxcube	299	3.18	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 32 x 19 x 13	-	1.281 (32.55mm)	-	±30%	Ungapped	10000	-	0.99	76	76.5	-	5820	Epoxy	0.528 (13.40mm)
B66325G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3,346	3.20	- + RFQ	Datasheet	Box	E42/21/15	Active	E	E 42 x 21 x 15	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B65807J0000R030 FERRITE CORE RM 4.3UH N30 2PCS EPCOS - TDK Electronics	2,158	3.22	- + RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N30	-	4.3 µH	-20%, +30%	Ungapped	2670	4300	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
TX36/23/15-3E27-M7 FERRITE CORES ROUND Ferroxcube	109	3.25	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 15	3E27	1.463 (37.15mm)	-	±25%	Ungapped	7000	-	0.919	89.7	97.5	-	8740	Epoxy	0.630 (16.00mm)
P14/8-3D3 CORES 2PC SET Ferroxcube	2,751	3.27	- + RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 14 x 8	-	0.563 (14.30mm)	1 µH	±25%	Ungapped	630	-	0.789	19.8	25.1	19.8	495	Uncoated	0.165 (4.20mm)

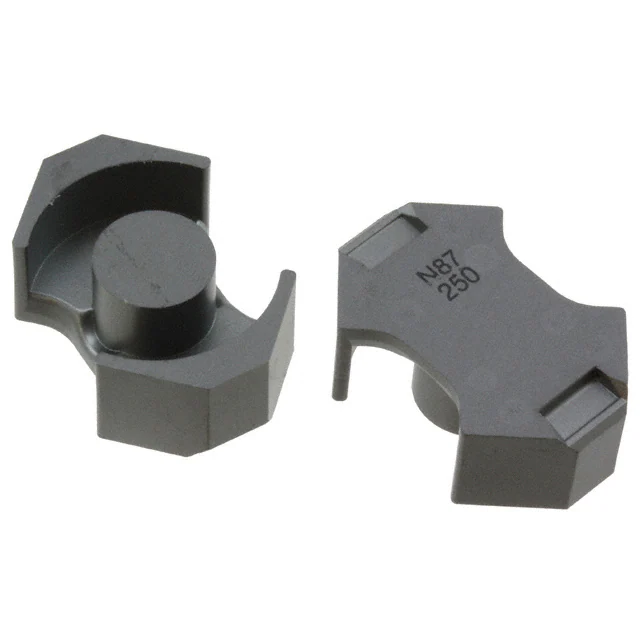

B65811J0250A087 FERRITE CORE RM 250NH N87 2PCS EPCOS - TDK Electronics	3,282	3.28	- + RFQ	Datasheet	Box	RM8	Active	RM	RM 8	N87	-	250 nH	±3%	Gapped	118	2200	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)

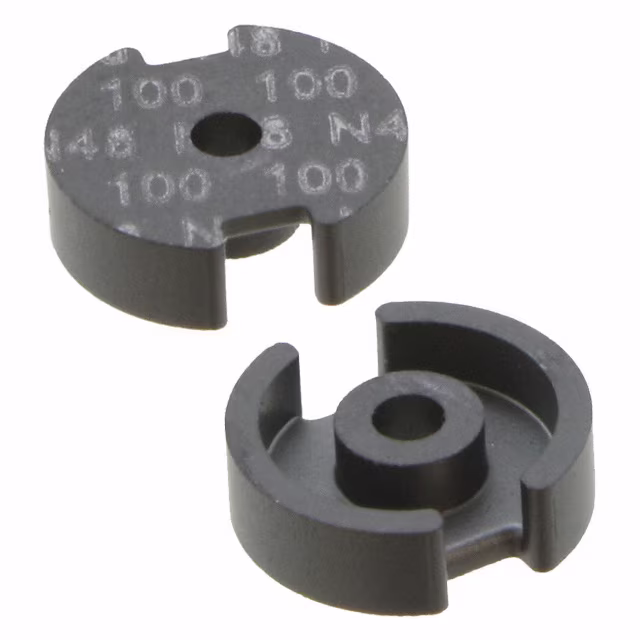

B65511A0000Y030 FERRITE CORE P 2UH N30 2PCS EPCOS - TDK Electronics	2,157	3.31	- + RFQ	Datasheet	Box	P7/4	Active	P (Pot Core)	P 7 x 4	N30	0.289 (7.35mm)	2 µH	-30%, +40%	Ungapped	2270	4300	1.43	10	7	-	70	Uncoated	0.083 (2.10mm)

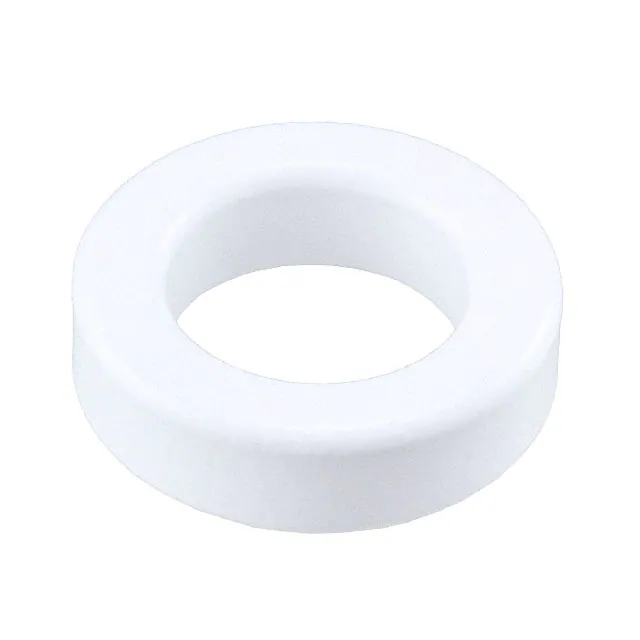

TX39/20/13-3E10-M FERRITE CORES ROUND Ferroxcube	174	3.33	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 39 x 20 x 13	-	1.567 (39.80mm)	-	±30%	Ungapped	10000	-	0.76	84.9	112	-	9513	Epoxy	0.535 (13.60mm)

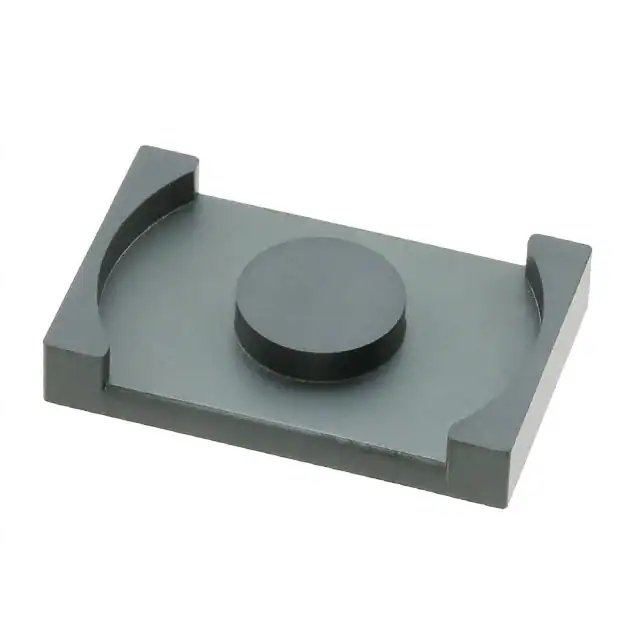

B66501G0000X187 FERRITE CORE ER N87 1PC EPCOS - TDK Electronics	2,938	3.39	- + RFQ	Datasheet	Tray	ER32/5/21	Active	ER	ER 32 x 5 x 21	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.201 (5.10mm)
TX36/23/15-3C94 FERRITE CORES ROUND Ferroxcube	127	3.41	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 15	3C94	1.463 (37.15mm)	-	±25%	Ungapped	2300	-	0.919	89.7	97.5	-	8740	Epoxy	0.630 (16.00mm)

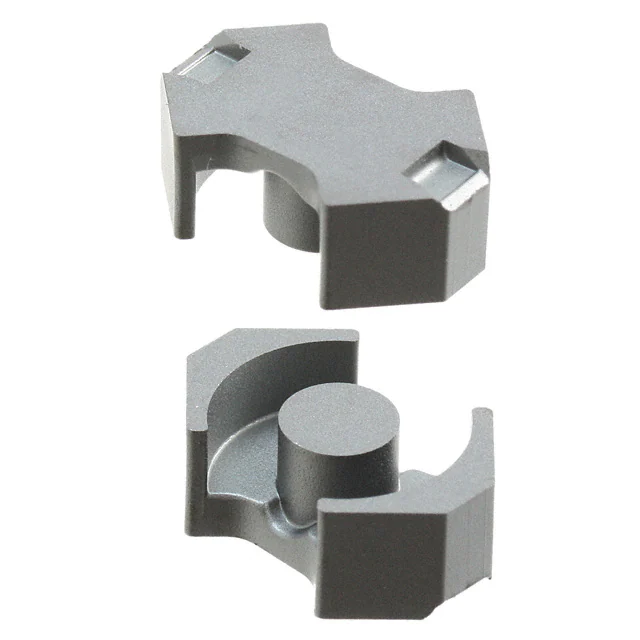

B65805J0000R049 FERRITE CORE RM 1.3UH N49 2PCS EPCOS - TDK Electronics	2,218	3.48	- + RFQ	Datasheet	Box	RM5	Active	RM	RM 5	N49	-	1.3 µH	-20%, +30%	Ungapped	960	1500	0.93	22.1	23.8	18	526	Uncoated	0.207 (5.25mm)

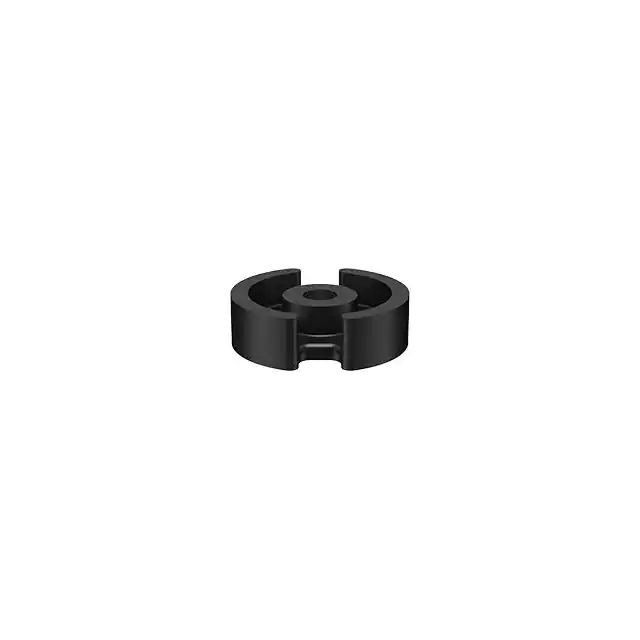

B65501D0000R033 FERRITE CORE P 350NH M33 2PCS EPCOS - TDK Electronics	2,279	3.49	- + RFQ	Datasheet	Box	P5.8/3.3	Active	P (Pot Core)	P 5.8 x 3.3	M33	0.228 (5.80mm)	350 nH	-20%, +30%	Ungapped	470	750	1.68	7.9	4.7	-	37	Uncoated	0.067 (1.70mm)
TX32/19/13-3C94 FERRITE CORES ROUND Ferroxcube	794	3.49	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 32 x 19 x 13	3C94	1.281 (32.55mm)	-	±25%	Ungapped	2300	-	0.99	76	76.5	-	5820	Epoxy	0.528 (13.40mm)

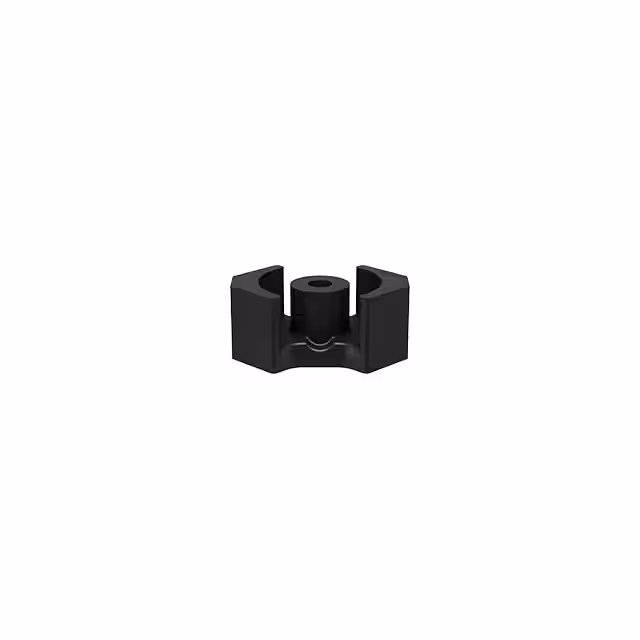

B65803A0160A048 FERRITE CORE RM 160NH N48 2PCS EPCOS - TDK Electronics	2,741	3.52	- + RFQ	Datasheet	Box	RM4	Active	RM	RM 4	N48	-	160 nH	±3%	Gapped	243	-	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)

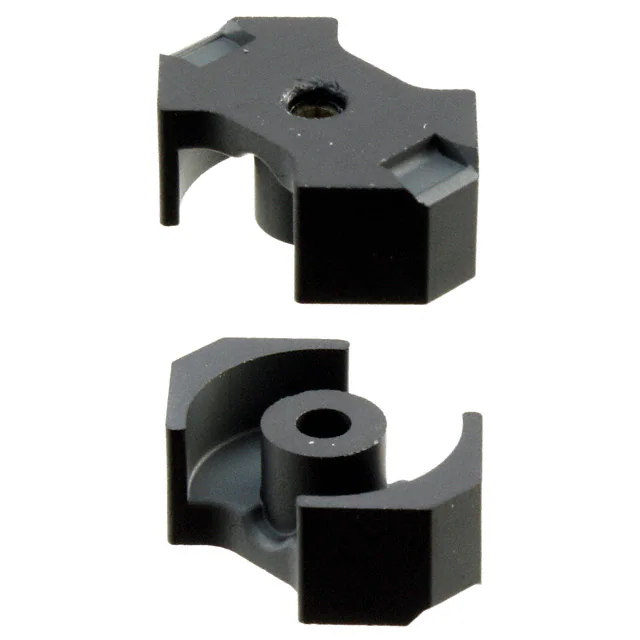

B65805N0160A048 FERRITE CORE RM 160NH N48 2PCS EPCOS - TDK Electronics	2,865	3.53	- + RFQ	Datasheet	Box	RM5	Active	RM	RM 5	N48	-	160 nH	±3%	Gapped	127	-	1	20.8	20.8	-	433	Uncoated	0.207 (5.25mm)
PQ26/25-3F36 FERRITE CORE 2PC SET Ferroxcube	2,105	3.53	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 26 x 25	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972 (24.70mm)
B66287G0000X149 FERRITE CORE ELP N49 1PC EPCOS - TDK Electronics	579	3.55	- + RFQ	Datasheet	Box	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
