Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65651W0000Y038 FERRITE CORE P 12.6UH T38 2PCS EPCOS - TDK Electronics	507	5.16	- + RFQ	Datasheet	Box	P18/11	Active	P (Pot Core)	P 18 x 11	T38	0.724 (18.40mm)	12.6 µH	-30%, +40%	Ungapped	5710	10000	0.57	26.6	46.7	33.9	1242	Uncoated	0.209 (5.30mm)
B65661D0000R048 FERRITE CORE P 3.8UH N48 2PCS EPCOS - TDK Electronics	2,268	5.23	- + RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	3.8 µH	-20%, +30%	Ungapped	1520	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65879A0000R087 FERRITE CORE PQ 6.3UH N87 2PCS EPCOS - TDK Electronics	480	5.24	- + RFQ	Datasheet	Box	PQ32/20	Active	PQ	PQ 32 x 20	N87	-	6.3 µH	-20%, +30%	Ungapped	1580	2200	0.314	48.4	154.2	127.5	7460	Uncoated	0.404 (10.25mm)
B66501G0000X197 FERRITE CORE ER N97 1PC EPCOS - TDK Electronics	154	5.26	- + RFQ	Datasheet	Box	ER32/5/21	Active	ER	ER 32 x 5 x 21	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.201 (5.10mm)

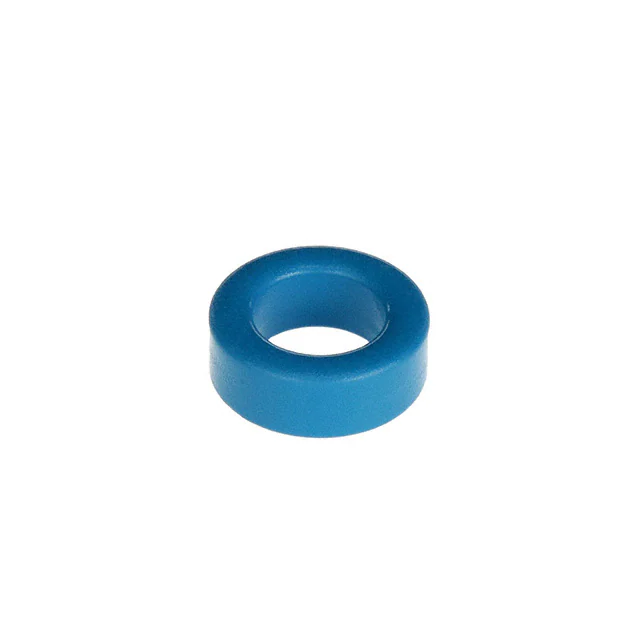

B64290L0048X087 FERRITE CORE TOROID 2.79UH N87 EPCOS - TDK Electronics	3,725	5.31	- + RFQ	Datasheet	Box	TX34/20.5/12.5	Active	Toroid	-	N87	1.397 (35.50mm)	2.79 µH	±25%	Ungapped	-	2200	0.99	82.06	82.6	-	6778	Epoxy	0.535 (13.60mm)
B65875A0000R095 FERRITE CORE PQ 3.3UH N95 2PCS EPCOS - TDK Electronics	439	5.33	- + RFQ	Datasheet	Box	PQ20/20	Active	PQ	PQ 20 x 20	N95	-	3.3 µH	-20%, +30%	Ungapped	1860	2000	0.718	45.2	62.9	54.4	2843	Uncoated	0.398 (10.10mm)

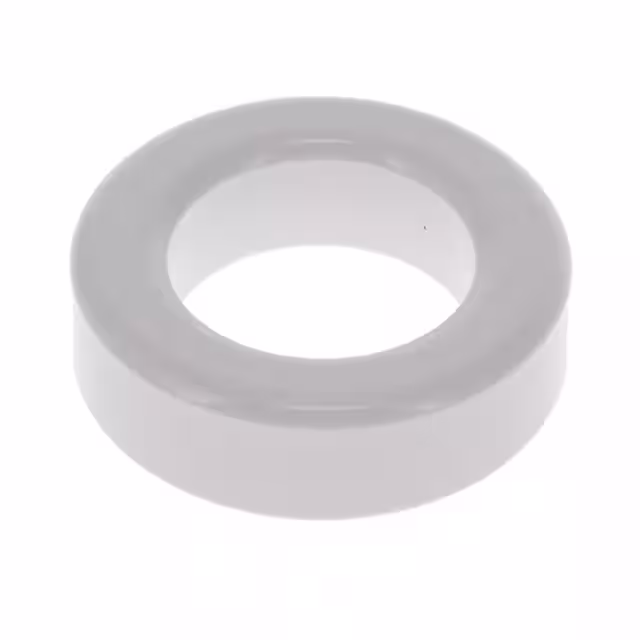

TX42/26/13-3C94 FERRITE CORES ROUND Ferroxcube	923	5.42	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 13	3C94	1.697 (43.15mm)	-	±25%	Ungapped	2300	-	1.076	103	95.8	-	9860	Epoxy	0.531 (13.50mm)

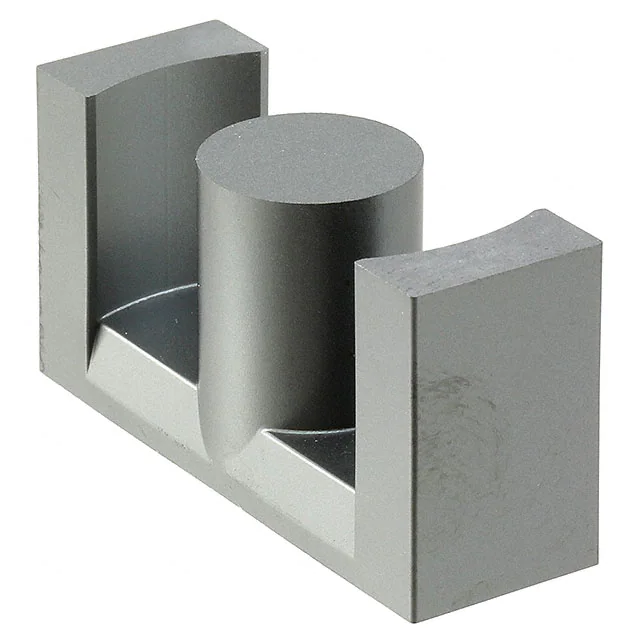

B66367G0500X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	120	5.44	- + RFQ	Datasheet	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.980 (24.90mm)
B64290L0048X065 FERRITE CORE TOROID 6.4UH T65 EPCOS - TDK Electronics	367	5.45	- + RFQ	Datasheet	Box	TX34/20.5/12.5	Active	Toroid	-	T65	1.397 (35.50mm)	6.4 µH	±30%	Ungapped	-	5000	0.99	82.06	82.6	-	6778	Epoxy	0.535 (13.60mm)

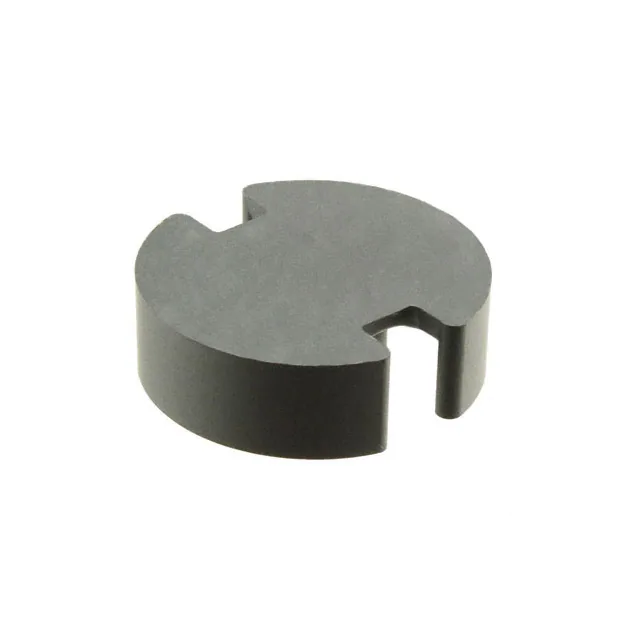

B65661W0000Y038 FERRITE CORE P 16UH T38 2PCS EPCOS - TDK Electronics	694	5.46	- + RFQ	Datasheet	Box	P22/13	Active	P (Pot Core)	P 22 x 13	T38	0.866 (22.00mm)	16 µH	-30%, +40%	Ungapped	5820	10000	0.46	33.2	72.6	58.1	2410	Uncoated	0.268 (6.80mm)
ETD54/28/19-3C97 FERRITE CORE Ferroxcube	3,822	5.51	- + RFQ	Datasheet	Bulk	-	Active	ETD	ETD 54 x 28 x 19	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.087 (27.60mm)
E56/24/19-3C92 FERRITE CORE Ferroxcube	601	5.52	- + RFQ	Datasheet	Bulk	-	Active	E	E 56 x 24 x 19	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.929 (23.60mm)
P26/16-3F3 CORES 2PC SET Ferroxcube	3,933	5.59	- + RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 26 x 16	3F3	1.004 (25.50mm)	4.6 µH	±25%	Ungapped	1470	-	0.4	37.6	93.9	77.4	3530	Uncoated	0.634 (16.10mm)
B65671W0000R087 FERRITE CORE P 5.5UH N87 2PCS EPCOS - TDK Electronics	535	5.70	- + RFQ	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N87	1.024 (26.00mm)	5.5 µH	-20%, +30%	Ungapped	1620	2200	0.37	40	108	87	4320	Uncoated	0.321 (8.15mm)
PLT58/38/4-3F4 FERRITE CORE Ferroxcube	148	5.79	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 58 x 38 x 4	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
B66367G0200X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	254	5.81	- + RFQ	Datasheet	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.980 (24.90mm)
B66367G1000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	240	5.81	- + RFQ	Datasheet	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.980 (24.90mm)
B64290L0022X065 FERRITE CORE TOROID 5.8UH T65 EPCOS - TDK Electronics	378	5.86	- + RFQ	Datasheet	Box	TX42/26/13	Active	Toroid	-	T65	1.717 (43.60mm)	5.8 µH	±30%	Ungapped	-	5000	1.08	103	95.75	-	9862	Epoxy	0.535 (13.60mm)
PQ35/20-3C97 FERRITE CORE 2PC SET Ferroxcube	531	5.87	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 20	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
PQ35/20-3C95 FERRITE CORE 2PC SET Ferroxcube	121	5.87	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 35 x 20	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
