Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

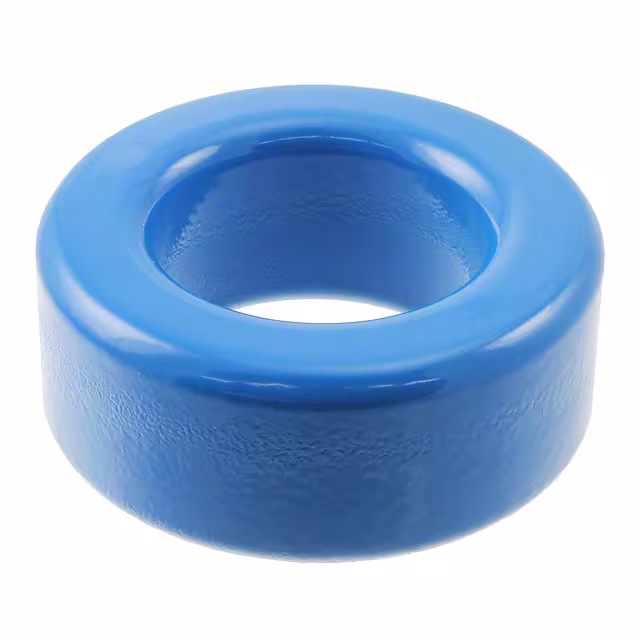

B64290L0659X027 FERRITE CORE TOROID 3.27UH N27 EPCOS - TDK Electronics	117	9.04	- + RFQ	Datasheet	Box	TX40/24/16	Active	Toroid	-	N27	1.646 (41.80mm)	3.27 µH	±25%	Ungapped	-	2000	0.77	96.29	125.3	125.3	12070	Epoxy	0.677 (17.20mm)
PLT64/50/5-3C92 PLANAR E CORES Ferroxcube	578	9.11	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 64 x 50 x 5	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.200 (5.08mm)

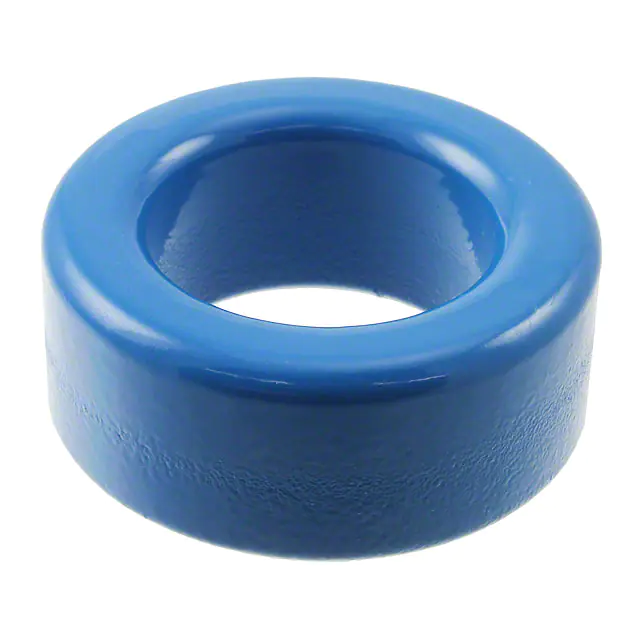

B64290L0674X037 FERRITE CORE TOROID 8.5UH T37 EPCOS - TDK Electronics	511	9.21	- + RFQ	Datasheet	Box	TX36/23/15	Active	Toroid	-	T37	1.476 (37.50mm)	8 µH	±25%	Ungapped	-	6000	0.94	89.65	95.89	-	8597	Epoxy	0.638 (16.20mm)
RM14/ILP-3C95 FERRITE CORE 2PC SET Ferroxcube	183	9.28	- + RFQ	Datasheet	Bulk	-	Active	RM	RM 14	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.807 (20.50mm)

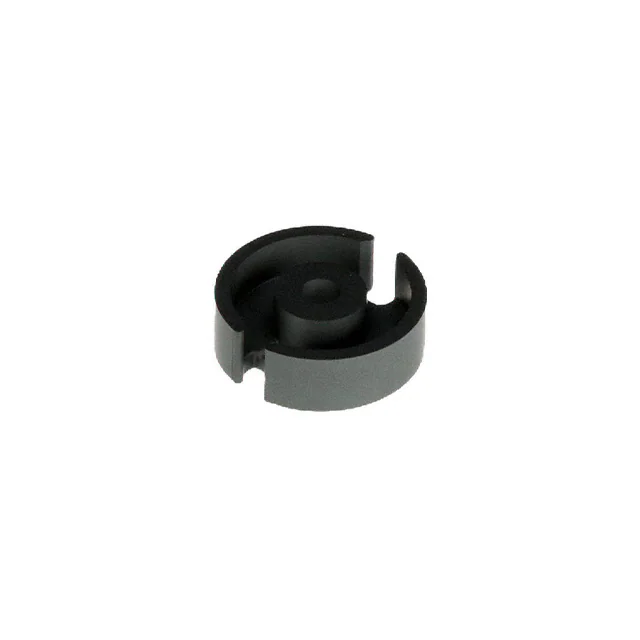

P30/19-3F46 FERRITE CORE 2PC SET Ferroxcube	416	9.38	- + RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 30 x 19	3F46	1.181 (30.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.740 (18.80mm)
B65661N0160A048 FERRITE CORE P 160NH N48 EPCOS - TDK Electronics	2,423	9.43	- + RFQ	Datasheet	Tray	P22/13	Active	P (Pot Core)	P 22 x 13	N48	0.866 (22.00mm)	160 nH	±3%	Gapped	64	-	0.5	31.6	63	-	1990	Uncoated	0.268 (6.80mm)
B65877B0000R095 FERRITE CORE PQ 6.3UH N95 2PCS EPCOS - TDK Electronics	643	9.44	- + RFQ	Datasheet	Box	PQ26/20	Active	PQ	PQ 26 x 20	N95	-	6.3 µH	-20%, +30%	Ungapped	1820	2000	0.363	44.4	122.3	108.8	5435	Uncoated	0.397 (10.08mm)

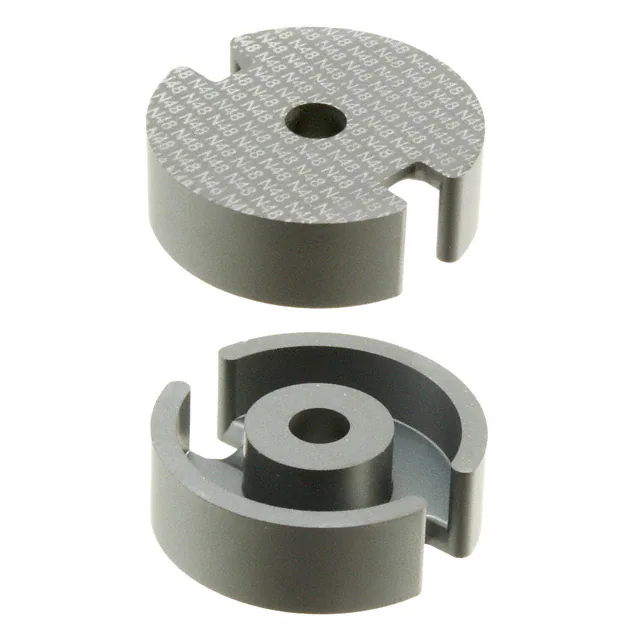

B65701D0000R048 FERRITE CORE P 6.2UH N48 2PCS EPCOS - TDK Electronics	392	9.82	- + RFQ	Datasheet	Box	P30/19	Active	P (Pot Core)	P 30 x 19	N48	1.200 (30.50mm)	6.2 µH	-20%, +30%	Ungapped	1630	-	0.33	45	136	-	6120	Uncoated	0.374 (9.50mm)

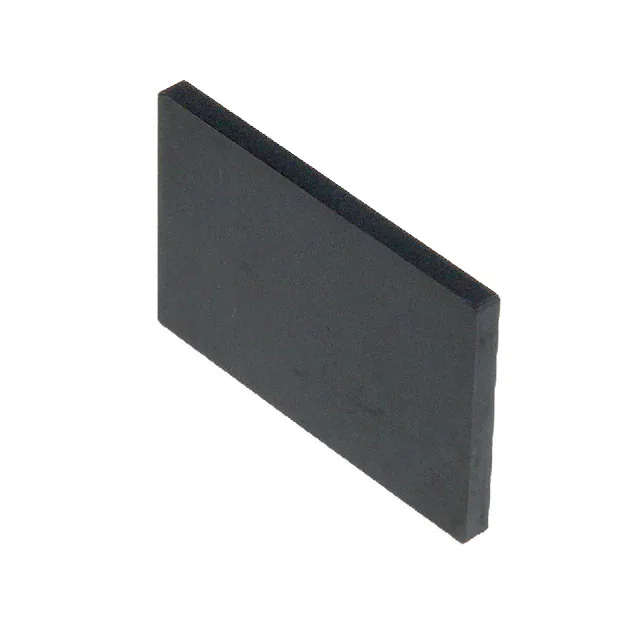

PLT58/38/4-4F1 CORES Ferroxcube	579	9.86	- + RFQ	Datasheet	Bulk	-	Active	PLT	PLT 58 x 38 x 4	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.496 (38.00mm)
B64290L0659X035 FERRITE CORE TOROID 8.2UH T35 EPCOS - TDK Electronics	129	9.86	- + RFQ	Datasheet	Box	TX40/24/16	Active	Toroid	-	T35	1.646 (41.80mm)	8.2 µH	±25%	Ungapped	-	5000	0.77	96.29	125.3	125.3	12070	Epoxy	0.677 (17.20mm)
TX42/26/18-3E12 FERRITE CORES ROUND Ferroxcube	382	10.03	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 18	-	1.697 (43.15mm)	-	±30%	Ungapped	12000	-	0.769	103	134	-	13810	Epoxy	0.736 (18.70mm)
E80/38/20-3C92 FERRITE CORE Ferroxcube	297	10.20	- + RFQ	Datasheet	Bulk	-	Active	E	E 80 x 38 x 20	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.500 (38.10mm)

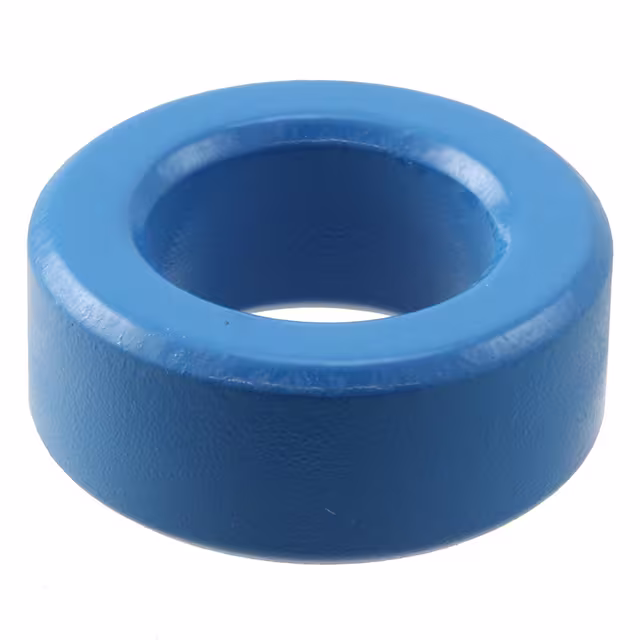

B64290L0659X037 FERRITE CORE TOROID 9.8UH T37 EPCOS - TDK Electronics	272	10.21	- + RFQ	Datasheet	Box	TX40/24/16	Active	Toroid	-	T37	1.646 (41.80mm)	9.8 µH	±25%	Ungapped	-	6000	0.77	96.29	125.3	125.3	12070	Epoxy	0.677 (17.20mm)
B66375G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	377	10.85	- + RFQ	Datasheet	Box	E80/38/20	Active	E	E 80 x 38 x 20	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.516 (38.50mm)
E64/10/50-3C92 PLANAR E CORES Ferroxcube	368	10.88	- + RFQ	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
E71/33/32-3C94 FERRITE CORE Ferroxcube	625	10.92	- + RFQ	Datasheet	Bulk	-	Active	E	E 71 x 33 x 32	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)

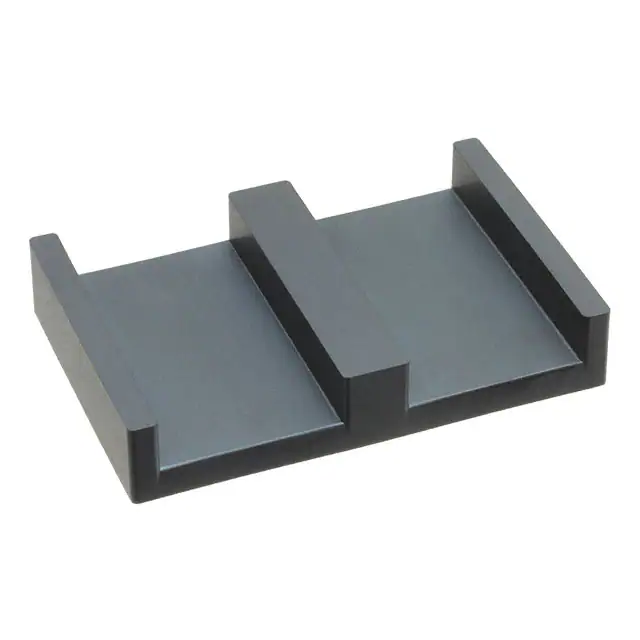

E58/11/38-4F1 CORES Ferroxcube	758	11.82	- + RFQ	Datasheet	Bulk	-	Active	E	-	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.433 (11.00mm)
TX50/30/19-3C94 FERRITE CORES ROUND Ferroxcube	116	11.85	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 50 x 30 x 19	3C94	2.018 (51.25mm)	-	±25%	Ungapped	2300	-	0.65	120.4	186	-	22378	Epoxy	0.791 (20.10mm)
B65881A0000R087 FERRITE CORE PQ 4.5UH N87 2PCS EPCOS - TDK Electronics	265	12.35	- + RFQ	Datasheet	Box	PQ35/35	Active	PQ	PQ 35 x 35	N87	-	4.5 µH	-20%, +30%	Ungapped	1670	2200	0.467	79.2	169.7	146.5	13440	Uncoated	0.685 (17.40mm)
PQ50/35-3F36 FERRITE CORE 2PC SET Ferroxcube	268	12.49	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 35	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.378 (35.00mm)
