Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

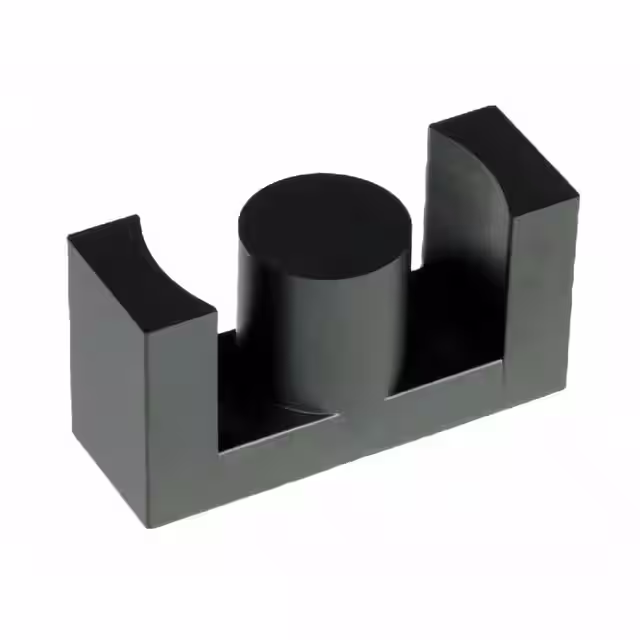

B66397G1500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	176	12.49	- + RFQ	Datasheet	Box	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.228 (31.20mm)
B65887E0250A087 FERRITE CORE EPCOS - TDK Electronics	229	12.53	- + RFQ	Datasheet	Tray	RM14	Active	RM	RM 14	N87	-	-	-	Gapped	-	2200	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)

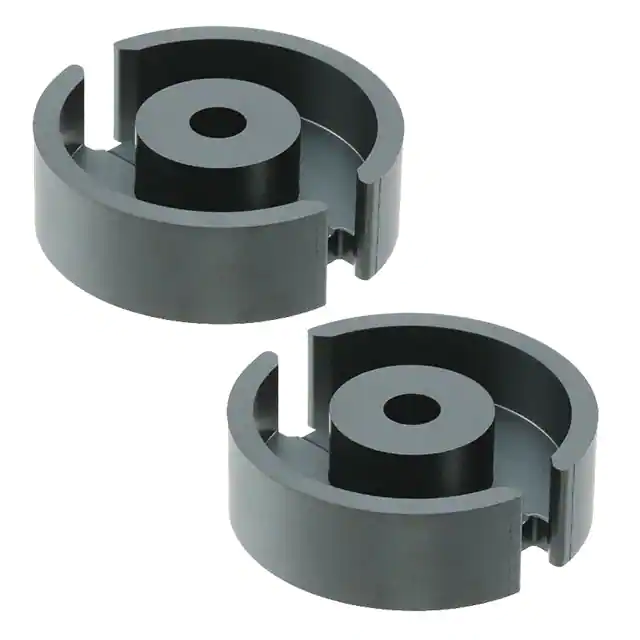

P36/22-3F46 FERRITE CORE 2PC SET Ferroxcube	593	12.76	- + RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 36 x 22	3F46	1.425 (36.20mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.854 (21.70mm)

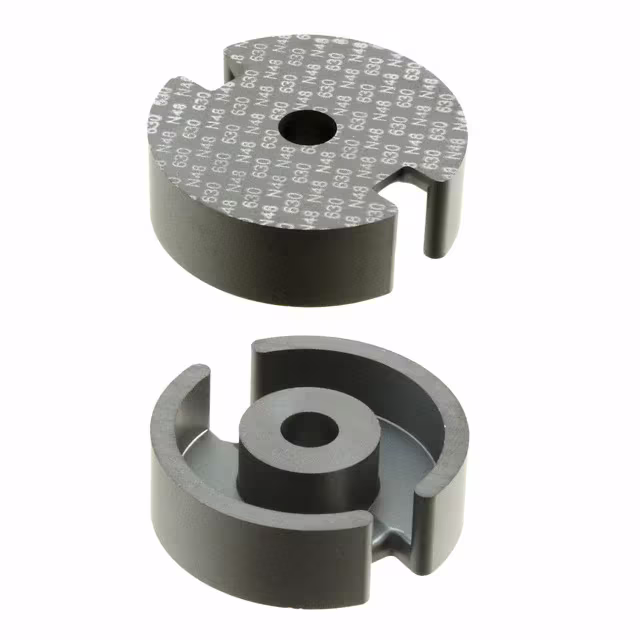

B65701T0630A048 FERRITE CORE P 630NH N48 2PCS EPCOS - TDK Electronics	336	13.11	- + RFQ	Datasheet	Tray	P30/19	Active	P (Pot Core)	P 30 x 19	N48	1.200 (30.50mm)	630 nH	±3%	Gapped	166	-	0.33	45	136	-	6120	Uncoated	0.374 (9.50mm)
TX58/41/18-3E6 FERRITE CORES ROUND Ferroxcube	179	13.45	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 58 x 41 x 18	-	2.354 (59.80mm)	-	±30%	Ungapped	9500	-	1	152	152	-	23200	Epoxy	0.729 (18.60mm)

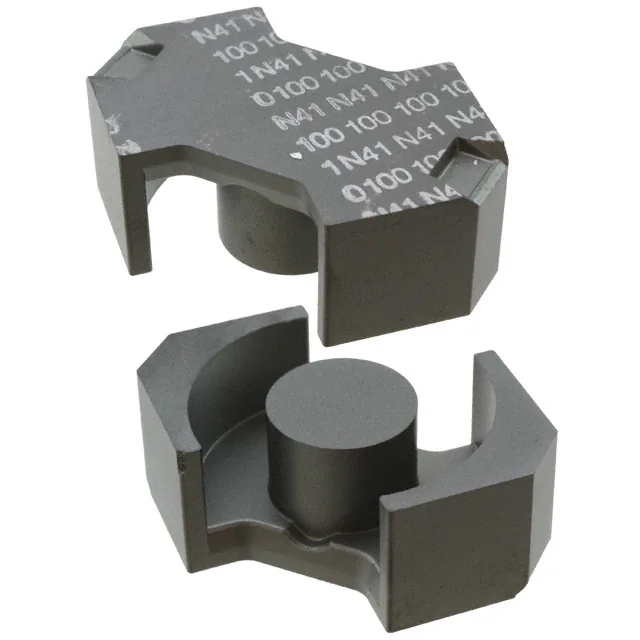

B65887E1000J041 FERRITE CORE RM 1UH N41 2PCS EPCOS - TDK Electronics	181	13.61	- + RFQ	Datasheet	Box	RM14	Active	RM	RM 14	N41	-	1 µH	±5%	Gapped	279	2800	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)
E71/33/32-3C92 FERRITE CORE Ferroxcube	370	13.65	- + RFQ	Datasheet	Bulk	-	Active	E	E 71 x 33 x 32	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)
TX55/32/18-3C94 FERRITE CORES ROUND Ferroxcube	191	14.15	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 55 x 32 x 18	3C94	2.264 (57.50mm)	-	±25%	Ungapped	2300	-	0.651	132	202	-	26580	Epoxy	0.756 (19.20mm)
TX55/32/18-3E6 FERRITE CORES ROUND Ferroxcube	184	14.33	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 55 x 32 x 18	-	2.264 (57.50mm)	-	±30%	Ungapped	9500	-	0.651	132	202	-	26580	Epoxy	0.756 (19.20mm)
TX55/32/18-3E27 FERRITE CORES ROUND Ferroxcube	250	14.40	- + RFQ	Datasheet	Bulk	-	Active	Toroid	TX 55 x 32 x 18	3E27	2.264 (57.50mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.756 (19.20mm)
B65883A0000R095 FERRITE CORE PQ 5.5UH N95 2PCS EPCOS - TDK Electronics	260	14.85	- + RFQ	Datasheet	Box	PQ40/40	Active	PQ	PQ 40 x 40	N95	-	5.5 µH	-20%, +30%	Ungapped	2145	2000	0.49	92.5	188.3	159.9	17430	Uncoated	0.783 (19.90mm)
B65881A0000R049 FERRITE CORE PQ 3.3UH N49 2PCS EPCOS - TDK Electronics	283	16.02	- + RFQ	Datasheet	Box	PQ35/35	Active	PQ	PQ 35 x 35	N49	-	3.3 µH	-20%, +30%	Ungapped	1225	1500	0.467	79.2	169.7	146.5	13440	Uncoated	0.685 (17.40mm)

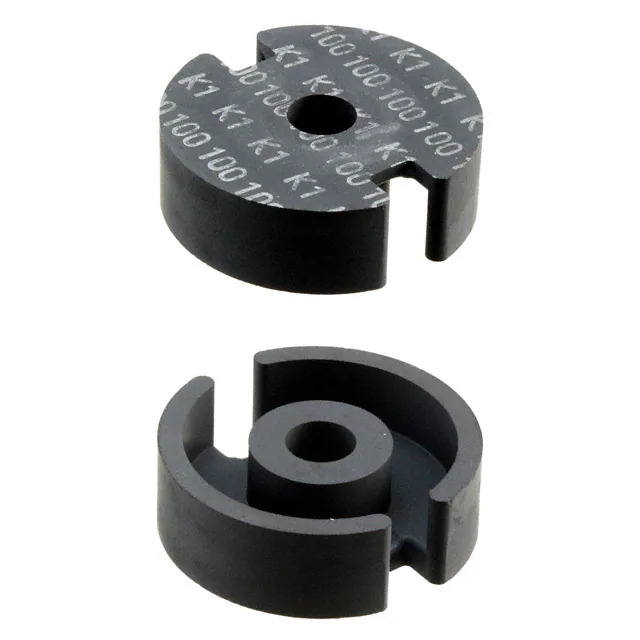

B65671T0100A001 FERRITE CORE P 100NH K1 2PCS EPCOS - TDK Electronics	418	16.18	- + RFQ	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	K1	1.024 (26.00mm)	100 nH	±3%	Gapped	32	80	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)
I93/28/16-3C94 FERRITE CORE Ferroxcube	3,090	16.88	- + RFQ	Datasheet	Bulk	-	Active	I	I 93 x 28 x 16	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)

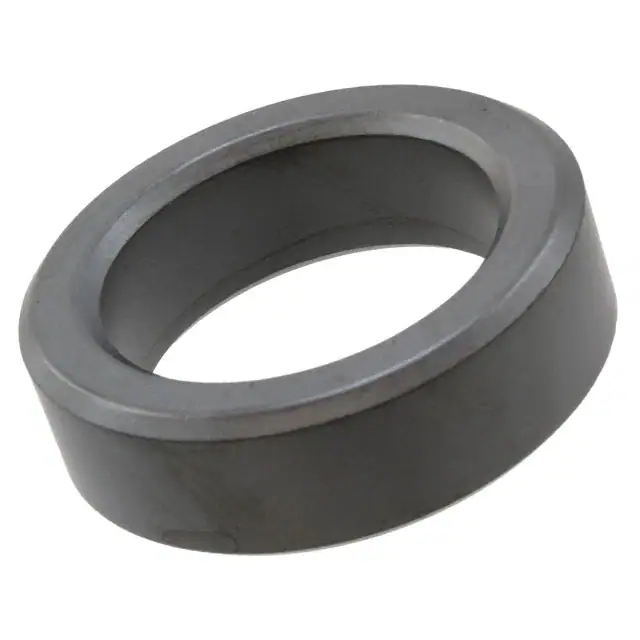

B64290A0040X830 FERRITE CORE TOROID 5.4UH N30 EPCOS - TDK Electronics	158	17.57	- + RFQ	Datasheet	Box	T58/41/18	Active	Toroid	R 58.3 x 40.8 x 17.6	N30	2.295 (58.30mm)	5.4 µH	±25%	Ungapped	-	4300	1	152.4	152.4	-	23230	Uncoated	0.693 (17.60mm)
PQ50/50-3F36 FERRITE CORE 2PC SET Ferroxcube	196	17.72	- + RFQ	Datasheet	Bulk	-	Active	PQ	PQ 50 x 50	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.969 (50.00mm)
B64290A0082X830 FERRITE CORE TOROID 8.7UH N30 EPCOS - TDK Electronics	576	17.91	- + RFQ	Datasheet	Box	T50/30/20	Active	Toroid	R 50 x 30 x 20	N30	1.969 (50.00mm)	8.7 µH	±25%	Ungapped	-	4300	0.62	120.4	195.7	-	23560	Uncoated	0.787 (20.00mm)

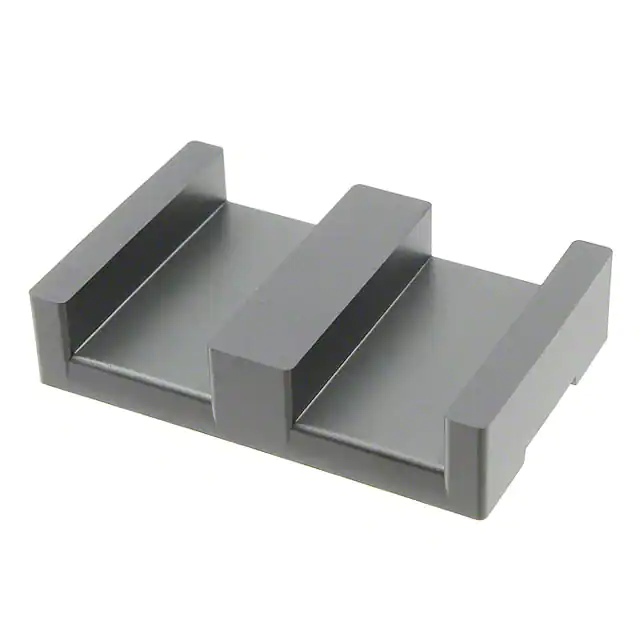

B66297G0000X187 FERRITE CORE ELP N87 EPCOS - TDK Electronics	316	18.06	- + RFQ	Datasheet	Tray	ELP102/20/38	Active	ELP	ELP 102 x 20 x 38	N87	-	-	±25%	Ungapped	-	-	-	-	-	-	-	Uncoated	0.799 (20.30mm)
B66295G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	598	18.71	- + RFQ	Datasheet	Tray	ELP64/10/50	Active	ELP	ELP 64 x 10 x50	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
B66295G0000X149 FERRITE CORE ELP N49 1PC EPCOS - TDK Electronics	585	18.71	- + RFQ	Datasheet	Box	ELP64/10/50	Active	ELP	ELP 64 x 10 x50	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
