Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
CMS3-9-R CMC 400UH 1.7A 2LN SMD Eaton - Electronics Division	2,512	6.19	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	400 µH @ 100 kHz	1.7A	53mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.236 (6.00mm)
P0421NL CMC 3.3A 2LN SMD Pulse Electronics Power	2,039	3.27	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	3.3A	60mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.91mm)

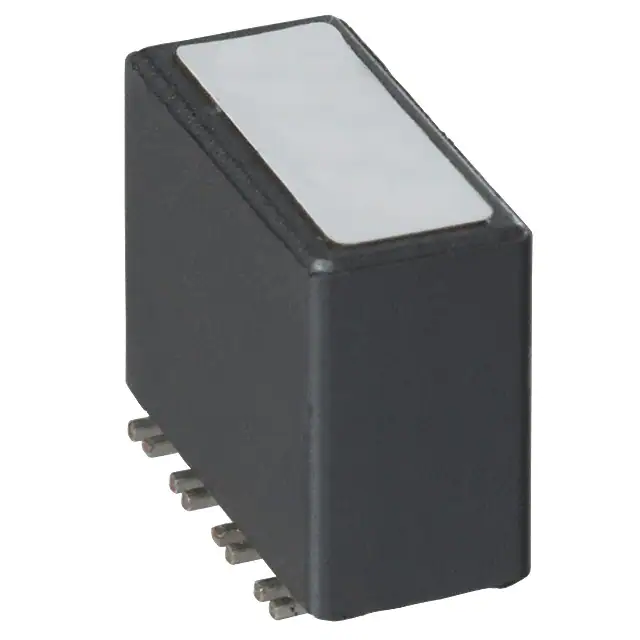

CM5022R201R-10 CMC 5A 8LN 200 OHM SMD Laird-Signal Integrity Products	2,658	4.70	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	8	200 Ohms @ 100 MHz	-	5A	20mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.495 L x 0.265 W (12.57mm x 6.73mm)	0.406 (10.31mm)
B82721A2122N020 CMC 6.8MH 1.2A 2LN TH EPCOS - TDK Electronics	3,172	3.30	- + RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.2A	280mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.705 L x 0.681 W (17.90mm x 17.30mm)	0.496 (12.60mm)

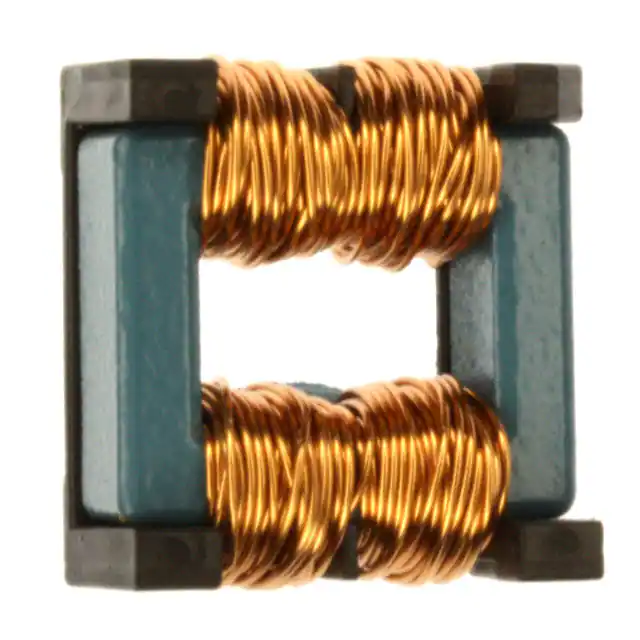

B82733F2192B001 CMC 15MH 1.9A 2LN TH EPCOS - TDK Electronics	3,885	3.30	- + RFQ	Datasheet	Tray	B82733	Active	Power Line	2	-	15 mH @ 10 kHz	1.9A	279mOhm (Typ)	-	300V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.043 L x 0.976 W (26.50mm x 24.80mm)	0.551 (14.00mm)

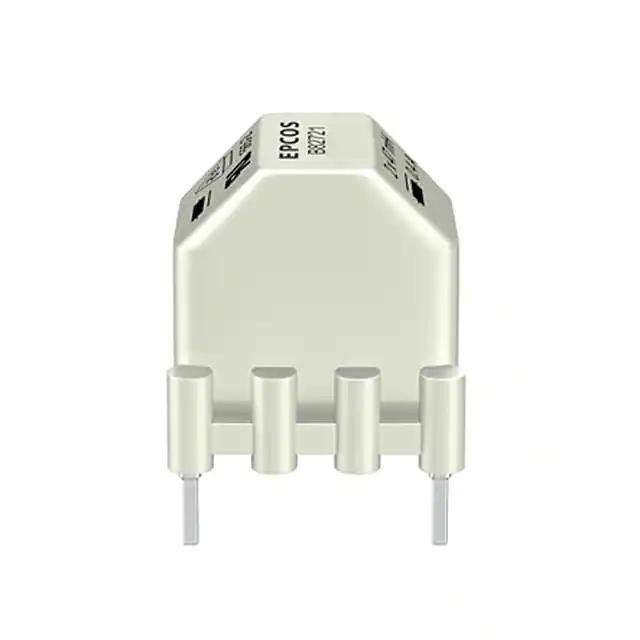

B82721K2701N020 CMC 10MH 700MA 2LN TH EPCOS - TDK Electronics	3,909	3.30	- + RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	10 mH @ 10 kHz	700mA	550mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.520 W (18.20mm x 13.20mm)	0.823 (20.90mm)
B82721A2152N001 CMC 3.3MH 1.5A 2LN TH EPCOS - TDK Electronics	3,893	3.30	- + RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	3.3 mH @ 10 kHz	1.5A	180mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.705 L x 0.681 W (17.90mm x 17.30mm)	0.496 (12.60mm)
B82721A2401N020 CMC 39MH 400MA 2LN TH EPCOS - TDK Electronics	3,735	3.30	- + RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	39 mH @ 10 kHz	400mA	2Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.705 L x 0.681 W (17.90mm x 17.30mm)	0.496 (12.60mm)
PE-53912NL CMC 2.5A 2LN SMD Pulse Electronics Power	2,998	3.30	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	2.5A	80mOhm	-	250V	-40°C ~ 130°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.90mm)
B82721K2152N001 CMC 3.3MH 1.5A 2LN TH EPCOS - TDK Electronics	3,785	3.30	- + RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	3.3 mH @ 10 kHz	1.5A	180mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.520 W (18.20mm x 13.20mm)	0.823 (20.90mm)
B82734W2172B030 CMC 27MH 1.7A 2LN TH EPCOS - TDK Electronics	527	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	27 mH @ 10 kHz	1.7A	320mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 1.220 W (32.50mm x 31.00mm)	0.854 (21.70mm)
ST-101 CMC, TROID, 3000OHM, 180MOHM KEMET	165	4.61	- + RFQ	Datasheet	Tray	ST	Active	-	2	3 kOhms @ 500 kHz	-	200mA	180mOhm	50V	-	-20°C ~ 75°C	-	-	-	Through Hole	0.709 Dia (18.00mm)	0.433 (11.00mm)
ST-101A CMC, TROID, 3000OHM, 250MOHM KEMET	210	4.70	- + RFQ	Datasheet	Tray	ST	Active	-	2	3 kOhms @ 500 kHz	-	200mA	250mOhm	50V	-	-20°C ~ 65°C	-	-	-	Through Hole	0.630 Dia (16.00mm)	0.413 (10.50mm)
SC-03-E900 CMC 9MH 3A 2LN TH KEMET	240	4.89	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	9 mH @ 10 kHz	3A	130mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.925 Dia (23.50mm)	0.925 (23.50mm)
SC-10-D020H CMC 20UH 10A 2LN TH KEMET	460	4.98	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	20 µH @ 100 kHz	10A	6.5mOhm	250V	250V	25°C ~ 105°C	-	-	-	Through Hole	0.945 Dia (24.00mm)	0.787 (20.00mm)
PE-53910NL CMC 3.6A 2LN SMD Pulse Electronics Power	3,933	3.30	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	3.6A	50mOhm	-	250V	-40°C ~ 130°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.90mm)

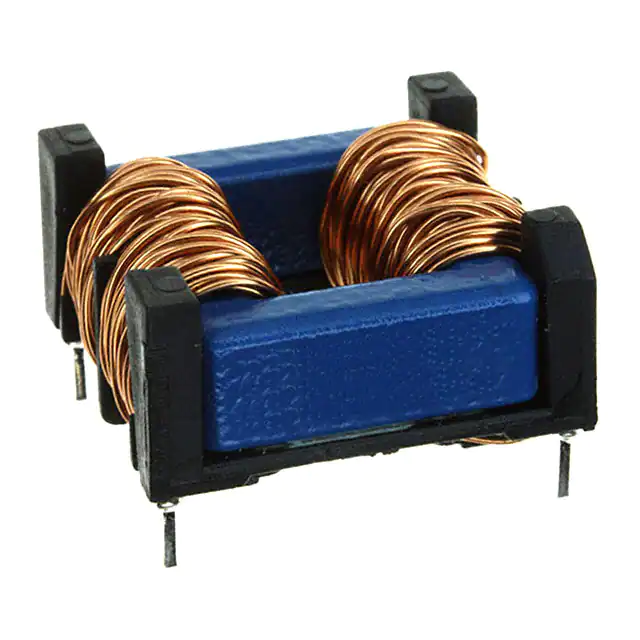

B82733F2232B001 CMC 10MH 2.3A 2LN TH EPCOS - TDK Electronics	559	3.30	- + RFQ	Datasheet	Tray	B82733	Active	Power Line	2	-	10 mH @ 10 kHz	2.3A	188mOhm (Typ)	-	300V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.043 L x 0.976 W (26.50mm x 24.80mm)	0.551 (14.00mm)
B82721K2122N020 CMC 6.8MH 1.2A 2LN TH EPCOS - TDK Electronics	2,307	3.30	- + RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.2A	280mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.520 W (18.20mm x 13.20mm)	0.823 (20.90mm)
P0473NL CMC 1.63A 2LN SMD Pulse Electronics Power	3,735	3.30	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	1.63A	110mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.220 (5.59mm)
B82721K2202N001 CMC 1MH 2A 2LN TH EPCOS - TDK Electronics	3,756	3.30	- + RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	1 mH @ 100 kHz	2A	80mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.520 W (18.20mm x 13.20mm)	0.823 (20.90mm)
