Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
B82734R2462B030 CMC 3.3MH 4.6A 2LN TH EPCOS - TDK Electronics	3,510	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	3.3 mH @ 10 kHz	4.6A	46mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 0.827 W (32.50mm x 21.00mm)	1.220 (31.00mm)
B82734R2132B030 CMC 47MH 1.3A 2LN TH EPCOS - TDK Electronics	537	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	47 mH @ 10 kHz	1.3A	560mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 0.827 W (32.50mm x 21.00mm)	1.220 (31.00mm)
B82734R2232B030 CMC 15MH 2.3A 2LN TH EPCOS - TDK Electronics	170	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	15 mH @ 10 kHz	2.3A	185mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 0.827 W (32.50mm x 21.00mm)	1.220 (31.00mm)
B82734R2172B030 CMC 27MH 1.7A 2LN TH EPCOS - TDK Electronics	134	4.51	- + RFQ	Datasheet	Tray	B82734	Active	Power Line	2	-	27 mH @ 10 kHz	1.7A	320mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.280 L x 0.827 W (32.50mm x 21.00mm)	1.220 (31.00mm)

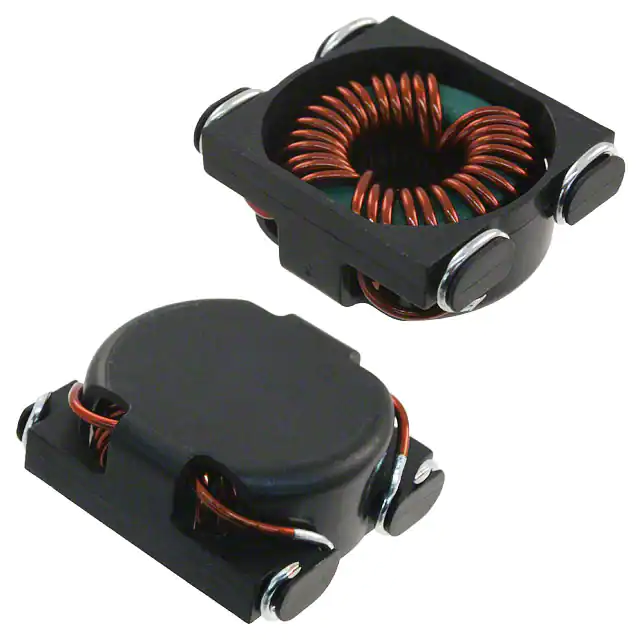

P0469NL CMC 11.6A 2LN SMD Pulse Electronics Power	3,407	4.53	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	11.6A	10mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)

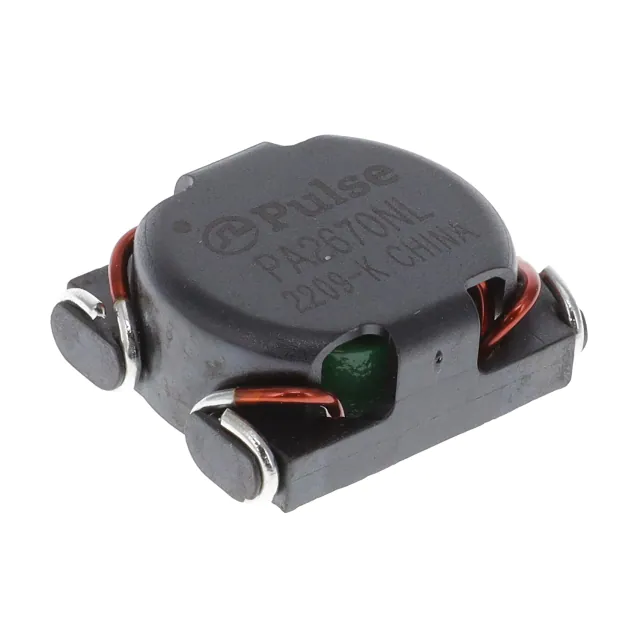

PA2670NL CMC 16A 2LN SMD Pulse Electronics Power	2,503	4.69	- + RFQ	Datasheet	Tray	-	Active	-	2	-	-	16A	4.25mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)

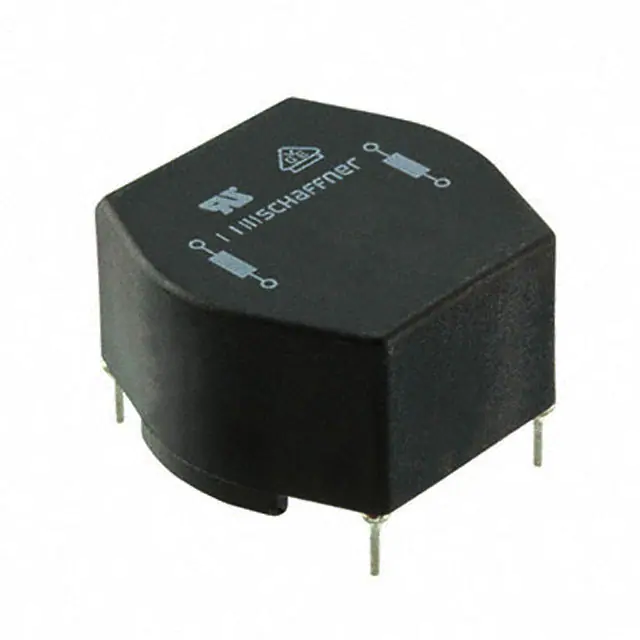

RN142-6-02-1M8 CMC 1.8MH 6A 2LN TH Schaffner EMC Inc.	2,297	4.83	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.8 mH @ 10 kHz	6A	20mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.303 L x 1.280 W (33.10mm x 32.50mm)	0.787 (20.00mm)

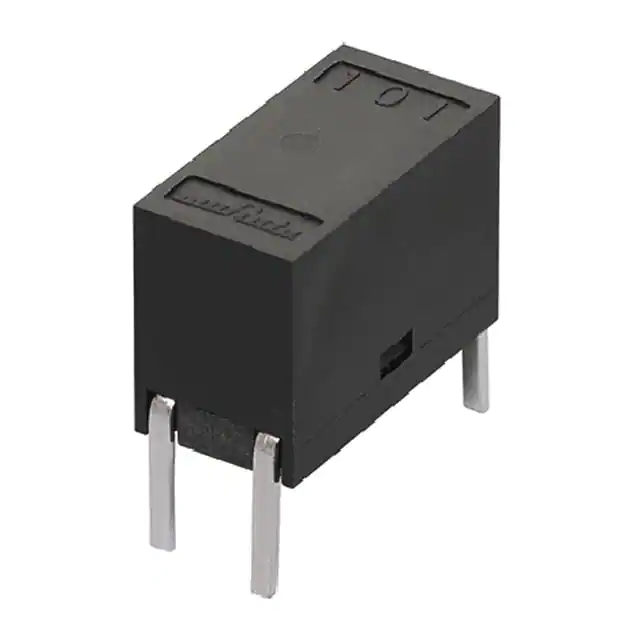

PLT10HN101150P0B CMC 15A 2LN 100 OHM TH Murata Electronics	3,975	4.90	- + RFQ	Datasheet	Bulk	PLT10H	Active	Power Line	2	100 Ohms @ 10 MHz	-	15A	2.3mOhm	300V	-	-55°C ~ 125°C	-	-	-	Through Hole	0.508 L x 0.260 W (12.90mm x 6.60mm)	0.366 (9.30mm)

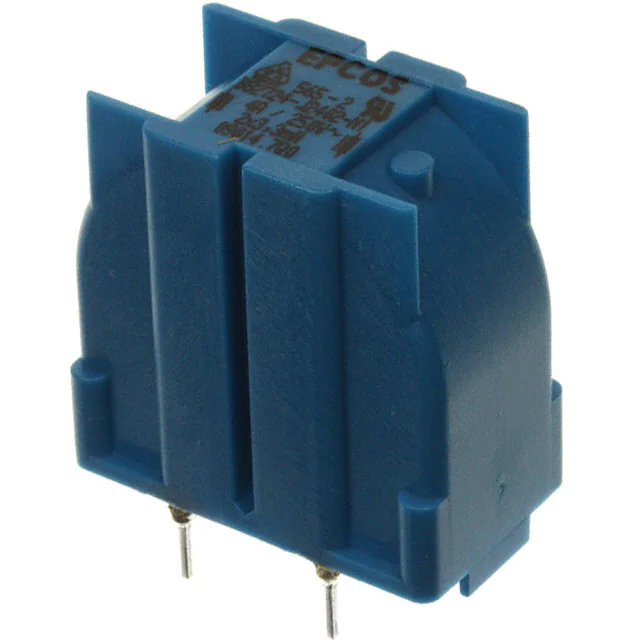

B82724J2402N001 CMC 3.3MH 4A 2LN TH EPCOS - TDK Electronics	2,986	4.95	- + RFQ	Datasheet	Tray	B82724	Active	Power Line	2	-	3.3 mH @ 10 kHz	4A	65mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.232 L x 0.728 W (31.30mm x 18.50mm)	1.307 (33.20mm)

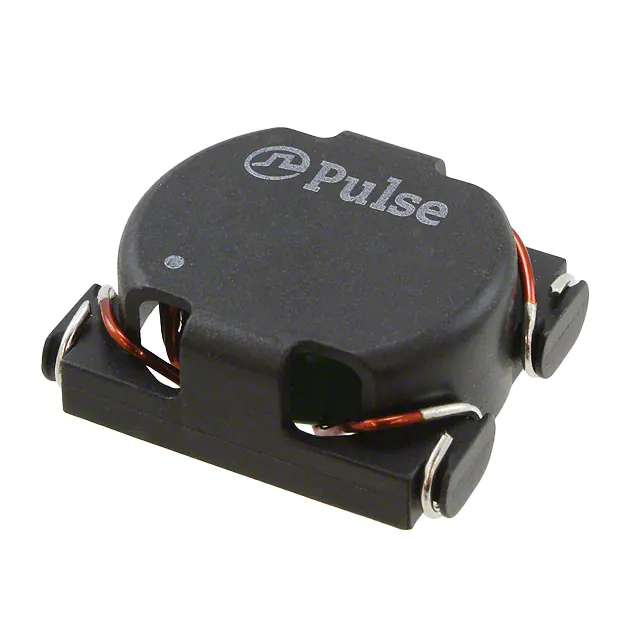

PA2757NL CMC 9A 2LN SMD Pulse Electronics Power	3,002	4.96	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	9A	9.75mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
7109-RC CMC 2.55MH 2A 2LN TH Bourns Inc.	2,054	5.21	- + RFQ	Datasheet	Bulk	7100	Active	-	2	-	2.55 mH @ 1 kHz	2A	75mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	0.700 Dia x 0.550 W (17.78mm x 13.97mm)	0.700 (17.78mm)

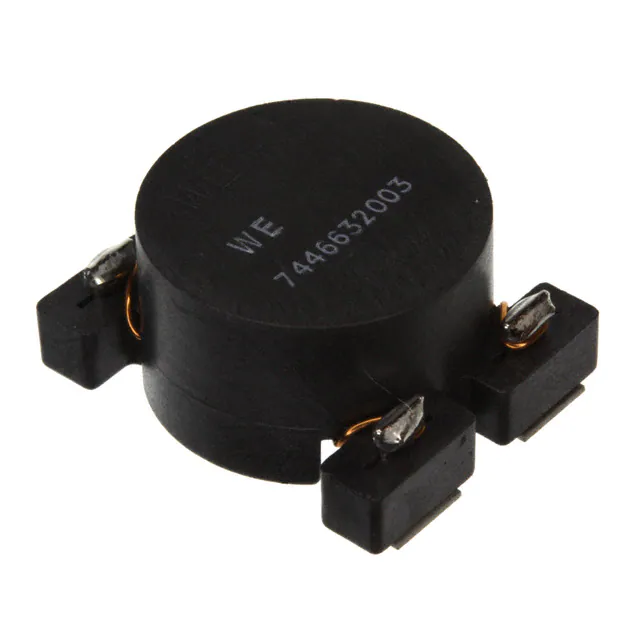

7446632003 CMC 3.3MH 2.25A 2LN SMD Würth Elektronik	400	5.22	- + RFQ	Datasheet	Tape & Reel (TR)	WE-LF	Active	Power Line	2	-	3.3 mH @ 10 kHz	2.25A	150mOhm	-	250V	-40°C ~ 125°C	-	-	-	Surface Mount	0.917 L x 0.728 W (23.30mm x 18.50mm)	0.453 (11.50mm)

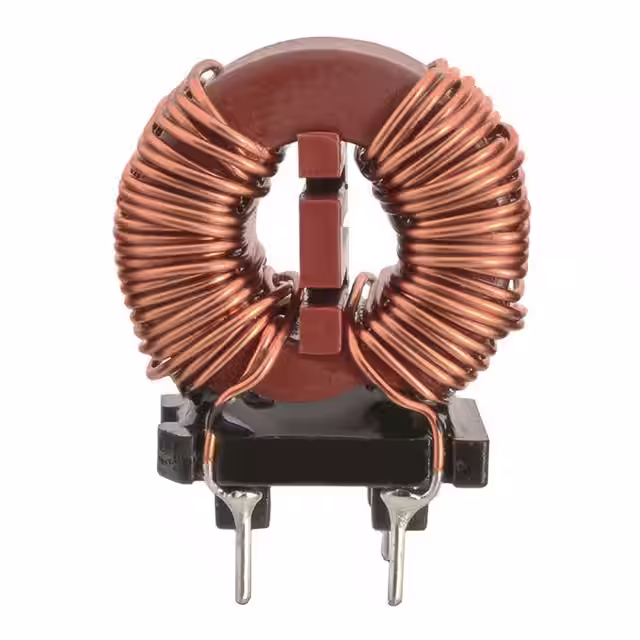

744823333 CMC 3.3MH 2.5A 2LN TH Würth Elektronik	3,861	5.28	- + RFQ	Datasheet	Tray	WE-CMB	Active	Power Line	2	-	3.3 mH @ 10 kHz	2.5A	60mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.925 L x 0.512 W (23.50mm x 13.00mm)	1.102 (28.00mm)
7446721010 CMC 10MH 1.3A 2LN TH Würth Elektronik	3,013	5.38	- + RFQ	Datasheet	Tray	WE-LF	Active	Power Line	2	-	10 mH @ 10 kHz	1.3A	250mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.906 L x 0.906 W (23.00mm x 23.00mm)	0.571 (14.50mm)

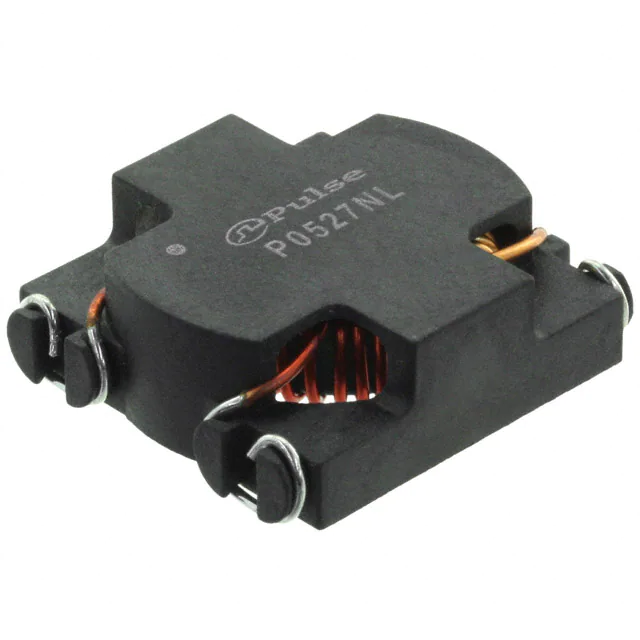

P0527NL CMC 7.2A 2LN SMD Pulse Electronics Power	517	5.42	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	7.2A	15mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.110 L x 1.000 W (28.19mm x 25.40mm)	0.395 (10.04mm)
744823305 CMC 5MH 2.5A 2LN TH Würth Elektronik	192	5.52	- + RFQ		Box	WE-CMB	Active	Power Line	2	-	5 mH @ 10 kHz	2.5A	-	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.906 L x 0.512 W (23.00mm x 13.00mm)	1.004 (25.50mm)
PLT10HN401100P0B CMC 10A 2LN 400 OHM TH Murata Electronics	178	5.55	- + RFQ	Datasheet	Bulk	PLT10H	Active	Power Line	2	400 Ohms @ 10 MHz	-	10A	4.1mOhm	100V	-	-55°C ~ 125°C	-	-	-	Through Hole	0.508 L x 0.260 W (12.90mm x 6.60mm)	0.366 (9.30mm)
7446323004 CMC 4MH 3A 2LN TH Würth Elektronik	264	5.70	- + RFQ	Datasheet	Tray	WE-LF	Active	Power Line	2	-	4 mH @ 10 kHz	3A	70mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.043 L x 0.728 W (26.50mm x 18.50mm)	1.201 (30.50mm)
7446322010 CMC 10MH 1.9A 2LN TH Würth Elektronik	132	5.70	- + RFQ	Datasheet	Tray	WE-LF	Active	Power Line	2	-	10 mH @ 10 kHz	1.9A	180mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.043 L x 0.728 W (26.50mm x 18.50mm)	1.201 (30.50mm)

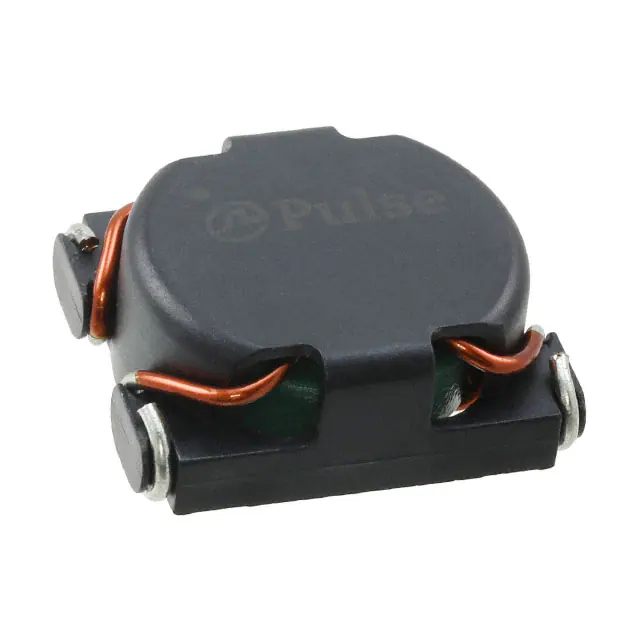

PG1265NL CMC 20A 2LN SMD Pulse Electronics Power	3,264	4.60	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	20A	4.1mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
