Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

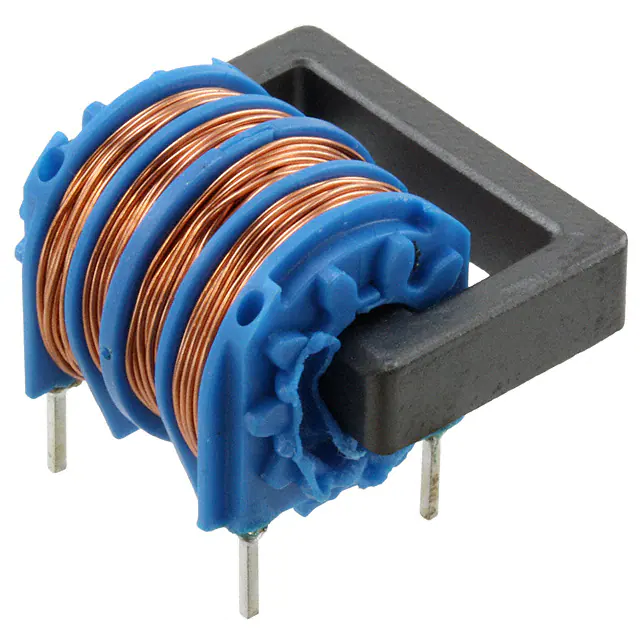

B82731H2501A030 CMC 47MH 500MA 2LN TH EPCOS - TDK Electronics	926	3.80	- + RFQ	Datasheet	Tray	B82731	Active	Power Line	2	-	47 mH @ 10 kHz	500mA	2Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.827 L x 0.827 W (21.00mm x 21.00mm)	0.610 (15.50mm)
B82732R2172B030 CMC 6.8MH 1.7A 2LN TH EPCOS - TDK Electronics	2,339	3.88	- + RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.7A	190mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.945 L x 0.650 W (24.00mm x 16.50mm)	0.925 (23.50mm)
B82732R2142B030 CMC 10MH 1.4A 2LN TH EPCOS - TDK Electronics	2,672	3.88	- + RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	10 mH @ 10 kHz	1.4A	300mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.945 L x 0.650 W (24.00mm x 16.50mm)	0.925 (23.50mm)

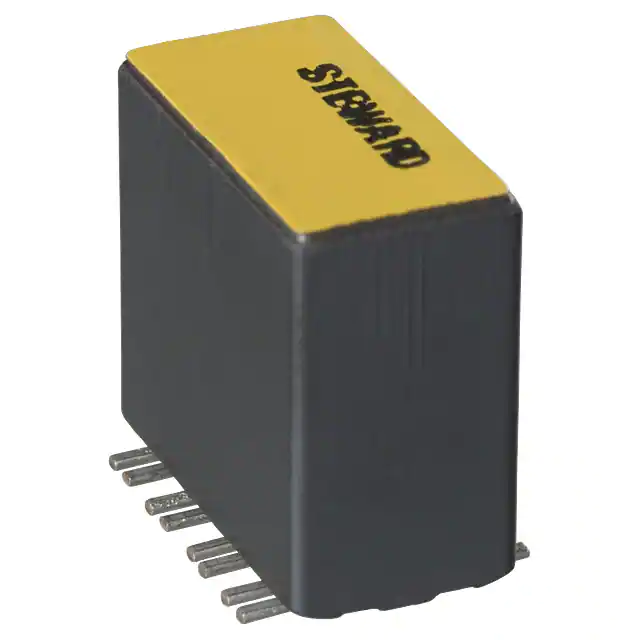

CM6032V301R-10 CMC 8A 8LN 300 OHM SMD Laird-Signal Integrity Products	2,341	6.32	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	8	300 Ohms @ 100 MHz	-	8A	10mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.600 L x 0.430 W (15.24mm x 10.92mm)	0.595 (15.11mm)
PA5141.205NLT COMMON MODE CHOKE 190UH 30A Pulse Electronics Power	3,688	6.06	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA5141.XXXNL	Active	Signal Line	2	700 Ohms @ 3.35 MHz	-	30A	1.35mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.957 L x 0.925 W (24.30mm x 23.50mm)	0.894 (22.70mm)
744290104 CMC 100MH 150MA 2LN SMD Würth Elektronik	3,417	4.63	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UCF	Active	Power, Signal Line	2	-	100 mH @ 10 kHz	150mA	8.5Ohm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.492 W (14.50mm x 12.50mm)	0.307 (7.80mm)
744290473 CMC 47MH 250MA 2LN SMD Würth Elektronik	398	4.63	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UCF	Active	Power, Signal Line	2	-	47 mH @ 10 kHz	250mA	4Ohm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.492 W (14.50mm x 12.50mm)	0.307 (7.80mm)

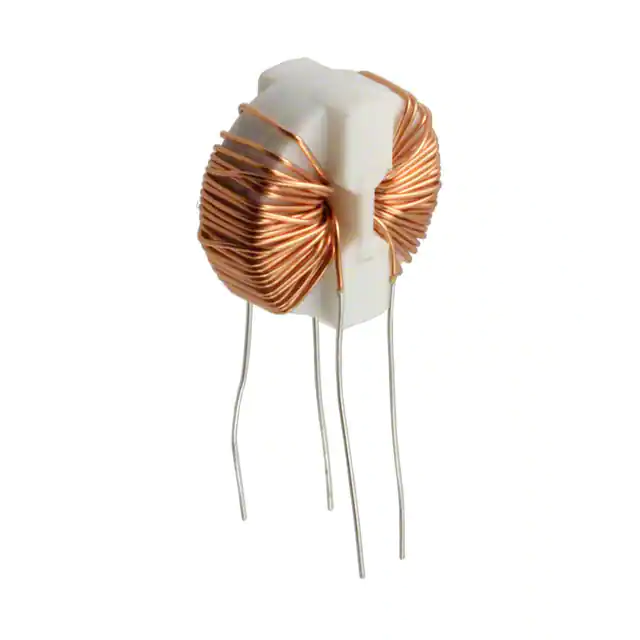

SC-01-20GS CMC 2MH 1A 2LN TH KEMET	2,020	3.99	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	2 mH @ 100 kHz	1A	180mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	0.591 Dia x 0.335 W (15.00mm x 8.50mm)	0.591 (15.00mm)
CM2824B103R-10 CMC 200MA 2LN 400 OHM SMD Laird-Signal Integrity Products	3,852	7.60	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power, Signal Line	2	400 Ohms @ 100 MHz	-	200mA	1.3Ohm	80V	-	-40°C ~ 100°C	-	-	-	Surface Mount	0.354 L x 0.217 W (9.00mm x 5.50mm)	0.193 (4.90mm)

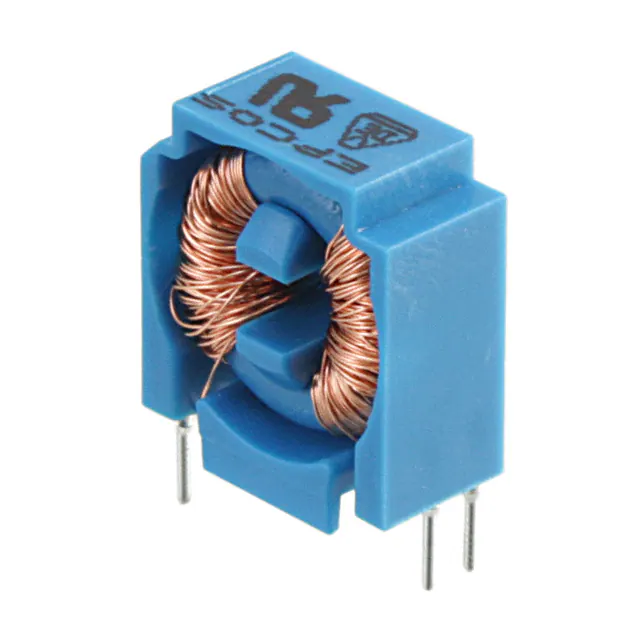

B82791H2251N020 CMC 47MH 250MA 2LN TH EPCOS - TDK Electronics	3,199	4.06	- + RFQ	Datasheet	Bulk	B82791	Active	Power Line	2	-	47 mH @ 10 kHz	250mA	2.4Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.602 L x 0.291 W (15.30mm x 7.40mm)	0.693 (17.60mm)
B82791H2501N001 CMC 10MH 500MA 2LN TH EPCOS - TDK Electronics	2,438	4.06	- + RFQ	Datasheet	Bulk	B82791	Active	Power Line	2	-	10 mH @ 10 kHz	500mA	1Ohm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.602 L x 0.291 W (15.30mm x 7.40mm)	0.693 (17.60mm)
52106C CMC 1.7A 2LN TH Murata Power Solutions Inc.	236	3.33	- + RFQ	Datasheet	Tray	5200	Active	Power Line	2	-	-	1.7A	193mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.642 W (24.00mm x 16.30mm)	1.220 (31.00mm)

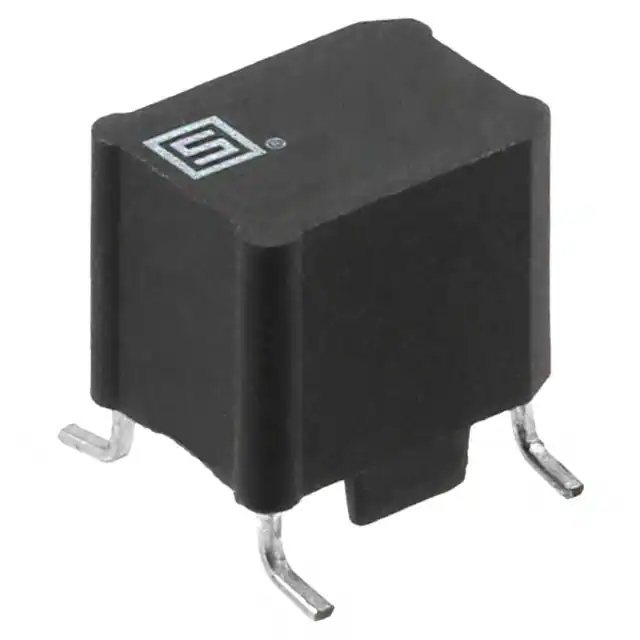

DKFS-6248-02D5 CMC 2A 2LN SMD Schurter Inc.	503	4.25	- + RFQ	Datasheet	Bulk	DKFS	Active	-	2	-	-	2A	50mOhm	-	250V	-25°C ~ 100°C	-	UR	-	Surface Mount	0.421 L x 0.323 W (10.70mm x 8.20mm)	-

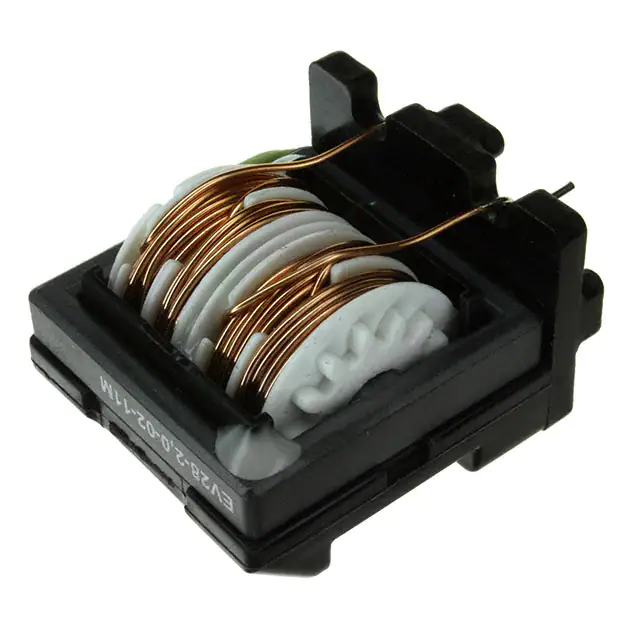

EV28-2.0-02-11M CMC 11MH 2A 2LN TH Schaffner EMC Inc.	500	4.29	- + RFQ	Datasheet	Bulk	EV	Active	Power Line	2	-	11 mH @ 400 Hz	2A	162mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)

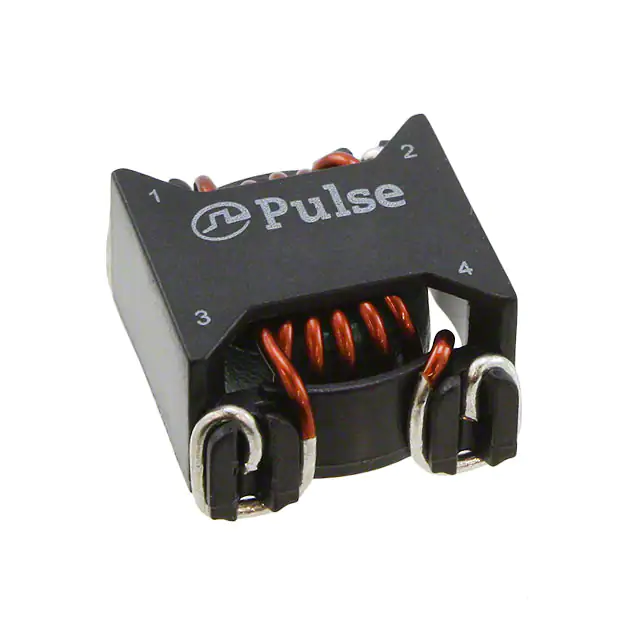

PA2755NL CMC 14A 2LN SMD Pulse Electronics Power	2,592	4.30	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	14A	1.95mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.750 L x 0.815 W (19.05mm x 20.70mm)	0.440 (11.18mm)

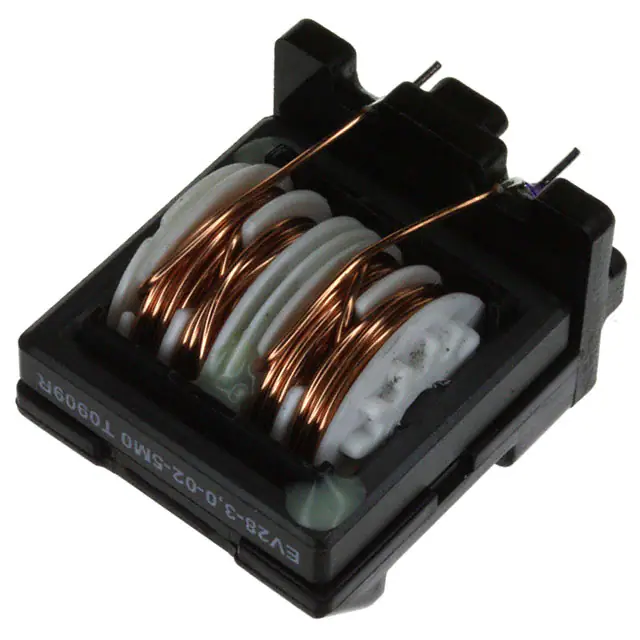

EV28-3.0-02-5M0 CMC 5MH 3A 2LN TH Schaffner EMC Inc.	3,648	4.32	- + RFQ	Datasheet	Bulk	EV	Active	Power Line	2	-	5 mH @ 400 Hz	3A	79mOhm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.150 L x 0.827 W (29.20mm x 21.00mm)	1.406 (35.70mm)

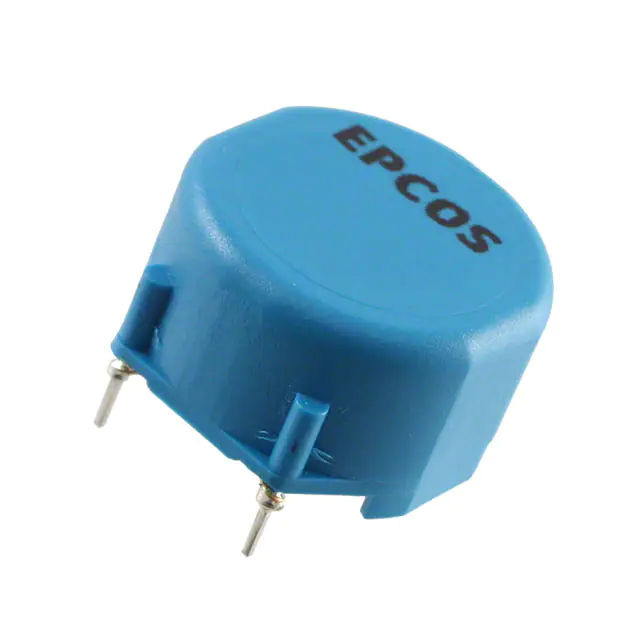

B82723A2402N001 CMC 2.7MH 4A 2LN TH EPCOS - TDK Electronics	2,465	4.34	- + RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	2.7 mH @ 10 kHz	4A	60mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 1.063 W (28.00mm x 27.00mm)	0.661 (16.80mm)

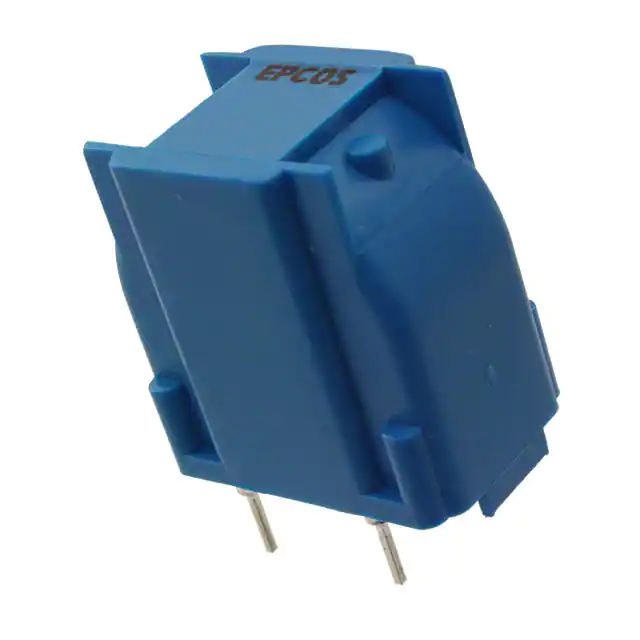

B82723J2402N001 CMC 2.7MH 4A 2LN TH EPCOS - TDK Electronics	534	4.34	- + RFQ	Datasheet	Tray	B82723	Active	Power Line	2	-	2.7 mH @ 10 kHz	4A	60mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	1.102 L x 0.591 W (28.00mm x 15.00mm)	1.201 (30.50mm)
PE-65855NL CMC 2LN SMD Pulse Electronics Network	3,381	4.35	- + RFQ	Datasheet	Tube	-	Active	Signal Line	2	-	-	-	1Ohm	-	-	-	-	-	-	Surface Mount	0.400 L x 0.345 W (10.16mm x 8.76mm)	0.250 (6.35mm)
RN242-4-02-3M3 CMC 3.3MH 4A 2LN TH Schaffner EMC Inc.	3,275	4.43	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	4A	67mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
