Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

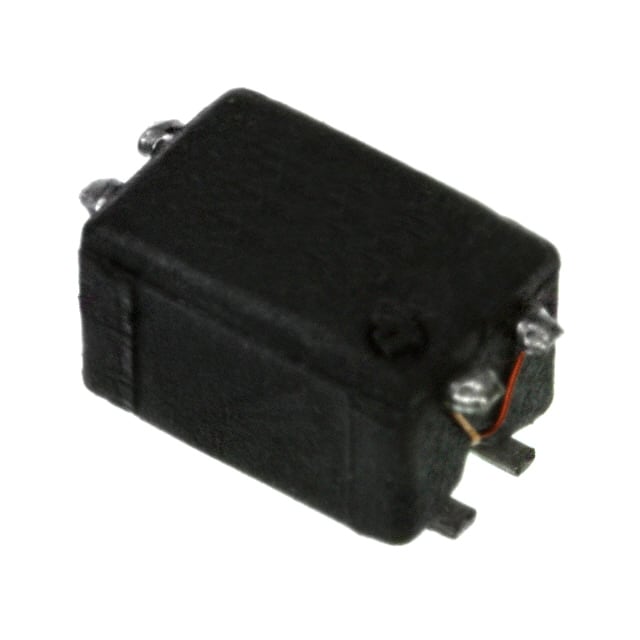

744242110 CMC 11UH 300MA 2LN 800 OHM SMD Würth Elektronik	3,475	3.59	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SLM	Active	Power, Signal Line	2	800 Ohms @ 135 MHz	11 µH @ 100 kHz	300mA	180mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.236 L x 0.130 W (6.00mm x 3.30mm)	0.138 (3.50mm)

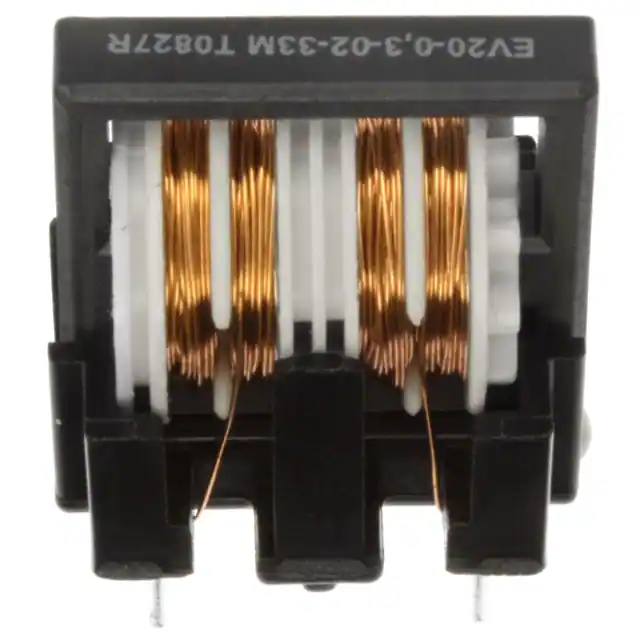

EV20-0.3-02-33M CMC 33MH 300MA 2LN TH Schaffner EMC Inc.	2,551	2.60	- + RFQ	Datasheet	Bulk	EV	Active	Power Line	2	-	33 mH @ 10 kHz	300mA	1.78Ohm (Typ)	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	0.827 L x 0.630 W (21.00mm x 16.00mm)	1.024 (26.00mm)

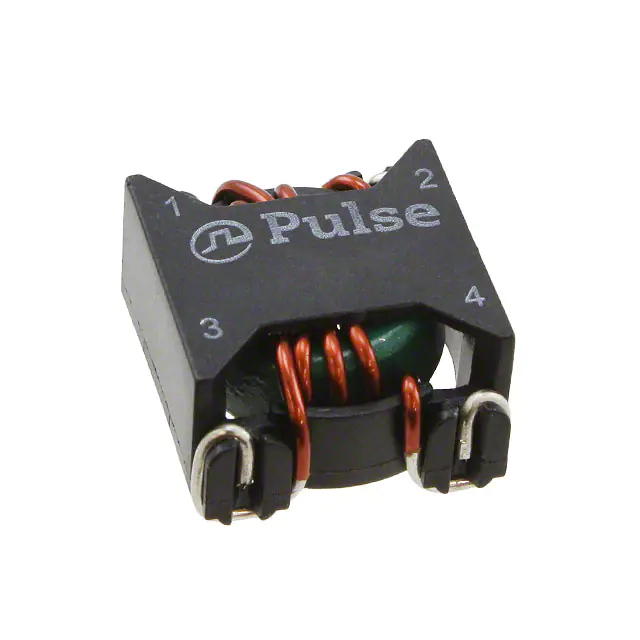

PA2753NL CMC 12.5A 2LN SMD Pulse Electronics Power	2,327	2.62	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	12.5A	3mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.670 L x 0.770 W (17.02mm x 19.56mm)	0.390 (9.91mm)

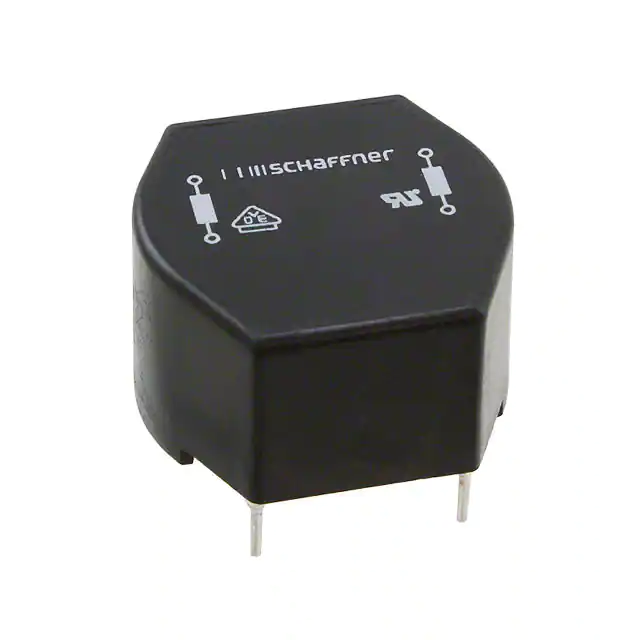

RN122-3-02-4M5 CMC 4.5MH 3A 2LN TH Schaffner EMC Inc.	3,984	2.70	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	4.5 mH @ 10 kHz	3A	80mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN122-2-02-6M8 CMC 6.8MH 2A 2LN TH Schaffner EMC Inc.	2,937	2.73	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	2A	156mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
51305C CMC 1.9A 2LN TH Murata Power Solutions Inc.	2,733	2.75	- + RFQ	Datasheet	Tray	5100	Active	Power Line	2	-	-	1.9A	97mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.709 L x 0.394 W (18.00mm x 10.00mm)	0.945 (24.00mm)
51505C CMC 1.2A 2LN TH Murata Power Solutions Inc.	140	2.75	- + RFQ	Datasheet	Tray	5100	Active	Power Line	2	-	-	1.2A	197mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.709 L x 0.394 W (18.00mm x 10.00mm)	0.945 (24.00mm)
PA2744NL CMC 4A 2LN SMD Pulse Electronics Power	2,856	2.26	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	4A	13.2mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.220 (5.60mm)
744204 CMC 250UH 600MA 4LN SMD Würth Elektronik	952	3.68	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL	Active	Signal Line	4	-	250 µH @ 100 kHz	600mA	-	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	-	0.238 (6.05mm)

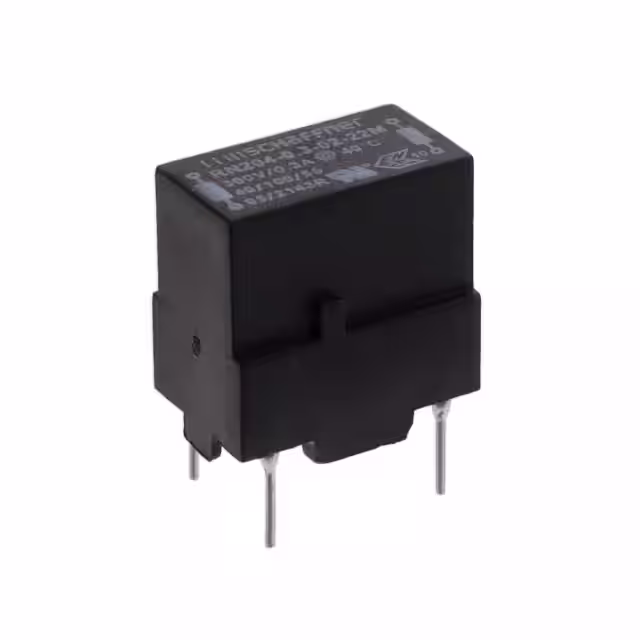

RN204-0.3-02-22M CMC 22MH 300MA 2LN TH Schaffner EMC Inc.	977	2.86	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	22 mH @ 10 kHz	300mA	1.3Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 L x 0.354 W (14.00mm x 9.00mm)	0.575 (14.61mm)

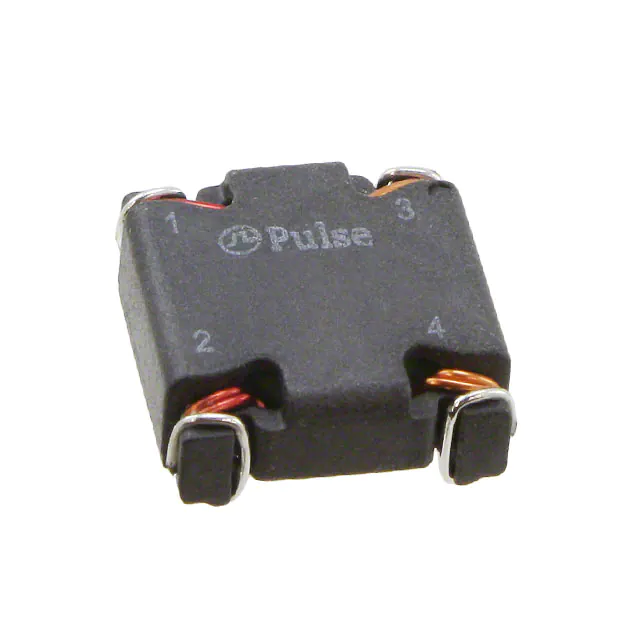

PA2743NL CMC 3.3A 2LN SMD Pulse Electronics Power	2,082	2.33	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	3.3A	18mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.220 (5.60mm)
P0422NL CMC 4.7A 2LN SMD Pulse Electronics Power	3,839	3.05	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	4.7A	40mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.91mm)
P0354NL CMC 1.22A 2LN SMD Pulse Electronics Power	2,948	3.05	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	1.22A	200mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.220 (5.59mm)
CMS3-6-R CMC 217UH 2.85A 2LN SMD Eaton - Electronics Division	3,226	5.82	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	217 µH @ 100 kHz	2.85A	20mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.236 (6.00mm)
P0527NLT CMC 7.2A 2LN SMD Pulse Electronics Power	466	5.23	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Power Line	2	-	-	7.2A	15mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.110 L x 1.000 W (28.19mm x 25.40mm)	0.395 (10.04mm)
CMS3-3-R CMC 64UH 4.75A 2LN SMD Eaton - Electronics Division	3,283	5.89	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	64 µH @ 100 kHz	4.75A	7mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.236 (6.00mm)

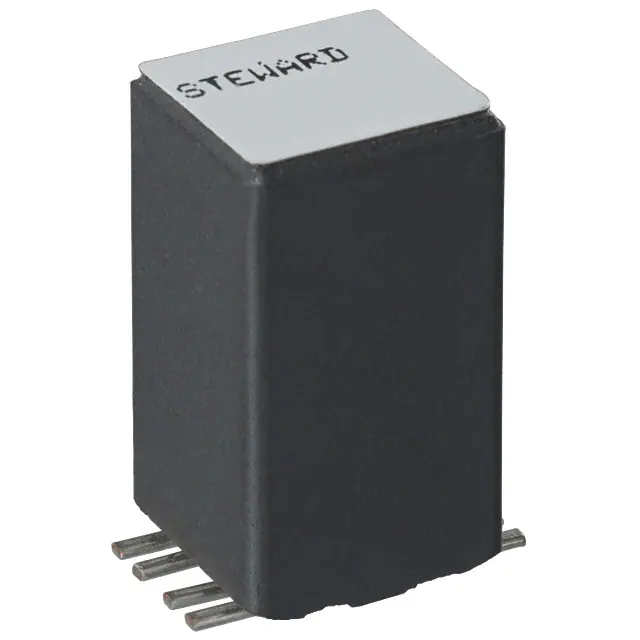

CM3032V301R-10 CMC 8A 4LN 300 OHM SMD Laird-Signal Integrity Products	2,739	5.28	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	4	300 Ohms @ 100 MHz	-	8A	10mOhm	30V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.430 L x 0.300 W (10.92mm x 7.62mm)	0.595 (15.11mm)
RN222-4-02-3M3 CMC 3.3MH 4A 2LN TH Schaffner EMC Inc.	3,845	3.19	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	4A	46mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)

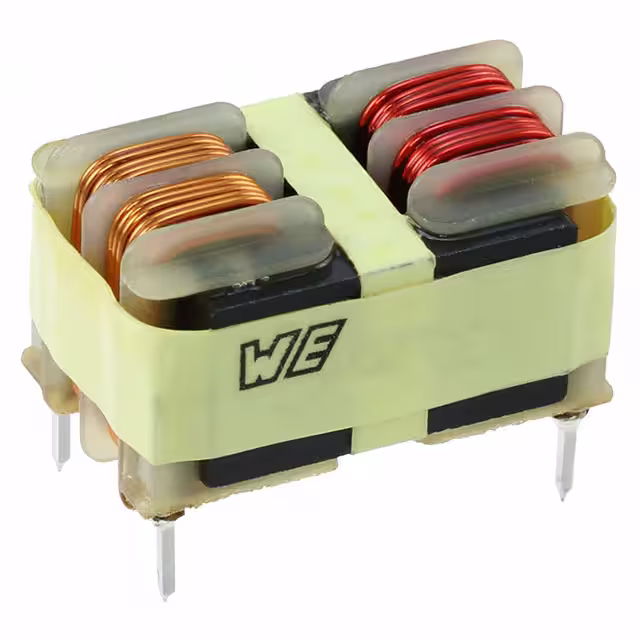

750314976 CMC 3.3MH 2A 2LN TH Würth Elektronik	3,009	3.19	- + RFQ	Datasheet	Tray	MID-DC16US	Active	-	2	-	3.3 mH @ 10 kHz	2A	164mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.900 L x 0.550 W (22.86mm x 13.97mm)	0.551 (14.00mm)
B82792C2475N365 CMC 4.7MH 300MA 4LN SMD EPCOS - TDK Electronics	3,508	6.08	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82792	Active	Signal Line	4	-	4.7 mH @ 10 kHz	300mA	700mOhm (Typ)	80V	42V	-40°C ~ 125°C	-	-	-	Surface Mount	0.453 L x 0.413 W (11.50mm x 10.50mm)	0.287 (7.30mm)
