Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
RN112-2-02-1M8 CMC 1.8MH 2A 2LN TH Schaffner EMC Inc.	3,291	2.19	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.8 mH @ 10 kHz	2A	74mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN212-0.4-02-39M CMC 39MH 400MA 2LN TH Schaffner EMC Inc.	693	2.19	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	39 mH @ 10 kHz	400mA	1.5Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN212-2-02-1M8 CMC 1.8MH 2A 2LN TH Schaffner EMC Inc.	3,019	2.19	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.8 mH @ 10 kHz	2A	74mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN214-0.5-02-39M CMC 39MH 500MA 2LN TH Schaffner EMC Inc.	3,220	2.22	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	39 mH @ 10 kHz	500mA	830mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
RN114-0.3-02-47M CMC 47MH 300MA 2LN TH Schaffner EMC Inc.	3,044	2.22	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	47 mH @ 10 kHz	300mA	1.7Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
PE-65854NL CMC 4LN SMD Pulse Electronics Network	486	6.04	- + RFQ	Datasheet	Tube	-	Active	Signal Line	4	-	-	-	400mOhm	-	-	0°C ~ 70°C	-	-	-	Surface Mount	0.360 L x 0.340 W (9.14mm x 8.64mm)	0.098 (2.50mm)
SCR-150-1R4A006J-P CMC 600UH 15A 2LN TH KEMET	196	6.14	- + RFQ	Datasheet	Tray	SCR	Active	Power Line	2	-	600 µH @ 10 kHz	15A	5.3mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	1.161 L x 0.906 W (29.50mm x 23.00mm)	1.122 (28.50mm)
SC-15-07J CMC 702UH 15A 2LN TH KEMET	162	6.19	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	702 µH @ 100 kHz	15A	10mOhm	250V	250V	25°C ~ 120°C	-	-	-	Through Hole	1.417 L x 0.984 W (36.00mm x 25.00mm)	1.378 (35.00mm)
SC-030-E150JH-P CMC 15MH 3A 2LN TH KEMET	144	6.22	- + RFQ	Datasheet	Tray	SC	Active	Power Line	2	-	15 mH @ 10 kHz	3A	-	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.260 L x 1.220 W (32.00mm x 31.00mm)	0.571 (14.50mm)
DFKH-31-0001 CMC 600MA 2LN TH Schurter Inc.	124	6.28	- + RFQ	Datasheet	Bulk	DFKH	Active	-	2	-	-	600mA	1.2Ohm	-	440V	-25°C ~ 100°C	-	-	-	Through Hole	1.240 L x 0.728 W (31.50mm x 18.50mm)	-
CM5740Z171R-10 CMC 20A 4LN 170 OHM SMD Laird-Signal Integrity Products	3,560	3.93	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	4	170 Ohms @ 100 MHz	-	20A	1mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.570 L x 0.435 W (14.48mm x 11.05mm)	0.413 (10.49mm)
RN214-1.5-02-6M8 CMC 6.8MH 1.5A 2LN TH Schaffner EMC Inc.	2,666	2.25	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.5A	123mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
RN114-1.5-02-6M8 CMC 6.8MH 1.5A 2LN TH Schaffner EMC Inc.	2,652	2.25	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	6.8 mH @ 10 kHz	1.5A	123mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN214-2.5-02-3M3 CMC 3.3MH 2.5A 2LN TH Schaffner EMC Inc.	3,260	2.25	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	2.5A	63mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)

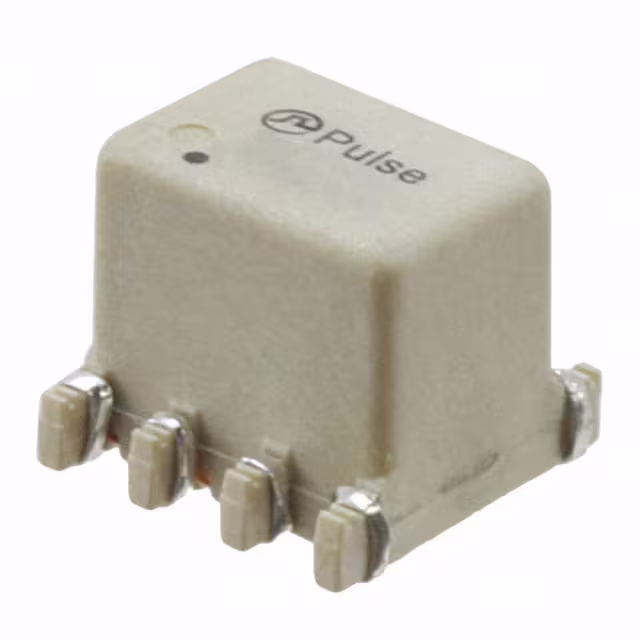

PA2742NL CMC 1A 2LN SMD Pulse Electronics Power	2,344	2.26	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	1A	92mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.360 L x 0.350 W (9.14mm x 8.89mm)	0.310 (7.87mm)

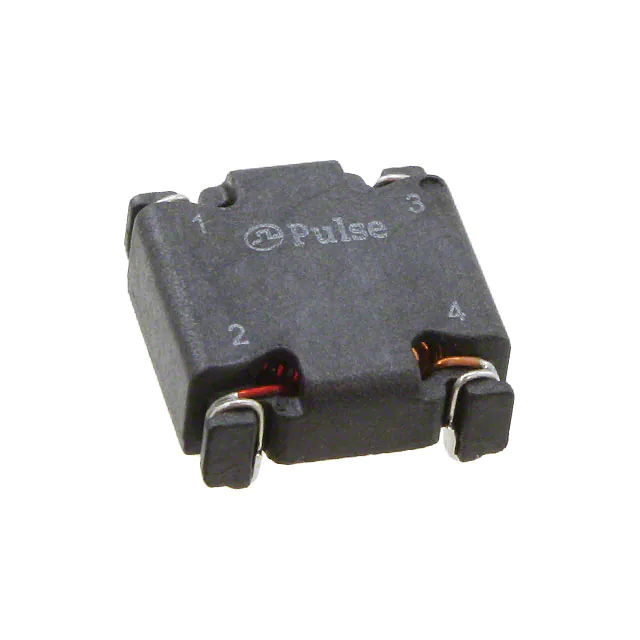

PA2748NL CMC 1.8A 2LN SMD Pulse Electronics Power	3,940	2.26	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	1.8A	55mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.508 L x 0.500 W (12.90mm x 12.70mm)	0.220 (5.60mm)
RN214-3-02-2M0 CMC 2MH 3A 2LN TH Schaffner EMC Inc.	2,669	2.28	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	2 mH @ 10 kHz	3A	52mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
RN114-3-02-2M0 CMC 2MH 3A 2LN TH Schaffner EMC Inc.	780	2.28	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	2 mH @ 10 kHz	3A	52mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
CM2824E352R-10 CMC 800MA 2LN 3.5KOHM SMD Laird-Signal Integrity Products	3,523	4.85	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM2824	Active	Signal Line	2	3.5 kOhms @ 100 MHz	-	800mA	300mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.295 L x 0.217 W (7.50mm x 5.50mm)	0.150 (3.80mm)
CM5022R151R-10 CMC 5A 8LN 150 OHM SMD Laird-Signal Integrity Products	3,609	4.54	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CM	Active	Power Line	8	150 Ohms @ 100 MHz	-	5A	20mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.495 L x 0.265 W (12.57mm x 6.73mm)	0.331 (8.40mm)
