Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
RN202-1-02-3M0 CMC 3MH 1A 2LN TH Schaffner EMC Inc.	2,279	2.08	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3 mH @ 10 kHz	1A	210mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.346 W (18.20mm x 8.80mm)	0.543 (13.80mm)
RN202-1.5-02-1M6 CMC 1.6MH 1.5A 2LN TH Schaffner EMC Inc.	2,144	2.08	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.6 mH @ 10 kHz	1.5A	94mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.346 W (18.20mm x 8.80mm)	0.543 (13.80mm)

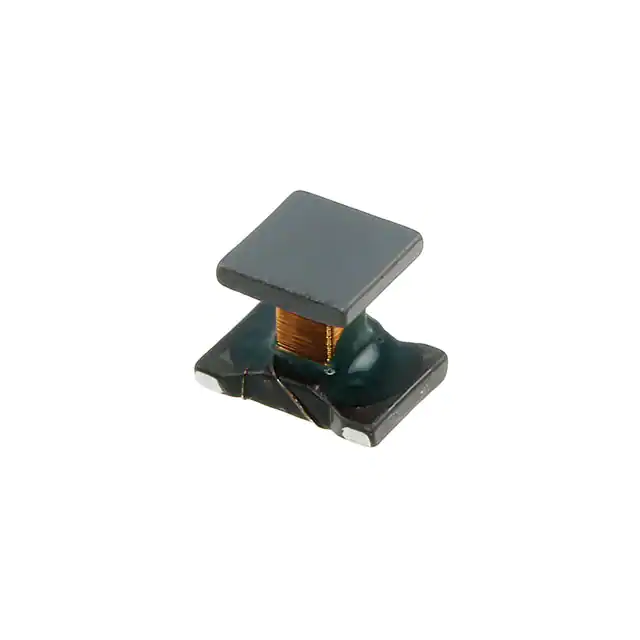

DLW5AHN402SQ2L CMC 200MA 2LN 4KOHM SMD Murata Electronics	3,885	3.72	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DLW5A	Active	Power, Signal Line	2	4 kOhms @ 100 MHz	-	200mA	3Ohm	50V	-	-25°C ~ 85°C	-	-	-	Surface Mount	0.197 L x 0.142 W (5.00mm x 3.60mm)	0.169 (4.30mm)
RN202-2-02-1M1 CMC 1.1MH 2A 2LN TH Schaffner EMC Inc.	2,990	2.11	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.1 mH @ 10 kHz	2A	70mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.346 W (18.20mm x 8.80mm)	0.543 (13.80mm)
RN212-0.8-02-10M CMC 10MH 800MA 2LN TH Schaffner EMC Inc.	3,296	2.11	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	10 mH @ 10 kHz	800mA	380mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN102-0.3-02-22M CMC 22MH 300MA 2LN TH Schaffner EMC Inc.	3,510	2.11	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	22 mH @ 10 kHz	300mA	1.3Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.551 Dia x 0.551 W (14.00mm x 14.00mm)	0.366 (9.30mm)
PAC6006.503NLT CMC 17A 2LN 350 OHM SMD Pulse Electronics Power	3,663	3.53	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	350 Ohms @ 3.4 MHz	-	17A	1.8mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
PAC6006.204NLT CMC 12A 2LN 1KOHM SMD Pulse Electronics Power	3,785	3.53	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	1 kOhms @ 7 MHz	-	12A	4.8mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
CMS2-3-R CMC 57UH 3.6A 2LN SMD Eaton - Electronics Division	3,934	4.30	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	57 µH @ 100 kHz	3.6A	12mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
RN112-2-02-1M0 CMC 1MH 2A 2LN TH Schaffner EMC Inc.	2,318	2.14	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1 mH @ 10 kHz	2A	70mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN212-1.5-02-3M3 CMC 3.3MH 1.5A 2LN TH Schaffner EMC Inc.	3,785	2.14	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	1.5A	102mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
RN112-1.5-02-3M3 CMC 3.3MH 1.5A 2LN TH Schaffner EMC Inc.	3,972	2.14	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	1.5A	102mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
CMS2-7-R CMC 270UH 1.6A 2LN SMD Eaton - Electronics Division	621	4.14	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	270 µH @ 100 kHz	1.6A	60mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)

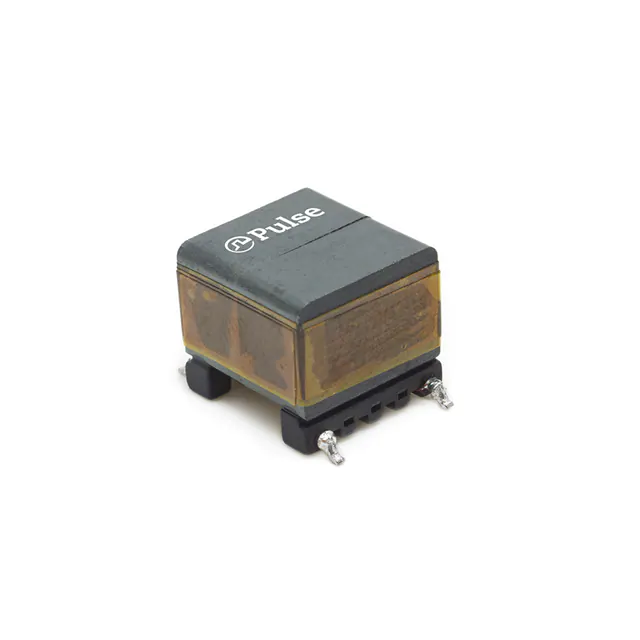

PAC6006.104NLT CMC 14A 2LN 610 OHM SMD Pulse Electronics Power	2,505	3.58	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	610 Ohms @ 11 MHz	-	14A	3.3mOhm (Typ)	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.610 L x 0.531 W (15.50mm x 13.50mm)	0.531 (13.50mm)
RN112-0.5-02-27M CMC 27MH 500MA 2LN TH Schaffner EMC Inc.	2,607	2.16	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	500mA	1.2Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.508 (12.90mm)
RN212-0.5-02-27M CMC 27MH 500MA 2LN TH Schaffner EMC Inc.	3,521	2.16	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	500mA	1.2Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.799 (20.30mm)
PE-53914NLT CMC 500MA 2LN SMD Pulse Electronics Power	3,786	2.16	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Power Line	2	-	-	500mA	850mOhm	-	250V	-40°C ~ 130°C	-	-	-	Surface Mount	0.645 L x 0.560 W (16.38mm x 14.22mm)	0.350 (8.89mm)
PM3700-60-RC CMC 5MH 2A 2LN SMD Bourns Inc.	2,368	3.36	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM3700	Active	-	2	-	5 mH @ 1 kHz	2A	70mOhm	-	-	-55°C ~ 125°C	-	-	-	Surface Mount	0.850 L x 0.850 W (21.60mm x 21.60mm)	0.450 (11.43mm)
PM3700-10-RC CMC 200UH 7A 2LN SMD Bourns Inc.	533	3.36	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM3700	Active	-	2	-	200 µH @ 1 kHz	7A	6mOhm	-	-	-55°C ~ 125°C	-	-	-	Surface Mount	0.850 L x 0.850 W (21.60mm x 21.60mm)	0.450 (11.43mm)
PM3700-70-RC CMC 10MH 1.5A 2LN SMD Bourns Inc.	2,479	3.36	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM3700	Active	-	2	-	10 mH @ 1 kHz	1.5A	150mOhm	-	-	-55°C ~ 125°C	-	-	-	Surface Mount	0.850 L x 0.850 W (21.60mm x 21.60mm)	0.450 (11.43mm)
