Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

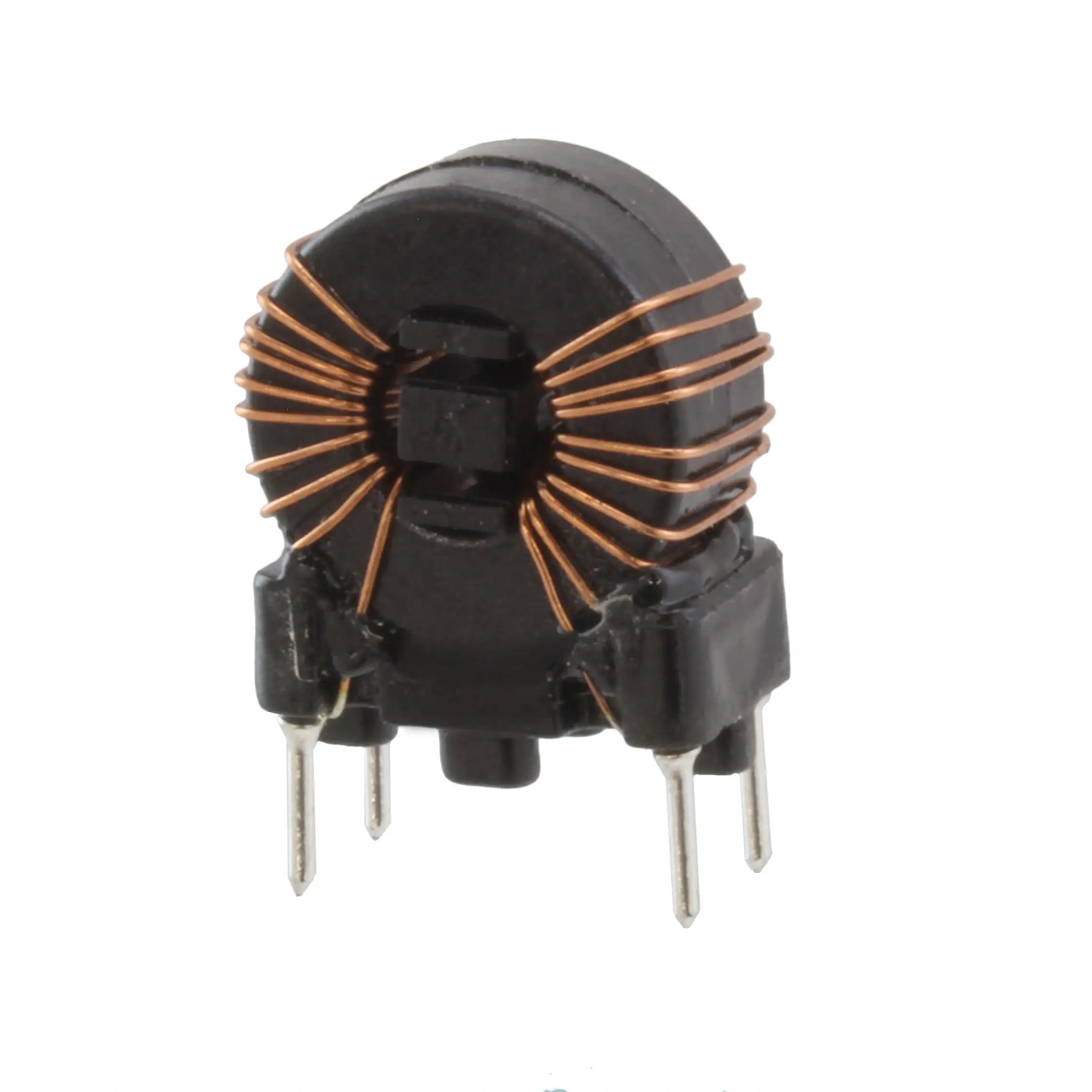

7448012002 CMC 1.6MH 2A 2LN TH Würth Elektronik	3,334	10.20	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	1.6 mH @ 10 kHz	2A	90mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.551 L x 0.295 W (14.00mm x 7.50mm)	0.630 (16.00mm)

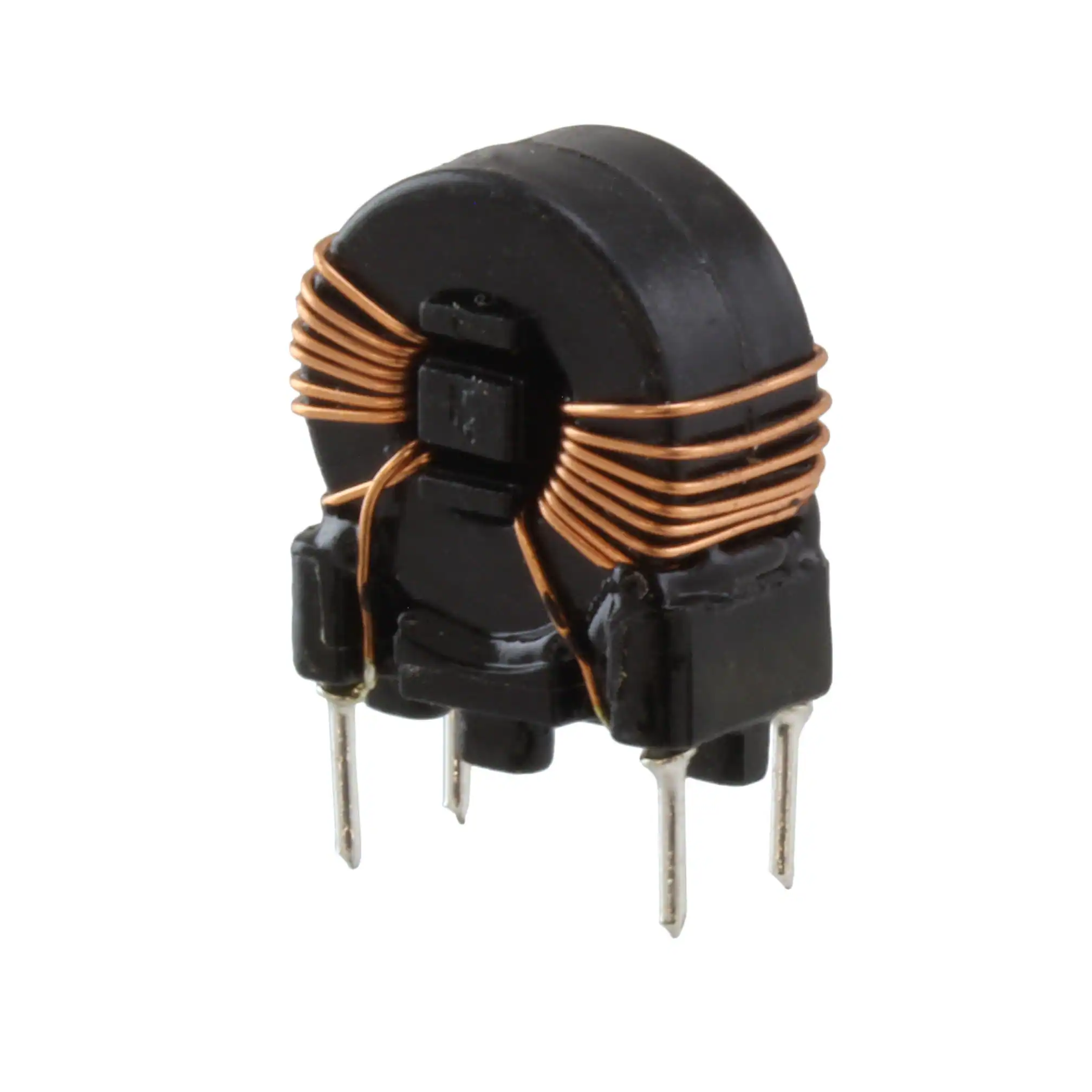

7448012501 CMC 1MH 2.5A 2LN TH Würth Elektronik	392	10.20	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	1 mH @ 10 kHz	2.5A	55mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.551 L x 0.295 W (14.00mm x 7.50mm)	0.630 (16.00mm)

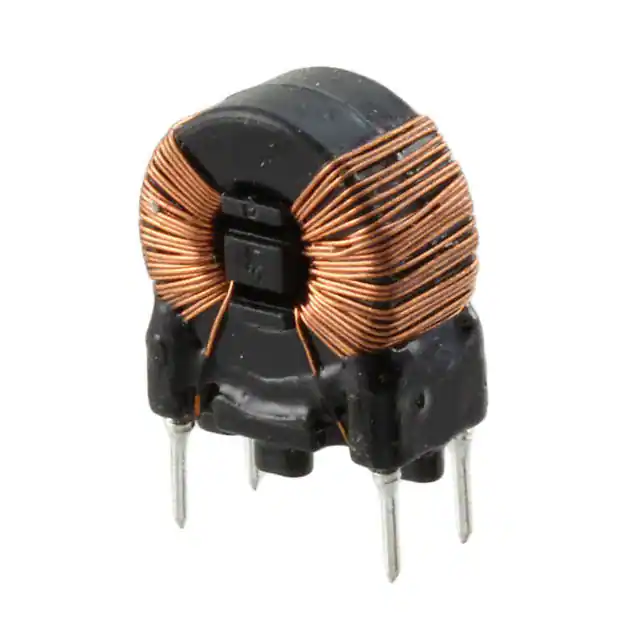

7448010911 CMC 11MH 900MA 2LN TH Würth Elektronik	276	10.20	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	11 mH @ 10 kHz	900mA	430mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.551 L x 0.295 W (14.00mm x 7.50mm)	0.630 (16.00mm)
T60405R6123X210 CMC 2.96MH 15MA 2LN 3.2KOHM TH VACUUMSCHMELZE	397	10.27	- + RFQ	Datasheet	Box	-	Active	-	2	3.2 kOhms @ 100 kHz	2.96 mH @ 100 kHz	15mA	-	-	-	-40°C ~ 130°C	-	-	-	Through Hole	1.378 Dia (35.00mm)	0.937 (23.80mm)
IHCM2321AAEG481N10 COMMON MODE CHOKE 480 UH 1200 SM Vishay Dale	440	10.73	- + RFQ	Datasheet	Tray	IHCM-2321AA-10	Active	Power Line	2	1.2 kOhms @ 10 MHz	480 µH @ 100 kHz	8A	12.5mOhm	-	-	-40°C ~ 155°C	-	-	-	Surface Mount	0.965 L x 0.925 W (24.50mm x 23.50mm)	0.374 (9.50mm)
IHCM2321AAEG121N10 COMMON MODE CHOKE 120 UH 380 SMD Vishay Dale	104	10.73	- + RFQ	Datasheet	Tray	IHCM-2321AA-10	Active	Power Line	2	480 Ohms @ 10 MHz	120 µH @ 100 kHz	25A	1.8mOhm	-	-	-40°C ~ 155°C	-	-	-	Surface Mount	0.965 L x 1.004 W (24.50mm x 25.50mm)	0.433 (11.00mm)

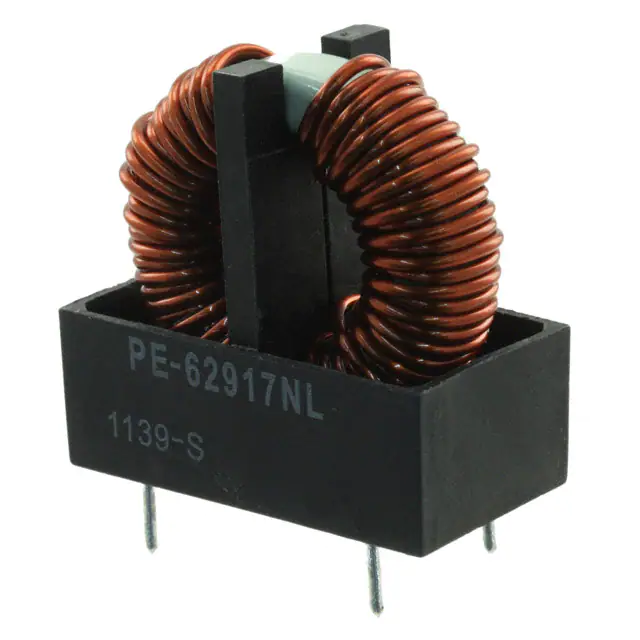

PE-62917NL CMC 2MH 7.5A 2LN TH Pulse Electronics Power	459	10.91	- + RFQ		Tray	-	Active	-	2	-	2 mH @ 1 kHz	7.5A	20mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.440 L x 0.800 W (36.58mm x 20.32mm)	1.510 (38.35mm)

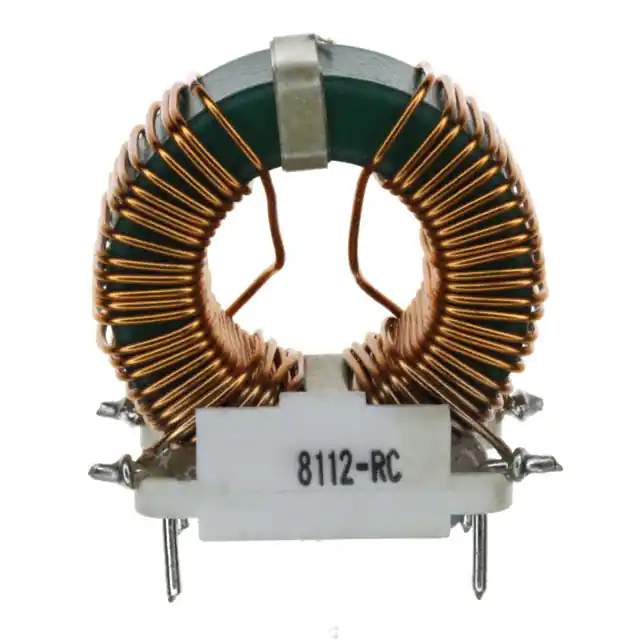

8112-RC CMC 8MH 5.6A 2LN TH Bourns Inc.	2,086	11.27	- + RFQ	Datasheet	Bulk	8100	Active	-	2	-	8 mH @ 1 kHz	5.6A	55mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.350 L x 0.800 W (34.29mm x 20.32mm)	1.450 (36.83mm)

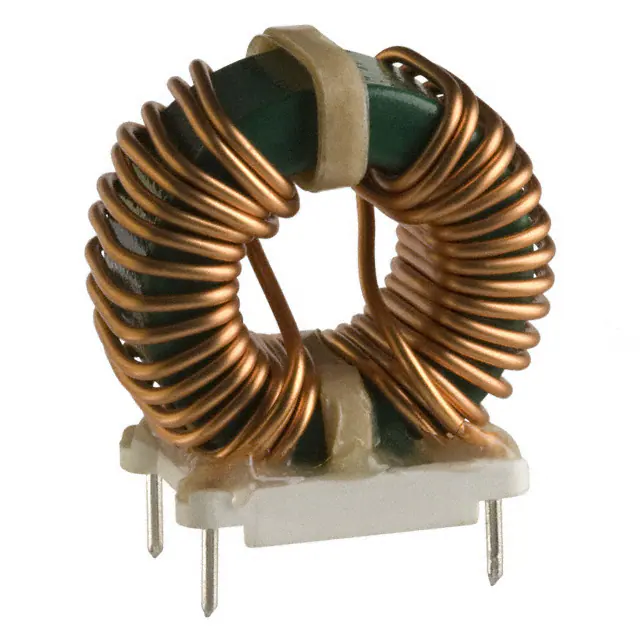

8114-RC CMC 2.5MH 12.5A 2LN TH Bourns Inc.	727	11.27	- + RFQ	Datasheet	Bulk	8100	Active	-	2	-	2.5 mH @ 1 kHz	12.5A	11mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.450 L x 0.800 W (36.83mm x 20.32mm)	1.500 (38.10mm)
CMX1616Z401B-10 CMC 396UH 46A 2LN TH Laird-Signal Integrity Products	939	11.33	- + RFQ	Datasheet	Bulk	CMX	Active	Power Line	2	-	396 µH @ 100 kHz	46A	1.15mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.614 L x 1.614 W (41.00mm x 41.00mm)	0.650 (16.50mm)
8120-RC CMC 2.4MH 17A 2LN TH Bourns Inc.	2,428	11.79	- + RFQ	Datasheet	Bulk	8100	Active	-	2	-	2.4 mH @ 1 kHz	17A	8mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.700 L x 0.900 W (43.18mm x 22.86mm)	1.650 (41.91mm)

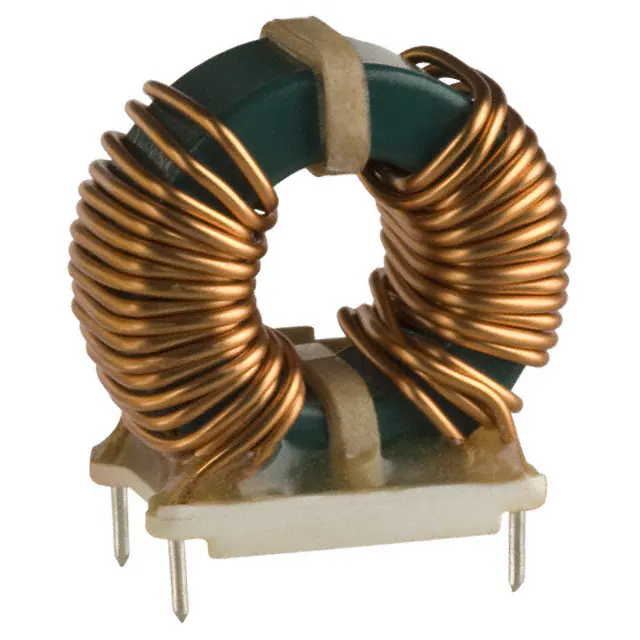

8119-RC CMC 4MH 14.5A 2LN TH Bourns Inc.	3,171	11.79	- + RFQ	Datasheet	Bulk	8100	Active	-	2	-	4 mH @ 1 kHz	14.5A	12mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.700 L x 0.900 W (43.18mm x 22.86mm)	1.650 (41.91mm)
CMT908-H3 CMC 8MH 3.2A 2LN TH ESD Triad Magnetics	339	11.79	- + RFQ	Datasheet	Bulk	CMT	Active	Power Line	2	-	8 mH @ 10 kHz	3.2A	120mOhm	-	250V	-40°C ~ 125°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	1.500 L x 1.500 W (38.10mm x 38.10mm)	0.800 (20.32mm)

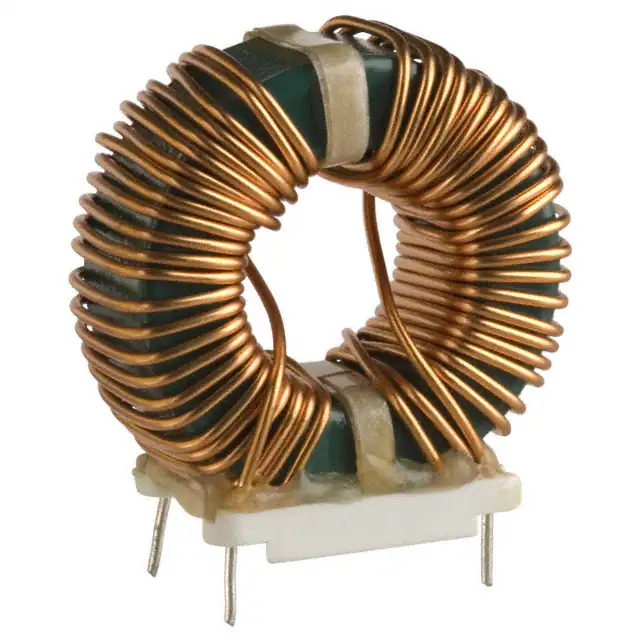

8118-RC CMC 7.3MH 9.3A 2LN TH Bourns Inc.	201	11.79	- + RFQ	Datasheet	Bulk	8100	Active	-	2	-	7.3 mH @ 1 kHz	9.3A	32mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.650 L x 0.800 W (41.91mm x 20.32mm)	1.650 (41.91mm)
B82726E6263A040 CMC 600UH 26A 2LN TH EPCOS - TDK Electronics	3,883	12.25	- + RFQ	Datasheet	Tray	B82726	Active	Power Line	2	-	600 µH @ 100 kHz	26A	1.7mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	UR	-	Through Hole	1.890 Dia x 1.024 L (48.00mm x 26.00mm)	1.772 (45.00mm)
T60405R6128X225 CMC 1.01MH 40MA 2LN 970 OHM TH VACUUMSCHMELZE	286	12.30	- + RFQ	Datasheet	Box	-	Active	-	2	970 Ohms @ 100 kHz	1.01 mH @ 100 kHz	40mA	-	-	-	-40°C ~ 130°C	-	-	-	Through Hole	1.654 L x 1.063 W (42.00mm x 27.00mm)	1.587 (40.30mm)
T60405S6123X306 CMC 7.36MH 20MA 2LN 8.65KOHM TH VACUUMSCHMELZE	260	12.90	- + RFQ	Datasheet	Box	-	Active	-	2	8.65 kOhms @ 100 kHz	7.36 mH @ 100 kHz	20mA	-	-	-	-40°C ~ 130°C	-	-	-	Through Hole	1.496 Dia (38.00mm)	1.291 (32.80mm)

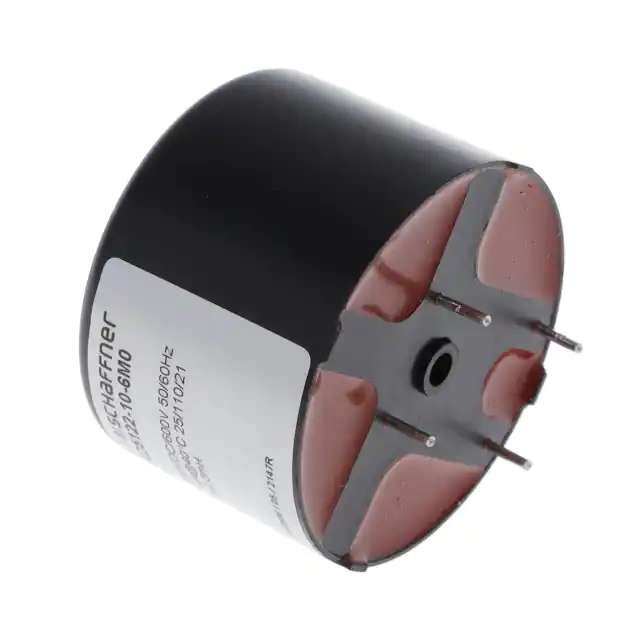

RD5122-10-6M0 CMC 6MH 10A 2LN TH Schaffner EMC Inc.	123	12.93	- + RFQ	Datasheet	Tray	RD	Active	Power Line	2	-	6 mH @ 400 Hz	10A (Typ)	24.25mOhm (Typ)	850V	600V	-25°C ~ 110°C	-	-	-	Through Hole	1.969 L x 1.969 W (50.00mm x 50.00mm)	1.398 (35.50mm)
CM6296R-304 CMC 300UH 7.5A 2LN SMD API Delevan Inc.	943	13.02	- + RFQ	Datasheet	Bulk	CM6296R	Active	-	2	-	300 µH @ 1 kHz	7.5A	20mOhm	-	-	-55°C ~ 125°C	-	-	-	Surface Mount	1.058 L x 1.058 W (26.87mm x 26.87mm)	0.423 (10.74mm)
T60405S6123X317 CMC 2.2MH 32MA 2LN 2.4KOHM TH VACUUMSCHMELZE	234	13.31	- + RFQ	Datasheet	Box	-	Active	-	3	2.4 kOhms @ 100 kHz	2.2 mH @ 100 kHz	32mA	-	-	-	-40°C ~ 130°C	-	-	-	Through Hole	2.146 Dia (54.50mm)	1.350 (34.30mm)
