Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
PE-67531NL CMC 2LN TH Pulse Electronics Network	3,881	6.15	- + RFQ	Datasheet	Tube	-	Active	Signal Line	2	-	-	-	600mOhm	-	-	-	-	-	-	Through Hole	0.400 L x 0.200 W (10.16mm x 5.08mm)	0.350 (8.89mm)
TCK-051 CMC 145UH 5.2A 2LN TH Traco Power	3,637	6.29	- + RFQ	Datasheet	Bag	-	Active	-	2	-	145 µH @ 100 kHz	5.2A	20mOhm	500V	-	-	-	-	-	Through Hole	-	0.346 (8.80mm)
TCK-048 CMC 450UH 5.2A 2LN TH Traco Power	909	6.29	- + RFQ	Datasheet	Bag	-	Active	-	2	-	450 µH @ 100 kHz	5.2A	25mOhm	500V	-	-40°C ~ 125°C	-	-	-	Through Hole	-	0.386 (9.80mm)
7448227005 CMC 450UH 6.5A 2LN TH Würth Elektronik	2,545	6.33	- + RFQ	Datasheet	Tray	WE-CMB HC	Active	Power Line	2	-	450 µH @ 100 kHz	6.5A	10mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.728 L x 0.571 W (18.50mm x 14.50mm)	0.866 (22.00mm)
744825320 CMC 20MH 3A 2LN TH Würth Elektronik	344	6.33	- + RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	20 mH @ 10 kHz	3A	160mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.732 W (30.00mm x 18.60mm)	1.378 (35.00mm)

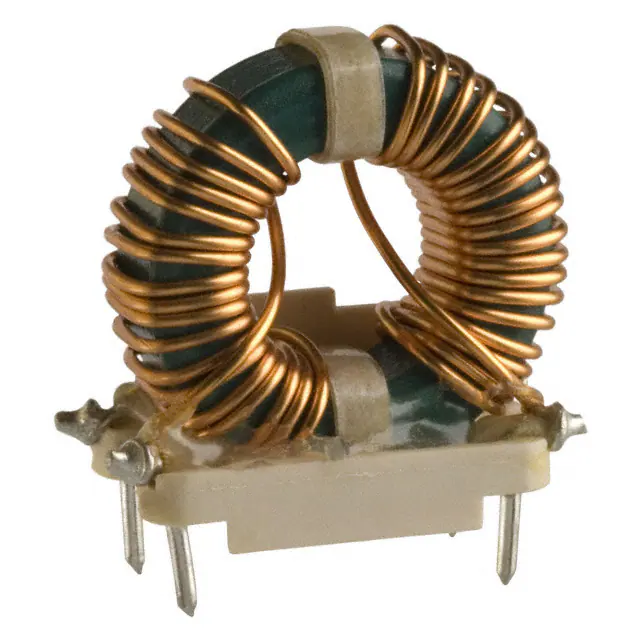

8107-RC CMC 2MH 6.6A 2LN TH Bourns Inc.	242	6.44	- + RFQ	Datasheet	Bulk	8100	Active	-	2	-	2 mH @ 1 kHz	6.6A	22mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.200 L x 0.600 W (30.48mm x 15.24mm)	1.200 (30.48mm)

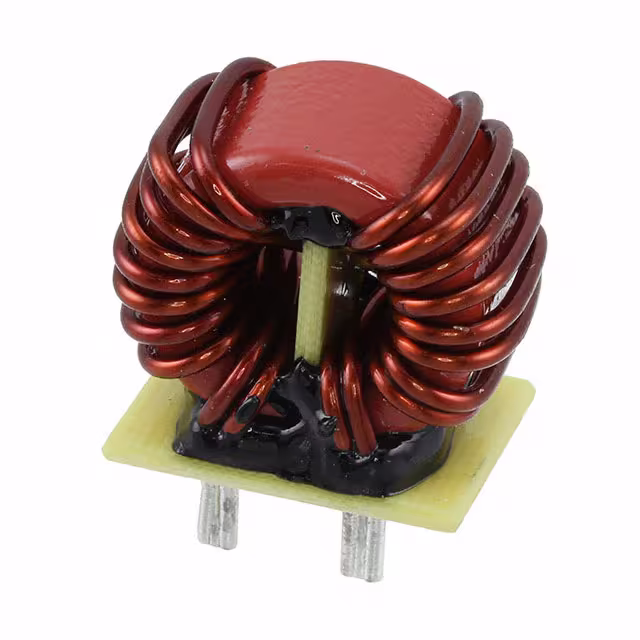

S14100039 CMC 285UH 25A 2LN TH Würth Elektronik	360	5.98	- + RFQ	Datasheet	Tray	WE-CMB	Active	-	2	-	285 µH @ 10 kHz	25A	1.6mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.142 Dia x 0.787 W (29.00mm x 20.00mm)	1.142 (29.00mm)

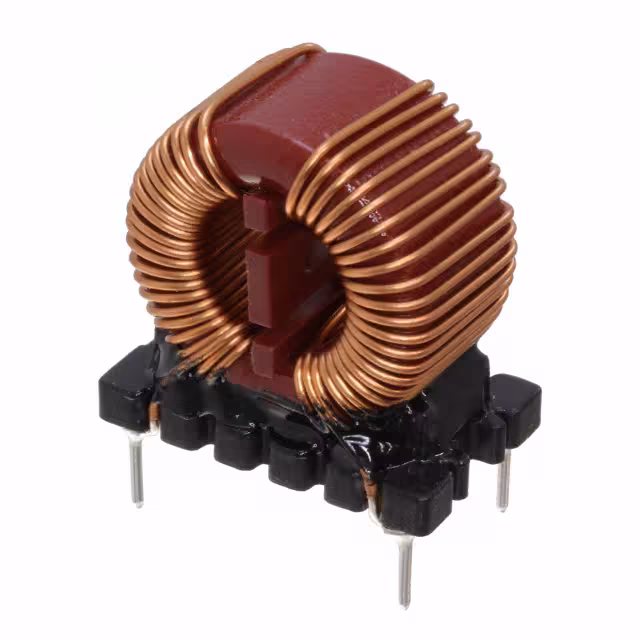

744825605 CMC 5MH 6A 2LN TH Würth Elektronik	3,813	6.62	- + RFQ		Tray	WE-CMB	Active	Power Line	2	-	5 mH @ 10 kHz	6A	-	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.827 W (30.00mm x 21.00mm)	1.378 (35.00mm)

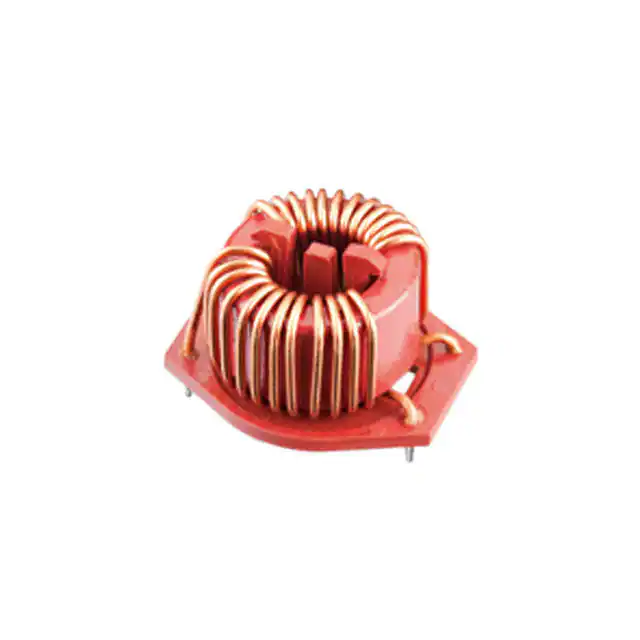

744834433 CMC 3.3MH 5A 2LN TH Würth Elektronik	3,430	6.72	- + RFQ	Datasheet	Tray	WE-CMBH	Active	Power Line	2	-	3.3 mH @ 10 kHz	5A	37mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.280 L x 1.102 W (32.50mm x 28.00mm)	0.866 (22.00mm)
744834622 CMC 2.2MH 6A 2LN TH Würth Elektronik	3,713	6.72	- + RFQ	Datasheet	Tray	WE-CMBH	Active	Power Line	2	-	2.2 mH @ 10 kHz	6A	22mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.280 L x 1.102 W (32.50mm x 28.00mm)	0.866 (22.00mm)
SC-10-10J CMC 1MH 10A 2LN TH KEMET	731	6.87	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1 mH @ 100 kHz	10A	20mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	1.339 L x 0.906 W (34.00mm x 23.00mm)	1.299 (33.00mm)

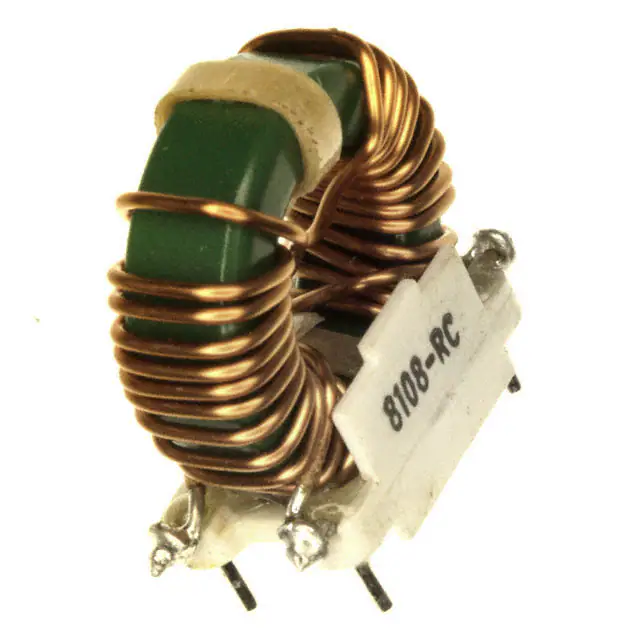

8108-RC CMC 1MH 10A 2LN TH Bourns Inc.	354	7.16	- + RFQ	Datasheet	Bulk	8100	Active	-	2	-	1 mH @ 1 kHz	10A	10mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.200 L x 0.600 W (30.48mm x 15.24mm)	1.200 (30.48mm)
SCF20-05-1100 CMC 11MH 5A 2LN TH KEMET	777	7.30	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	11 mH @ 10 kHz	5A	39mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.984 L x 0.610 W (25.00mm x 15.50mm)	0.984 (25.00mm)
SC-10-30J CMC 3MH 10A 2LN TH KEMET	2,273	7.37	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	3 mH @ 100 kHz	10A	30mOhm	250V	250V	-25°C ~ 120°C	-	-	-	Through Hole	1.339 L x 0.945 W (34.00mm x 24.00mm)	1.299 (33.00mm)

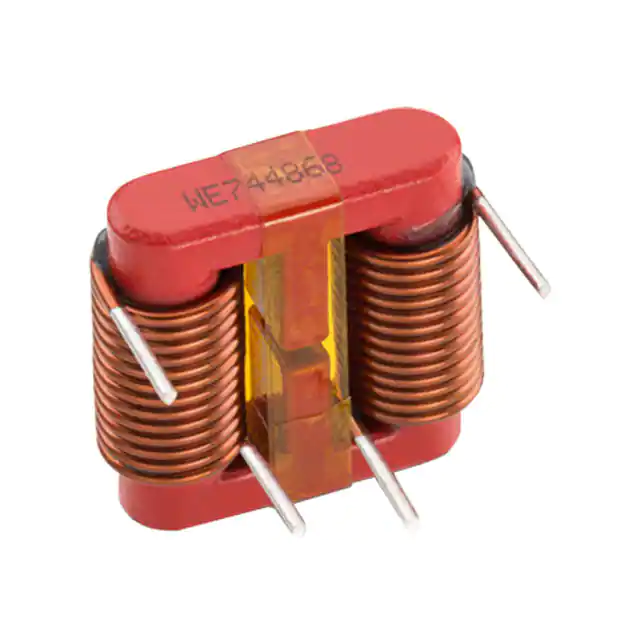

7448680140 CMC 230UH 16A 2LN TH Würth Elektronik	690	7.63	- + RFQ	Datasheet	Tray	WE-LPCC	Active	Power Line	2	-	230 µH @ 10 kHz	16A	3.6mOhm	-	250V	-40°C ~ 115°C	-	-	-	Through Hole	1.083 L x 0.984 W (27.51mm x 24.99mm)	0.472 (11.99mm)

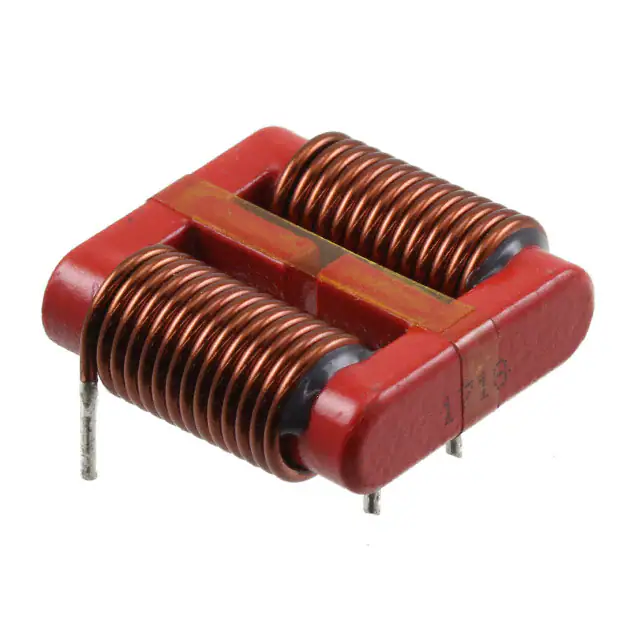

7448680100 CMC 450UH 10A 2LN TH Würth Elektronik	327	7.63	- + RFQ	Datasheet	Tray	WE-LPCC	Active	Power Line	2	-	450 µH @ 10 kHz	10A	9.6mOhm	-	250V	-40°C ~ 115°C	-	-	-	Through Hole	1.083 L x 0.984 W (27.51mm x 24.99mm)	0.472 (11.99mm)
P0429NL CMC 9.7A 2LN SMD Pulse Electronics Power	2,227	7.64	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	9.7A	14mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
SC-04-200JV CMC 29MH 5A 2LN TH KEMET	580	7.74	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	29 mH @ 16 kHz	5A	100mOhm	250V	250V	-	-	-	-	Through Hole	1.378 Dia x 0.984 W (35.00mm x 25.00mm)	1.575 (40.00mm)

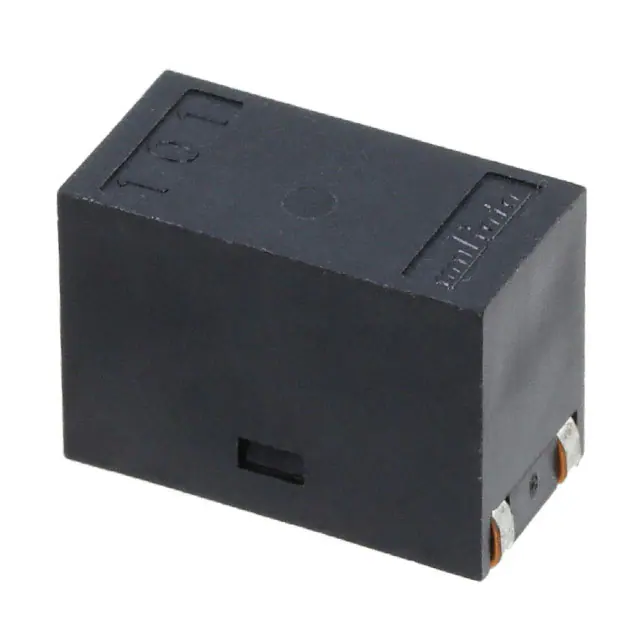

PLT10HH101150PNL CMC 15A 2LN 100 OHM SMD AEC-Q200 Murata Electronics	2,316	13.09	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PLT10H	Active	Power Line	2	100 Ohms @ 10 MHz	-	15A	2.3mOhm	300V	-	-55°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.508 L x 0.358 W (12.90mm x 9.10mm)	0.370 (9.40mm)
CM5740Z241B-10 CMC 20A 4LN 100 OHM TH Laird-Signal Integrity Products	2,899	8.03	- + RFQ	Datasheet	Bulk	CM	Active	Power, Signal Line	4	100 Ohms @ 100 MHz	-	20A	1.3mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.570 L x 0.395 W (14.48mm x 10.03mm)	0.424 (10.77mm)
