Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
7446121007 CMC 6.8MH 1A 2LN TH Würth Elektronik	2,537	3.32	- + RFQ	Datasheet	Tray	WE-LF	Active	Power Line	2	-	6.8 mH @ 10 kHz	1A	300mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.728 L x 0.531 W (18.50mm x 13.50mm)	0.807 (20.50mm)
P0351NL CMC 2.8A 2LN SMD Pulse Electronics Power	2,909	3.37	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	2.8A	80mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.91mm)
SSRH24NV-25205 CMC 20.5MH 2.5A 2LN TH KEMET	951	3.48	- + RFQ	Datasheet	Bulk	SSRH	Active	-	2	-	20.5 mH @ 10 kHz	2.5A	145mOhm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	-	1.220 (31.00mm)

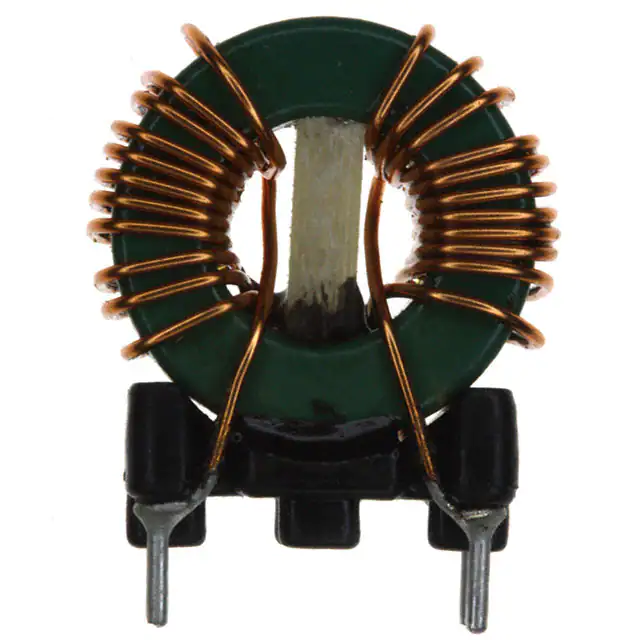

744841247 CMC 47UH 2A 2LN TH Würth Elektronik	2,934	3.51	- + RFQ	Datasheet	Tray	WE-CMB	Active	Power Line	2	-	47 µH @ 10 kHz	2A	40mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.610 L x 0.295 W (15.50mm x 7.50mm)	0.689 (17.50mm)

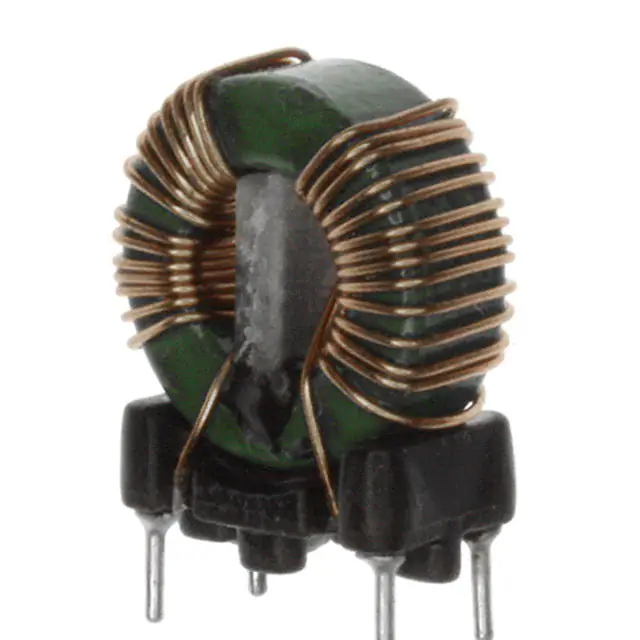

744841210 CMC 100UH 1.5A 2LN TH Würth Elektronik	3,942	3.51	- + RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	100 µH @ 10 kHz	1.5A	80mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.610 L x 0.295 W (15.50mm x 7.50mm)	0.689 (17.50mm)

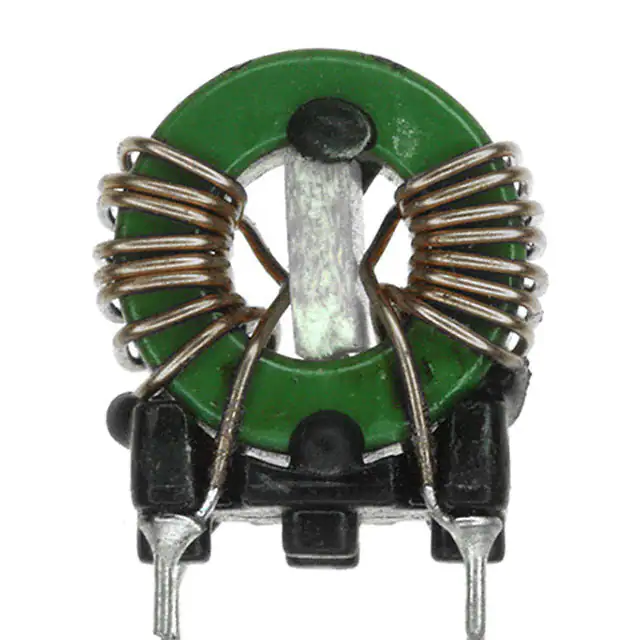

744841330 CMC 30UH 3A 2LN TH Würth Elektronik	293	3.51	- + RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	30 µH @ 10 kHz	3A	26mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.610 L x 0.295 W (15.50mm x 7.50mm)	0.689 (17.50mm)
CM5441Z101B-10 CMC 75A 2LN 100 OHM TH Laird-Signal Integrity Products	2,908	3.79	- + RFQ	Datasheet	Bulk	CM	Active	Power Line	2	100 Ohms @ 100 MHz	-	75A	0.3mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.540 L x 0.410 W (13.72mm x 10.41mm)	0.424 (10.77mm)
B82731M2901A030 CMC 15MH 900MA 2LN TH EPCOS - TDK Electronics	2,715	3.80	- + RFQ	Datasheet	Tray	B82731	Active	Power Line	2	-	15 mH @ 10 kHz	900mA	600mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.827 L x 0.591 W (21.00mm x 15.00mm)	0.807 (20.50mm)
CC2824J502R-10 CMC 5UH 1.2A 2LN 400 OHM SMD Laird-Signal Integrity Products	2,850	7.60	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CC2824	Active	Signal Line	2	400 Ohms @ 500 MHz	5 µH @ 100 kHz	1.2A	100mOhm	80V	42V	-40°C ~ 125°C	-	-	-	Surface Mount	0.295 L x 0.217 W (7.50mm x 5.50mm)	0.150 (3.80mm)
744821240 CMC 4MH 1.5A 2LN TH Würth Elektronik	2,104	3.87	- + RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	4 mH @ 10 kHz	1.5A	140mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.591 L x 0.295 W (15.00mm x 7.50mm)	0.709 (18.00mm)
744821201 CMC 1MH 2A 2LN TH Würth Elektronik	3,973	3.87	- + RFQ	Datasheet	Bulk	WE-CMB	Active	Power Line	2	-	1 mH @ 10 kHz	2A	45mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.591 L x 0.295 W (15.00mm x 7.50mm)	0.709 (18.00mm)
B82732R2901B030 CMC 27MH 900MA 2LN TH EPCOS - TDK Electronics	3,552	3.88	- + RFQ	Datasheet	Tray	B82732	Active	Power Line	2	-	27 mH @ 10 kHz	900mA	750mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.945 L x 0.650 W (24.00mm x 16.50mm)	0.925 (23.50mm)

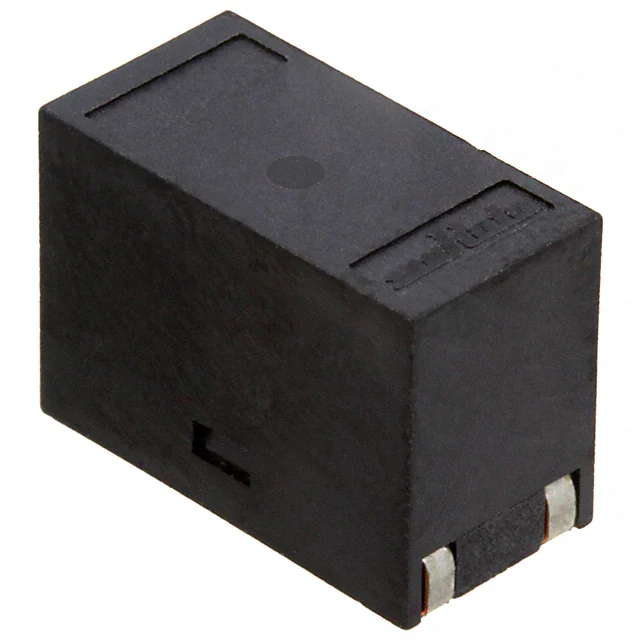

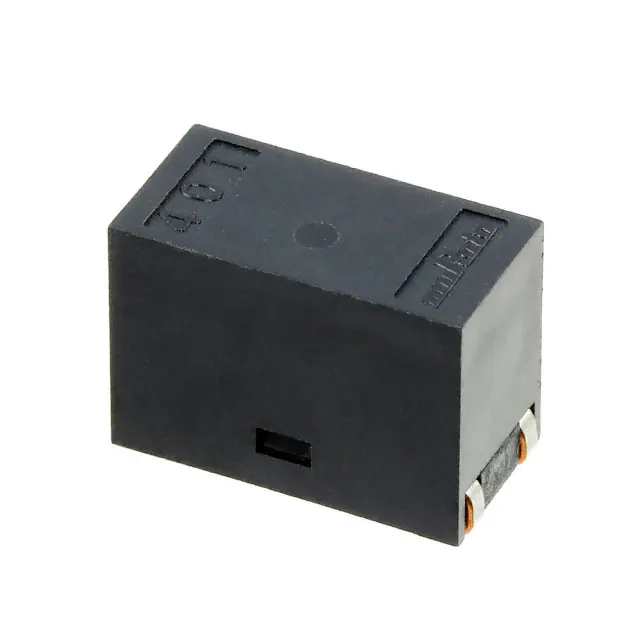

PLT10HH401100PNL CMC 10A 2LN 400 OHM SMD AEC-Q200 Murata Electronics	3,839	5.68	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PLT10H	Active	Power Line	2	400 Ohms @ 10 MHz	-	10A	4.1mOhm	100V	-	-55°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.508 L x 0.358 W (12.90mm x 9.10mm)	0.370 (9.40mm)
PLT10HH501100PNL CMC 10A 2LN 500 OHM SMD AEC-Q200 Murata Electronics	2,542	5.68	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PLT10H	Active	Power Line	2	500 Ohms @ 10 MHz	-	10A	4.1mOhm	100V	-	-55°C ~ 105°C	AEC-Q200	-	-	Surface Mount	0.508 L x 0.358 W (12.90mm x 9.10mm)	0.370 (9.40mm)
PLT10HH1026R0PNL CMC 6A 2LN 1KOHM SMD AEC-Q200 Murata Electronics	3,192	5.68	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PLT10H	Active	Power Line	2	1 kOhms @ 10 MHz	-	6A	8mOhm (Typ)	100V	-	-55°C ~ 105°C	AEC-Q200	-	-	Surface Mount	0.508 L x 0.358 W (12.90mm x 9.10mm)	0.370 (9.40mm)
PLT10HH9016R0PNL CMC 6A 2LN 900 OHM SMD AEC-Q200 Murata Electronics	918	5.68	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PLT10H	Active	Power Line	2	900 Ohms @ 10 MHz	-	6A	8.5mOhm	100V	-	-55°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.508 L x 0.358 W (12.90mm x 9.10mm)	0.370 (9.40mm)

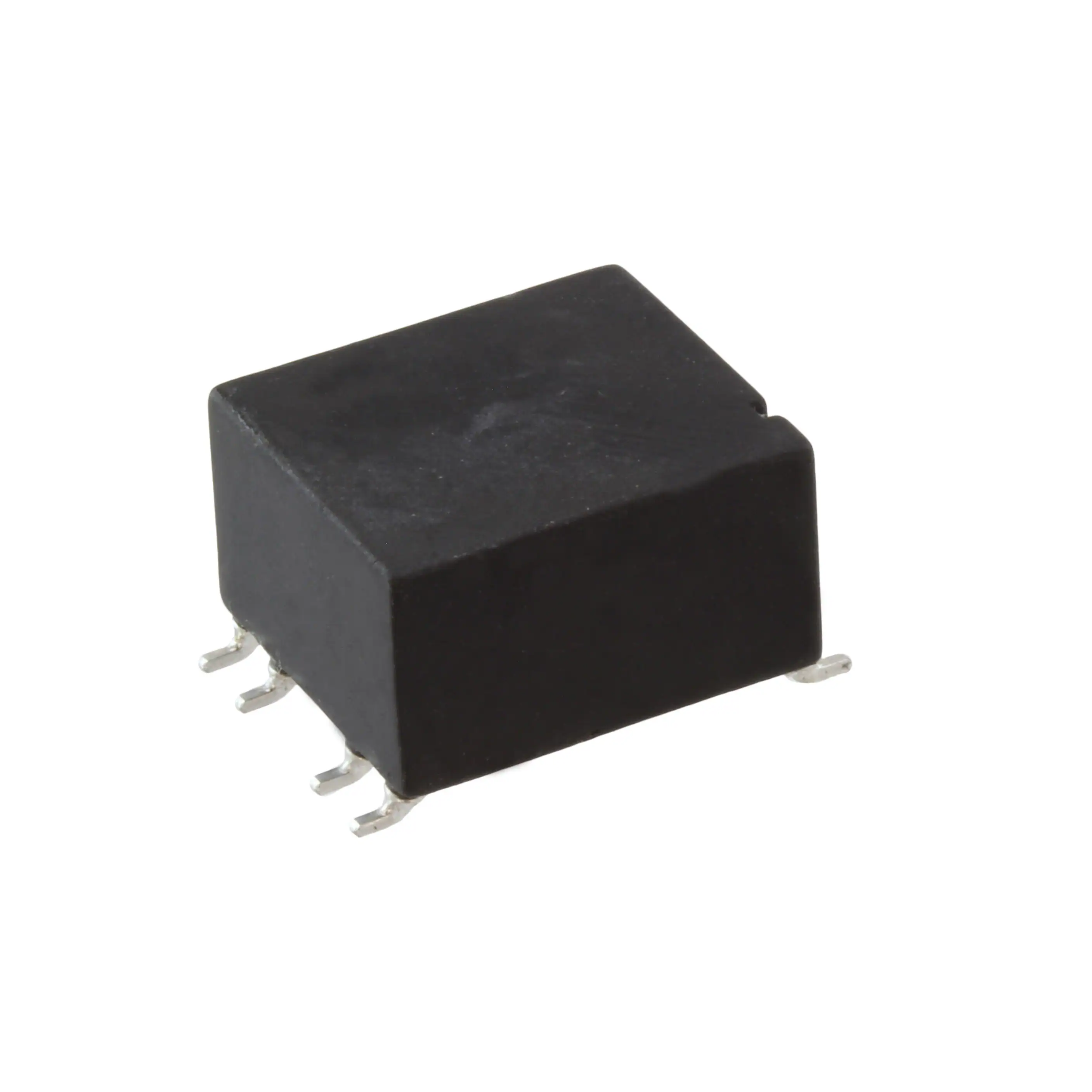

744290560 CMC 56UH 7A 2LN SMD Würth Elektronik	2,334	4.63	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UCF	Active	Power, Signal Line	2	-	56 µH @ 10 kHz	7A	4.7mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.492 W (14.50mm x 12.50mm)	0.307 (7.80mm)
744290152 CMC 1.5MH 1.5A 2LN SMD Würth Elektronik	2,092	4.63	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UCF	Active	Power, Signal Line	2	-	1.5 mH @ 10 kHz	1.5A	120mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.492 W (14.50mm x 12.50mm)	0.307 (7.80mm)
744290472 CMC 4.7MH 750MA 2LN SMD Würth Elektronik	855	4.63	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UCF	Active	Signal Line	2	-	4.7 mH @ 10 kHz	750mA	520mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.571 L x 0.492 W (14.50mm x 12.50mm)	0.307 (7.80mm)

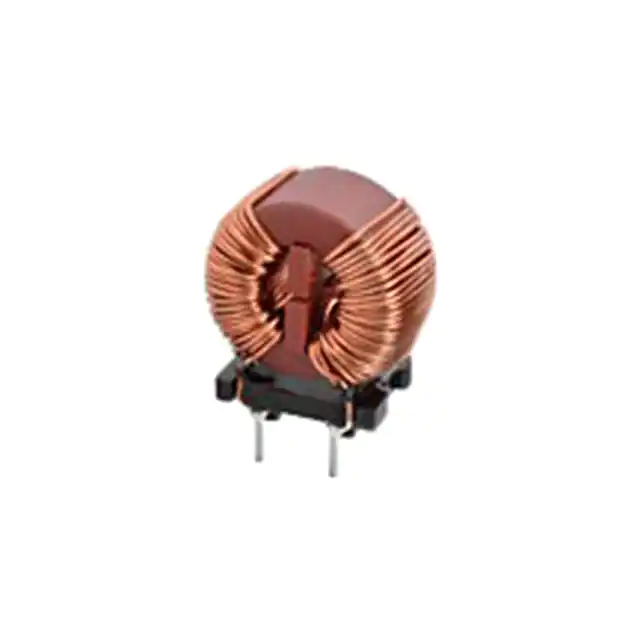

744821039 CMC 39MH 300MA 2LN TH Würth Elektronik	3,460	4.05	- + RFQ		Box	WE-CMB	Active	Power Line	2	-	39 mH @ 10 kHz	300mA	-	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.591 L x 0.295 W (15.00mm x 7.50mm)	0.709 (18.00mm)
