Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

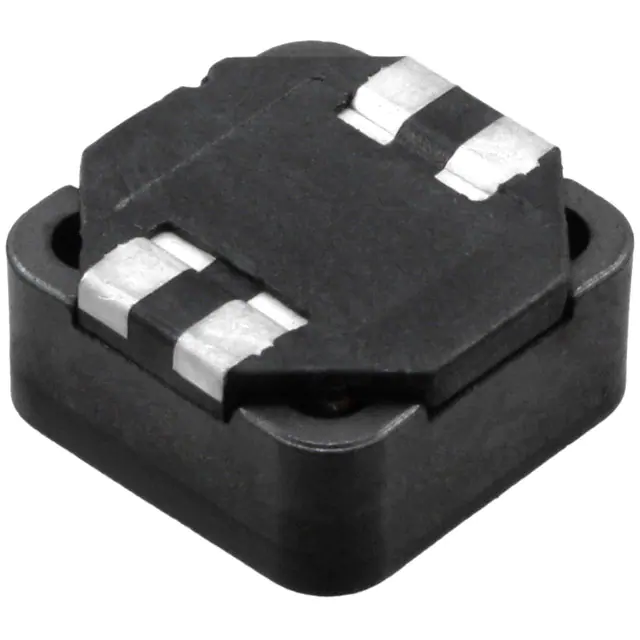

744282100 CMC 10UH 2.25A 2LN 9KOHM SMD Würth Elektronik	3,122	3.30	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SCC	Active	Power, Signal Line	2	9 kOhms @ 20 MHz	10 µH @ 100 kHz	2.25A	50mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.492 L x 0.492 W (12.50mm x 12.50mm)	0.256 (6.50mm)

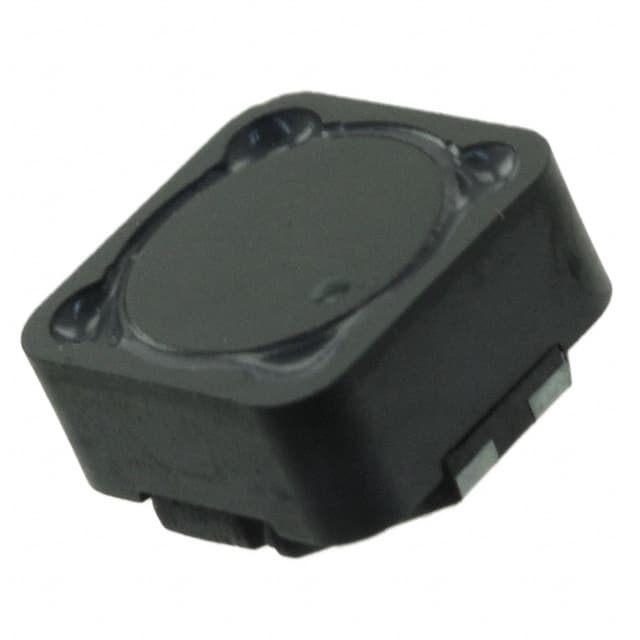

744282010 CMC 1UH 4.75A 2LN 1.6KOHM SMD Würth Elektronik	2,591	3.30	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SCC	Active	Signal Line	2	1.6 kOhms @ 90 MHz	1 µH @ 100 kHz	4.75A	12mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.492 L x 0.492 W (12.50mm x 12.50mm)	0.256 (6.50mm)
CC2824E513R-10 CMC 51UH 800MA 2LN 3.8KOHM SMD Laird-Signal Integrity Products	3,588	4.85	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CC2824	Active	Signal Line	2	3.8 kOhms @ 50 MHz	51 µH @ 100 kHz	800mA	300mOhm	80V	42V	-40°C ~ 125°C	-	-	-	Surface Mount	0.295 L x 0.217 W (7.50mm x 5.50mm)	0.150 (3.80mm)

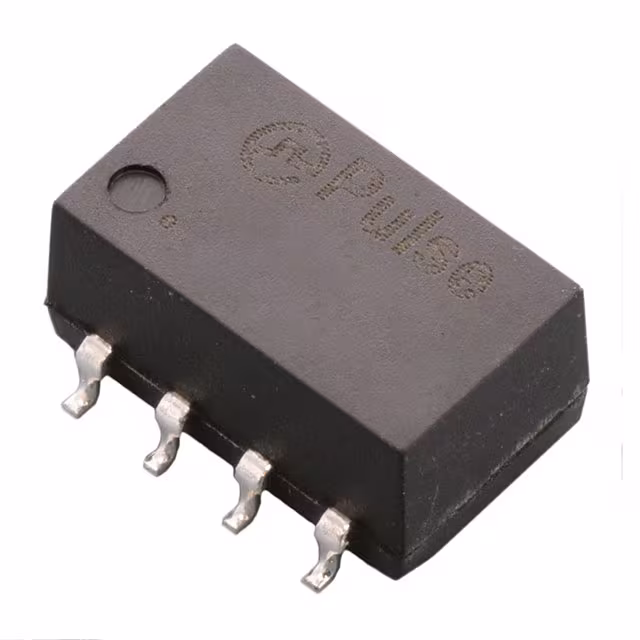

T8003NLT CMC 4LN SMD Pulse Electronics Network	537	4.76	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Signal Line	4	-	-	-	200mOhm	-	-	-	-	-	-	Surface Mount	0.450 L x 0.265 W (11.43mm x 6.73mm)	0.220 (5.59mm)
P0420NLT CMC 3.3A 2LN SMD Pulse Electronics Power	2,168	4.23	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Power Line	2	-	-	3.3A	60mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.91mm)
PA2756NL CMC 8A 2LN SMD Pulse Electronics Power	2,076	2.69	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	8A	7.7mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.670 L x 0.770 W (17.02mm x 19.56mm)	0.390 (9.91mm)
51105C CMC 3.3A 2LN TH Murata Power Solutions Inc.	3,877	2.75	- + RFQ	Datasheet	Tray	5100	Active	Power Line	2	-	-	3.3A	38mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.709 L x 0.394 W (18.00mm x 10.00mm)	0.945 (24.00mm)

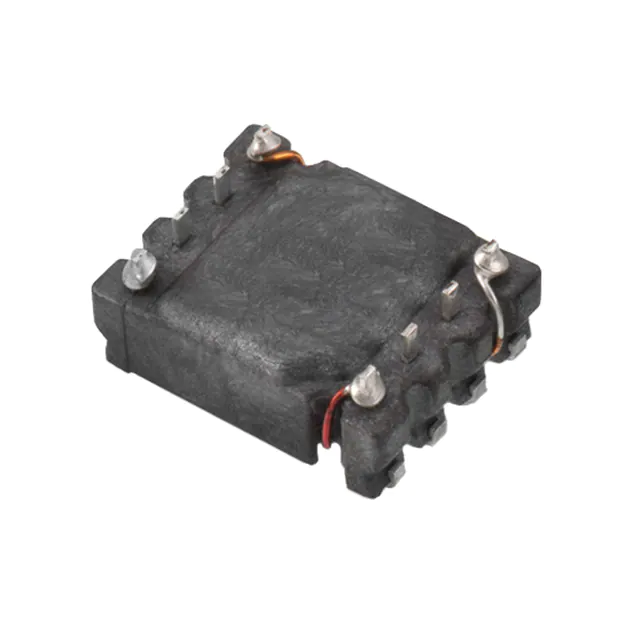

744205 CMC 100UH 700MA 4LN SMD Würth Elektronik	3,157	3.68	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL	Active	Signal Line	4	-	100 µH @ 100 kHz	700mA	-	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	-	0.238 (6.05mm)
744201 CMC 4.7MH 200MA 4LN SMD Würth Elektronik	2,154	3.68	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL	Active	Signal Line	4	-	4.7 mH @ 100 kHz	200mA	-	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	-	0.238 (6.05mm)
P0353NL CMC 5.6A 2LN SMD Pulse Electronics Power	3,300	2.83	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	5.6A	21mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	0.770 L x 0.670 W (19.56mm x 17.02mm)	0.390 (9.91mm)
PA2754NL CMC 10A 2LN SMD Pulse Electronics Power	2,039	2.87	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	10A	3.75mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.750 L x 0.815 W (19.05mm x 20.70mm)	0.440 (11.18mm)
RN222-2.5-02-5M6 CMC 5.6MH 2.5A 2LN TH Schaffner EMC Inc.	2,292	2.89	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	5.6 mH @ 10 kHz	2.5A	110mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.165 (29.60mm)

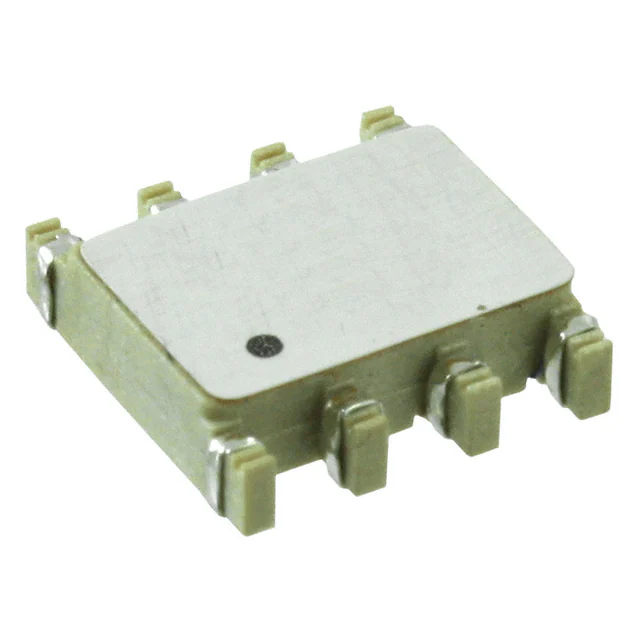

PE-65854NLT CMC 4LN SMD Pulse Electronics Network	3,345	6.04	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	.025	Active	Signal Line	4	-	-	-	400mOhm	-	-	0°C ~ 70°C	-	-	-	Surface Mount	0.360 L x 0.340 W (9.14mm x 8.64mm)	0.098 (2.50mm)
PA2750NL CMC 6A 2LN SMD Pulse Electronics Power	3,847	3.04	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	6A	9.4mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.590 L x 0.715 W (14.99mm x 18.16mm)	0.390 (9.91mm)
CM3440Z171B-10 CMC 20A 2LN 170 OHM TH Laird-Signal Integrity Products	3,200	2.93	- + RFQ	Datasheet	Bulk	CM	Active	Power Line	2	170 Ohms @ 100 MHz	-	20A	1mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.395 L x 0.335 W (10.03mm x 8.51mm)	0.508 (12.90mm)
CM4545Z131B-10 CMC 10A 4LN 130 OHM TH Laird-Signal Integrity Products	2,461	3.18	- + RFQ	Datasheet	Bulk	CM	Active	Power Line	4	130 Ohms @ 100 MHz	-	10A	10mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.448 L x 0.448 W (11.38mm x 11.38mm)	0.374 (9.50mm)
B82792C2105N365 CMC 1MH 500MA 4LN SMD EPCOS - TDK Electronics	2,705	6.08	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82792	Active	Signal Line	4	-	1 mH @ 100 kHz	500mA	170mOhm (Typ)	80V	42V	-40°C ~ 125°C	-	-	-	Surface Mount	0.453 L x 0.413 W (11.50mm x 10.50mm)	0.287 (7.30mm)
P0469NLT CMC 11.6A 2LN SMD Pulse Electronics Power	2,141	4.66	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Power Line	2	-	-	11.6A	10mOhm	-	-	-40°C ~ 120°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
744212101 CMC 100UH 300MA 2LN 500 OHM SMD Würth Elektronik	998	4.50	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL1	Active	Power, Signal Line	2	500 Ohms @ 60 MHz	100 µH @ 100 kHz	300mA	220mOhm	80V	-	-40°C ~ 105°C	-	-	-	Surface Mount	0.256 L x 0.142 W (6.50mm x 3.60mm)	0.071 (1.80mm)
B82721A2202N001 CMC 1MH 2A 2LN TH EPCOS - TDK Electronics	2,592	3.30	- + RFQ	Datasheet	Tray	B82721	Active	Power Line	2	-	1 mH @ 100 kHz	2A	80mOhm (Typ)	-	250V	-40°C ~ 125°C	-	ENEC, UR, VDE	-	Through Hole	0.705 L x 0.681 W (17.90mm x 17.30mm)	0.496 (12.60mm)
