Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
CMS2-2-R CMC 40UH 4.4A 2LN SMD Eaton - Electronics Division	3,802	3.94	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	40 µH @ 100 kHz	4.4A	8mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
CMS2-11-R CMC 700UH 800MA 2LN SMD Eaton - Electronics Division	3,282	3.94	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	700 µH @ 100 kHz	800mA	230mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.350 L x 0.350 W (8.90mm x 8.90mm)	0.236 (6.00mm)
RN202-0.3-02-12M CMC 12MH 300MA 2LN TH Schaffner EMC Inc.	3,005	2.05	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	12 mH @ 10 kHz	300mA	1.1Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.346 W (18.20mm x 8.80mm)	0.543 (13.80mm)
RN202-0.6-02-4M4 CMC 4.4MH 600MA 2LN TH Schaffner EMC Inc.	3,180	2.05	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	4.4 mH @ 10 kHz	600mA	380mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.717 L x 0.346 W (18.20mm x 8.80mm)	0.543 (13.80mm)
SU9V-R03090 CMC 9MH 300MA 2LN TH KEMET	2,884	2.07	- + RFQ	Datasheet	Tray	SU	Active	Power Line	2	-	9 mH @ 1 kHz	300mA	3Ohm	-	250V	-25°C ~ 120°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.669 (17.00mm)
RN114-0.8-02-27M CMC 27MH 800MA 2LN TH Schaffner EMC Inc.	2,879	2.22	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	800mA	500mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
RN214-0.8-02-27M CMC 27MH 800MA 2LN TH Schaffner EMC Inc.	3,745	2.22	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	800mA	500mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)

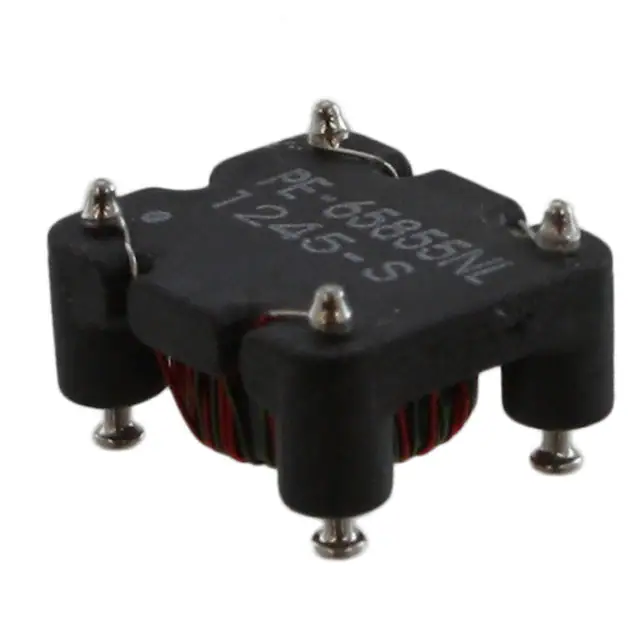

PE-65855NLT CMC 2LN SMD Pulse Electronics Network	2,086	4.35	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Signal Line	2	-	-	-	1Ohm	-	-	-	-	-	-	Surface Mount	0.400 L x 0.345 W (10.16mm x 8.76mm)	0.250 (6.35mm)
RN114-2.5-02-3M3 CMC 3.3MH 2.5A 2LN TH Schaffner EMC Inc.	3,197	2.25	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	2.5A	63mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.531 (13.50mm)
744272222 CMC 2.2MH 750MA 2LN 7.5KOHM SMD Würth Elektronik	3,728	3.35	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL5	Active	Signal Line	2	7.5 kOhms @ 4 MHz	2.2 mH @ 100 kHz	750mA	300mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.394 L x 0.343 W (10.00mm x 8.70mm)	0.256 (6.50mm)
744272392 CMC 3.9MH 520MA 2LN 9.6KOHM SMD Würth Elektronik	3,047	3.35	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL5	Active	Signal Line	2	9.6 kOhms @ 3 MHz	3.9 mH @ 100 kHz	520mA	540mOhm	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.394 L x 0.343 W (10.00mm x 8.70mm)	0.256 (6.50mm)
RN214-4-02-1M5 CMC 1.5MH 4A 2LN TH Schaffner EMC Inc.	2,051	2.31	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	1.5 mH @ 10 kHz	4A	34mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
RN214-2-02-4M2 CMC 4.2MH 2A 2LN TH Schaffner EMC Inc.	3,112	2.31	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	4.2 mH @ 10 kHz	2A	100mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.996 (25.30mm)
PA2746NL CMC 6A 2LN SMD Pulse Electronics Power	3,410	2.33	- + RFQ	Datasheet	Tube	-	Active	-	2	-	-	6A	4.3mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.508 L x 0.500 W (12.90mm x 12.70mm)	0.220 (5.60mm)

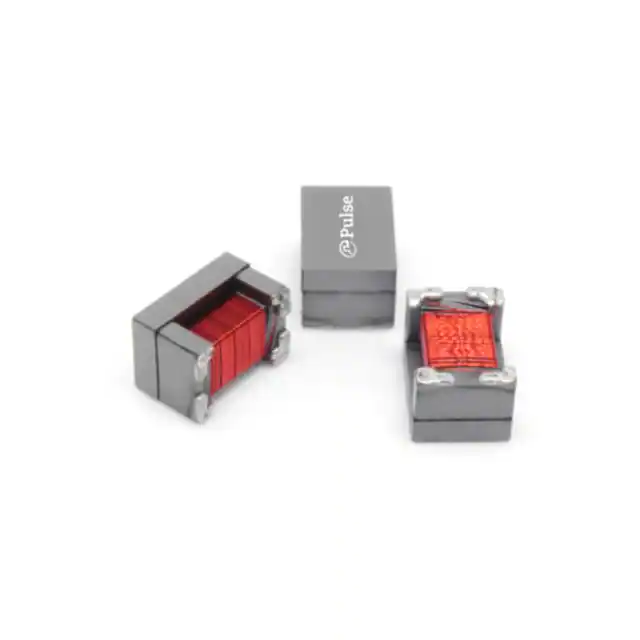

AE1210 CMC 1000BT-1 SMD 1210 Pulse Electronics Network	3,711	4.84	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200	Active	Signal Line	2	-	-	100mA	3.9mOhm (Typ)	60V	-	-40°C ~ 125°C	AEC-Q200	-	-	Surface Mount	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.096 (2.45mm)
CMS1-1-R CMC 4.5UH 7A 2LN SMD Eaton - Electronics Division	2,328	4.74	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	4.5 µH @ 100 kHz	7A	2.7mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.370 L x 0.283 W (9.40mm x 7.20mm)	0.102 (2.60mm)

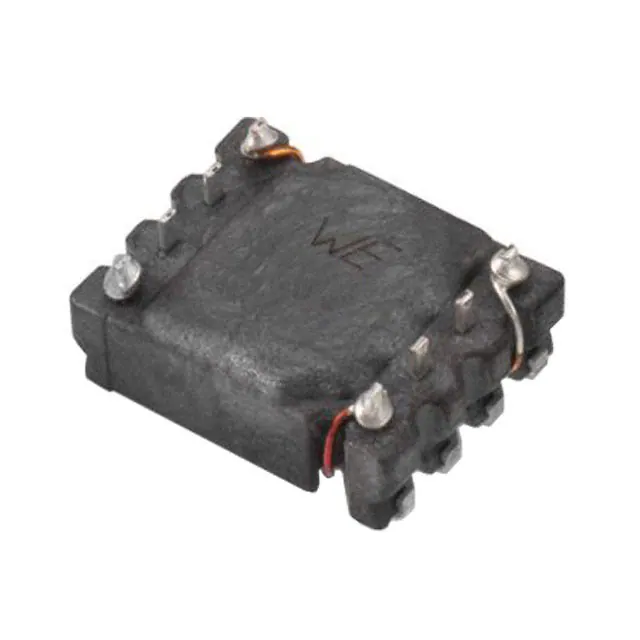

744206 CMC 60UH 2A 2LN SMD Würth Elektronik	2,505	3.13	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL	Active	Signal Line	2	-	60 µH @ 100 kHz	2A	-	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	-	0.238 (6.05mm)

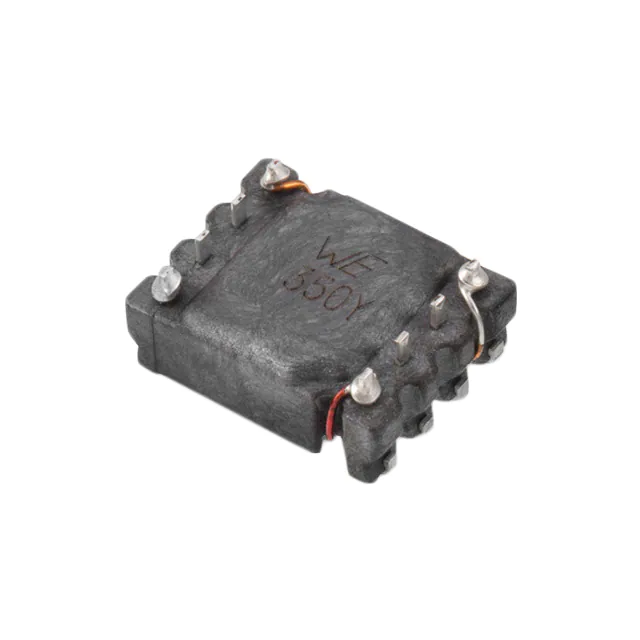

744207 CMC 35UH 2.7A 2LN SMD Würth Elektronik	3,542	3.13	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-SL	Active	Signal Line	2	-	35 µH @ 100 kHz	2.7A	-	80V	-	-40°C ~ 125°C	-	-	-	Surface Mount	-	0.238 (6.05mm)
PA2745NL CMC 5A 2LN SMD Pulse Electronics Power	2,193	2.26	- + RFQ	Datasheet	Tube	-	Active	Power Line	2	-	-	5A	6.75mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.220 (5.60mm)
CM2545X171B-10 CMC 10A 2LN 170 OHM TH Laird-Signal Integrity Products	2,340	2.39	- + RFQ	Datasheet	Bulk	CM	Active	Power Line	2	170 Ohms @ 100 MHz	-	10A	10mOhm	340V	-	-40°C ~ 125°C	-	-	-	Through Hole	0.448 L x 0.248 W (11.38mm x 6.30mm)	0.374 (9.50mm)
