Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
PH9455.405NL CMC 4.5MH 12A 2LN 4.4KOHM TH Pulse Electronics Power	3,545	9.07	- + RFQ	Datasheet	Tray	-	Active	-	2	4.4 kOhms @ 4 MHz	4.5 mH @ 4 MHz	12A	8.5mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.748 W (30.00mm x 19.00mm)	1.102 (28.00mm)
PH9455.105NL CMC 1MH 22A 2LN 1.5KOHM TH Pulse Electronics Power	506	9.07	- + RFQ	Datasheet	Tray	-	Active	-	2	1.5 kOhms @ 15.94 MHz	1 mH @ 15.94 MHz	22A	2.1mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.181 L x 0.748 W (30.00mm x 19.00mm)	1.102 (28.00mm)
CMT908-V4 CMC 16MH 2.6A 2LN TH ESD Triad Magnetics	3,030	9.11	- + RFQ	Datasheet	Bulk	CMT	Active	Power Line	2	-	16 mH @ 10 kHz	2.6A	160mOhm	-	1500V (1.5kV)	-40°C ~ 125°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	1.450 L x 0.800 W (36.83mm x 20.32mm)	1.500 (38.10mm)
CMT908-V1 CMC 2MH 7.5A 2LN TH ESD Triad Magnetics	2,515	9.11	- + RFQ	Datasheet	Bulk	CMT	Active	Power Line	2	-	2 mH @ 10 kHz	7.5A	20mOhm	-	1500V (1.5kV)	-40°C ~ 125°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	1.450 L x 0.800 W (36.83mm x 20.32mm)	1.500 (38.10mm)

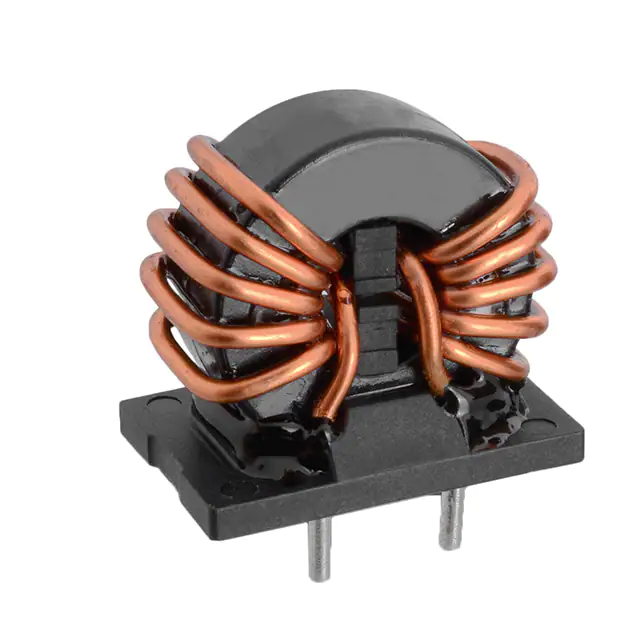

7448023005 CMC 5MH 3A 2LN TH Würth Elektronik	706	9.39	- + RFQ	Datasheet	Tray	WE-CMBNC	Active	Power Line	2	-	5 mH @ 10 kHz	3A	40mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.709 L x 0.551 W (18.00mm x 14.00mm)	0.866 (22.00mm)
7448025003 CMC 2.5MH 5A 2LN TH Würth Elektronik	406	9.39	- + RFQ	Datasheet	Tray	WE-CMBNC	Active	Power Line	2	-	2.5 mH @ 10 kHz	5A	15mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.709 L x 0.551 W (18.00mm x 14.00mm)	0.866 (22.00mm)

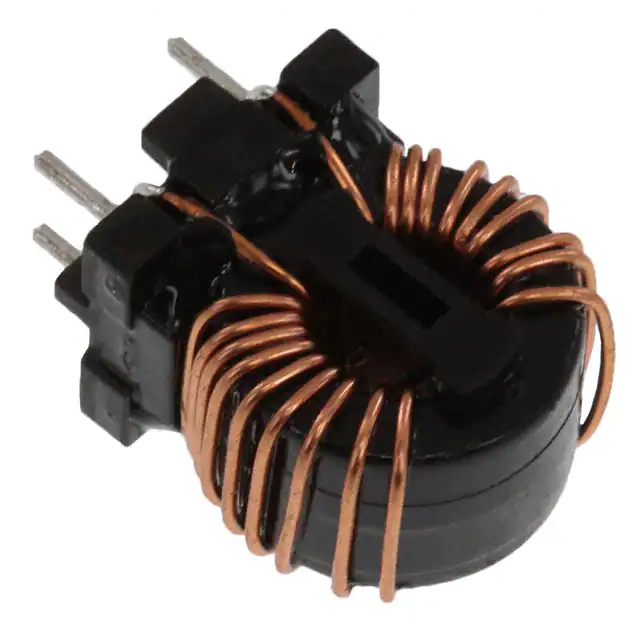

7448024503 CMC 3MH 4.5A 2LN TH Würth Elektronik	258	9.39	- + RFQ	Datasheet	Tray	WE-CMBNC	Active	Power Line	2	-	3 mH @ 10 kHz	4.5A	22mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.709 L x 0.551 W (18.00mm x 14.00mm)	0.866 (22.00mm)

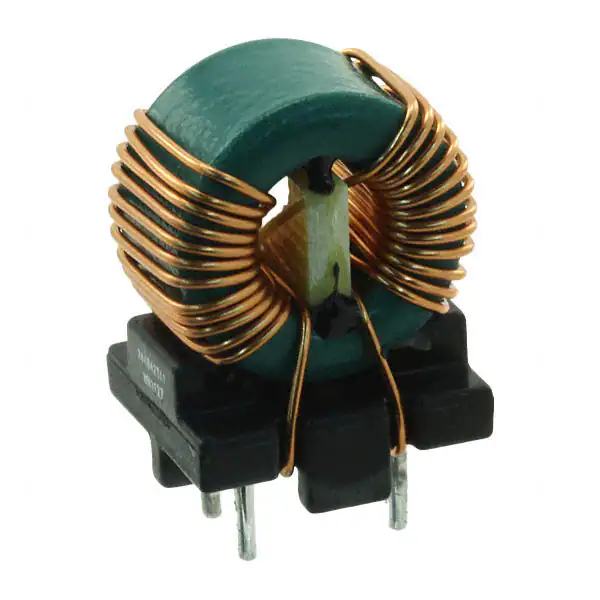

744842311 CMC 110UH 3A 2LN TH Würth Elektronik	3,484	9.60	- + RFQ	Datasheet	Tray	WE-CMB	Active	Power Line	2	-	110 µH @ 100 kHz	3A	31mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.728 L x 0.571 W (18.50mm x 14.50mm)	0.866 (22.00mm)
CMT-8121 CMC 1MH 20A 2LN TH ESD Triad Magnetics	3,874	10.08	- + RFQ	Datasheet	Bulk	CMT	Active	Power Line	2	-	1 mH @ 1 kHz	20A	7mOhm	-	1500V (1.5kV)	-55°C ~ 105°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	1.700 L x 0.900 W (43.18mm x 22.86mm)	1.650 (41.91mm)
CMT-8120 CMC 2.4MH 17A 2LN TH ESD Triad Magnetics	2,919	10.08	- + RFQ	Datasheet	Bulk	CMT	Active	Power Line	2	-	2.4 mH @ 1 kHz	17A	8mOhm	-	1500V (1.5kV)	-55°C ~ 105°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	1.700 L x 0.900 W (43.18mm x 22.86mm)	1.650 (41.91mm)
CMT-8119 CMC 4MH 14.5A 2LN TH ESD Triad Magnetics	2,975	10.08	- + RFQ	Datasheet	Bulk	CMT	Active	Power Line	2	-	4 mH @ 1 kHz	14.5A	12mOhm	-	1500V (1.5kV)	-55°C ~ 105°C	-	CSA, IEC, UL, VDE	ESD	Through Hole	1.700 L x 0.900 W (43.18mm x 22.86mm)	1.650 (41.91mm)

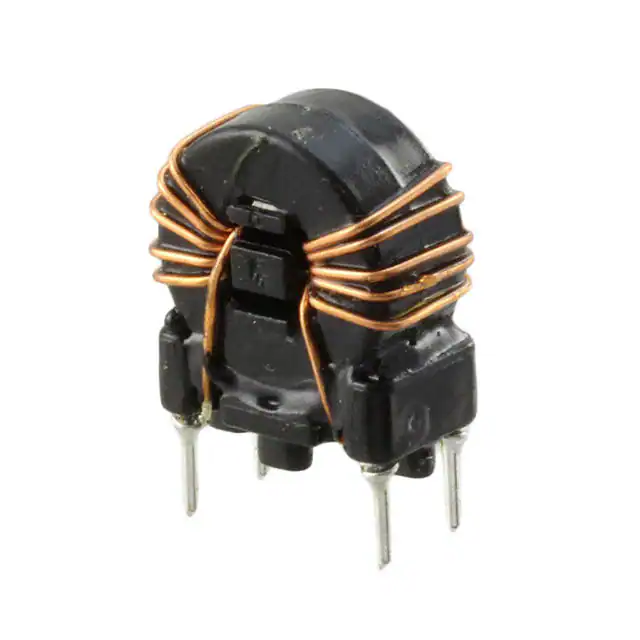

7448014501 CMC 400UH 4.5A 2LN TH Würth Elektronik	2,115	10.20	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	400 µH @ 10 kHz	4.5A	22mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.591 L x 0.295 W (15.00mm x 7.50mm)	0.630 (16.00mm)
T60405R6123X213 CMC 2.96MH 20MA 2LN 2.95KOHM TH VACUUMSCHMELZE	3,652	10.21	- + RFQ	Datasheet	Box	-	Active	-	2	2.95 kOhms @ 100 kHz	2.96 mH @ 100 kHz	20mA	-	-	-	-40°C ~ 130°C	-	-	-	Through Hole	1.398 Dia (35.50mm)	0.996 (25.30mm)
T60405R6123X616 CMC 3.1MH 23MA 2LN 3KOHM TH VACUUMSCHMELZE	854	10.71	- + RFQ	Datasheet	Box	-	Active	-	2	3 kOhms @ 100 kHz	3.1 mH @ 100 kHz	23mA	-	-	-	-40°C ~ 130°C	-	-	-	Through Hole	1.575 Dia (40.00mm)	1.665 (42.30mm)
CMC-05 CMC 5.2A 2LN TH Recom Power	457	11.03	- + RFQ	Datasheet	Tube	CMC	Active	Power Line	2	-	-	5.2A	25mOhm	-	-	-40°C ~ 105°C	-	-	-	Through Hole	0.433 L x 0.433 W (11.00mm x 11.00mm)	0.386 (9.80mm)

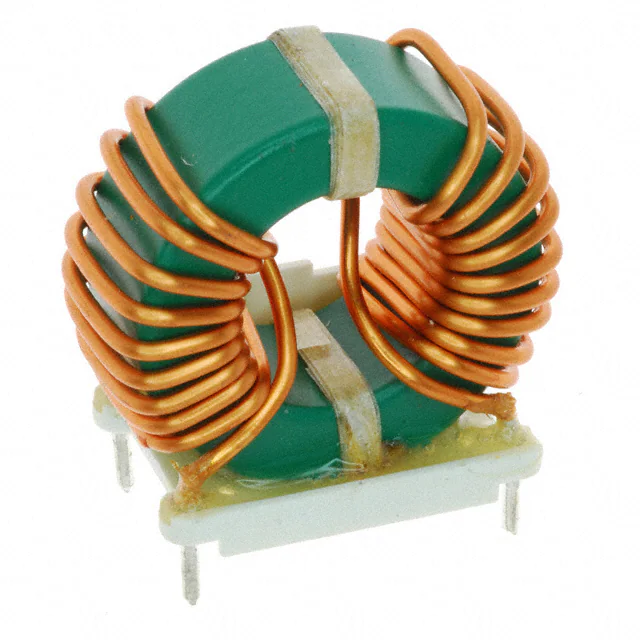

8121-RC CMC 1MH 20A 2LN TH Bourns Inc.	558	11.79	- + RFQ	Datasheet	Bulk	8100	Active	-	2	-	1 mH @ 1 kHz	20A	7mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.700 L x 0.900 W (43.18mm x 22.86mm)	1.650 (41.91mm)
B82726E6213A040 CMC 1.5MH 21A 2LN TH EPCOS - TDK Electronics	731	12.16	- + RFQ	Datasheet	Tray	B82726	Active	Power Line	2	-	1.5 mH @ 10 kHz	21A	2.8mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	UR	-	Through Hole	1.890 Dia x 1.024 L (48.00mm x 26.00mm)	1.772 (45.00mm)
B82726S2163N030 CMC 2.2MH 16A 2LN TH EPCOS - TDK Electronics	3,916	12.58	- + RFQ	Datasheet	Tray	B82726	Active	Power Line	2	-	2.2 mH @ 10 kHz	16A	7.1mOhm (Typ)	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.969 L x 0.906 W (50.00mm x 23.00mm)	1.929 (49.00mm)

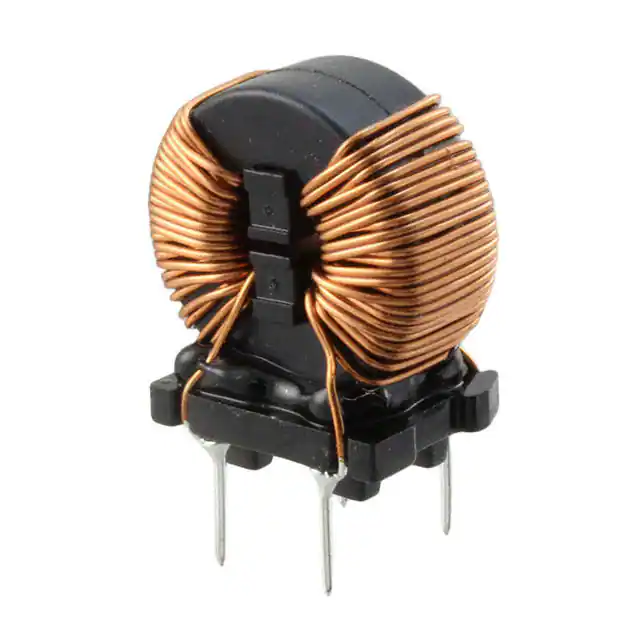

7448030333 CMC 33MH 2.5A 2LN TH Würth Elektronik	596	12.90	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	33 mH @ 10 kHz	2.5A	90mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.866 L x 0.531 W (22.00mm x 13.50mm)	0.984 (25.00mm)

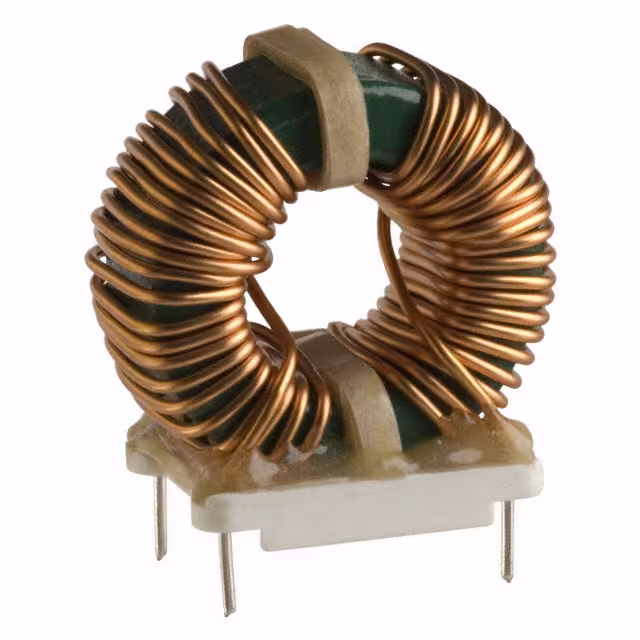

8113-RC CMC 5MH 8.9A 2LN TH Bourns Inc.	2,623	11.27	- + RFQ	Datasheet	Bulk	8100	Active	-	2	-	5 mH @ 1 kHz	8.9A	22mOhm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	1.450 L x 0.800 W (36.83mm x 20.32mm)	1.500 (38.10mm)
