Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

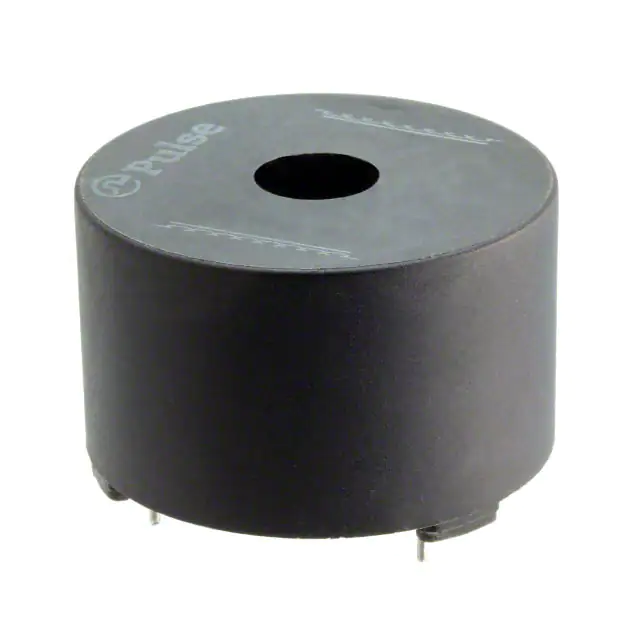

PE-96190NL CMC 15A 2LN TH Pulse Electronics Power	360	13.14	- + RFQ	Datasheet	Tray	-	Active	Power Line	2	-	-	15A (Typ)	10mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.700 Dia (43.18mm)	1.030 (26.16mm)
CM6350R-105 CMC 1MH 900MA 2LN SMD API Delevan Inc.	3,367	13.34	- + RFQ	Datasheet	Bulk	CM6350R	Active	Power Line	2	-	1 mH @ 10 kHz	900mA	130mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.360 L x 0.360 W (9.14mm x 9.14mm)	0.210 (5.33mm)
CM6350R-104 CMC 100UH 3.3A 2LN SMD API Delevan Inc.	2,964	13.34	- + RFQ	Datasheet	Bulk	CM6350R	Active	Power Line	2	-	100 µH @ 10 kHz	3.3A	14mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.360 L x 0.360 W (9.14mm x 9.14mm)	0.210 (5.33mm)
CM6350R-475 CMC 4.7MH 250MA 2LN SMD API Delevan Inc.	2,722	13.34	- + RFQ	Datasheet	Bulk	CM6350R	Active	Power Line	2	-	4.7 mH @ 10 kHz	250mA	1.05Ohm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.360 L x 0.360 W (9.14mm x 9.14mm)	0.210 (5.33mm)
CM6350R-224 CMC 220UH 2.2A 2LN SMD API Delevan Inc.	2,715	13.34	- + RFQ	Datasheet	Bulk	CM6350R	Active	Power Line	2	-	220 µH @ 10 kHz	2.2A	27mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.360 L x 0.360 W (9.14mm x 9.14mm)	0.210 (5.33mm)
CM6350R-474 CMC 470UH 1.5A 2LN SMD API Delevan Inc.	954	13.34	- + RFQ	Datasheet	Bulk	CM6350R	Active	Power Line	2	-	470 µH @ 10 kHz	1.5A	60mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.360 L x 0.360 W (9.14mm x 9.14mm)	0.210 (5.33mm)
CM6350R-684 CMC 680UH 1.2A 2LN SMD API Delevan Inc.	792	13.34	- + RFQ	Datasheet	Bulk	CM6350R	Active	Power Line	2	-	680 µH @ 10 kHz	1.2A	90mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.360 L x 0.360 W (9.14mm x 9.14mm)	0.210 (5.33mm)
CM6350R-473 CMC 47UH 5A 2LN SMD API Delevan Inc.	553	13.34	- + RFQ	Datasheet	Bulk	CM6350R	Active	Power Line	2	-	47 µH @ 10 kHz	5A	8mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.360 L x 0.360 W (9.14mm x 9.14mm)	0.210 (5.33mm)
SC-30-100 CMC 1MH 30A 2LN TH KEMET	122	15.83	- + RFQ	Datasheet	Bulk	SC	Active	Power Line	2	-	1 mH @ 100 kHz	30A	6mOhm	250V	250V	-25°C ~ 105°C	-	-	-	Through Hole	2.441 Dia (62.00mm)	1.378 (35.00mm)
CM6460R-334 CMC 330UH 4A 2LN SMD API Delevan Inc.	3,411	16.42	- + RFQ	Datasheet	Bulk	CM6460R	Active	-	2	-	330 µH @ 10 kHz	4A	17mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.530 L x 0.530 W (13.46mm x 13.46mm)	0.300 (7.62mm)
CM6460R-224 CMC 220UH 5A 2LN SMD API Delevan Inc.	2,910	16.42	- + RFQ	Datasheet	Bulk	CM6460R	Active	-	2	-	220 µH @ 10 kHz	5A	12mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.530 L x 0.530 W (13.46mm x 13.46mm)	0.300 (7.62mm)
B82727E6503A040 CMC 570UH 50A 2LN TH EPCOS - TDK Electronics	2,319	16.44	- + RFQ	Datasheet	Tray	B82727	Active	Power Line	2	-	570 µH @ 100 kHz	50A	1mOhm (Typ)	1000V (1kV)	600V	-40°C ~ 125°C	-	UR	-	Through Hole	2.559 L x 1.378 W (65.00mm x 35.00mm)	2.402 (61.00mm)

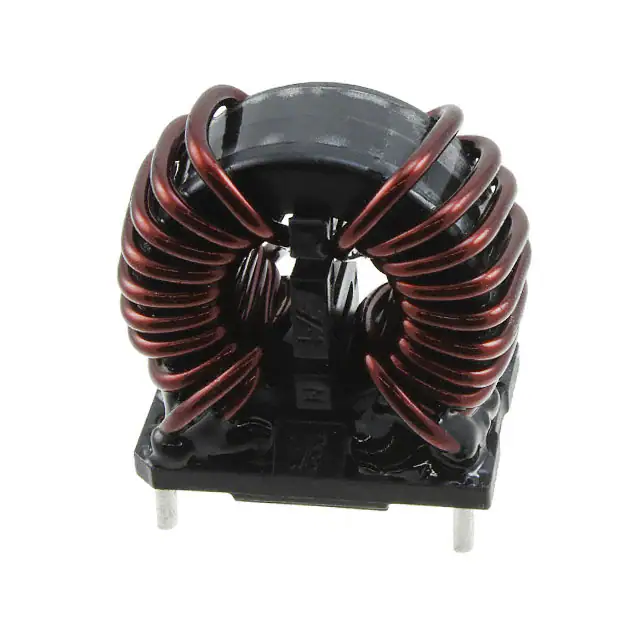

7448052303 CMC 3MH 23A 2LN TH Würth Elektronik	864	16.65	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	3 mH @ 10 kHz	23A	3mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.417 L x 0.906 W (36.00mm x 23.00mm)	1.417 (36.00mm)

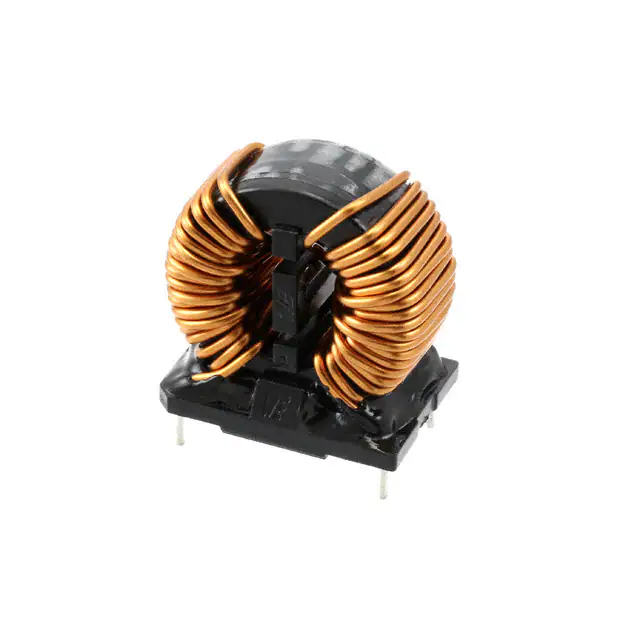

7448051012 CMC 12MH 10A 2LN TH Würth Elektronik	856	16.65	- + RFQ	Datasheet	Bulk	WE-CMBNC	Active	Power Line	2	-	12 mH @ 10 kHz	10A	15mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	1.339 L x 0.906 W (34.00mm x 23.00mm)	1.417 (36.00mm)
CM6560R-184 CMC 180UH 7A 2LN SMD API Delevan Inc.	2,862	17.15	- + RFQ	Datasheet	Bulk	CM6560R	Active	-	2	-	180 µH @ 10 kHz	7A	7mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.320 (8.13mm)
CM6560R-104 CMC 100UH 8.5A 2LN SMD API Delevan Inc.	3,353	17.15	- + RFQ	Datasheet	Bulk	CM6560R	Active	-	2	-	100 µH @ 10 kHz	8.5A	5mOhm	-	-	-55°C ~ 105°C	-	-	-	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.320 (8.13mm)
DKIH-3242-257K-NK CMC 25A 2LN TH Schurter Inc.	690	25.45	- + RFQ	Datasheet	Bulk	DKIH	Active	-	2	-	-	25A	1.6mOhm	-	-	-40°C ~ 100°C	-	ENEC, UR	-	Through Hole	1.693 Dia (43.00mm)	1.024 (26.00mm)
T60405S6123X240 CMC 810UH 350MA 2LN 680 OHM TH VACUUMSCHMELZE	2,180	34.53	- + RFQ	Datasheet	Box	-	Active	-	3	680 Ohms @ 100 kHz	810 µH @ 100 kHz	350mA	-	-	-	-55°C ~ 60°C	-	-	-	Through Hole	2.752 Dia (69.90mm)	1.469 (37.30mm)

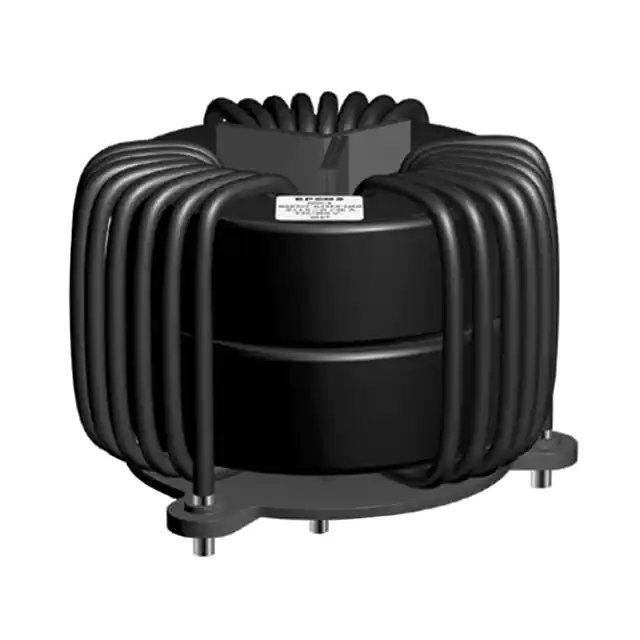

B82747S4423N020 CMC 1.5MH 42A 3LN TH EPCOS - TDK Electronics	176	30.25	- + RFQ	Datasheet	Tray	B82747	Active	Power Line	3	-	1.5 mH @ 10 kHz	42A	2.6mOhm (Typ)	-	440/250V	-40°C ~ 125°C	-	-	-	Through Hole	2.677 Dia (68.00mm)	1.299 (33.00mm)

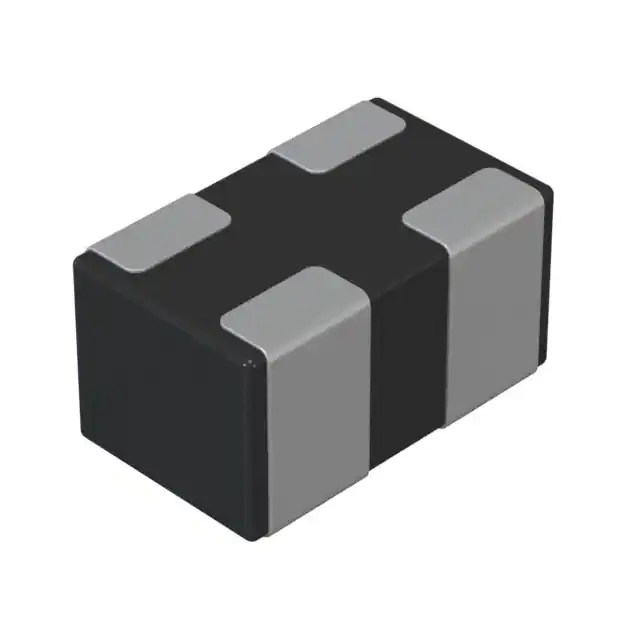

DLM0NSM900HY2D CMC 100MA 2LN 90 OHM SMD Murata Electronics	2,840	0.13	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DLM0NS	Active	Signal Line	2	90 Ohms @ 100 MHz	-	100mA	4Ohm	5V	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.033 L x 0.026 W (0.85mm x 0.65mm)	0.020 (0.50mm)
