| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WO-5718M-02S-ROSTEPPER MOTOR |
3,024 | 72.80 |
RFQ |
Datasheet |
Bulk | - | Active | - | Bipolar | 24VDC | 2.1 A | 200 | 1.8° | - | 173 / 1222 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.236 (6.00mm) | 0.827 (21.00mm) | 1.850 (47.00mm) | Wire Leads | -20°C ~ 50°C | 1.8 Ohms |
|

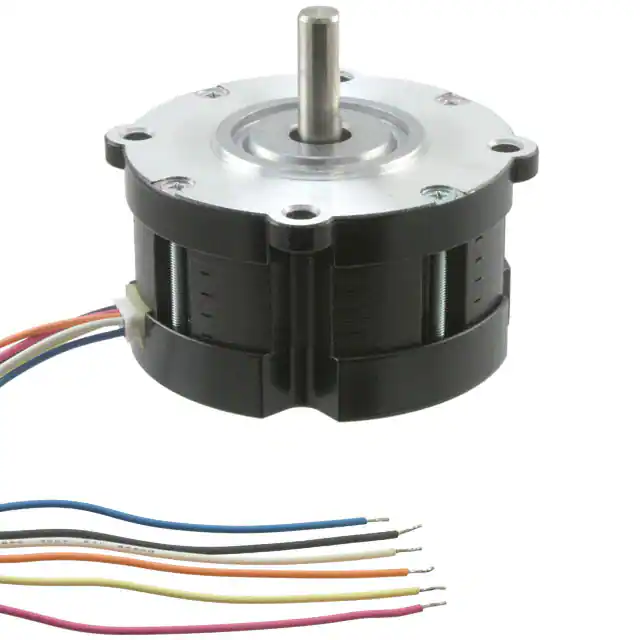

29SM-K550-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
2,489 | 78.53 |
RFQ |
Datasheet |
Bulk | 29SM | Active | Hybrid | Unipolar | 24VDC | 1.5 A | 200 | 1.8° | ±5% | 53.82 / 380 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 2.1 Ohms |
|

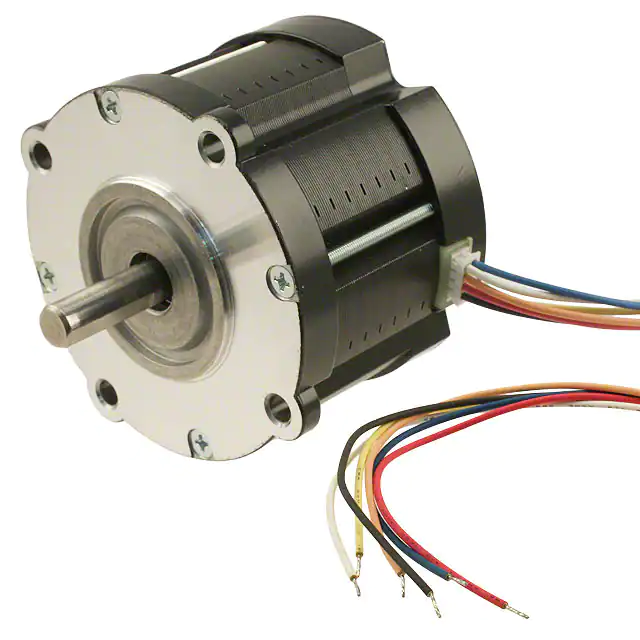

29SM-K379-00VSTEP MOTOR HYBRID UNIPOLAR 24V |
2,816 | 87.16 |
RFQ |
Datasheet |
Bulk | 29SM | Active | Hybrid | Unipolar | 24VDC | 1.9 A | 200 | 1.8° | ±5% | 116.14 / 820 | Round - 2.795 Dia (71.00mm) | - | 0.315 (8.00mm) | 0.984 (25.00mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.75 Ohms |
|
NEMA17-16-06SD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
3,551 | 111.83 |
RFQ |
Datasheet |
Box | NEMA17-AMT112S | Active | - | Bipolar | 24 ~ 48VDC | 700 mA | 200 | 1.8° | ±0.2% | 63 / 444.88 | Square - 1.669 x 1.669 (42.40mm x 42.40mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -20°C ~ 50°C | 10.8 Ohms |
|
NEMA23-17-01SD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
3,421 | 123.09 |
RFQ |
Datasheet |
Box | NEMA23-AMT112S | Active | - | Bipolar | 24 ~ 80VDC | 1.4 A | 200 | 1.8° | ±0.2% | 85 / 600.23 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.819 (46.20mm) | Connector | -20°C ~ 50°C | 2.8 Ohms |
|
|
NEMA23-17-01PD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
2,878 | 123.09 |
RFQ |
Datasheet |
Box | NEMA23-AMT112S | Active | - | Bipolar | 24 ~ 80VDC | 2.8 A | 200 | 1.8° | ±0.2% | 85 / 600.23 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.819 (46.20mm) | Connector | -20°C ~ 50°C | 0.7 Ohms |
|
34KM-K006-00WSTEP MOTOR HYBRID UNIPOLAR 24V |
2,269 | 133.92 |
RFQ |
Datasheet |
Bulk | 34KM | Active | Hybrid | Unipolar | 24VDC | 4.8 A | 200 | 1.8° | ±5% | 354.07 / 2500 | Square - 3.347 x 3.347 (85.00mm x 85.00mm) | 34 | 0.551 (14.00mm) | 1.457 (37.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.45 Ohms |
|
NEMA08-17-01D-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
2,660 | 144.67 |
RFQ |
Datasheet |
Box | NEMA08-AMT112S | Active | - | Bipolar | 24 ~ 48VDC | 800 mA | 200 | 1.8° | ±0.2% | 4 / 28.25 | Square - 0.799 x 0.799 (20.30mm x 20.30mm) | 8 | 0.157 (4.00mm) | 0.591 (15.00mm) | 0.630 (16.00mm) | Connector | -20°C ~ 50°C | 5.4 Ohms |
|
PD60-4H-1278-CANOPENPANDRIVE NEMA24, 48V, 3NM |
3,355 | 411.24 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.1VDC | 9 A | 200 | 1.8° | ±5% | 424.93 / 3000 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 15 Ohms | |
|
|
PD60-4H-1278-TMCLPANDRIVE NEMA24, 48V, 3NM |
2,020 | 411.24 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.1VDC | 9 A | 200 | 1.8° | ±5% | 424.93 / 3000 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.15 Ohms | |
|
|
PD60-4-1378-CANOPENPANDRIVE NEMA24, 48V, 3.1NM |
2,676 | 578.04 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 1.5 Ohms | |
|
|
PD60-4H-1378-TMCLPANDRIVE NEMA24, 48V, 3.1NM |
2,036 | 583.84 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.1VDC | 9 A | 200 | 1.8° | ±5% | 424.93 / 3000 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.15 Ohms | |
|

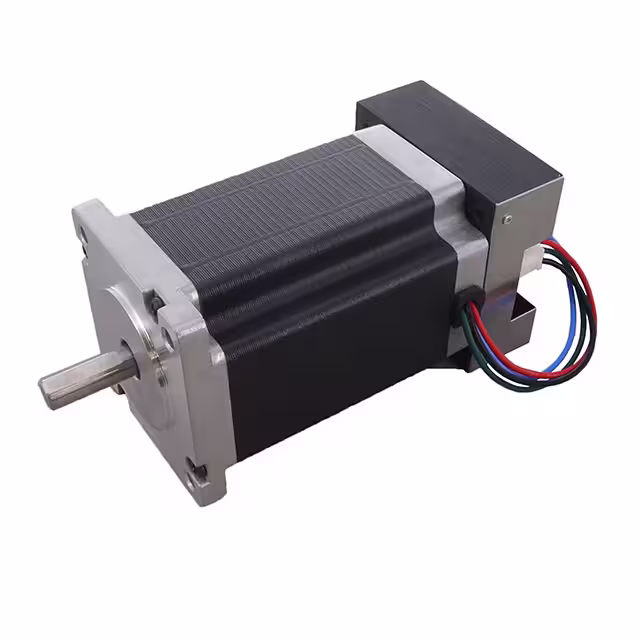

PD60-4H-1378-CANOPENPANDRIVE NEMA24, 48V, 3.1NM |
2,694 | 583.84 |
RFQ |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 2.1VDC | 9 A | 200 | 1.8° | ±5% | 424.93 / 3000 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | - | - | - | Wire Leads with Connector | -20°C ~ 50°C | 0.15 Ohms | |
|
PM20S-180-021PERMANENT MAGNET STEPPER MOTOR |
3,893 | 21.41 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 12VDC | 0.21 A | 20 | 18° | - | 1.18 / 8.34 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 25 Ohms |
|
|
PM20L-180-043PERMANENT MAGNET STEPPER MOTOR |
3,848 | 21.83 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 12VDC | 0.43 A | 20 | 18° | - | 1.7 / 11.8 | Round - 0.787 Dia (20.00mm) | - | 0.059 (1.50mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 7 Ohms |
|
|
PM25S-075-050PERMANENT MAGNET STEPPER MOTOR |
2,192 | 21.83 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 12VDC | 0.5 A | 48 | 7.5° | - | 2.2 / 15.7 | Round - 0.984 Dia (25.00mm) | - | 0.079 (2.00mm) | 0.394 (10.00mm) | 1.260 (32.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 6 Ohms |
|
|
PM35S-075-015PERMANENT MAGNET STEPPER MOTOR |
2,675 | 24.66 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 0.15 A | 48 | 7.5° | - | 6.4 / 45.2 | Round - 1.650 Dia (42.00mm) | - | 0.118 (3.00mm) | 0.394 (10.00mm) | 1.650 (42.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 80 Ohms |
|

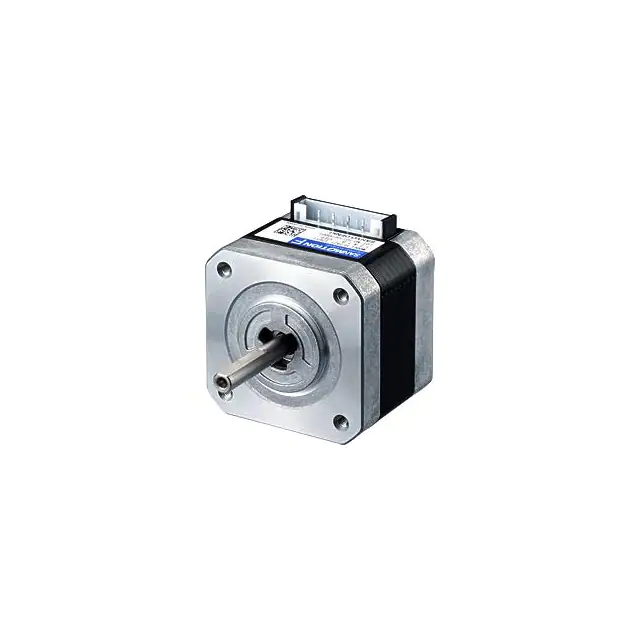

SF2421-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA |
2,766 | 25.00 |
RFQ |
Datasheet |
Box | SF | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 41.07 / 290 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 3.6 Ohms |
|
SF2422-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA |
2,780 | 25.83 |
RFQ |
Datasheet |
Box | SF | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 60.89 / 430 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 4.6 Ohms |
|

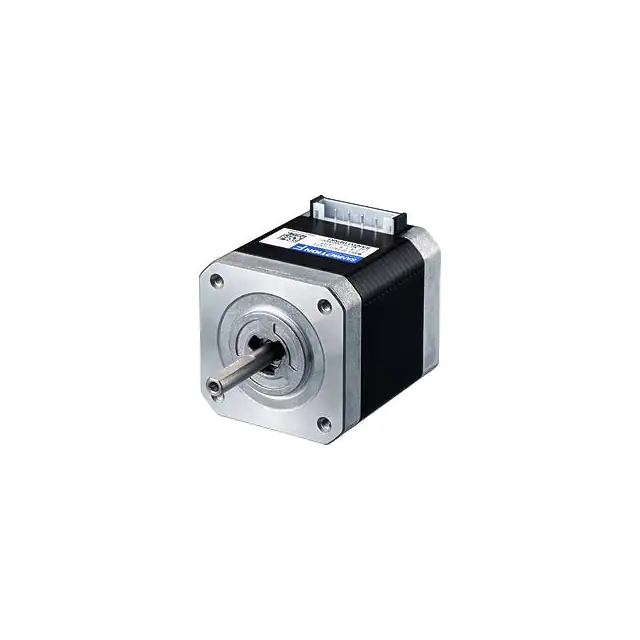

SF2423-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA |
2,982 | 29.16 |
RFQ |
Datasheet |
Box | SF | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 79.3 / 560 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 5.3 Ohms |
