| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP2566-5260STEP, F2, SQ.56, 1.8, IP65, , BI |
3,686 | 109.58 |
RFQ |
Datasheet |
Box | SP | Active | Hybrid | Bipolar | 100VAC | 3 A | 200 | 1.8° | - | 240.7 / 1700 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1 Ohms |
|
SM2861-5252STEP, F2, SQ.86, 1.8, HALF INCH |
2,114 | 110.29 |
RFQ |
Box | - | Active | Hybrid | Bipolar | 100VAC | 6 A | 200 | 1.8° | - | 467.3 / 3300 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.29 Ohms | |
|
|
SM2861-5152STEP, F2, SQ.86, 1.8, HALF INCH |
3,084 | 110.29 |
RFQ |
Box | - | Active | Hybrid | Bipolar | 100VAC | 4 A | 200 | 1.8° | - | 467.3 / 3300 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 560 Ohms | |
|
|
SM2861-5122STEP, F2, SQ.86, 1.8, HALF INCH |
2,342 | 110.29 |
RFQ |
Box | - | Active | Hybrid, Dual Shaft | Bipolar | 100VAC | 4 A | 200 | 1.8° | - | 467.3 / 3300 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 560 Ohms | |
|
|
SP2563-5200STEP, F2, SQ.56, 1.8, IP65, , BI |
2,555 | 113.83 |
RFQ |
Datasheet |
Box | SP | Active | Hybrid | Bipolar | 100VAC | 3 A | 200 | 1.8° | - | 141.6 / 1000 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | -10°C ~ 50°C | 0.75 Ohms |
|
|
SP2566-5200STEP, F2, SQ.56, 1.8, IP65, , BI |
2,660 | 120.19 |
RFQ |
Datasheet |
Box | SP | Active | Hybrid | Bipolar | 100VAC | 3 A | 200 | 1.8° | - | 240.7 / 1700 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | -10°C ~ 50°C | 1 Ohms |
|
PBM603FXE20PB, PB, SQ.60, FOR PB3D, , |
3,078 | 5.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 184.1 / 1300 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 0.394 (10.00mm) | 0.811 (20.60mm) | 1.969 (50.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|

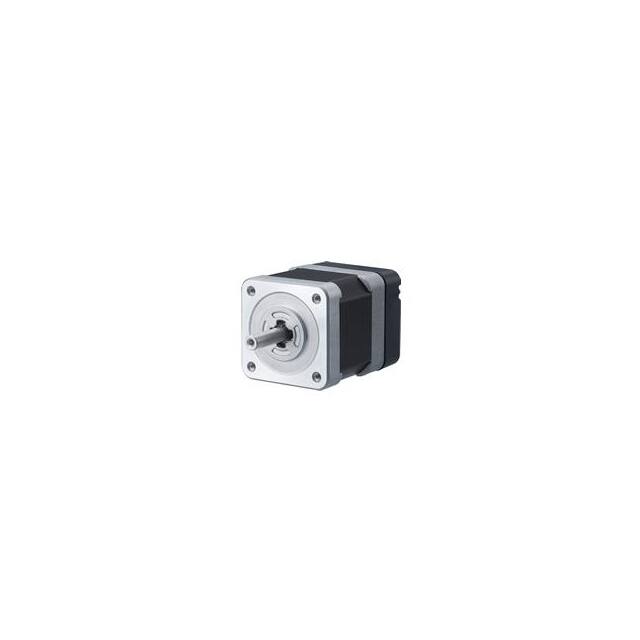

PBM423FXE20PB, PB, SQ.42, FOR PB3D, , |
3,219 | 2.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 55.23 / 390 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.236 (6.00mm) | 0.811 (20.60mm) | 1.220 (31.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|
|
SM2862-5252STEP, F2, SQ.86, 1.8, HALF INCH |
3,405 | 152.71 |
RFQ |
Box | - | Active | Hybrid | Bipolar | 100VAC | 6 A | 200 | 1.8° | - | 906.3 / 6400 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.36 Ohms | |
|
|
SM2862-5122STEP, F2, SQ.86, 1.8, HALF INCH |
2,117 | 152.71 |
RFQ |
Box | - | Active | Hybrid, Dual Shaft | Bipolar | 100VAC | 4 A | 200 | 1.8° | - | 906.3 / 6400 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.8 Ohms | |
|

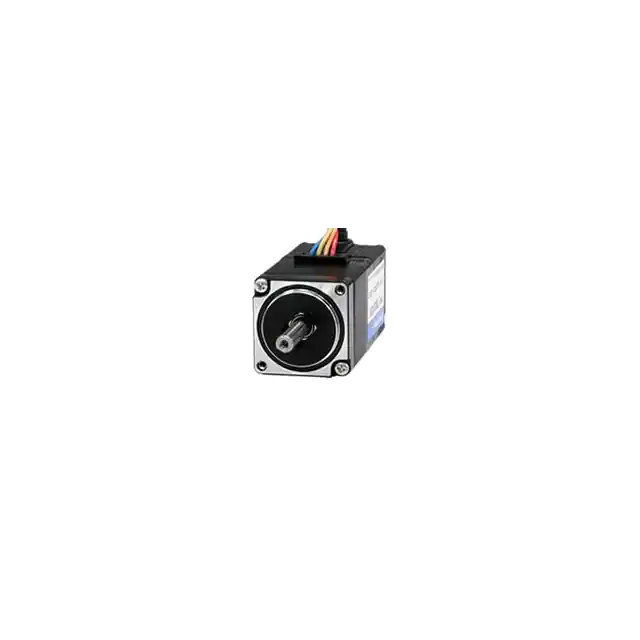

PBM282FXE20PB, PB, SQ.28, FOR PB3D, , |
2,924 | 1.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 7.79 / 55 | - | - | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|
|
PBM284FXE20PB, PB, SQ.28, FOR PB3D, , |
2,926 | 2.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 21.95 / 155 | - | - | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.906 (23.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|
PBM281DXE50PB, PB, SQ.28, FOR PB4D003P340 |
3,476 | 4.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 7.79 / 55 | - | - | 0.197 (5.00mm) | 0.591 (15.00mm) | 0.906 (23.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|
PBM423DXK50PB, PB, SQ.42, FOR PB4D003P340 |
2,323 | 4.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 55.23 / 390 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.236 (6.00mm) | 0.811 (20.60mm) | 1.220 (31.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|
|
PBM285DXE50PB, PB, SQ.28, FOR PB4D003P340 |
3,185 | 4.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 21.95 / 155 | - | - | 0.197 (5.00mm) | 0.591 (15.00mm) | 0.906 (23.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|

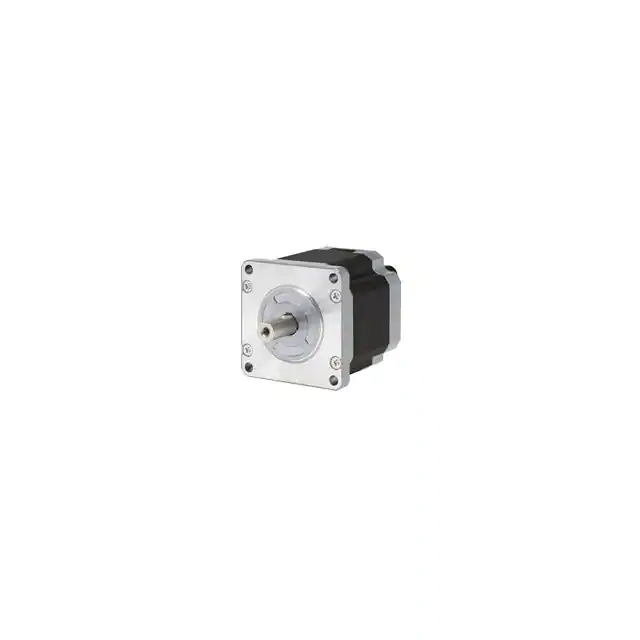

PBM603DXK50PB, PB, SQ.60, FOR PB4D003P340 |
3,750 | 3.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 148.7 / 1050 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 0.394 (10.00mm) | 0.811 (20.60mm) | 1.969 (50.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|
|
SM2863-5122STEP, F2, SQ.86, 1.8, HALF INCH |
2,279 | 195.13 |
RFQ |
Box | - | Active | Hybrid, Dual Shaft | Bipolar | 100VAC | 4 A | 200 | 1.8° | - | 1275 / 9000 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | 34 | 0.500 (12.70mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 1 Ohms | |
|

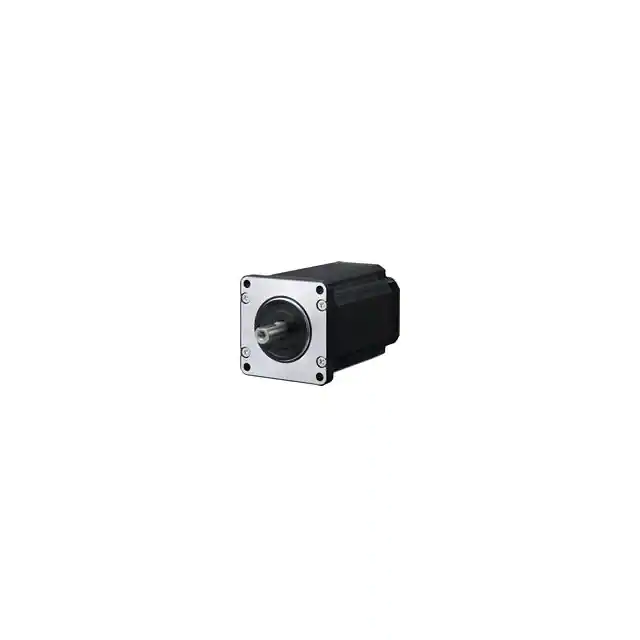

PBM604FXK30-MPB, PB, SQ.60, FOR PB4A, , |
2,617 | 2.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 200VAC | - | - | - | - | 269.1 / 1900 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 0.394 (10.00mm) | 0.811 (20.60mm) | 1.969 (50.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|
|
PBM604DXK50PB, PB, SQ.60, FOR PB4D003P340 |
2,247 | 2.00 |
RFQ |
Datasheet |
Box | PBM | Active | Hybrid | Bipolar | 48VDC | - | - | - | - | 262 / 1850 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 0.394 (10.00mm) | 0.811 (20.60mm) | 1.969 (50.00mm) | Wire Leads with Connector | -10°C ~ 40°C | |
|
SP2862-5260STEP, F2, SQ.86, 1.8, IP65, , BI |
3,383 | 222.00 |
RFQ |
Datasheet |
Box | SP | Active | Hybrid | Bipolar | 100VAC | 6 A | 200 | 1.8° | - | 906.3 / 6400 | Square - 3.386 x 3.386 (86.00mm x 86.00mm) | - | 0.551 (14.00mm) | 1.181 (30.00mm) | 2.740 (69.60mm) | Wire Leads | -10°C ~ 50°C | 0.41 Ohms |
