| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SF2424-10B41STEP, F2, SQ.42, 1.8, , , BIPOLA |
3,369 | 30.83 |
RFQ |
Datasheet |
Box | SF | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 113.30 / 800 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 6.5 Ohms |
|
|

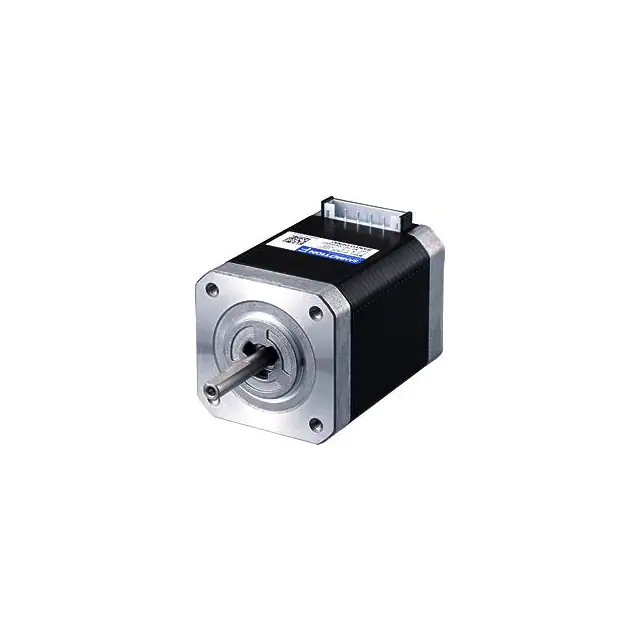

SF2424-10B11STEP, F2, SQ.42, 1.8, , , BIPOLA |
2,452 | 30.83 |
RFQ |
Datasheet |
Box | SF | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 113.30 / 800 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Connector | -10°C ~ 50°C | 6.5 Ohms |
|

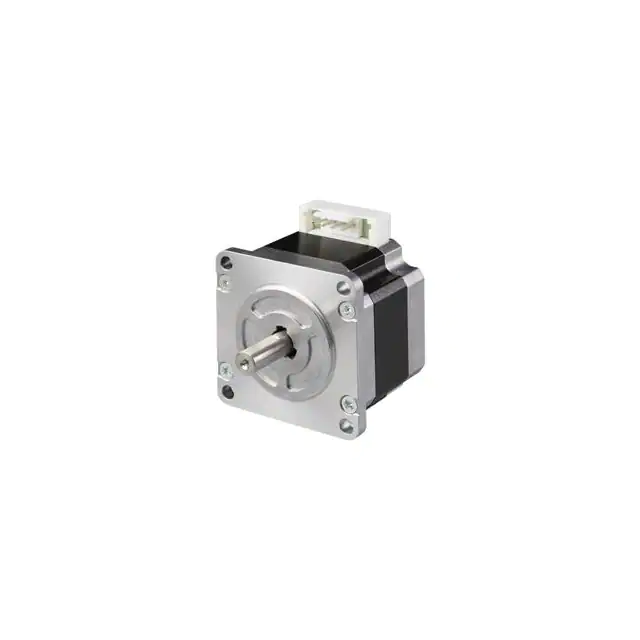

SM2561C20B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3,383 | 35.00 |
RFQ |
Datasheet |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 106.2 / 750 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 1.1 Ohms |
|
|
SM2561C40B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3,483 | 35.00 |
RFQ |
Datasheet |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 106.2 / 750 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.28 Ohms |
|
|
SM2561C60B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3,642 | 35.00 |
RFQ |
Datasheet |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 6 A | 200 | 1.8° | - | 106.2 / 750 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.14 Ohms |
|
1476STPR MTR UNI/BIPLR 5.7V 1A/PHSE |
3,802 | 36.95 |
RFQ |
Datasheet |
- | - | Active | Hybrid | Unipolar | 5.7VDC | 1 A | 200 | 1.8° | - | 55 / 388.39 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.854 (47.10mm) | Wire Leads | -20°C ~ 50°C | 5.7 Ohms |
|
|
SM2562C60B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2,308 | 39.16 |
RFQ |
Datasheet |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 6 A | 200 | 1.8° | - | 198.3 / 1400 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.18 Ohms |
|
|
SM2562C40B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
3,759 | 39.16 |
RFQ |
Datasheet |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 198.3 / 1400 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.37 Ohms |
|
WO-417-09-18STEPPER MOTOR |
3,985 | 40.49 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 12 / 84.74 | Square - 1.650 L x 1.650 W (41.90mm x 41.90mm) | 17 | 0.197 (5.00mm) | 0.787 (20.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 10 Ohms |
|
17PM-K440CN05CNMOTOR, STEP, 1.8 DEG, NEMA 17 |
2,538 | 43.94 |
RFQ |
Datasheet |
Tray | - | Active | Hybrid | - | 2.4V | 2 A | - | 1.8° | - | 63.7 / 450 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | - | 0.490 (12.45mm) | 1.220 (31.00mm) | Connector | - | - |
|

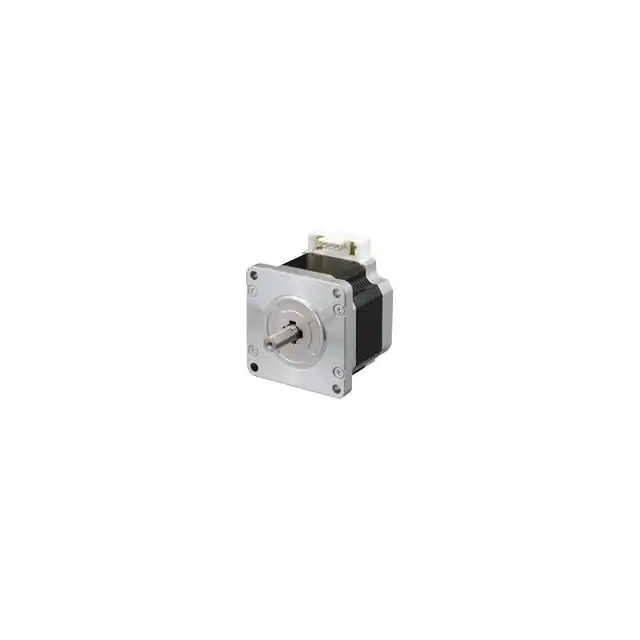

103H7821-1730STEP, F2, SQ.60, 1.8, NEMA, , BI |
2,481 | 43.94 |
RFQ |
Datasheet |
Box | H | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 124.6 / 880 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 23 | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 0.35 Ohms |
|
|
SM2563C20B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2,343 | 45.40 |
RFQ |
Datasheet |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 333 / 2350 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 2.1 Ohms |
|
|
SM2563C60B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2,333 | 45.40 |
RFQ |
Datasheet |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 6 A | 200 | 1.8° | - | 333 / 2350 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.25 Ohms |
|
WO-4109R-08STEPPER MOTOR |
3,262 | 45.97 |
RFQ |
Datasheet |
Tray | - | Active | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 22 / 155.4 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | 17 | 0.197 (5.00mm) | 0.591 (15.00mm) | 1.220 (31.00mm) | Wire Leads | -20°C ~ 50°C | 11.6 Ohms |
|
SS2501-8040PSTEP, F2, SQ.50, 1.8, PANCAKE TY |
2,750 | 46.13 |
RFQ |
Datasheet |
Box | SS | Active | Hybrid | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 14.16 / 100 | Square - 1.969 x 1.969 (50.00mm x 50.00mm) | - | 0.197 (5.00mm) | 0.197 (5.00mm) | 1.614 (41.00mm) | Wire Leads | -10°C ~ 50°C | 4.5 Ohms |
|
SH1424-5241STEP, F2, SQ.42, 0.9, , , BIPOLA |
2,615 | 48.33 |
RFQ |
Datasheet |
Box | SH | Active | Hybrid | Bipolar | 24VDC | 2 A | 400 | 0.9° | - | 67.97 / 480 | Square - 1.654 x 1.654 (42.00mm x 42.00mm) | - | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | -10°C ~ 50°C | 1.25 Ohms |
|
|
SM2564C20B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2,355 | 49.06 |
RFQ |
Datasheet |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 354 / 2500 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 2.1 Ohms |
|
|
SM2564C40B41PF2, 56 SQ., 1.8, BIPOLAR/SINGLE |
2,660 | 49.06 |
RFQ |
Datasheet |
Bulk | SM | Active | Hybrid | Bipolar | 24VDC | 4 A | 200 | 1.8° | - | 354 / 2500 | Square - 2.205 x 2.205 (56.00mm x 56.00mm) | - | 0.315 (8.00mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Connector | - | 0.59 Ohms |
|
SH1602-5240STEP, F2, SQ.60, 0.9, , , BIPOLA |
2,927 | 49.06 |
RFQ |
Datasheet |
Tray | SH | Active | Hybrid | Bipolar | 24VDC | 2 A | 400 | 0.9° | - | 181.3 / 1280 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | - | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.856 (47.14mm) | Wire Leads | -10°C ~ 50°C | 1.65 Ohms |
|
SH2281-5731STEP, F2, SQ.28, 1.8, , , BIPOLA |
2,288 | 49.06 |
RFQ |
Datasheet |
Box | SH | Active | Hybrid, Dual Shaft | Bipolar | 24VDC | 1 A | 200 | 1.8° | - | 9.91 / 70 | - | - | 0.197 (5.00mm) | 0.591 (15.00mm) | 0.906 (23.00mm) | Wire Leads | -10°C ~ 50°C | 2.6 Ohms |
