| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | CoilType | Voltage-Rated | CurrentRating(Amps) | StepsperRevolution | StepAngle | Accuracy | Torque-Holding(oz-in/mNm) | Size/Dimension | NEMAFrameSize | Diameter-Shaft | Length-ShaftandBearing | MountingHoleSpacing | TerminationStyle | OperatingTemperature | CoilResistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ROB-09238STEPPER MOTOR HYBRID BIPOLAR 12V |
512 | 18.79 |
RFQ |
Datasheet |
Bulk | - | Active | Hybrid | Bipolar | 12VDC | 330 mA | 200 | 1.8° | - | 32.57 / 230 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (31.00mm) | Wire Leads | - | 32.6 Ohms |
|

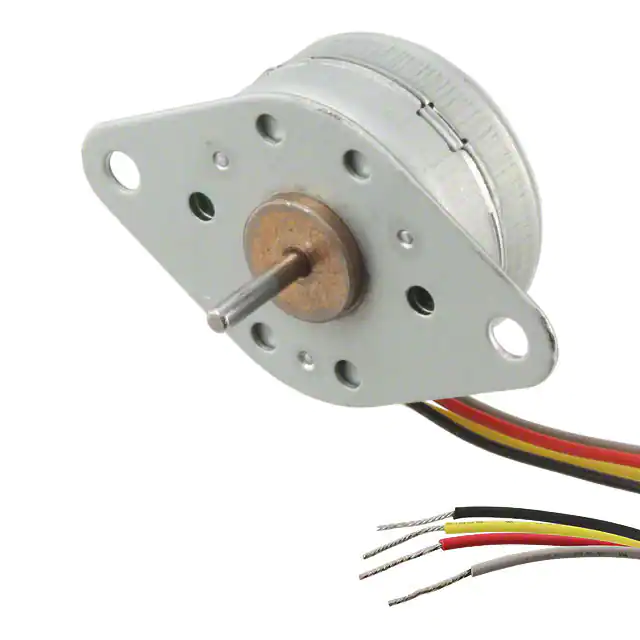

26M048B1BSTEPPER MOTOR PM BIPOLAR 5V |
240 | 28.21 |
RFQ |
Datasheet |
Bulk | 26M | Active | Permanent Magnet | Bipolar | 5VDC | 250 mA | 48 | 7.5° | ±15% | 1.5 / 10.6 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 19.8 Ohms |
|

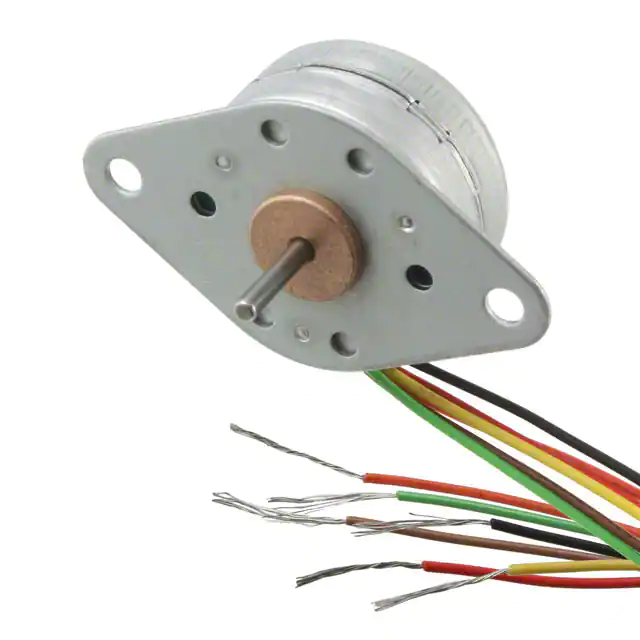

26M048B2USTEPPER MOTOR PM UNIPOLAR 12V |
2,967 | 29.10 |
RFQ |
Datasheet |
Bulk | 26M | Active | Permanent Magnet | Unipolar | 12VDC | 110 mA | 48 | 7.5° | ±15% | 1.3 / 9.2 | Round - 1.030 Dia (26.16mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.370 (34.90mm) | Wire Leads | -20°C ~ 70°C | 110 Ohms |
|

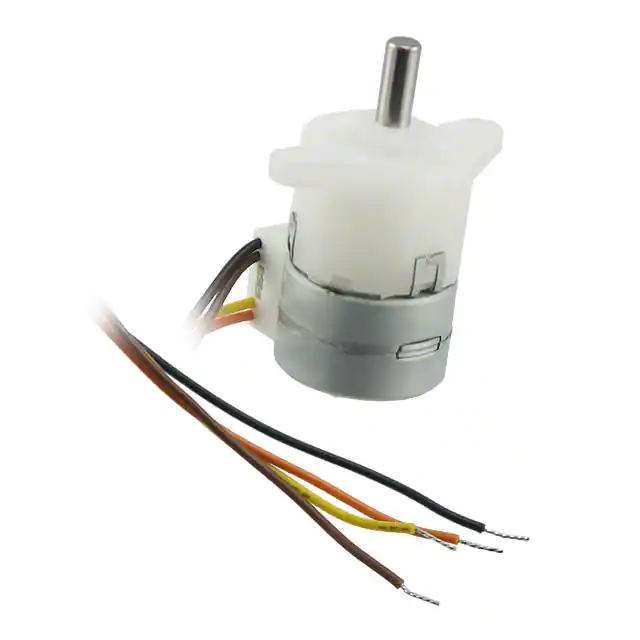

PG15S-D20-HHB9STEP MOTOR PM GEARED BIPOLAR 15V |
296 | 36.72 |
RFQ |
Datasheet |
Bulk | PG | Active | Permanent Magnet Gear Motor | Bipolar | 15VDC | 100 mA | 2048 | 0.176° | - | 21.2 / 150 | Round - 0.591 Dia (15.00mm) | - | 0.118 (3.00mm) | 0.354 (9.00mm) | 0.787 (20.00mm) | Wire Leads | - | 10 Ohms |
|

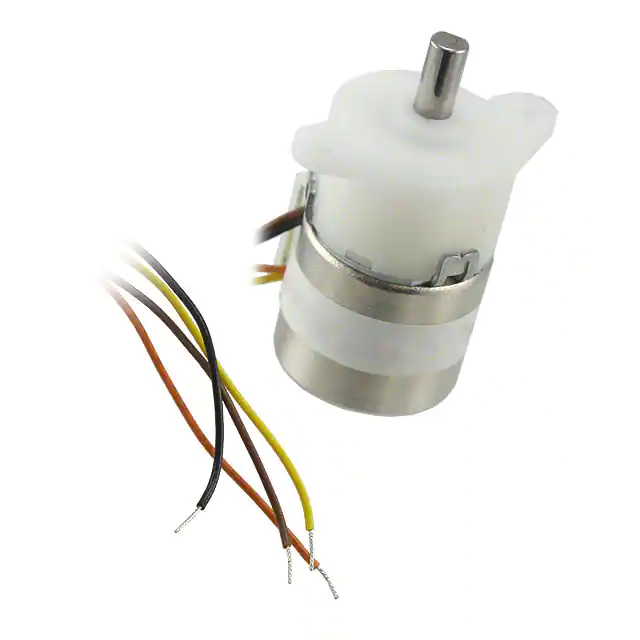

PG20L-D20-HHC0STEP MOTOR PM GEARED BIPOLAR 10V |
344 | 36.89 |
RFQ |
Datasheet |
Bulk | PG | Active | Permanent Magnet Gear Motor | Bipolar | 10VDC | 350 mA | 1818 | 0.198° | - | - | Round - 0.787 Dia (20.00mm) | - | 0.157 (4.00mm) | 0.394 (10.00mm) | 0.984 (25.00mm) | Wire Leads | - | 10 Ohms |
|

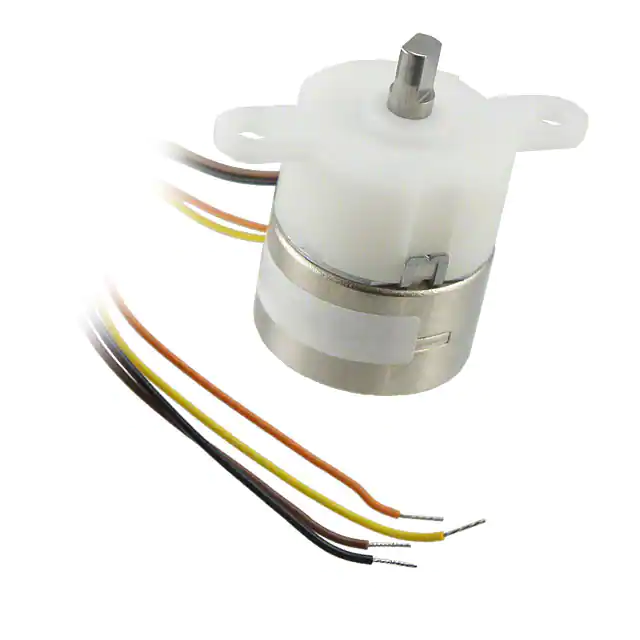

PG25L-D24-HHC1STEP MOTOR PM GEARED BIPOLAR 24V |
3,019 | 36.96 |
RFQ |
Datasheet |
Bulk | PG | Active | Permanent Magnet Gear Motor | Bipolar | 24VDC | 250 mA | 727 | 0.495° | - | 63.7 / 450 | Round - 0.984 Dia (25.00mm) | - | 0.197 (5.00mm) | 0.394 (10.00mm) | 1.378 (35.00mm) | Wire Leads | - | 28 Ohms |
|

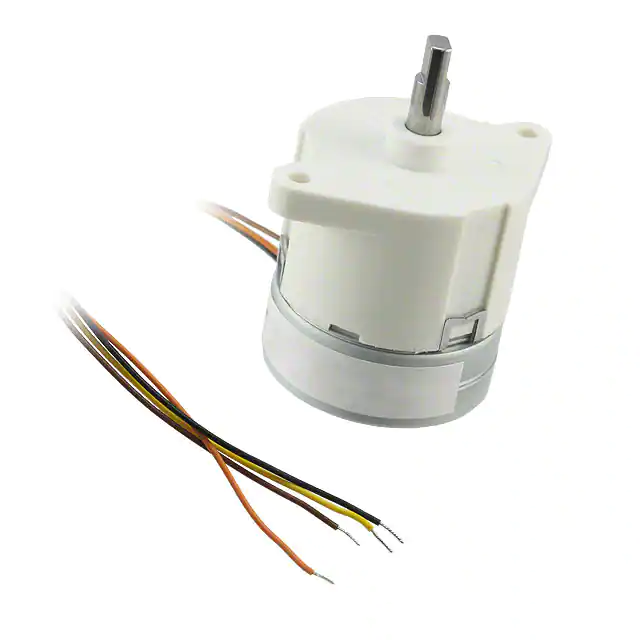

PG35S-D48-HHC2STEP MOTOR PM GEARED BIPOLAR 24V |
912 | 37.34 |
RFQ |
Datasheet |
Bulk | PG | Active | Permanent Magnet Gear Motor | Bipolar | 24VDC | 250 mA | 1698 | 0.212° | - | 99.1 / 700 | Round - 1.378 Dia (35.00mm) | - | 0.197 (5.00mm) | 0.709 (18.00mm) | 1.650 (42.00mm) | Wire Leads | - | 28 Ohms |
|
35L048B2USTEPPER MOTOR PM UNIPOLAR 12V |
674 | 37.92 |
RFQ |
Datasheet |
Bulk | 35L | Active | Permanent Magnet | Unipolar | 12VDC | 190 mA | 48 | 7.5° | ±15% | 3.5 / 25 | Round - 1.420 Dia (35.94mm) | - | 0.079 (2.00mm) | 0.445 (11.30mm) | 1.650 (42.00mm) | Wire Leads | -20°C ~ 70°C | 64 Ohms |
|
SMC10-F20-HHD9STEPPER MOTOR PM BIPOLAR 5V |
158 | 39.10 |
RFQ |
Datasheet |
Bulk | - | Active | Permanent Magnet | Bipolar | 5VDC | - | 20 | 18° | - | - | Round - 0.394 Dia (10.00mm) | - | 0.059 (1.50mm) | 0.197 (5.00mm) | 0.551 (14.00mm) | Through Hole | -10°C ~ 50°C | 21.5 Ohms |
|

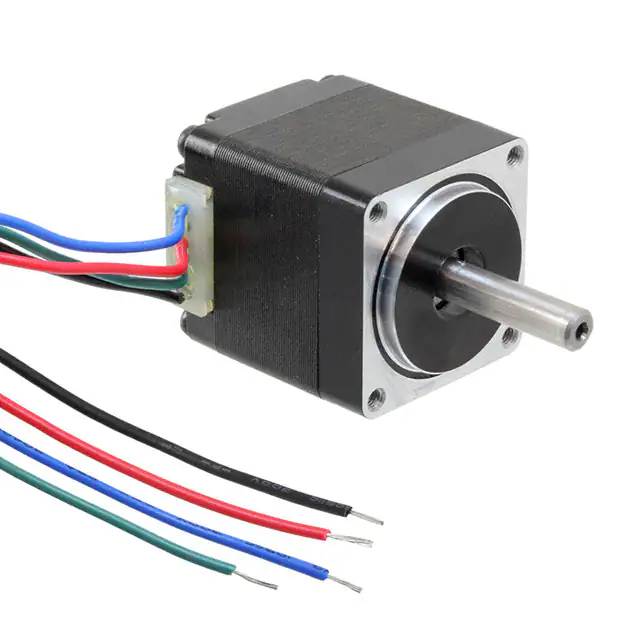

QSH2818-32-07-006STEP MOTOR HYBRID BIPOLAR 3.8V |
134 | 48.77 |
RFQ |
Bulk | QMot QSH2818 | Active | Hybrid | Bipolar | 3.8VDC | 670 mA | 200 | 1.8° | ±5% | 8.49 / 60 | Square - 1.100 x 1.100 (28.00mm x 28.00mm) | 11 | 0.197 (5.00mm) | 0.787 (20.00mm) | 0.905 (22.98mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms | |
|

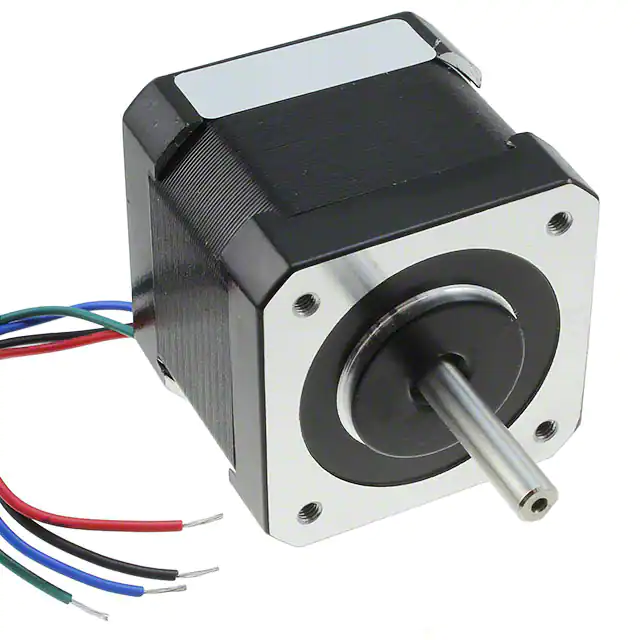

QSH4218-41-10-035STEP MOTOR HYBRID BIPOLAR 4.5V |
218 | 50.09 |
RFQ |
Bulk | QMot QSH4218 | Active | Hybrid | Bipolar | 4.5VDC | 1 A | 200 | 1.8° | ±5% | 49.56 / 350 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (30.99mm) | Wire Leads | -20°C ~ 50°C | 4.5 Ohms | |
|

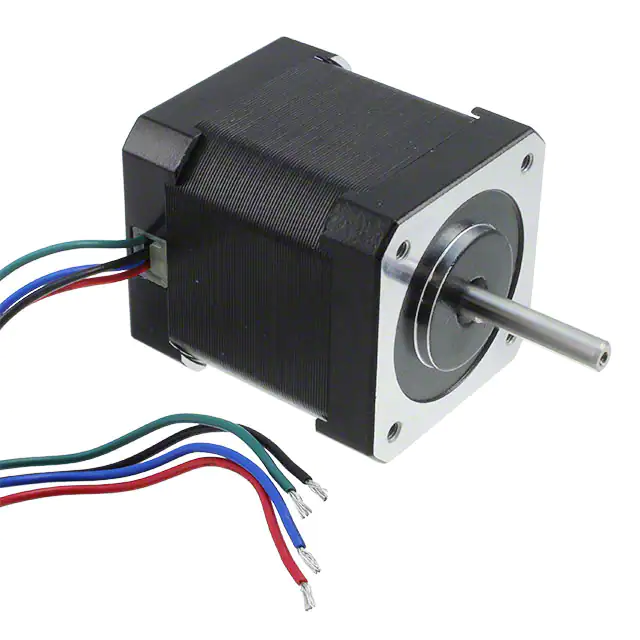

QSH4218-51-10-049STEPPER MOTOR HYBRID BIPOLAR 5V |
165 | 57.99 |
RFQ |
Datasheet |
Bulk | QMot QSH4218 | Active | Hybrid | Bipolar | 5VDC | 1 A | 200 | 1.8° | ±5% | 69.39 / 490 | Square - 1.665 x 1.665 (42.30mm x 42.30mm) | 17 | 0.197 (5.00mm) | 0.945 (24.00mm) | 1.220 (30.99mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms |
|

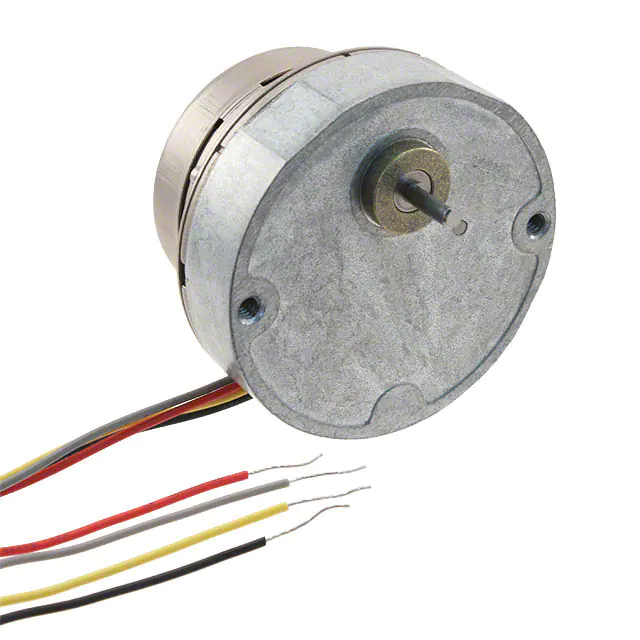

42M048C2B-R21STEP MOTOR PM GEARED BIPOLAR 12V |
127 | 61.05 |
RFQ |
Datasheet |
Bulk | 42M-R | Active | Permanent Magnet Gear Motor | Bipolar | 12VDC | 550 mA | 480 | 0.75° | - | 11.9 / 84 | Round - 1.650 Dia (42.00mm) | - | 0.093 (2.36mm) | 0.469 (11.92mm) | 1.880 (47.63mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms |
|

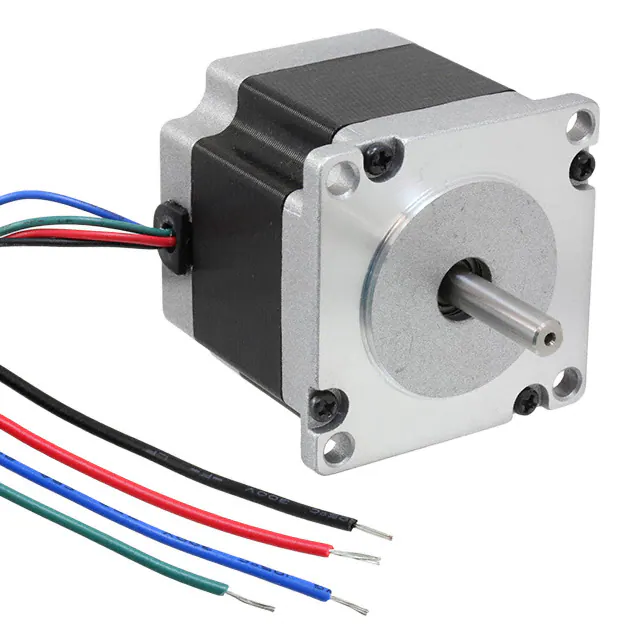

QSH5718-51-28-101STEP MOTOR HYBRID BIPOLAR 2.3V |
382 | 69.42 |
RFQ |
Datasheet |
Bulk | QMot QSH5718 | Active | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | ±5% | 143.05 / 1010 | Square - 2.220 x 2.220 (56.40mm x 56.40mm) | 23 | 0.250 (6.35mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.83 Ohms |
|

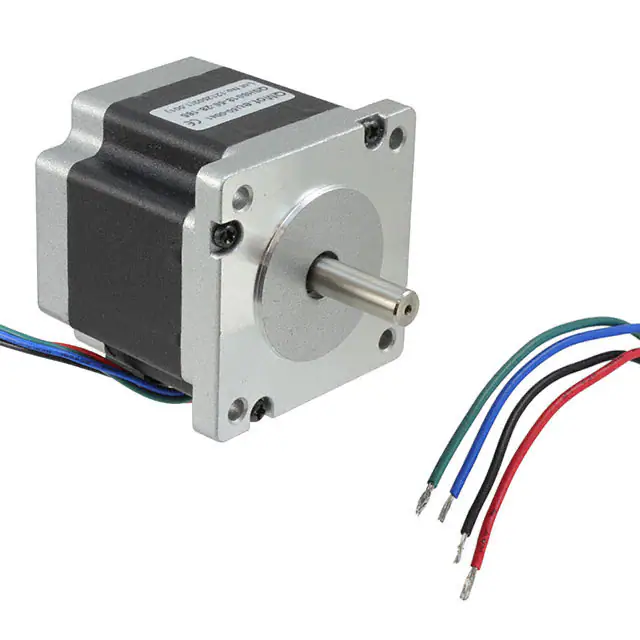

QSH6018-56-28-165STEP MOTOR HYBRID BIPOLAR 2.52V |
3,666 | 94.13 |
RFQ |
Datasheet |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 2.52VDC | 2.8 A | 200 | 1.8° | ±5% | 233.66 / 1650 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.9 Ohms |
|
NEMA23-31-01SD-AMT112SSTEPPER MOTOR W/ INCREMENTAL ENC |
2,640 | 135.60 |
RFQ |
Datasheet |
Box | NEMA23-AMT112S | Active | - | Bipolar | 24 ~ 80VDC | 1.4 A | 200 | 1.8° | ±0.2% | 270 / 1906.62 | Square - 2.252 x 2.252 (57.20mm x 57.20mm) | 23 | 0.250 (6.35mm) | 0.811 (20.60mm) | 1.819 (46.20mm) | Connector | -20°C ~ 50°C | 4.5 Ohms |
|

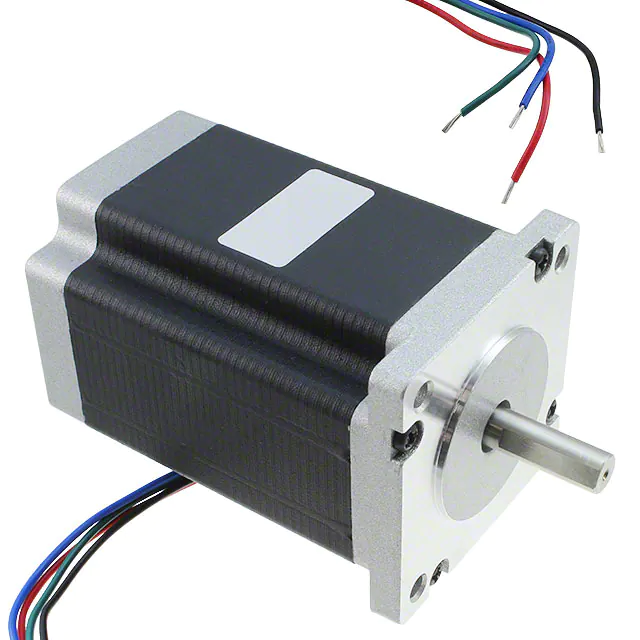

QSH6018-86-28-310STEP MOTOR HYBRID BIPOLAR 4.17V |
2,456 | 144.51 |
RFQ |
Datasheet |
Bulk | QMot QSH6018 | Active | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.5 Ohms |
|

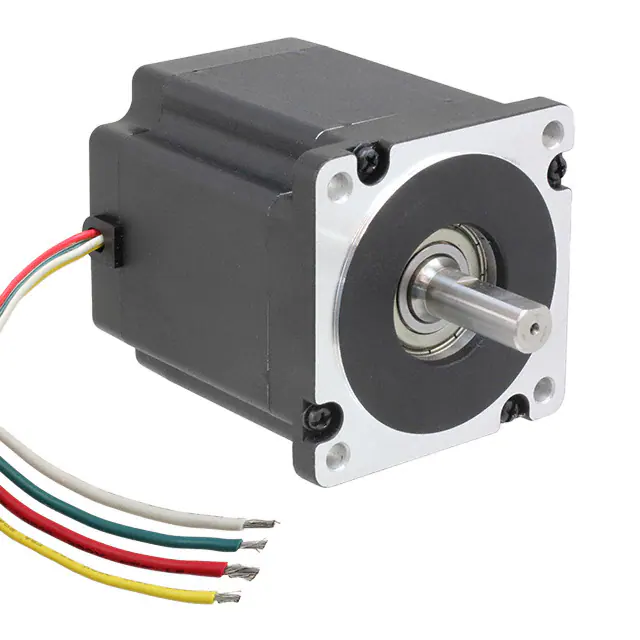

QSH8618-96-55-700STEP MOTOR HYBRID BIPOLAR 2.56V |
3,257 | 250.28 |
RFQ |
Datasheet |
Bulk | QMot QSH8618 | Active | Hybrid | Bipolar | 2.56VDC | 5.5 A | 200 | 1.8° | ±5% | 991.28 / 7000 | Square - 3.380 x 3.380 (85.85mm x 85.85mm) | 34 | 0.500 (12.70mm) | 1.310 (33.27mm) | 2.740 (69.60mm) | Wire Leads | -20°C ~ 50°C | 0.45 Ohms |
|

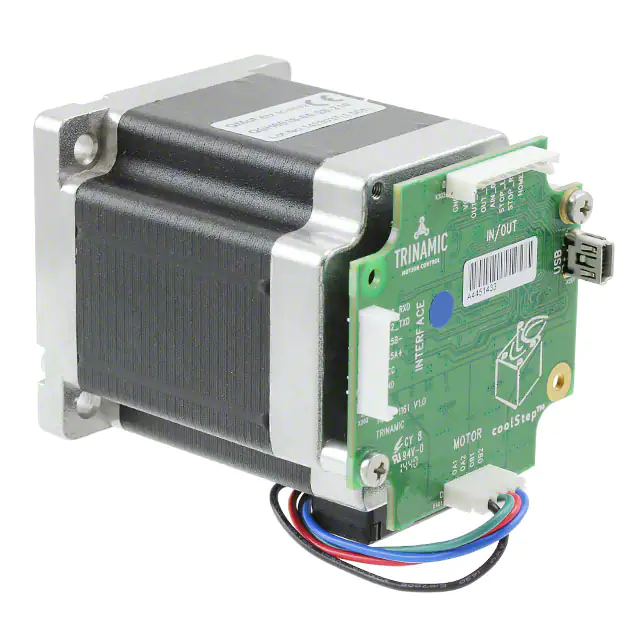

PD60-3-1161STEPPER MOTOR HYBRID BIPOLAR 24V |
3,578 | 277.00 |
RFQ |
Datasheet |
Box | PANdrive™ | Active | Hybrid | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | - | - |
|

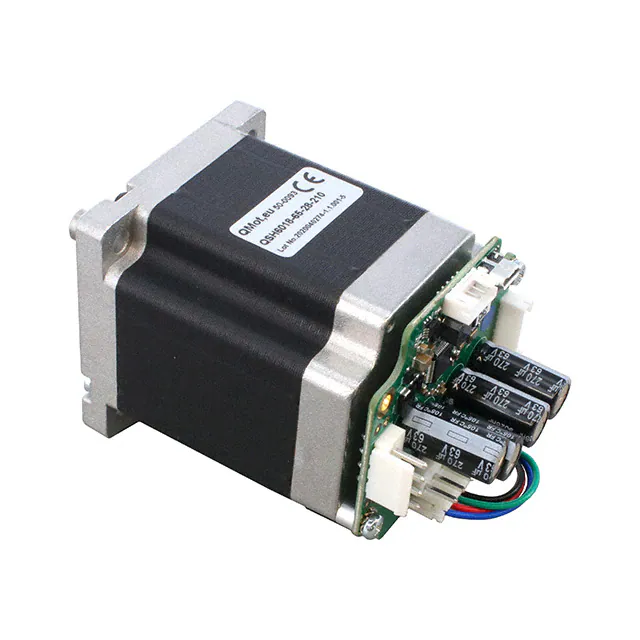

PD60-3-1260-TMCLPANDRIVE NEMA24, 48V, 2.10NM |
3,375 | 313.10 |
RFQ |
Datasheet |
Bulk | PANdrive™ | Active | Hybrid | Bipolar | 4.6VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362 x 2.362 (60.00mm x 60.00mm) | 24 | 0.315 (8.00mm) | 0.945 (24.00mm) | 1.856 (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - |
