| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS75R12W2T4PB11BPSA1LOW POWER EASY |
3,997 | 71.49 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FS75R17W2E4PB11BPSA1LOW POWER EASY |
2,982 | 71.49 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FS75R12W2T4PBPSA1LOW POWER EASY AG-EASY2B-411 |
2,921 | 70.28 |
RFQ |
Tray | EasyPACK™ | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 107 A | 375 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
|
|
APTGT75DDA60T3GIGBT MODULE 600V 100A 250W SP3 |
3,657 | 72.27 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Dual Boost Chopper | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGL90A120T1GIGBT MODULE 1200V 110A 385W SP1 |
3,522 | 72.75 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 110 A | 385 W | 2.25V @ 15V, 75A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole |
|
|
FP15R12YT3BOMA1IGBT MOD 1200V 25A 110W |
2,638 | 73.61 |
RFQ |
Datasheet |
Tray | - | Not For New Designs | - | Three Phase Inverter | 1200 V | 25 A | 110 W | 2.15V @ 15V, 15A | 5 mA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C | Chassis Mount |
|
|
MIXA30WB1200TEDIGBT MODULE 1200V 43A 150W E2 |
2,626 | 73.61 |
RFQ |
Datasheet |
Box | - | Active | PT | Three Phase Inverter with Brake | 1200 V | 43 A | 150 W | 2.1V @ 15V, 25A | 1.5 mA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
FS25R12KT3BOSA1IGBT MOD 1200V 40A 145W |
3,134 | 73.75 |
RFQ |
Datasheet |
Tray | EconoPACK™ 2 | Discontinued at Mosen | Trench Field Stop | Full Bridge | 1200 V | 40 A | 145 W | 2.15V @ 15V, 25A | 5 mA | 1.8 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
|
BSM10GD120DN2BOSA1IGBT MODULE 2 LOW PWR ECONO2-1 |
3,215 | 73.90 |
RFQ |
Tray | - | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
APTGLQ40H120T1GIGBT MODULE 1200V 75A 250W SP1 |
2,196 | 74.24 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 1200 V | 75 A | 250 W | 2.4V @ 15V, 40A | 100 µA | 2.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole |
|
|
FP15R12KE3BOMA1MOD IGBT LOW PWR EASY2-1 |
3,336 | 74.59 |
RFQ |
Tray | - | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | |
|
APT60GF120JRDIGBT NPT COMBI 1200V 60A ISOTOP |
2,092 | 74.67 |
RFQ |
Tube | - | Active | NPT | Single | 1200 V | 115 A | 521 W | 3.4V @ 15V, 60A | 500 mA | 7.08 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | |
|

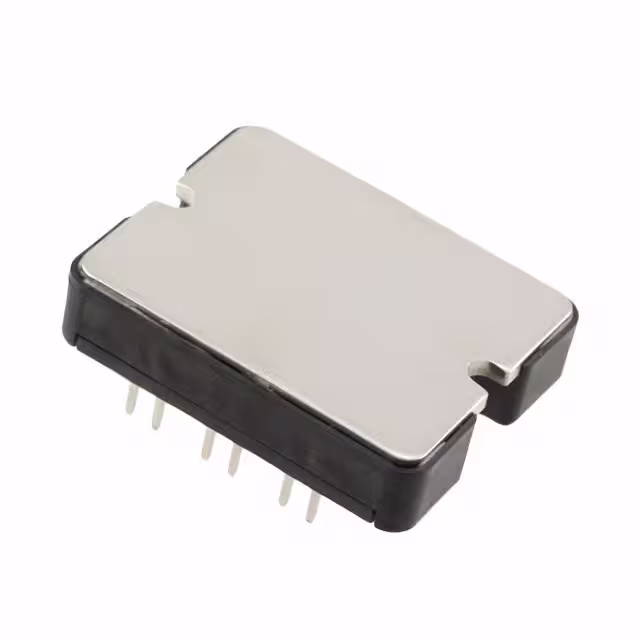

APTGT150A60T1GIGBT MODULE 600V 225A 480W SP1 |
2,451 | 75.14 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
A2C35S12M3-FIGBT MOD 1200V 35A 250W ACEPACK2 |
3,980 | 75.17 |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 35 A | 250 W | 2.45V @ 15V, 35A | 100 µA | 2.154 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
NXH25T120L2Q1PGPIM Q1 3 CHANNEL T-TYPE NPC 25A |
2,548 | 75.67 |
RFQ |
Datasheet |
Tray | - | Active | - | Three Phase Inverter | 1200 V | 25 A | 81 W | 2.5V @ 15V, 25A | 300 µA | 8.502 nF @ 20 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
NXH25T120L2Q1PTGPIM Q1 3 CHANNEL T-TYPE NPC 25A |
2,800 | 75.67 |
RFQ |
Datasheet |
Tray | - | Active | - | Three Phase Inverter | 1200 V | 25 A | 81 W | 2.5V @ 15V, 25A | 300 µA | 8.502 nF @ 20 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|

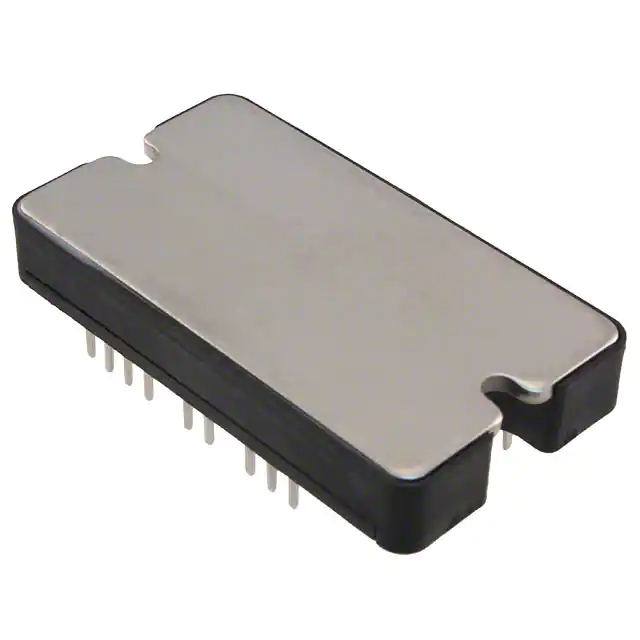

APTGL60DDA120T3GIGBT MODULE 1200V 80A 280W SP3 |
2,357 | 75.75 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Dual Boost Chopper | 1200 V | 80 A | 280 W | 2.25V @ 15V, 50A | 250 µA | 2.77 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGL40H120T1GIGBT MODULE 1200V 65A 220W SP1 |
3,386 | 75.83 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 1200 V | 65 A | 220 W | 2.25V @ 15V, 35A | 250 µA | 1.95 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FB50R07W2E3B23BOMA1LOW POWER EASY AG-EASY2B-2 |
3,857 | 73.95 |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MIXG240RF1200P-PCIGBT MODULE MIXG240RF1200PTED-PC |
3,126 | 76.35 |
RFQ |
Datasheet |
Box | - | Active | - | - | - | - | - | - | - | - | - | - | - | - |
