Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FS10R12YE3BOMA1 MOD IGBT LOW PWR EASY2-1 Infineon Technologies	2,609	52.79	- + RFQ		Tray	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-
FS30R06XE3BOMA1 IGBT MODULE 600V 37A 100W Infineon Technologies	3,229	52.87	- + RFQ		Tray	-	Not For New Designs	-	Full Bridge	600 V	37 A	100 W	2V @ 15V, 30A	1 mA	1.65 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
APTGL90DA120T1G IGBT MODULE 1200V 110A 385W SP1 Microchip Technology	2,320	53.65	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	1200 V	110 A	385 W	2.25V @ 15V, 75A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
DF80R07W1H5FPB11BPSA1 LOW POWER EASY Infineon Technologies	3,913	52.50	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	2 Independent	650 V	40 A	0.2 W	1.72V @ 15V, 20A	12 µA	2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT50DH60T1G IGBT MODULE 600V 80A 176W SP1 Microchip Technology	2,603	53.86	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Asymmetrical Bridge	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT20TL601G IGBT MODULE 600V 32A 62W SP1 Microchip Technology	3,277	53.91	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Level Inverter	600 V	32 A	62 W	1.9V @ 15V, 20A	250 µA	1.1 pF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
F475R07W1H3B11ABOMA1 IGBT MODULES Infineon Technologies	2,575	54.15	- + RFQ	Datasheet	Bulk,Tray	*	Last Time Buy	-	-	-	-	-	-	-	-	-	-	-	-
FS15R12YT3BOMA1 IGBT MOD 1200V 25A 110W Infineon Technologies	3,043	54.54	- + RFQ		Tray	-	Not For New Designs	-	Full Bridge Inverter	1200 V	25 A	110 W	2.15V @ 15V, 15A	5 mA	1.1 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
FP25R12W2T4PB11BPSA1 IGBT MOD 1200V 50A 20MW Infineon Technologies	3,291	41.27	- + RFQ	Datasheet	Bulk,Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	50 A	20 mW	2.25V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C	Chassis Mount

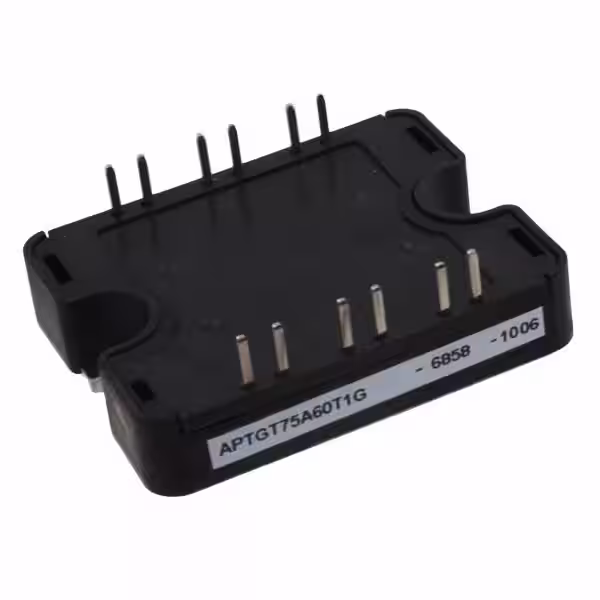

APTGT75A60T1G IGBT MODULE 600V 100A 250W SP1 Microchip Technology	3,492	55.20	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

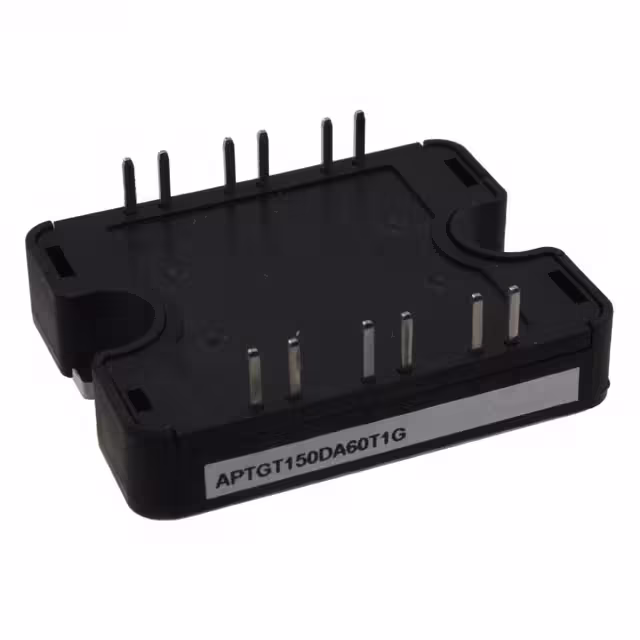

APTGT150DA60T1G IGBT MODULE 600V 225A 480W SP1 Microchip Technology	2,331	55.28	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	600 V	225 A	480 W	1.9V @ 15V, 150A	250 µA	9.2 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT150SK60T1G IGBT MODULE 600V 225A 480W SP1 Microchip Technology	3,179	55.28	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	600 V	225 A	480 W	1.9V @ 15V, 150A	250 µA	9.2 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APT100GN120JDQ4 IGBT MOD 1200V 153A 446W ISOTOP Microchip Technology	2,901	55.64	- + RFQ		Tube	-	Active	Trench Field Stop	Single	1200 V	153 A	446 W	2.1V @ 15V, 100A	200 µA	6.5 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APTGT30H60T1G IGBT MODULE 600V 50A 90W SP1 Microchip Technology	2,969	55.90	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	50 A	90 W	1.9V @ 15V, 30A	250 µA	1.6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP50R06W2E3B11BOMA1 IGBT MODULE 600V 65A 175W Infineon Technologies	3,354	40.74	- + RFQ	Datasheet	Bulk,Bulk	EasyPIM™ 2B	Active	Trench Field Stop	Three Phase Inverter	600 V	65 A	175 W	1.9V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
NXH50M65L4Q1SG Q1PACK 50A 650V onsemi	2,142	56.47	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Full Bridge	650 V	48 A	86 W	2.22V @ 15V, 50A	300 µA	3.137 nF @ 20 V	Standard	Yes	175°C (TJ)	Chassis Mount
APTGTQ100DA65T1G IGBT MODULE 650V 100A 250W SP1 Microchip Technology	3,804	56.93	- + RFQ	Datasheet	Bulk	-	Active	-	Boost Chopper	650 V	100 A	250 W	2.2V @ 15V, 100A	100 µA	6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGTQ100SK65T1G IGBT MODULE 650V 100A 250W SP1 Microchip Technology	2,594	56.93	- + RFQ	Datasheet	Bulk	-	Active	-	Buck Chopper	650 V	100 A	250 W	2.2V @ 15V, 100A	100 µA	6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT30TL601G IGBT MODULE 600V 50A 90W SP1 Microchip Technology	3,555	57.08	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Level Inverter	600 V	50 A	90 W	1.9V @ 15V, 30A	250 µA	1.6 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
NXH75M65L4Q1SG Q1PACK 75A 650V onsemi	3,996	58.82	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Half Bridge	650 V	59 A	86 W	2.22V @ 15V, 75A	300 µA	5.665 nF @ 30 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
