| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXBN75N170AIGBT MOD 1700V 75A 625W SOT227B |
3,314 | 58.85 |
RFQ |
Datasheet |
Tube | BIMOSFET™ | Active | - | Single | 1700 V | 75 A | 625 W | 6V @ 15V, 42A | 50 µA | 7.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
APTGLQ100DA120T1GIGBT MODULE 1200V 170A 520W SP1 |
2,584 | 59.40 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Boost Chopper | 1200 V | 170 A | 520 W | 2.42V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
MDI75-12A3IGBT MODULE 1200V 90A 370W Y4M5 |
2,976 | 60.26 |
RFQ |
Datasheet |
Box | - | Active | NPT | Single | 1200 V | 90 A | 370 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
NXH25C120L2C2SGIGBT MODULE, CIB 1200 V, 25 A IG |
2,352 | 60.63 |
RFQ |
Datasheet |
Tube | - | Active | - | Three Phase Inverter with Brake | 1200 V | 25 A | 20 mW | 2.4V @ 15V, 25A | 250 µA | 6.2 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole |
|
|
NXH35C120L2C2S1GIGBT MOD 1200V 35A 26DIP |
3,131 | 60.63 |
RFQ |
Tube | - | Active | - | Three Phase Inverter with Brake | 1200 V | 35 A | 20 mW | 2.4V @ 15V, 35A | 250 µA | 8.33 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole | |
|
|
NXH75M65L4Q1PTG6KW H6.5 75A Q1PACK PRESS-FIT PI |
2,723 | 61.04 |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Half Bridge | 650 V | 59 A | 86 W | 2.22V @ 15V, 75A | 300 µA | 5.665 nF @ 30 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|

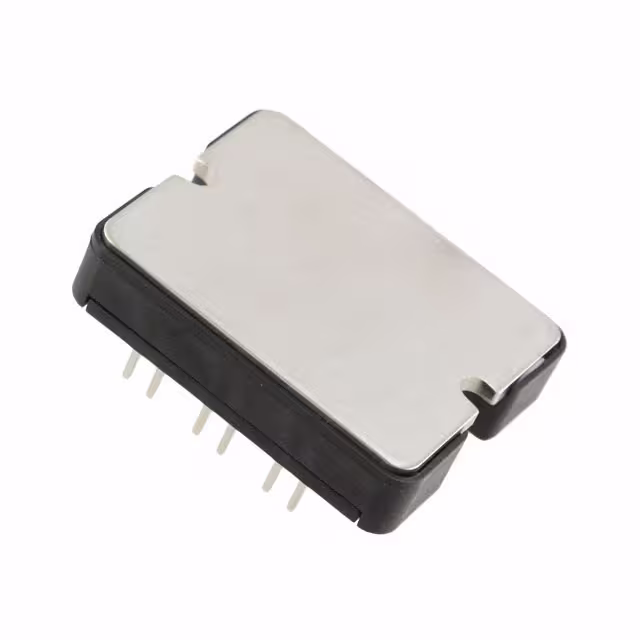

APTGT100A60T1GIGBT MODULE 600V 150A 340W SP1 |
2,225 | 61.49 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
FP15R06YE3B4BOMA1MOD IGBT LOW PWR EASY2-1 |
2,955 | 61.62 |
RFQ |
Tray | - | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
APTGT100DA120T1GIGBT MODULE 1200V 140A 480W SP1 |
2,098 | 62.39 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
FF150R12YT3BOMA1IGBT MOD 1200V 200A 625W |
3,626 | 60.84 |
RFQ |
Bulk | - | Not For New Designs | - | 2 Independent | 1200 V | 200 A | 625 W | 2.15V @ 15V, 150A | 1 mA | 10.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | |
|
APT150GT120JRIGBT MOD 1200V 170A 830W ISOTOP |
3,835 | 63.30 |
RFQ |
Datasheet |
Tube | Thunderbolt IGBT® | Active | NPT | Single | 1200 V | 170 A | 830 W | 3.7V @ 15V, 150A | 150 µA | 9.3 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGT50DDA60T3GIGBT MODULE 600V 80A 176W SP3 |
2,299 | 63.52 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Dual Boost Chopper | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
MII75-12A3IGBT MODULE 1200V 90A 370W Y4M5 |
3,990 | 63.62 |
RFQ |
Datasheet |
Box | - | Active | NPT | Half Bridge | 1200 V | 90 A | 370 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
MIXA10WB1200TEDIGBT MODULE 1200V 17A 60W E2 |
3,053 | 63.66 |
RFQ |
Datasheet |
Box | - | Active | PT | Three Phase Inverter with Brake | 1200 V | 17 A | 60 W | 2.1V @ 15V, 9A | 700 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount |
|
|
APTGLQ30H65T3GIGBT MODULE 650V 40A 95W |
3,293 | 64.32 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 650 V | 40 A | 95 W | 2.3V @ 15V, 30A | 50 µA | 1.9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGLQ25H120T1GIGBT MODULE 1200V 50A 165W SP1 |
3,309 | 64.37 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 1200 V | 50 A | 165 W | 2.42V @ 15V, 25A | 50 µA | 1.43 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|

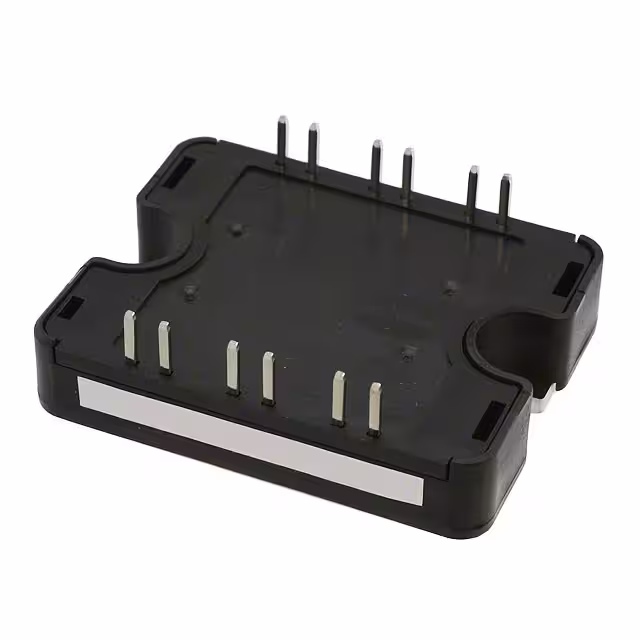

APTGT50A120T1GIGBT MODULE 1200V 75A 277W SP1 |
2,665 | 64.71 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 75 A | 277 W | 2.1V @ 15V, 50A | 250 µA | 3.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
DF200R12W1H3B27BOMA1IGBT MOD 1200V 30A 375W |
3,398 | 62.81 |
RFQ |
Datasheet |
Bulk | - | Active | - | 2 Independent | 1200 V | 30 A | 375 W | 1.3V @ 15V, 30A | 1 mA | 2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
|
FP10R12YT3BOMA1MOD IGBT LOW PWR EASY2-1 |
2,993 | 65.45 |
RFQ |
Tray | - | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FP20R06YE3B4BOMA1MOD IGBT LOW PWR EASY2-1 |
2,773 | 65.95 |
RFQ |
Tray | - | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - |
