Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)
ED101-1.25-7M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	3.73	- + RFQ	Datasheet	Box	ED101	Active	Power Line	2	-	7 mH @ 10 kHz	1.25A	400mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED101-1.5-5M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	3.75	- + RFQ	Datasheet	Box	ED101	Active	Power Line	2	-	5 mH @ 10 kHz	1.5A	300mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)
ED101-2-3M0 COMMON MODE CHOKE Schaffner EMC Inc.	450	3.78	- + RFQ	Datasheet	Box	ED101	Active	Power Line	2	-	3 mH @ 10 kHz	2A	200mOhm (Typ)	-	300V	-40°C ~ 125°C	-	-	-	Through Hole	0.945 L x 0.563 W (24.00mm x 14.30mm)	0.610 (15.50mm)

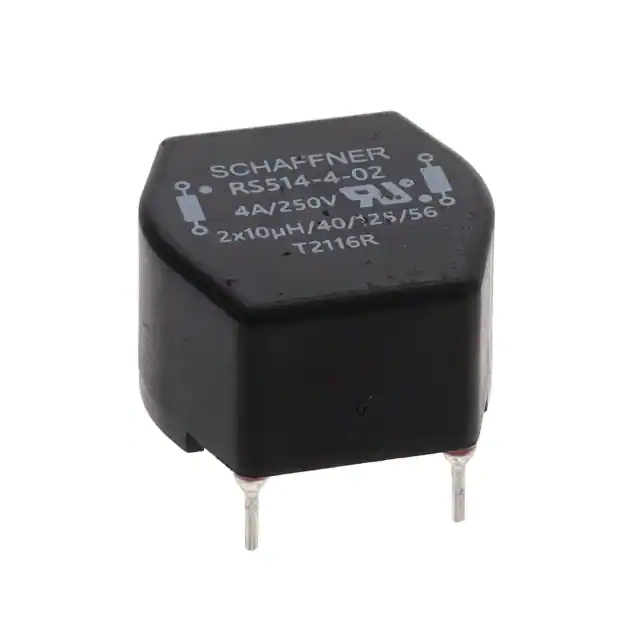

RS514-4-02 CMC 8UH 4A 2LN TH Schaffner EMC Inc.	458	3.83	- + RFQ	Datasheet	Tray	RS	Active	Signal Line	2	-	8 µH @ 1 kHz	4A (Typ)	20mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.886 L x 0.846 W (22.50mm x 21.50mm)	0.520 (13.20mm)

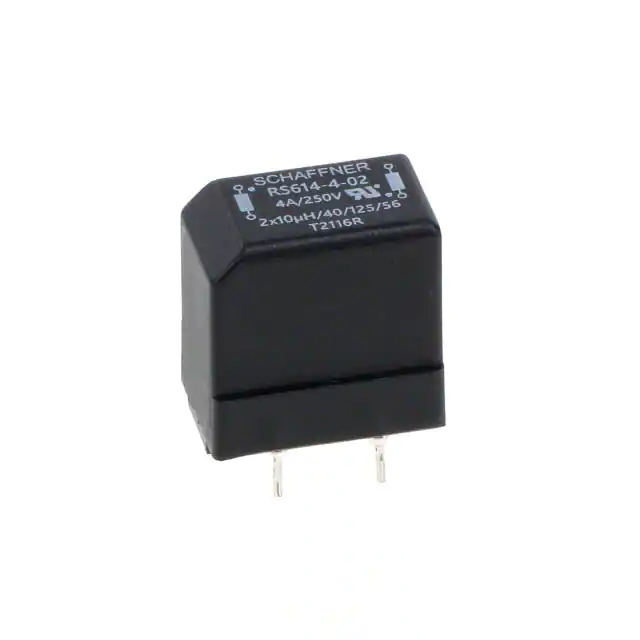

RS614-4-02 CMC 8UH 4A 2LN TH Schaffner EMC Inc.	278	3.83	- + RFQ	Datasheet	Tube	RS	Active	Signal Line	2	-	8 µH @ 1 kHz	4A (Typ)	20mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.906 L x 0.610 W (23.00mm x 15.50mm)	0.984 (25.00mm)
DSO1-175-0001 CMC 500MA 2LN TH Schurter Inc.	199	7.32	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DSO	Active	-	2	-	-	500mA	800mOhm	600V	-	-40°C ~ 125°C	-	-	-	Through Hole	0.591 L x 0.276 W (15.00mm x 7.00mm)	-
EH28-1.0-02-75M-X CMC 75MH 1A 2LN TH Schaffner EMC Inc.	483	4.05	- + RFQ	Datasheet	Tube	EH	Active	Power Line	2	-	75 mH @ 400 Hz	1A	880mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)
EH28-2.0-02-15M-X CMC 15MH 2A 2LN TH Schaffner EMC Inc.	393	4.08	- + RFQ	Datasheet	Tube	EH	Active	Power Line	2	-	15 mH @ 400 Hz	2A	196mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)
HHBC10-0R8A0038V CMC 38UH 3A 2LN TH KEMET	188	4.09	- + RFQ	Datasheet	Bulk	HHBC	Active	-	2	-	38 µH @ 100 kHz	3A	-	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.846 Dia (21.50mm)	-

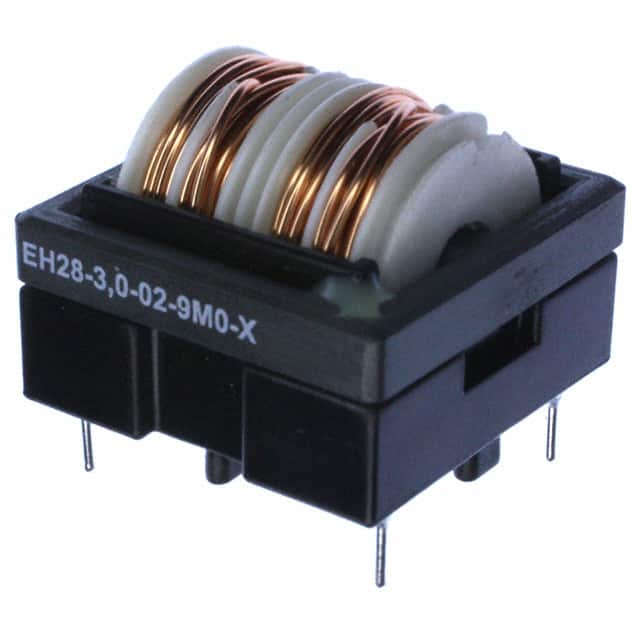

EH28-3.0-02-9M0-X CMC 9MH 3A 2LN TH Schaffner EMC Inc.	423	4.13	- + RFQ	Datasheet	Tray	EH	Active	Power Line	2	-	9 mH @ 400 Hz	3A	115mOhm	-	250V	-25°C ~ 100°C	-	-	-	Through Hole	1.102 L x 1.102 W (28.00mm x 28.00mm)	0.941 (23.90mm)

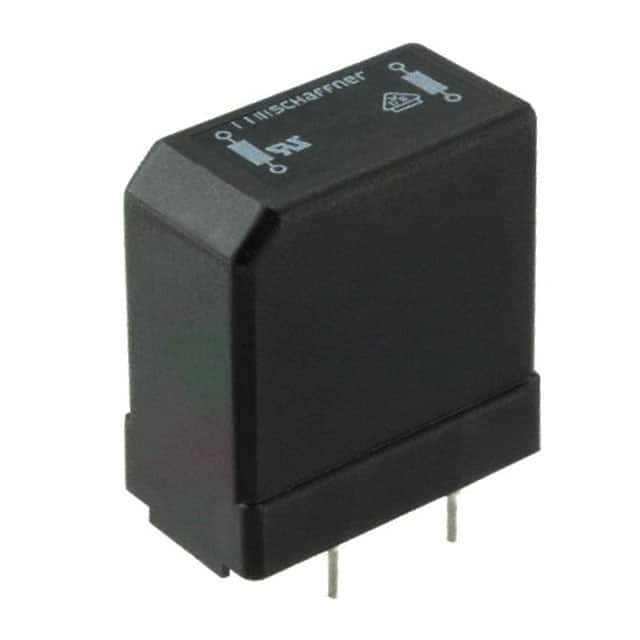

RN232-0.6-02-47M CMC 47MH 600MA 2LN TH Schaffner EMC Inc.	295	4.16	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	47 mH @ 10 kHz	600mA	1.3Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
RN232-1-02-18M CMC 18MH 1A 2LN TH Schaffner EMC Inc.	300	4.21	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	18 mH @ 10 kHz	1A	390mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
RN242-0.5-02-82M CMC 82MH 500MA 2LN TH Schaffner EMC Inc.	293	4.24	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	82 mH @ 10 kHz	500mA	2.7Ohm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)

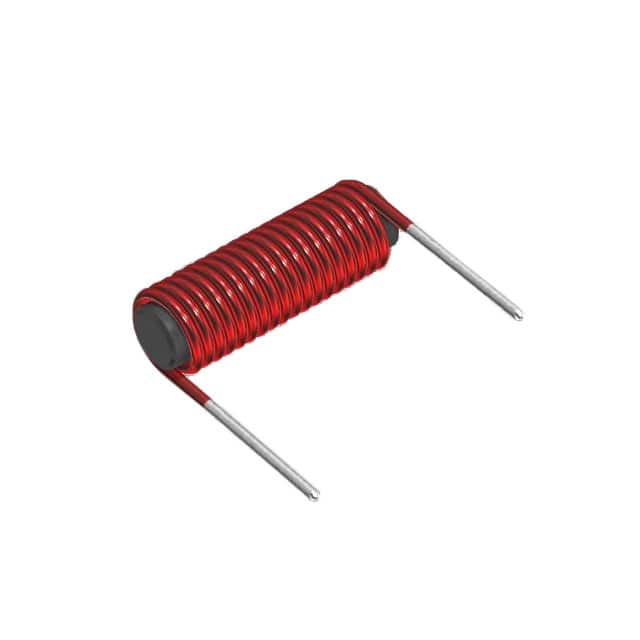

AML0925-8R0M110-S1 CHOKE COIL, AML TYPE, -40 TO +12 TDK Corporation	358	4.28	- + RFQ	Datasheet	Tray	AML	Active	Power Line	2	-	-	11A	13mOhm	-	-	-40°C ~ 125°C	AEC-Q200	-	-	Through Hole	0.335 Dia x 0.984 L (8.50mm x 25.00mm)	-
RN242-1.4-02-27M CMC 27MH 1.4A 2LN TH Schaffner EMC Inc.	285	4.29	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	27 mH @ 10 kHz	1.4A	500mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)
HHBC12-1R0A0028V CMC 28UH 5A 2LN TH KEMET	198	4.34	- + RFQ	Datasheet	Bulk	HHBC	Active	-	2	-	28 µH @ 100 kHz	5A	-	-	-	-40°C ~ 125°C	-	-	-	Through Hole	1.024 Dia (26.00mm)	1.024 (26.00mm)
RN232-4-02-3M3 CMC 3.3MH 4A 2LN TH Schaffner EMC Inc.	248	4.35	- + RFQ	Datasheet	Tube	RN	Active	Power Line	2	-	3.3 mH @ 10 kHz	4A	54mOhm (Typ)	-	300V	-40°C ~ 100°C	-	ENEC, UR, VDE	-	Through Hole	1.220 L x 0.709 W (31.00mm x 18.00mm)	1.362 (34.60mm)

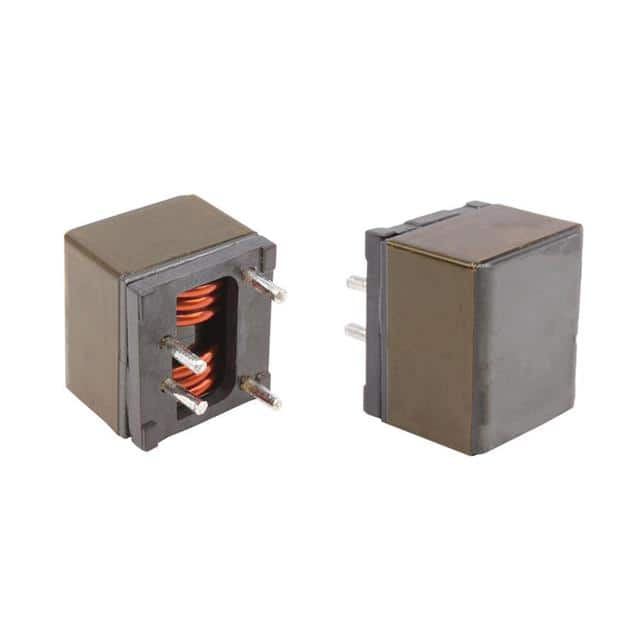

PMC9539.164NL COMMON MODE CHOKE 160 UH THT Pulse Electronics Power	147	4.35	- + RFQ	Datasheet	Tray	PMC9539.XXXNL	Active	-	2	450 Ohms @ 1.9 MHz	-	22A	1.7mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.772 L x 0.701 W (19.60mm x 17.80mm)	0.610 (15.50mm)
PMC9539.254NL COMMON MODE CHOKE 250UH THT Pulse Electronics Power	109	4.35	- + RFQ	Datasheet	Tray	PMC9539.XXXNL	Active	-	2	750 Ohms @ 1.6 MHz	-	18A	2.7mOhm	-	-	-40°C ~ 125°C	-	-	-	Through Hole	0.772 L x 0.701 W (19.60mm x 17.80mm)	0.610 (15.50mm)
B82721S0282A030 SMD RING CORE CHOKE 0.47MH 2.8A/ EPCOS - TDK Electronics	175	7.19	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82721S0	Active	Power Line	2	-	1.47 mH @ 10 kHz	2.8A	59mOhm	80V	48V	-	-	-	-	Surface Mount	0.760 L x 0.670 W (19.30mm x 17.02mm)	0.398 (10.10mm)
