Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	Inductance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	VoltageRating-DC	VoltageRating-AC	OperatingTemperature	Ratings	ApprovalAgency	Features	MountingType	Size/Dimension	Height(Max)

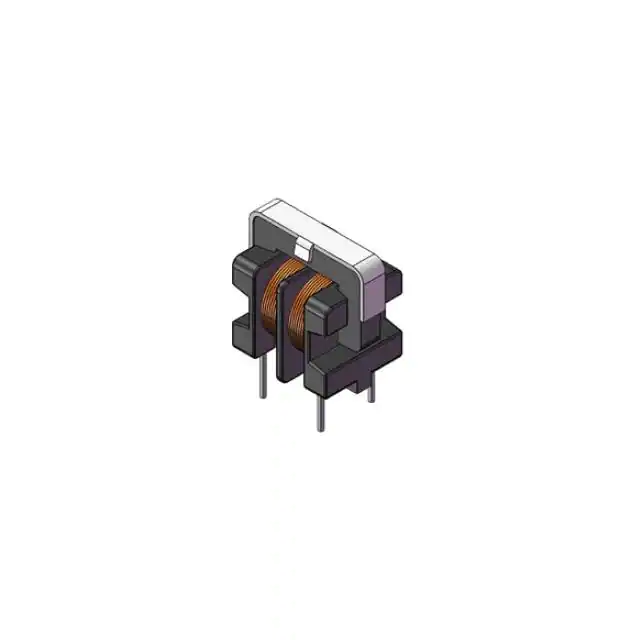

ECMT1V1717S-5R0-R CHOKE COMMON MODE 5.0MH THT Eaton - Electronics Division	2,806	2.75	- + RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	5 mH @ 1 kHz	1.4A	300mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.472 W (17.00mm x 12.00mm)	0.669 (17.00mm)
ECMT1V1714H-5R0-R CHOKE COMMON MODE 5.0MH THT Eaton - Electronics Division	2,144	2.75	- + RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	5 mH @ 1 kHz	1.4A	300mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.630 W (17.00mm x 16.00mm)	0.551 (14.00mm)
ECMT1V1714H-100-R CHOKE COMMON MODE 10.0MH THT Eaton - Electronics Division	2,304	2.75	- + RFQ	Datasheet	Tray	ECMT1V17	Active	Power Line	2	-	10 mH @ 1 kHz	1.2A	600mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.669 L x 0.630 W (17.00mm x 16.00mm)	0.551 (14.00mm)
CM633SG332N CMC 3.3MH 520MA 2LN SMD Mentech Technology USA Inc.	590	2.80	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Signal Line	2	-	3.3 mH @ 100 kHz	520mA	360mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.374 L x 0.350 W (9.50mm x 8.90mm)	0.220 (5.60mm)

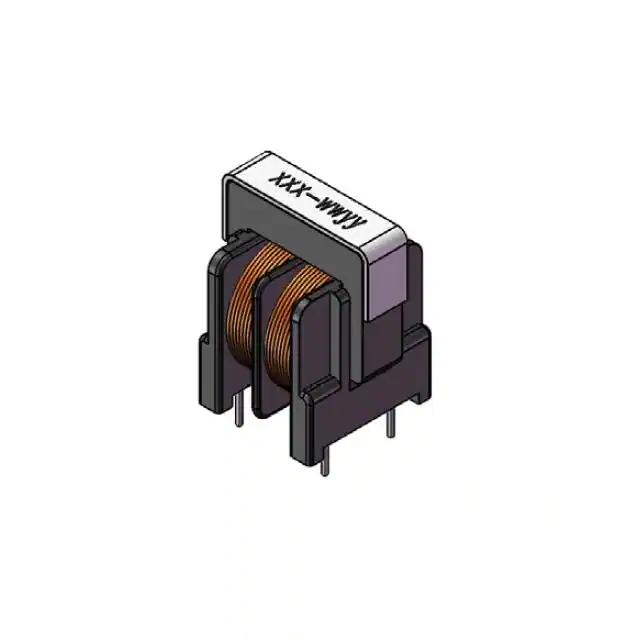

ECMT1V2023S-2R0-R CHOKE COMMON MODE 2.0MH THT Eaton - Electronics Division	3,085	2.84	- + RFQ	Datasheet	Tray	ECMT1V20	Active	Power Line	2	-	2 mH @ 1 kHz	1.5A	80mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.787 L x 0.689 W (20.00mm x 17.50mm)	0.906 (23.00mm)
ECMT1V2017H-2R0-R CHOKE COMMON MODE 2.0MH THT Eaton - Electronics Division	2,516	2.99	- + RFQ	Datasheet	Tray	ECMT1V20	Active	Power Line	2	-	2 mH @ 1 kHz	1.5A	80mOhm	-	250V	-40°C ~ 125°C	-	-	-	Through Hole	0.768 L x 0.768 W (19.50mm x 19.50mm)	0.669 (17.00mm)
CM633SG102N CMC 1MH 950MA 2LN SMD Mentech Technology USA Inc.	775	3.10	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Signal Line	2	-	1 mH @ 100 kHz	950mA	180mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.374 L x 0.350 W (9.50mm x 8.90mm)	0.220 (5.60mm)

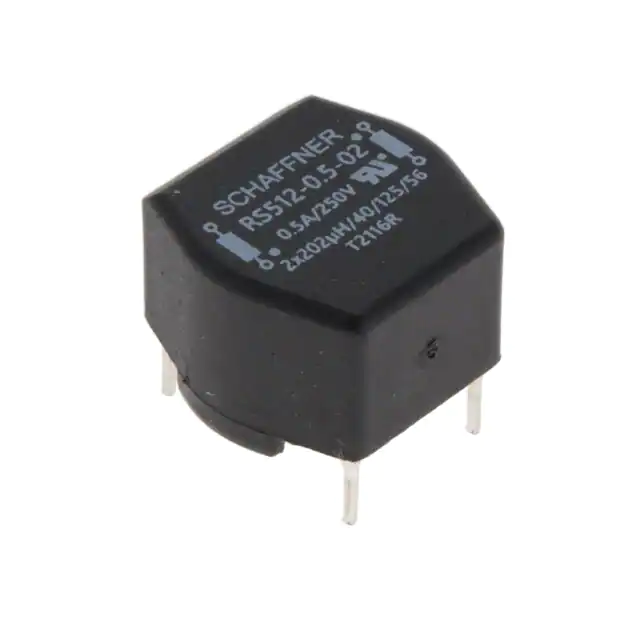

RS512-0.5-02 CMC 200UH 500MA 2LN TH Schaffner EMC Inc.	418	3.21	- + RFQ	Datasheet	Tray	RS	Active	Signal Line	2	-	200 µH @ 1 kHz	500mA (Typ)	650mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.492 (12.50mm)

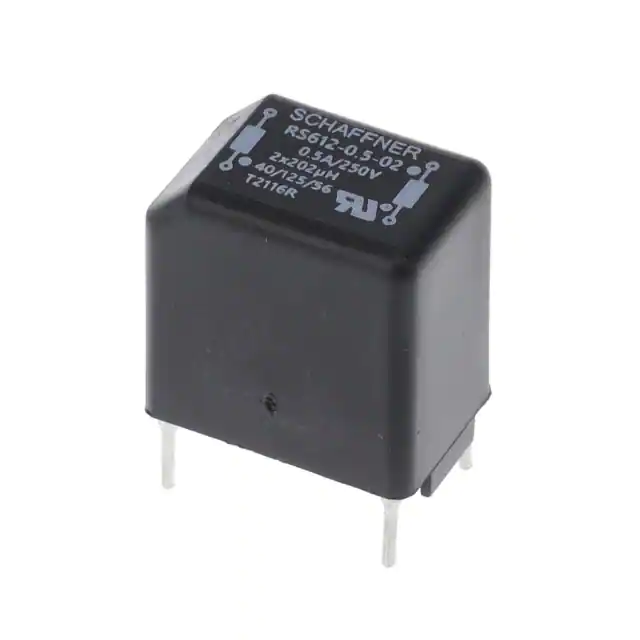

RS612-0.5-02 CMC 200UH 500MA 2LN TH Schaffner EMC Inc.	435	3.21	- + RFQ	Datasheet	Tray	RS	Active	Signal Line	2	-	200 µH @ 1 kHz	500mA (Typ)	650mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.787 (20.00mm)

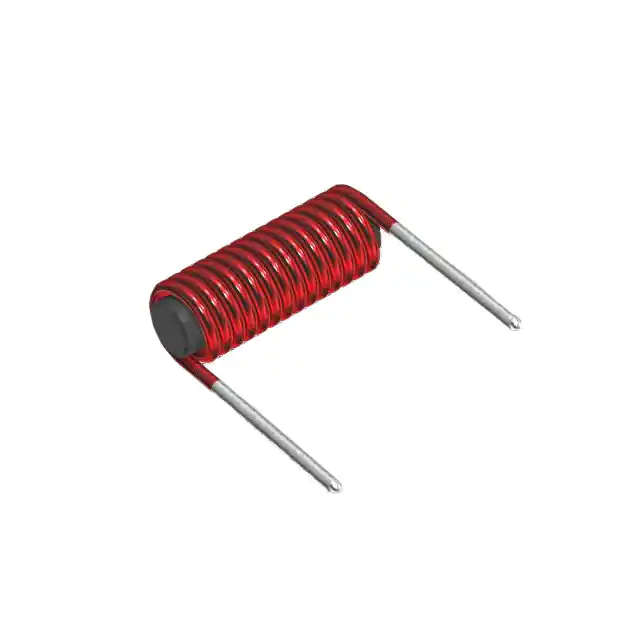

AML0820-3R7M120-S1 CHOKE COIL, AML TYPE, -40 TO +12 TDK Corporation	340	3.21	- + RFQ	Datasheet	Tray	AML	Active	Power Line	2	-	-	12A	7.7mOhm	-	-	-40°C ~ 125°C	AEC-Q200	-	-	Through Hole	0.303 Dia x 0.787 L (7.70mm x 20.00mm)	-
PG1265NLT CMC 20A 2LN SMD Pulse Electronics Power	636	4.60	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	2	-	-	20A	4.1mOhm	-	-	-40°C ~ 130°C	-	-	-	Surface Mount	1.220 L x 1.000 W (30.99mm x 25.40mm)	0.500 (12.70mm)
CM633SG222N CMC 2.2MH 750MA 2LN SMD Mentech Technology USA Inc.	895	3.22	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Signal Line	2	-	2.2 mH @ 100 kHz	750mA	300mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.374 L x 0.350 W (9.50mm x 8.90mm)	0.220 (5.60mm)
LPTC-V-0.85-5-35 COMMON MODE CHOKE TOROID 0.85MH Signal Transformer	2,926	3.24	- + RFQ	Datasheet	Tray	LPTC-V	Active	Power Line	2	-	850 µH @ 1 kHz	5A	35mOhm	-	-	-55°C ~ 125°C	-	-	-	Through Hole	0.866 Dia x 0.512 L (22.00mm x 13.00mm)	0.827 (21.00mm)

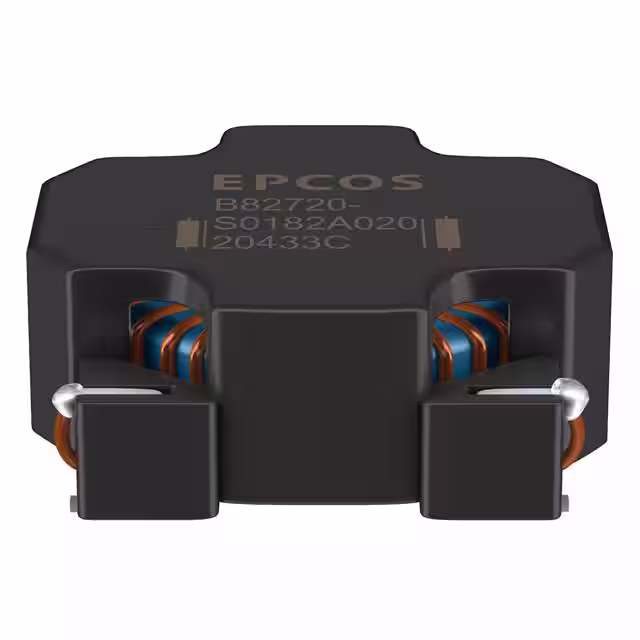

B82720S0182A020 SMD RING CORE CHOKE 0.88MH 1.8 A EPCOS - TDK Electronics	500	5.80	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82720S0	Active	Power Line	2	-	880 µH @ 100 kHz	1.8A	90mOhm	80V	48V	-	-	-	-	Surface Mount	0.500 L x 0.500 W (12.70mm x 12.70mm)	0.215 (5.46mm)
RS612-1-02 CMC 55UH 1A 2LN TH Schaffner EMC Inc.	3,324	3.27	- + RFQ	Datasheet	Tray	RS	Active	Signal Line	2	-	55 µH @ 1 kHz	1A (Typ)	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.787 (20.00mm)

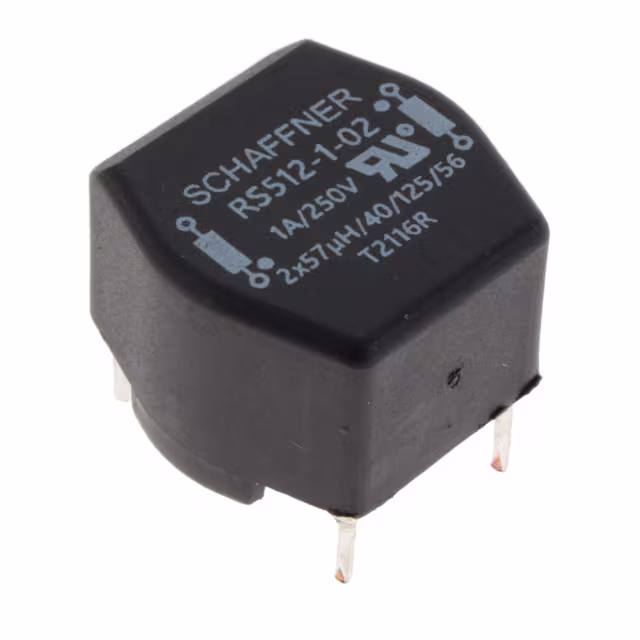

RS512-1-02 CMC 55UH 1A 2LN TH Schaffner EMC Inc.	485	3.27	- + RFQ	Datasheet	Tray	RS	Active	Signal Line	2	-	55 µH @ 1 kHz	1A (Typ)	130mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.697 L x 0.673 W (17.70mm x 17.10mm)	0.492 (12.50mm)
CMS3-12-R CMC 790UH 1.05A 2LN SMD Eaton - Electronics Division	3,071	4.98	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	CMS	Active	Power Line	2	-	790 µH @ 100 kHz	1.05A	145mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	Surface Mount	0.450 L x 0.450 W (11.43mm x 11.43mm)	0.236 (6.00mm)

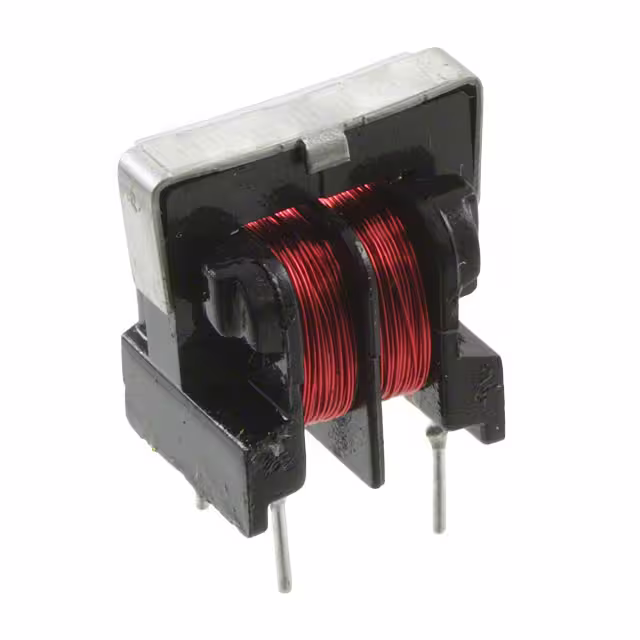

7356-V-RC CMC 22MH 270MA 2LN TH Bourns Inc.	213	3.34	- + RFQ	Datasheet	Bulk	7300	Active	-	2	-	22 mH @ 1 kHz	270mA	4Ohm	-	-	-55°C ~ 105°C	-	-	-	Through Hole	0.669 L x 0.433 W (17.00mm x 11.00mm)	0.669 (17.00mm)
CM633SG472NC CMC 4.7MH 350MA 2LN SMD Mentech Technology USA Inc.	895	3.38	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	Signal Line	2	-	4.7 mH @ 100 kHz	350mA	900mOhm	-	-	-40°C ~ 125°C	-	-	-	Surface Mount	0.374 L x 0.350 W (9.50mm x 8.90mm)	0.220 (5.60mm)

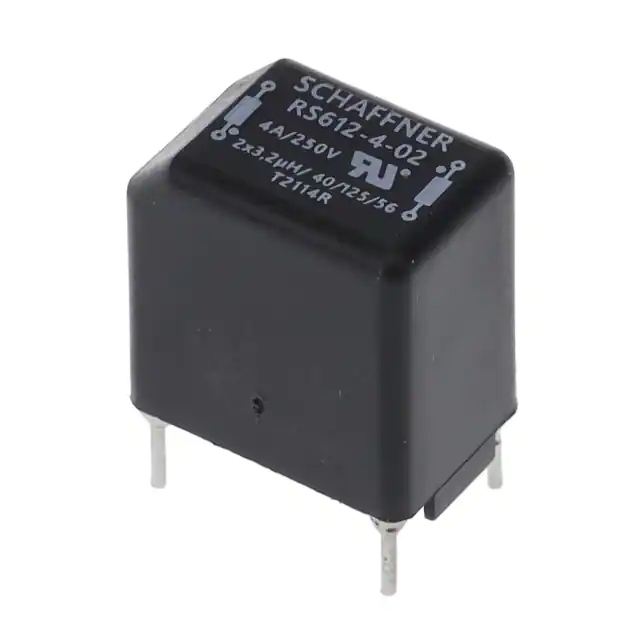

RS612-4-02 CMC 3UH 4A 2LN TH Schaffner EMC Inc.	494	3.40	- + RFQ	Datasheet	Tray	RS	Active	Signal Line	2	-	3 µH @ 1 kHz	4A (Typ)	10mOhm (Typ)	-	250V	-40°C ~ 125°C	-	UR, VDE	-	Through Hole	0.709 L x 0.492 W (18.00mm x 12.50mm)	0.787 (20.00mm)
