| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FilterType | NumberofLines | Impedance@Frequency | Inductance@Frequency | CurrentRating(Max) | DCResistance(DCR)(Max) | VoltageRating-DC | VoltageRating-AC | OperatingTemperature | Ratings | ApprovalAgency | Features | MountingType | Size/Dimension | Height(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

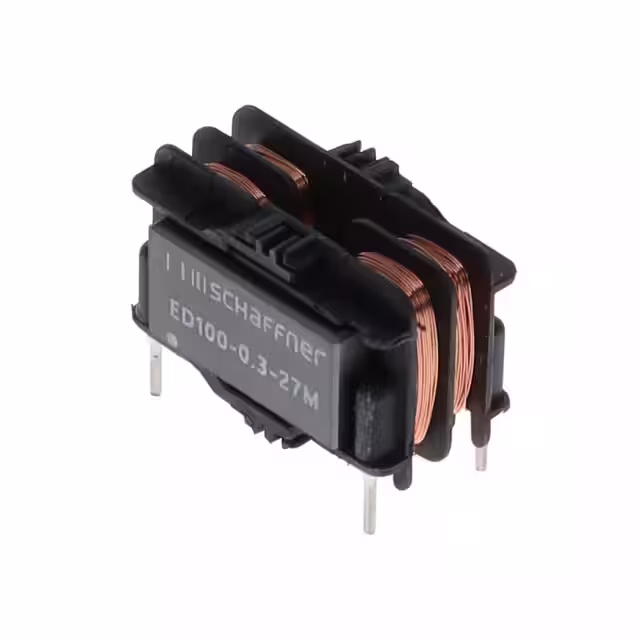

ED100-0.3-27MCOMMON MODE CHOKE |
450 | 3.40 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 300mA | 5.5Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|
ED100-0.2-40MCOMMON MODE CHOKE |
450 | 3.40 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 40 mH @ 10 kHz | 200mA | 10Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

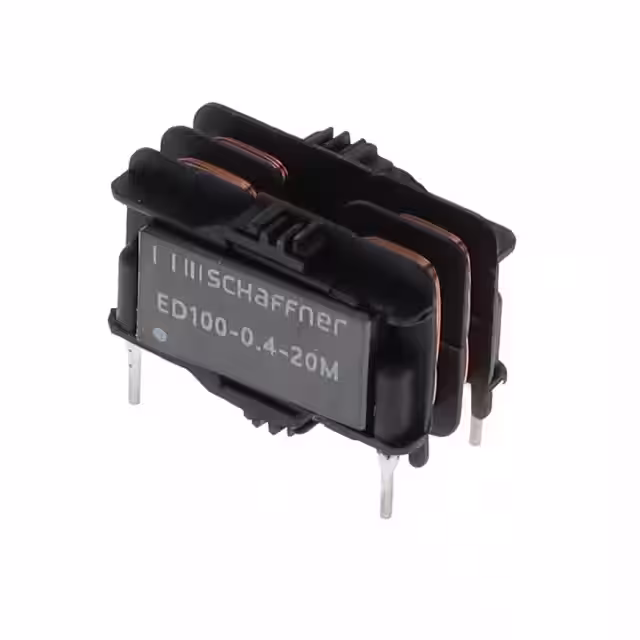

ED100-0.4-20MCOMMON MODE CHOKE |
447 | 3.40 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 20 mH @ 10 kHz | 400mA | 3.7Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

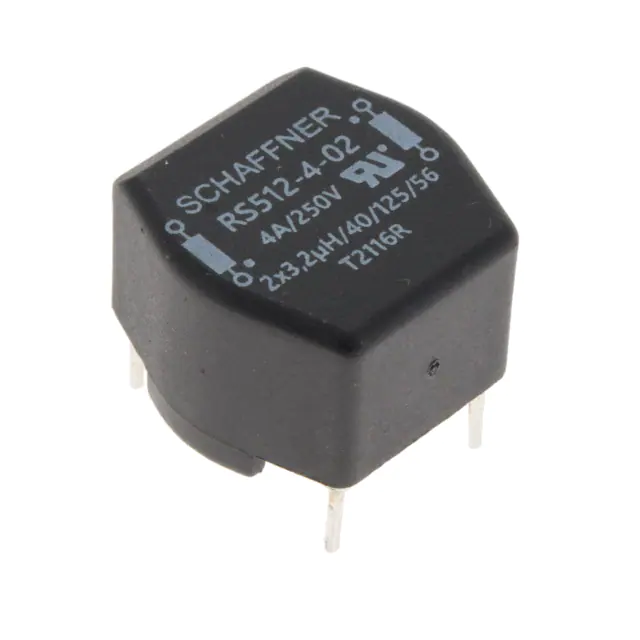

RS512-4-02CMC 3UH 4A 2LN TH |
294 | 3.40 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 3 µH @ 1 kHz | 4A (Typ) | 10mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.697 L x 0.673 W (17.70mm x 17.10mm) | 0.492 (12.50mm) |
|

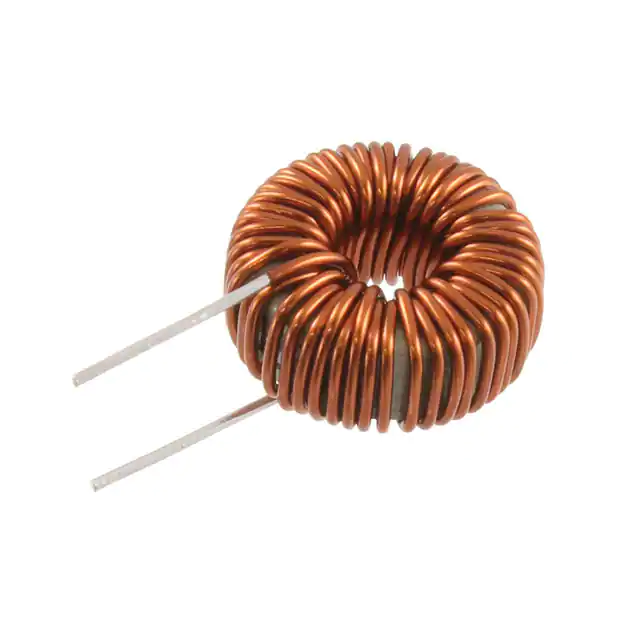

PHBC8S-0R6A0067VCMC 67UH 2A 2LN TH |
185 | 3.43 |
RFQ |
Datasheet |
Bulk | PHBC | Active | - | 2 | - | 67 µH @ 100 kHz | 2A | - | - | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.669 Dia (17.00mm) | 0.669 (17.00mm) |
|

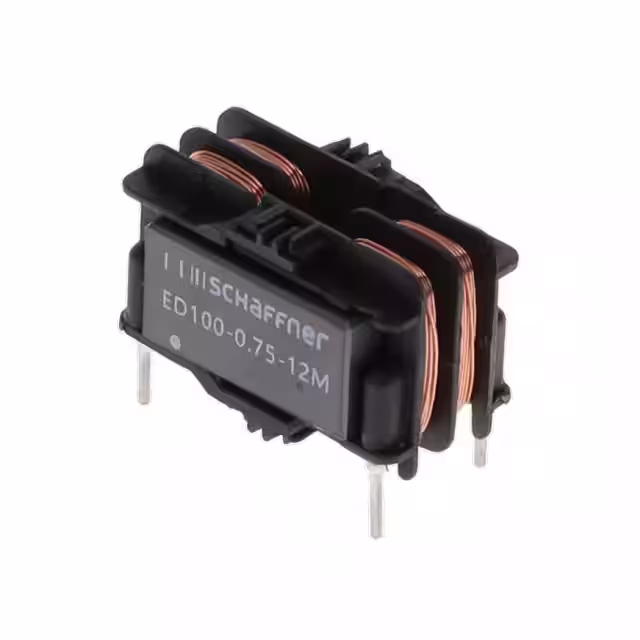

ED100-0.75-12MCOMMON MODE CHOKE |
450 | 3.46 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 12 mH @ 10 kHz | 750mA | 1.2Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

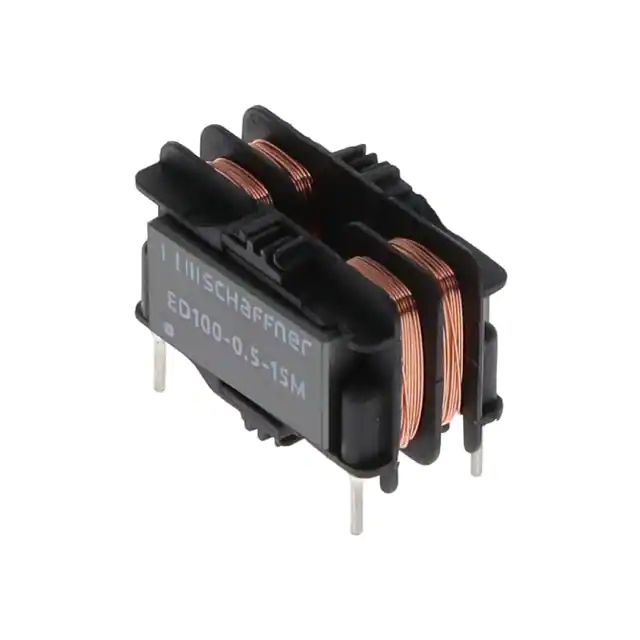

ED100-0.5-15MCOMMON MODE CHOKE |
450 | 3.46 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 2Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

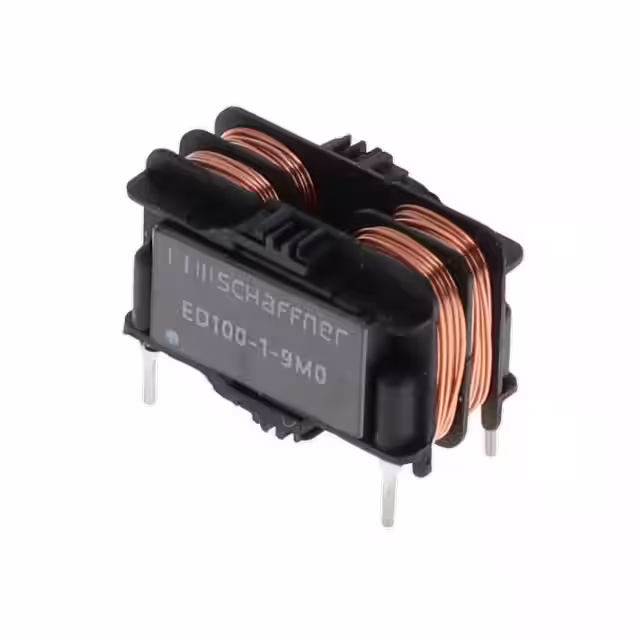

ED100-1-9M0COMMON MODE CHOKE |
450 | 3.48 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 9 mH @ 10 kHz | 1A | 600mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|
LPTC-V-6.8-2-200COMMON MODE CHOKE TOROID 6.8MH |
478 | 3.50 |
RFQ |
Datasheet |
Tray | LPTC-V | Active | Power Line | 2 | - | 6.8 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 125°C | - | - | - | Through Hole | 0.866 Dia x 0.512 L (22.00mm x 13.00mm) | 0.827 (21.00mm) |
|

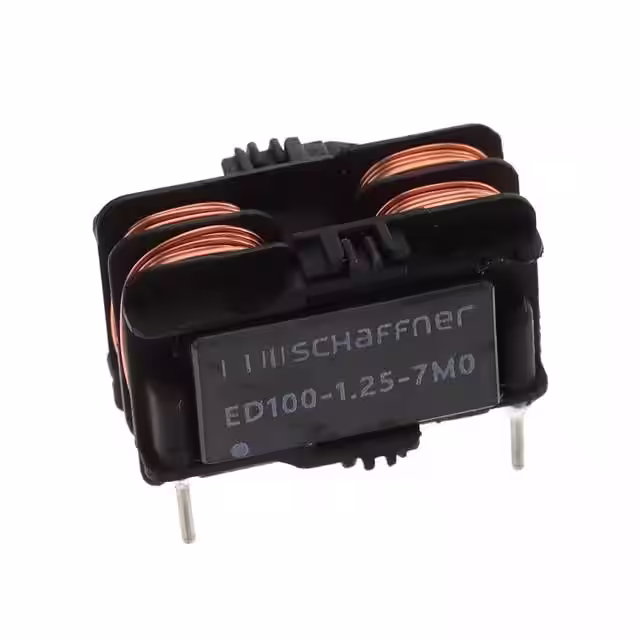

ED100-1.25-7M0COMMON MODE CHOKE |
450 | 3.51 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 7 mH @ 10 kHz | 1.25A | 400mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

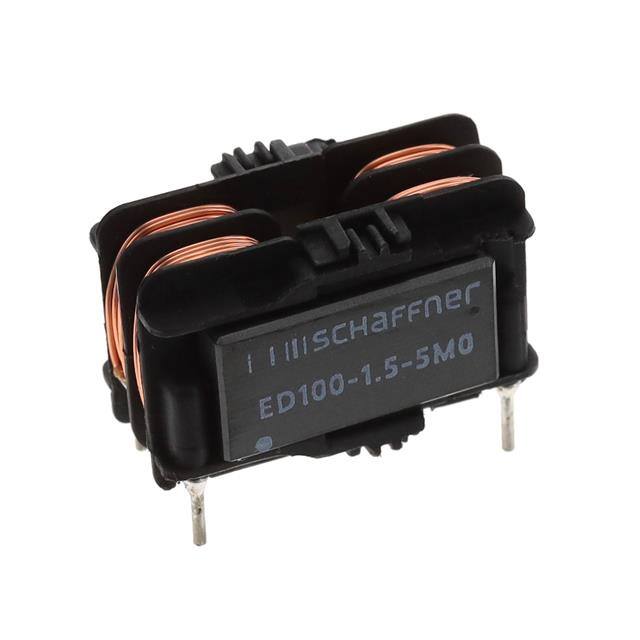

ED100-1.5-5M0COMMON MODE CHOKE |
450 | 3.56 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 5 mH @ 10 kHz | 1.5A | 300mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

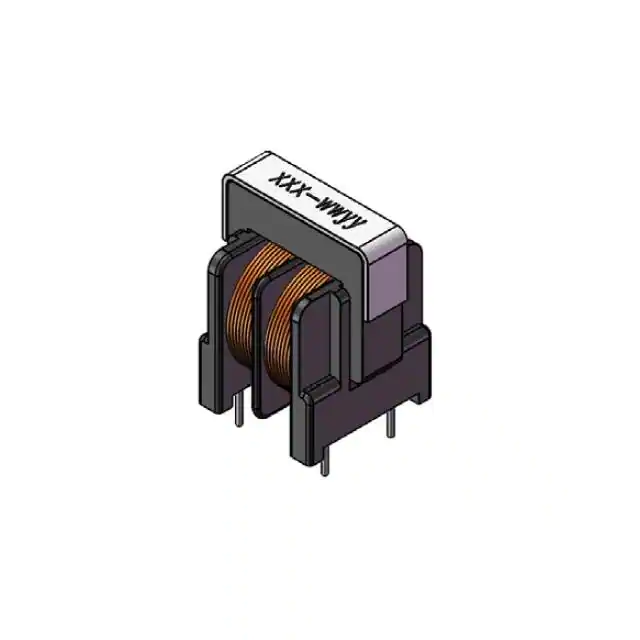

ECMT1V2429S-100-RCHOKE COMMON MODE 10.0MH THT |
744 | 3.57 |
RFQ |
Datasheet |
Tray | ECMT1V24 | Active | Power Line | 2 | - | 10 mH @ 1 kHz | 1.2A | 600mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.787 W (24.00mm x 20.00mm) | 1.142 (29.00mm) |
|
|
ECMT1V2429S-5R0-RCHOKE COMMON MODE 5.0MH THT |
732 | 3.57 |
RFQ |
Datasheet |
Tray | ECMT1V24 | Active | Power Line | 2 | - | 5 mH @ 1 kHz | 1.4A | 300mOhm | - | 250V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.787 W (24.00mm x 20.00mm) | 1.142 (29.00mm) |
|

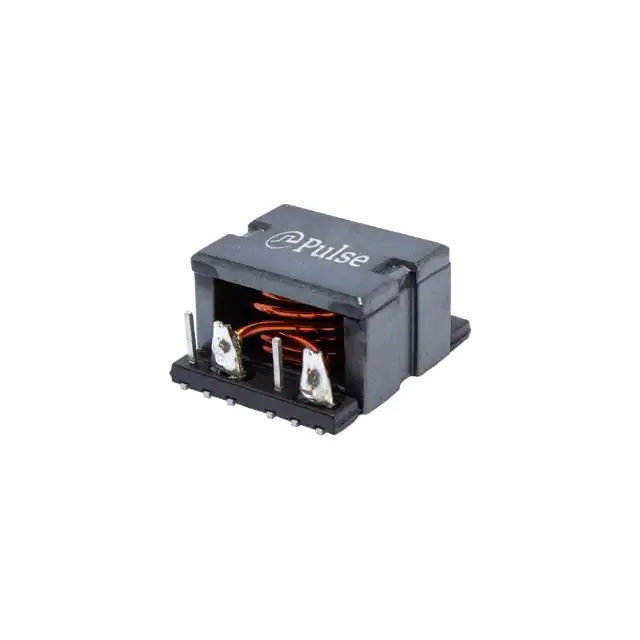

PH9407.204NLTCMC 17A 2LN 1.08KOHM SMD |
722 | 5.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PH9407 | Active | - | 2 | 1.08 kOhms @ 1.79 MHz | - | 17A | 3.5mOhm | - | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.961 L x 0.850 W (24.40mm x 21.60mm) | 0.630 (16.00mm) |
|
|
PH9407.104NLTCMC 20A 2LN 730 OHM SMD |
463 | 5.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PH9407 | Active | - | 2 | 730 Ohms @ 1.6 MHz | - | 20A | 2.5mOhm | - | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.961 L x 0.850 W (24.40mm x 21.60mm) | 0.547 (13.90mm) |
|
|
ED100-2-3M0COMMON MODE CHOKE |
450 | 3.59 |
RFQ |
Datasheet |
Box | ED100 | Active | Power Line | 2 | - | 3 mH @ 10 kHz | 2A | 200mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|

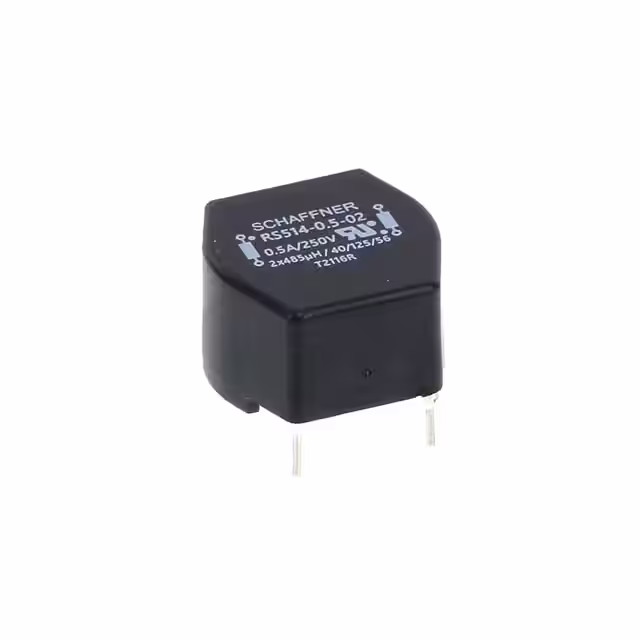

RS514-0.5-02CMC 480UH 500MA 2LN TH |
490 | 3.62 |
RFQ |
Datasheet |
Tray | RS | Active | Signal Line | 2 | - | 480 µH @ 1 kHz | 500mA (Typ) | 800mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.886 L x 0.846 W (22.50mm x 21.50mm) | 0.520 (13.20mm) |
|

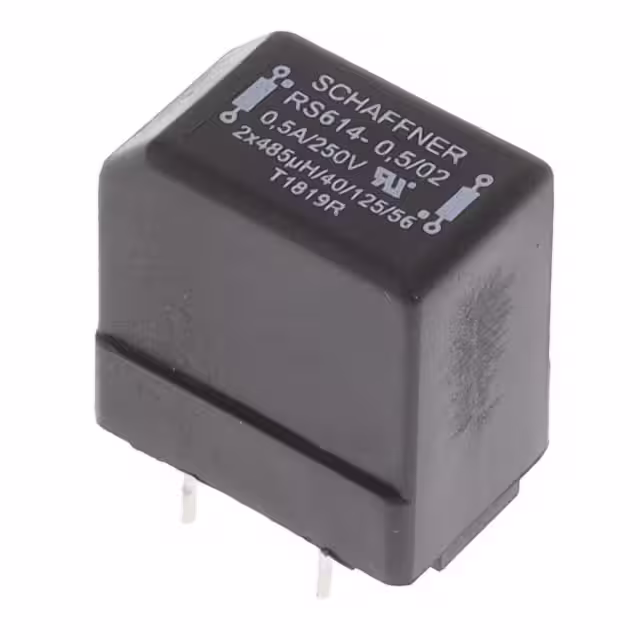

RS614-0.5-02CMC 480UH 500MA 2LN TH |
490 | 3.62 |
RFQ |
Datasheet |
Tube | RS | Active | Signal Line | 2 | - | 480 µH @ 1 kHz | 500mA (Typ) | 800mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | Through Hole | 0.906 L x 0.610 W (23.00mm x 15.50mm) | 0.984 (25.00mm) |
|
|
ED101-0.4-20MCOMMON MODE CHOKE |
450 | 3.62 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 20 mH @ 10 kHz | 400mA | 3.7Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
|
|
ED101-0.3-27MCOMMON MODE CHOKE |
450 | 3.62 |
RFQ |
Datasheet |
Box | ED101 | Active | Power Line | 2 | - | 27 mH @ 10 kHz | 300mA | 5.5Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | Through Hole | 0.945 L x 0.563 W (24.00mm x 14.30mm) | 0.610 (15.50mm) |
