Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Current-CollectorPulsed(Icm)	Vce(on)(Max)@VgeIc	Power-Max	SwitchingEnergy	InputType	GateCharge	Td(on/off)@25°C	TestCondition	ReverseRecoveryTime(trr)	OperatingTemperature	MountingType
RGT00TS65DGC13 5US SHORT-CIRCUIT TOLERANCE, 650 Rohm Semiconductor	3,278	11.30	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	85 A	150 A	2.1V @ 15V, 50A	277 W	-	Standard	94 nC	42ns/137ns	400V, 50A, 10Ohm, 15V	54 ns	-40°C ~ 175°C (TJ)	Through Hole
AFGHL50T65SQDC IGBT 650V A onsemi	2,098	11.35	- + RFQ	Datasheet	Tube	Automotive, AEC-Q101	Active	Field Stop	650 V	100 A	200 A	2.1V @ 15V, 50A	238 W	131µJ (on), 96µJ (off)	Standard	94 nC	17.6ns/94.4ns	400V, 12.5A, 4.7Ohm, 15V	-	-55°C ~ 175°C (TJ)	Through Hole
RGT80TS65DGC13 5US SHORT-CIRCUIT TOLERANCE, 650 Rohm Semiconductor	2,654	11.35	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	70 A	120 A	2.1V @ 15V, 40A	234 W	-	Standard	79 nC	34ns/119ns	400V, 40A, 10Ohm, 15V	236 ns	-40°C ~ 175°C (TJ)	Through Hole
RGWX5TS65EHRC11 HIGH-SPEED FAST SWITCHING TYPE Rohm Semiconductor	2,978	0.00	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	132 A	300 A	1.9V @ 15V, 75A	348 W	-	Standard	213 nC	59ns/243ns	400V, 37.5A, 10Ohm, 15V	100 ns	-40°C ~ 175°C (TJ)	Through Hole
RGSX5TS65EHRC11 8S SHORT-CIRCUIT TOLERANCE, 650V Rohm Semiconductor	2,927	11.75	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	114 A	225 A	2.15V @ 15V, 75A	404 W	3.44mJ (on), 1.9mJ (off)	Standard	79 nC	43ns/113ns	400V, 75A, 10Ohm, 15V	116 ns	-40°C ~ 175°C (TJ)	Through Hole
IXDR30N120D1 IGBT 1200V 50A 200W ISOPLUS247 IXYS	3,701	11.76	- + RFQ	Datasheet	Tube	-	Active	NPT	1200 V	50 A	60 A	2.9V @ 15V, 30A	200 W	4.6mJ (on), 3.4mJ (off)	Standard	120 nC	-	600V, 30A, 47Ohm, 15V	40 ns	-55°C ~ 150°C (TJ)	Through Hole
APT64GA90B2D30 IGBT 900V 117A 500W TO-247 Microchip Technology	3,394	12.17	- + RFQ	Datasheet	Tube	POWER MOS 8™	Active	PT	900 V	117 A	193 A	3.1V @ 15V, 38A	500 W	1192µJ (on), 1088µJ (off)	Standard	162 nC	18ns/131ns	600V, 38A, 4.7Ohm, 15V	-	-55°C ~ 150°C (TJ)	Through Hole
IXXH50N60C3D1 IGBT 600V 100A 600W TO247AD IXYS	3,722	12.53	- + RFQ	Datasheet	Tube	GenX3™, XPT™	Active	PT	600 V	100 A	200 A	2.3V @ 15V, 36A	600 W	720µJ (on), 330µJ (off)	Standard	64 nC	24ns/62ns	360V, 36A, 5Ohm, 15V	25 ns	-55°C ~ 175°C (TJ)	Through Hole
RGW60TS65CHRC11 HIGH-SPEED FAST SWITCHING TYPE Rohm Semiconductor	3,509	0.00	- + RFQ	Datasheet	Tube	-	Active	-	650 V	64 A	120 A	1.9V @ 15V, 30A	178 W	70µJ (on), 220µJ (off)	Standard	84 nC	37ns/91ns	400V, 15A, 10Ohm, 15V	34 ns	-40°C ~ 175°C (TJ)	Through Hole
IKQ100N60TXKSA1 IGBT TRENCH/FS 600V 160A TO247-3 Infineon Technologies	2,379	1.00	- + RFQ	Datasheet	Bulk,Tube	TrenchStop™	Active	Trench Field Stop	600 V	160 A	400 A	2V @ 15V, 100A	714 W	3.1mJ (on), 2.5mJ (off)	Standard	610 nC	30ns/290ns	400V, 100A, 3.6Ohm, 15V	230 ns	-40°C ~ 175°C (TJ)	Through Hole
RGW80TS65CHRC11 HIGH-SPEED FAST SWITCHING TYPE Rohm Semiconductor	3,369	0.00	- + RFQ	Datasheet	Tube	-	Active	-	650 V	81 A	160 A	1.9V @ 15V, 40A	214 W	120µJ (on), 340µJ (off)	Standard	110 nC	43ns/145ns	400V, 20A, 10Ohm, 15V	33 ns	-40°C ~ 175°C (TJ)	Through Hole
IXGH48N60B3D1 IGBT 600V 300W TO247 IXYS	3,707	9.50	- + RFQ	Datasheet	Tube	GenX3™	Active	PT	600 V	-	280 A	1.8V @ 15V, 32A	300 W	840µJ (on), 660µJ (off)	Standard	115 nC	22ns/130ns	480V, 30A, 5Ohm, 15V	100 ns	-55°C ~ 150°C (TJ)	Through Hole

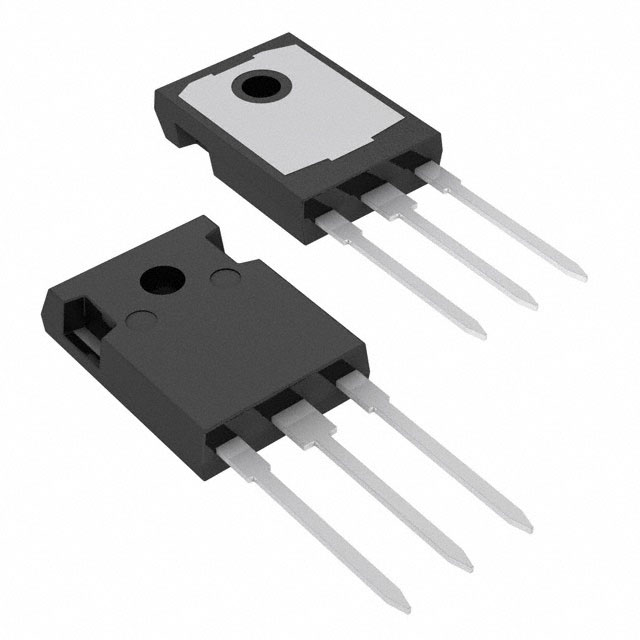

STGWA60V60DWFAG AUTOMOTIVE-GRADE TRENCH FIELD-ST STMicroelectronics	2,426	13.39	- + RFQ	Datasheet	Tube	Automotive, AEC-Q101	Active	Trench Field Stop	600 V	80 A	240 A	2.3V @ 15V, 60A	375 W	1.02mJ (on), 370µJ (off)	Standard	314 nC	35ns/190ns	400V, 60A, 4.7Ohm, 15V	200 ns	-55°C ~ 175°C (TJ)	Through Hole
IXGH40N120C3D1 IGBT 1200V 75A 380W TO247 IXYS	2,222	13.72	- + RFQ	Datasheet	Tube	GenX3™	Active	PT	1200 V	75 A	180 A	4.4V @ 15V, 30A	380 W	1.8mJ (on), 550µJ (off)	Standard	142 nC	17ns/130ns	600V, 30A, 3Ohm, 15V	100 ns	-55°C ~ 150°C (TJ)	Through Hole
RGW00TS65CHRC11 HIGH-SPEED FAST SWITCHING TYPE Rohm Semiconductor	3,012	0.00	- + RFQ	Datasheet	Tube	-	Active	-	650 V	96 A	200 A	1.9V @ 15V, 50A	254 W	180µJ (on), 420µJ (off)	Standard	141 nC	49ns/180ns	400V, 25A, 10Ohm, 15V	33 ns	-40°C ~ 175°C (TJ)	Through Hole
APT100GN60LDQ4G IGBT 600V 229A 625W TO264 Microchip Technology	3,780	14.95	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	600 V	229 A	300 A	1.85V @ 15V, 100A	625 W	4.75mJ (on), 2.675mJ (off)	Standard	600 nC	31ns/310ns	400V, 100A, 1Ohm, 15V	-	-55°C ~ 175°C (TJ)	Through Hole
STGYA120M65DF2 TRENCH GATE FIELD-STOP IGBT, M S STMicroelectronics	3,865	15.67	- + RFQ	Datasheet	Tube	M	Active	NPT, Trench Field Stop	650 V	160 A	360 A	1.95V @ 15V, 120A	625 W	1.8mJ (on), 4.41mJ (off)	Standard	420 nC	66ns/185ns	400V, 120A, 4.7Ohm, 15V	202 ns	-55°C ~ 175°C (TJ)	Through Hole
IXGH25N160 IGBT 1600V 75A 300W TO247 IXYS	3,330	16.00	- + RFQ	Datasheet	Tube	-	Active	NPT	1600 V	75 A	200 A	4.7V @ 20V, 100A	300 W	-	Standard	84 nC	-	-	-	-55°C ~ 150°C (TJ)	Through Hole
IXGH50N120C3 IGBT 1200V 75A 460W TO247 IXYS	2,021	16.07	- + RFQ	Datasheet	Tube	GenX3™	Active	PT	1200 V	75 A	250 A	4.2V @ 15V, 40A	460 W	2.2mJ (on), 630µJ (off)	Standard	196 nC	20ns/123ns	600V, 40A, 2Ohm, 15V	-	-55°C ~ 150°C (TJ)	Through Hole
APT35GP120BG IGBT 1200V 96A 543W TO247 Microchip Technology	3,984	16.64	- + RFQ	Datasheet	Tube	POWER MOS 7®	Active	PT	1200 V	96 A	140 A	3.9V @ 15V, 35A	543 W	750µJ (on), 680µJ (off)	Standard	150 nC	16ns/94ns	600V, 35A, 5Ohm, 15V	-	-55°C ~ 150°C (TJ)	Through Hole
