Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Current-CollectorPulsed(Icm)	Vce(on)(Max)@VgeIc	Power-Max	SwitchingEnergy	InputType	GateCharge	Td(on/off)@25°C	TestCondition	ReverseRecoveryTime(trr)	OperatingTemperature	MountingType
IKZ75N65EH5XKSA1 IGBT 650V 90A W/DIO TO247-4 Infineon Technologies	2,515	1.00	- + RFQ	Datasheet	Bulk,Tube	TrenchStop™ 5	Active	-	650 V	90 A	300 A	2.1V @ 15V, 75A	395 W	680µJ (on), 430µJ (off)	Standard	166 nC	26ns/347ns	400V, 37.5A, 10Ohm, 15V	58 ns	-40°C ~ 175°C (TJ)	Through Hole
IKZ75N65ES5XKSA1 IGBT TRENCH 650V 80A TO247-4 Infineon Technologies	2,536	1.00	- + RFQ	Datasheet	Bulk,Tube	TrenchStop™ 5	Active	Trench	650 V	80 A	300 A	1.75V @ 15V, 75A	395 W	1.3mJ (on), 1.5mJ (off)	Standard	164 nC	46ns/405ns	400V, 15A, 22.3Ohm, 15V	72 ns	-40°C ~ 175°C (TJ)	Through Hole

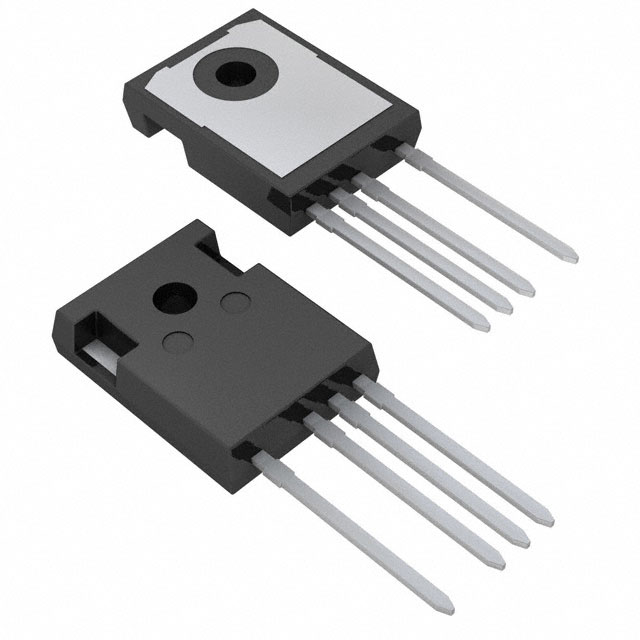

STGW100H65FB2-4 TRENCH GATE FIELD-STOP, 650 V, 1 STMicroelectronics	3,774	8.85	- + RFQ		Tube	HB2	Active	Trench Field Stop	650 V	145 A	300 A	1.8V @ 15V, 100A	441 W	1.06mJ (on), 1.14mJ (off)	Standard	288 nC	23ns/141ns	400V, 100A, 3.3Ohm, 15V	-	-55°C ~ 175°C (TJ)	Through Hole
RGW00TS65EHRC11 HIGH-SPEED FAST SWITCHING TYPE Rohm Semiconductor	3,137	0.00	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	96 A	200 A	1.9V @ 15V, 50A	254 W	-	Standard	141 nC	50ns/183ns	400V, 25A, 10Ohm, 15V	90 ns	-40°C ~ 175°C (TJ)	Through Hole
RGSX5TS65HRC11 8S SHORT-CIRCUIT TOLERANCE, 650V Rohm Semiconductor	2,077	8.93	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	114 A	225 A	2.15V @ 15V, 75A	404 W	3.32mJ (on), 1.9mJ (off)	Standard	79 nC	43ns/113ns	400V, 75A, 10Ohm, 15V	-	-40°C ~ 175°C (TJ)	Through Hole
IKW75N60H3FKSA1 IGBT 600V 80A 428W TO247-3 Infineon Technologies	2,975	9.01	- + RFQ	Datasheet	Tube	TrenchStop®	Active	Trench Field Stop	600 V	80 A	225 A	2.3V @ 15V, 75A	428 W	3mJ (on), 1.7mJ (off)	Standard	470 nC	31ns/265ns	400V, 75A, 5.2Ohm, 15V	190 ns	-40°C ~ 175°C (TJ)	Through Hole

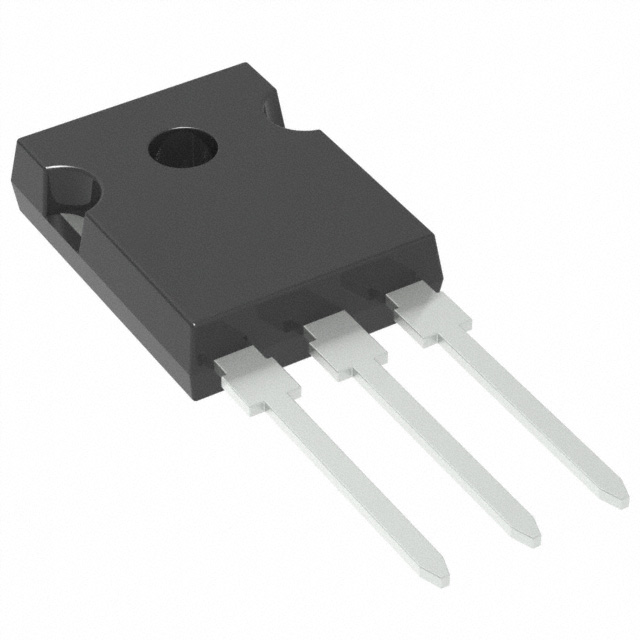

RGT40TS65DGC13 5US SHORT-CIRCUIT TOLERANCE, 650 Rohm Semiconductor	2,643	9.32	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	40 A	60 A	2.1V @ 15V, 20A	144 W	-	Standard	40 nC	22ns/75ns	400V, 20A, 10Ohm, 15V	58 ns	-40°C ~ 175°C (TJ)	Through Hole
AIKW50N65DH5XKSA1 IC DISCRETE 650V TO247-3 Infineon Technologies	2,290	9.66	- + RFQ	Datasheet	Tube	Automotive, AEC-Q101, Trenchstop™ 5	Active	Trench	650 V	-	150 A	2.1V @ 15V, 50A	270 W	490µJ (on), 140µJ (off)	Standard	1018 nC	21ns/156ns	400V, 25A, 12Ohm, 15V	-	-40°C ~ 175°C (TJ)	Through Hole
APT80GA60B IGBT 600V 143A 625W TO247 Microchip Technology	3,519	9.75	- + RFQ	Datasheet	Tube	-	Active	PT	600 V	143 A	240 A	2.5V @ 15V, 47A	625 W	840µJ (on), 751µJ (off)	Standard	230 nC	23ns/158ns	400V, 47A, 4.7Ohm, 15V	-	-55°C ~ 150°C (TJ)	Through Hole
RGSX5TS65EGC11 8S SHORT-CIRCUIT TOLERANCE, 650V Rohm Semiconductor	2,727	9.79	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	114 A	225 A	2.15V @ 15V, 75A	404 W	3.44mJ (on), 1.9mJ (off)	Standard	79 nC	43ns/113ns	400V, 75A, 10Ohm, 15V	116 ns	-40°C ~ 175°C (TJ)	Through Hole
FGY60T120SQDN IGBT 1200V 60A UFS onsemi	3,079	9.84	- + RFQ	Datasheet	Tube	-	Active	-	1200 V	120 A	240 A	1.95V @ 15V, 60A	517 W	-	Standard	311 nC	52ns/296ns	600V, 60A, 10Ohm, 15V	-	-55°C ~ 175°C (TJ)	Through Hole
IKZ75N65EL5XKSA1 IGBT 650V 100A TO247-4 Infineon Technologies	3,212	1.00	- + RFQ	Datasheet	Bulk,Tube	TrenchStop™ 5	Active	-	650 V	100 A	300 A	1.35V @ 15V, 75A	536 W	1.57mJ (on), 3.2mJ (off)	Standard	436 nC	120ns/275ns	400V, 75A, 23Ohm, 15V	59 ns	-40°C ~ 175°C (TJ)	Through Hole
RGT50TS65DGC13 5US SHORT-CIRCUIT TOLERANCE, 650 Rohm Semiconductor	2,824	9.89	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	48 A	75 A	2.1V @ 15V, 25A	174 W	-	Standard	49 nC	27ns/88ns	400V, 25A, 10Ohm, 15V	58 ns	-40°C ~ 175°C (TJ)	Through Hole
IXGT30N120B3D1 IGBT 1200V 300W TO268 IXYS	2,483	10.41	- + RFQ	Datasheet	Tube	GenX3™	Active	PT	1200 V	-	150 A	3.5V @ 15V, 30A	300 W	3.47mJ (on), 2.16mJ (off)	Standard	87 nC	16ns/127ns	960V, 30A, 5Ohm, 15V	100 ns	-55°C ~ 150°C (TJ)	Surface Mount
FGH75T65SQDNL4 650V/75 FAST IGBT FSIII T onsemi	3,944	10.41	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	200 A	200 A	2.1V @ 15V, 75A	375 W	1.25mJ (on), 1.26mJ (off)	Standard	152 nC	44ns/208ns	400V, 75A, 10Ohm, 15V	134 ns	-55°C ~ 175°C (TJ)	Through Hole
RGT60TS65DGC13 5US SHORT-CIRCUIT TOLERANCE, 650 Rohm Semiconductor	2,269	10.51	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	55 A	90 A	2.1V @ 15V, 30A	194 W	-	Standard	58 nC	29ns/100ns	400V, 30A, 10Ohm, 15V	58 ns	-40°C ~ 175°C (TJ)	Through Hole
APT35GN120L2DQ2G IGBT 1200V 94A 379W TO264 Microchip Technology	2,949	10.78	- + RFQ	Datasheet	Tube	-	Active	NPT, Trench Field Stop	1200 V	94 A	105 A	2.1V @ 15V, 35A	379 W	2.315mJ (off)	Standard	220 nC	24ns/300ns	800V, 35A, 2.2Ohm, 15V	-	-55°C ~ 150°C (TJ)	Through Hole
RGSX5TS65DHRC11 8S SHORT-CIRCUIT TOLERANCE, 650V Rohm Semiconductor	3,514	10.91	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	650 V	114 A	225 A	2.15V @ 15V, 75A	404 W	3.32mJ (on), 1.9mJ (off)	Standard	79 nC	43ns/113ns	400V, 75A, 10Ohm, 15V	114 ns	-40°C ~ 175°C (TJ)	Through Hole
APT50GN120B2G IGBT 1200V 134A 543W TO-247 Microchip Technology	2,758	11.17	- + RFQ	Datasheet	Tube	-	Active	NPT, Trench Field Stop	1200 V	134 A	150 A	2.1V @ 15V, 50A	543 W	4495µJ (off)	Standard	315 nC	28ns/320ns	800V, 50A, 2.2Ohm, 15V	-	-55°C ~ 150°C (TJ)	Through Hole
STGWA40H120DF2 TRENCH GATE IGBT TO247 PKG STMicroelectronics	2,764	11.29	- + RFQ	Datasheet	Tube	-	Active	Trench Field Stop	1200 V	80 A	160 A	2.6V @ 15V, 40A	468 W	1mJ (on), 1.32mJ (off)	Standard	158 nC	18ns/152ns	600V, 40A, 10Ohm, 15V	488 ns	-55°C ~ 175°C (TJ)	Through Hole
