Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
APT75GT120JRDQ3 IGBT MOD 1200V 97A 480W ISOTOP Microchip Technology	2,131	46.61	- + RFQ	Datasheet	Tube	Thunderbolt IGBT®	Active	NPT	Single	1200 V	97 A	480 W	3.7V @ 15V, 75A	200 µA	5.1 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
MUBW15-12A6K IGBT MODULE 1200V 19A 90W E1 IXYS	2,431	46.77	- + RFQ	Datasheet	Box	-	Active	NPT	Three Phase Inverter with Brake	1200 V	19 A	90 W	3.4V @ 15V, 15A	600 µA	600 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
A1P25S12M3-F IGBT MOD 1200V 25A 197W ACEPACK1 STMicroelectronics	3,764	50.28	- + RFQ		Tray	-	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	197 W	2.45V @ 15V, 25A	100 µA	1.55 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
A1P50S65M2 IGBT MOD 650V 50A 208W ACEPACK1 STMicroelectronics	3,527	50.28	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Three Phase Inverter	650 V	50 A	208 W	2.3V @ 15V, 50A	100 µA	4.15 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
A1P35S12M3 IGBT MOD 1200V 35A 250W ACEPACK1 STMicroelectronics	2,342	56.25	- + RFQ		Tray	-	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	250 W	2.45V @ 15V, 35A	100 µA	2.154 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS50R12W2T7B11BOMA1 IGBT MOD 1200V 50A Infineon Technologies	3,127	60.80	- + RFQ	Datasheet	Bulk,Tray	EasyPACK™	Active	Trench Field Stop	Full Bridge	1200 V	50 A	20 mW	1.5V @ 15V, 50A (Typ)	7.9 µA	11.1 nF @ 25 V	Standard	No	-40°C ~ 175°C	Chassis Mount

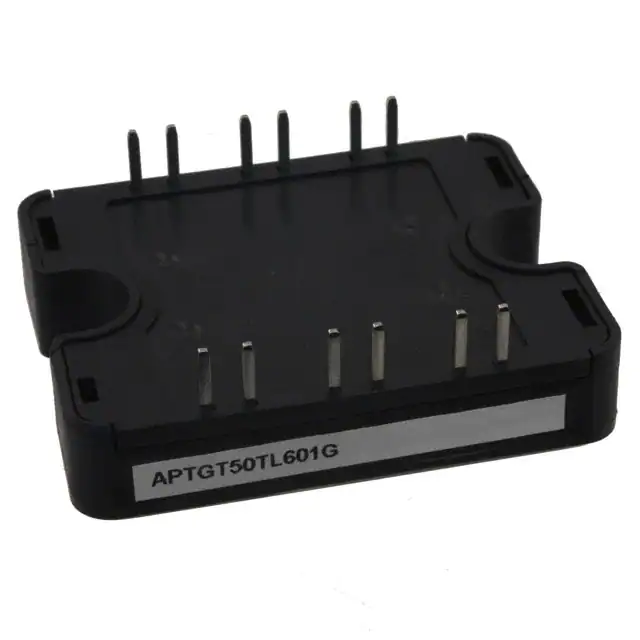

APTGT50TL601G IGBT MODULE 600V 80A 176W SP1 Microchip Technology	2,699	66.47	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Level Inverter	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount

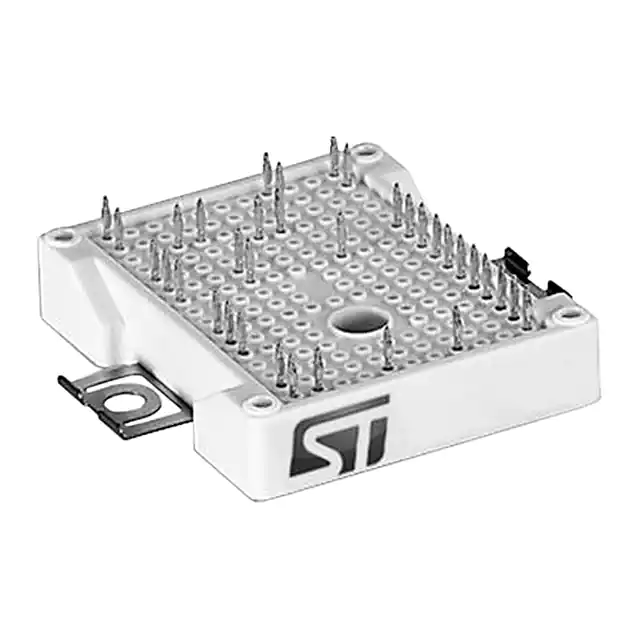

A2C50S65M2 IGBT MOD 650V 50A 208W ACEPACK2 STMicroelectronics	2,612	69.88	- + RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Three Phase Inverter with Brake	650 V	50 A	208 W	2.3V @ 15V, 50A	100 µA	4.15 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

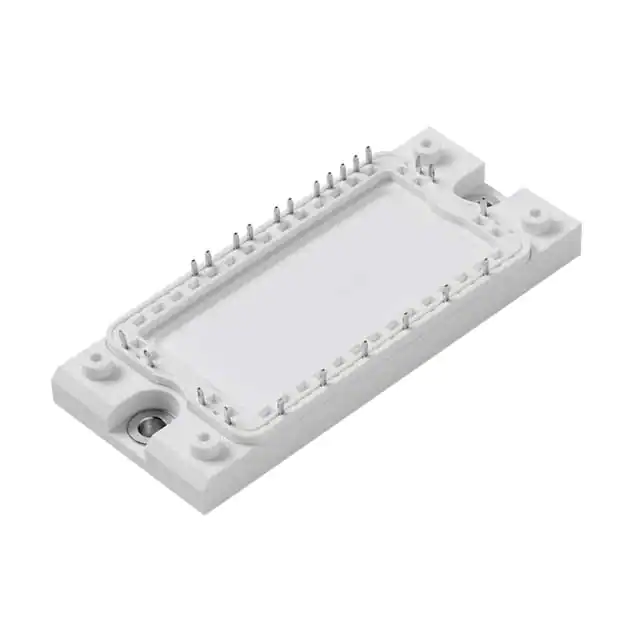

MIXA40WB1200TED IGBT MODULE 1200V 60A 195W E2 IXYS	3,678	79.92	- + RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter with Brake	1200 V	60 A	195 W	2.1V @ 15V, 35A	2.1 mA	-	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
MWI15-12A7 IGBT MODULE 1200V 30A 140W E2 IXYS	3,242	82.46	- + RFQ	Datasheet	Box	-	Active	NPT	Three Phase Inverter	1200 V	30 A	140 W	2.6V @ 15V, 15A	900 µA	1 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
A2P75S12M3 IGBT MOD 1200V 75A ACEPACK2 STMicroelectronics	2,556	86.82	- + RFQ		Tray	-	Active	Trench Field Stop	Three Phase Inverter	1200 V	75 A	454.5 W	2.3V @ 15V, 75A	100 µA	4.7 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

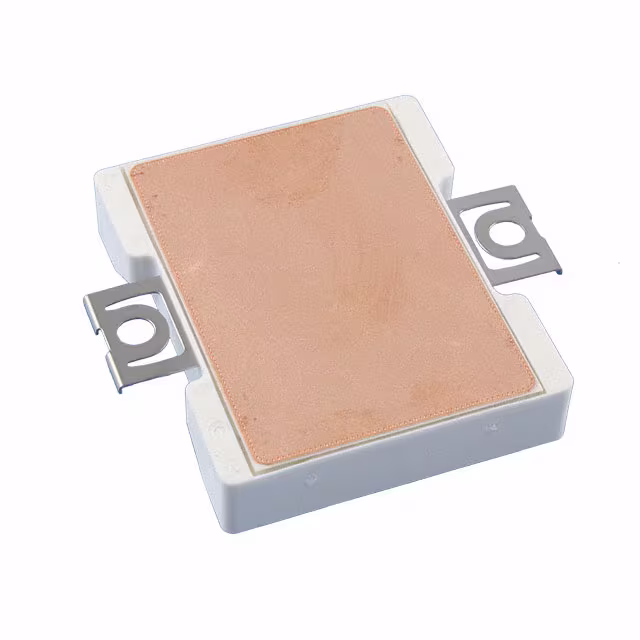

FS100R12W2T7B11BOMA1 IGBT MOD 1200V 100A 20MW EASY Infineon Technologies	3,744	89.02	- + RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Single	1200 V	100 A	20 mW	1.50V @ 15V, 100A	9 µA	-	Standard	Yes	-40°C ~ 175°C	Chassis Mount

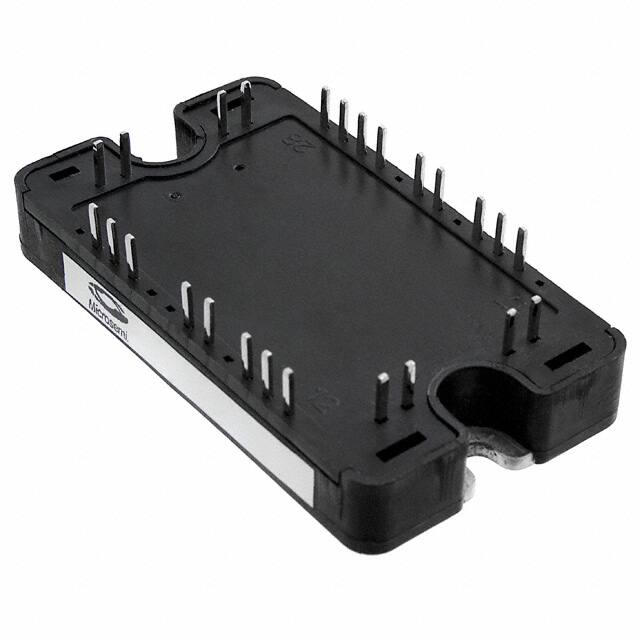

APTGT100H60T3G IGBT MODULE 600V 150A 340W SP3 Microchip Technology	3,052	103.71	- + RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FF150R17KE4HOSA1 MODULE IGBT 1700V AG-62MM-1 Infineon Technologies	2,026	146.70	- + RFQ	Datasheet	Tray	C	Active	Trench Field Stop	2 Independent	1700 V	150 A	-	2.3V @ 15V, 150A	1 mA	12 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FP10R06W1E3BOMA1 IGBT MODULE 600V 16A 68W Infineon Technologies	2,532	37.00	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	600 V	16 A	68 W	2V @ 15V, 10A	1 mA	550 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP50R12KE3BOSA1 IGBT MOD 1200V 75A 280W Infineon Technologies	2,977	1.00	- + RFQ	Datasheet	Bulk,Tray	-	Active	NPT	Single	1200 V	75 A	280 W	2.15V @ 15V, 50A	5 mA	3.5 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
FS75R12KE3GBOSA1 IGBT MOD 1200V 100A 355W Infineon Technologies	3,466	162.42	- + RFQ	Datasheet	Bulk,Tray	-	Active	-	Three Phase Inverter	1200 V	100 A	355 W	2.15V @ 15V, 75A	5 mA	5.3 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
FP15R12W1T4B3BOMA1 IGBT MOD 1200V 28A 130W Infineon Technologies	2,808	41.29	- + RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	28 A	130 W	2.25V @ 15V, 15A	1 mA	890 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount

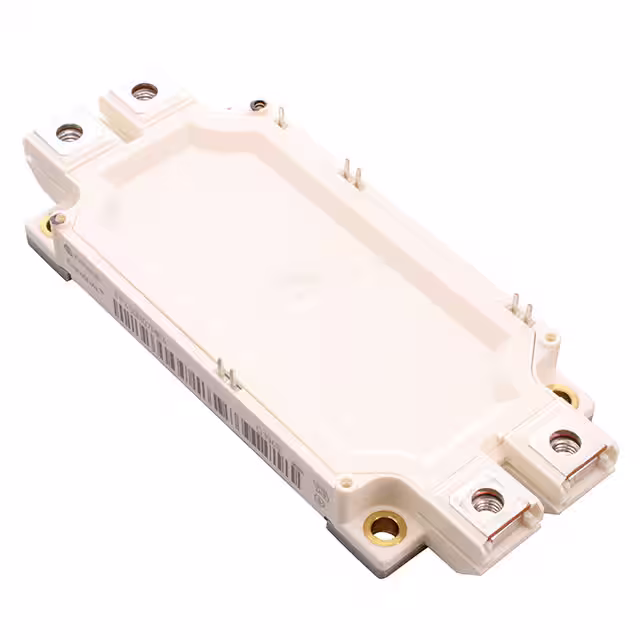

FF450R07ME4BOSA1 GBT MODULE 650V 450A Infineon Technologies	3,106	181.54	- + RFQ		Tray	EconoDUAL™ 3	Active	Trench Field Stop	2 Independent	650 V	450 A	20 mW	1.95V @ 15V, 450A	1 mA	27.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FZ400R17KE3HOSA1 IGBT MOD 1700V 620A 2250W Infineon Technologies	3,109	186.34	- + RFQ	Datasheet	Tray	C	Active	Trench Field Stop	Single	1700 V	620 A	2250 W	2.45V @ 15V, 400A	3 mA	36 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
